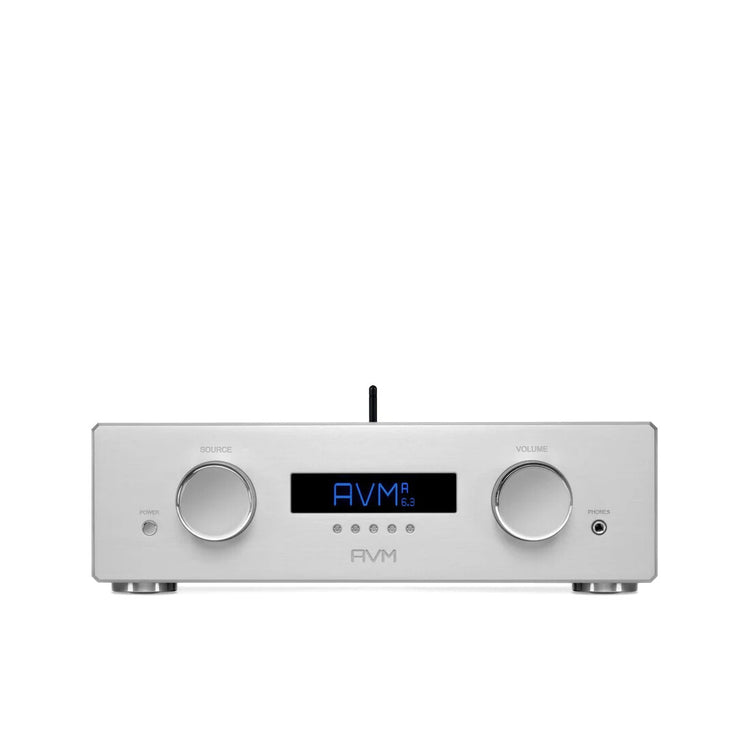

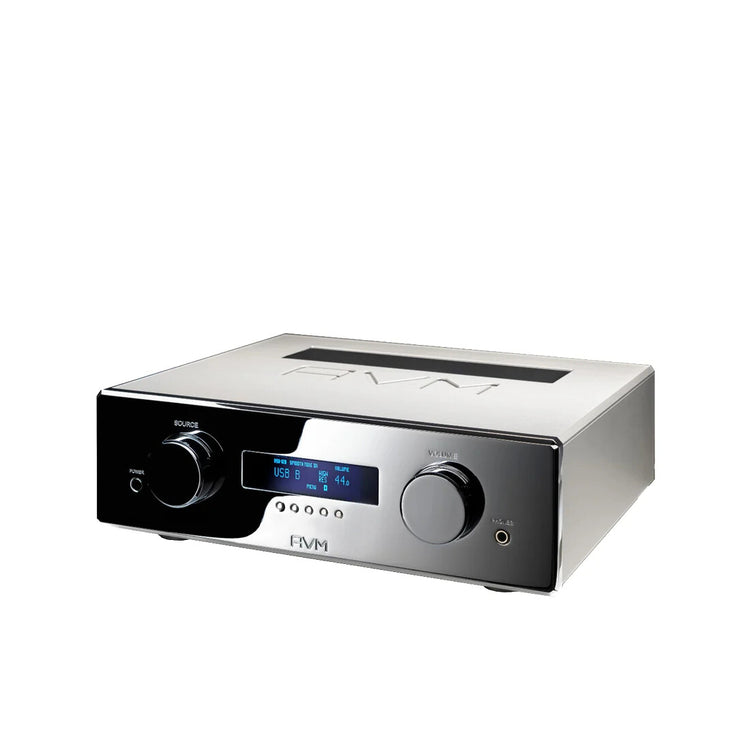

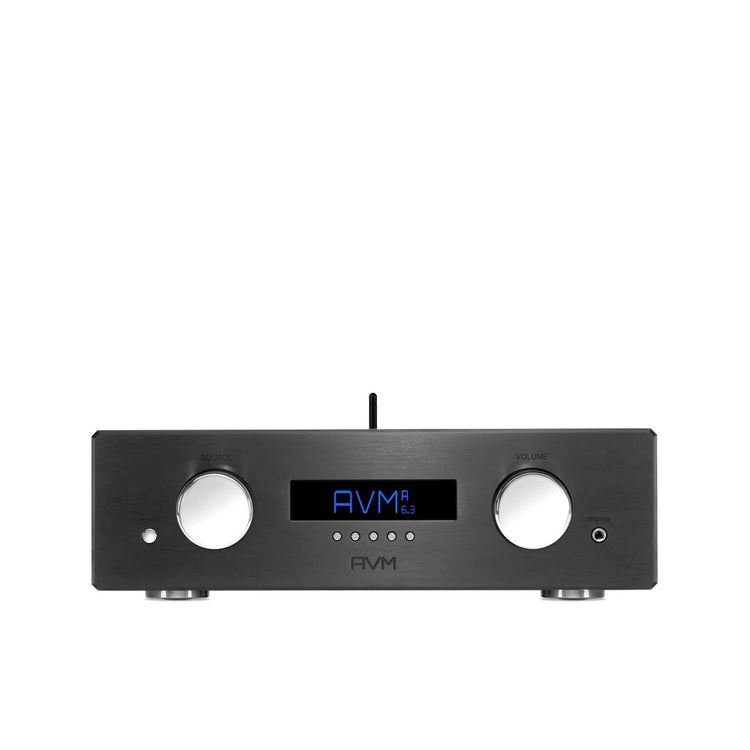

AVM A 6.3

Erlesene OVATION Transistor-Technologie
2 x 200 W [8Ω] / 2 x 330 W [4Ω]

Class A/AB high current MOS-FET technology adopted from the OVATION SA 6.3 Stereo Amplifier

20 MOS-FET transistors per channel deliver 180 Ampere max.

Power amp supply with 1000 VA torodial transformer

4 separate power supplies: mains, processor unit, Silent power supply for für input circuit left & right

Consistent dual-mono design eliminates avoids mutual interferences between channels

Analog & true balanced input stages, fully DC-coupled

2 Variable pre-stage outputs (XLR & RCA/Cinch), 1 Fix Line Out (RCA/Cinch)

Speakers A/B (separately switchable) with ultra stable loudspeaker terminals

5 High Level Inputs: 1 x XLR Balanced + 4 x RCA Unbalanced

5 Digital Inputs: 1 x RCA Coax, 2 x TOSLINK Opto, 1 x USB with up to 384kHz/32bit & DSD128 (via USB)

Bluetooth 4.2

Signal-sensitive inputs switches on A 8.3 / A 6.3 with incoming signal (1 x Analog RCA, 1 x Digital Coax, 1 x Digital Opto)

Prepared for optional ARC Module

Home Theater / AV Bypass

2 x Trigger Out (10V)

Tone control incl. parametric loudness & bypass function

Separate Class-A headphone amplifier with 6,3 mm jack

Connector for external IR receiver

Large, blue luminescent graphic display

Comprehensive menu functions (adjustable input sensitivity, individual input naming and much more)

Includes full aluminium RC 3 remote control

22 kg, Delivered in rugged AVM OVATION flight case

Analogeingänge:
1 x XLR, 4 x Cinch

Digitaleingänge:
2 x S/PDIF Coax, 2 x S/PDIF Optisch, 1 x USB B

Analogausgänge:
1 x Line/Fix Out XLR, 1 x Line/Fix Out Cinch, 1 x Pre/Var Out Cinch

Ausgangsleistung:
2 x 330 W [4Ω]

Kopfhörerausgang:
Class-A 6,35 mm

Lautsprecherausgänge:
2 Paar

DSD:
DSD128 (5,6 MHz) via USB B

Eingänge:
Analog Cinch, Analog XLR, Digital Coax, Digital Optisch, USB B
Ausgänge
Analog Cinch, Analog XLR, Kopfhörer, Lautsprecher, Line/Fix Out, Pre/Var Out

Klangregelung:
Balance, Bass, Treble, skalierbare Loudness

Trigger-Ausgänge:
2 x 3,5 mm

Röhrenstufe:
A 8.3: OVATION 803 T

Bluetooth:
Bluetooth (5.0 Standard)

Power Consumption:
1500 W max /

Mitgelieferte Fernbedienung:
RC 3 Aluminium-Fernbedienung

Optionale Fernbedienungen:
RC 8 Fernbedienung

Finish:
Aluminium Silber, Aluminium Schwarz, Cellini Chrom

Produktmaße
355 x 430 x 130 mm (T x B x H)

Produktgewicht:
22 kg

Produktlinie:
OVATION
