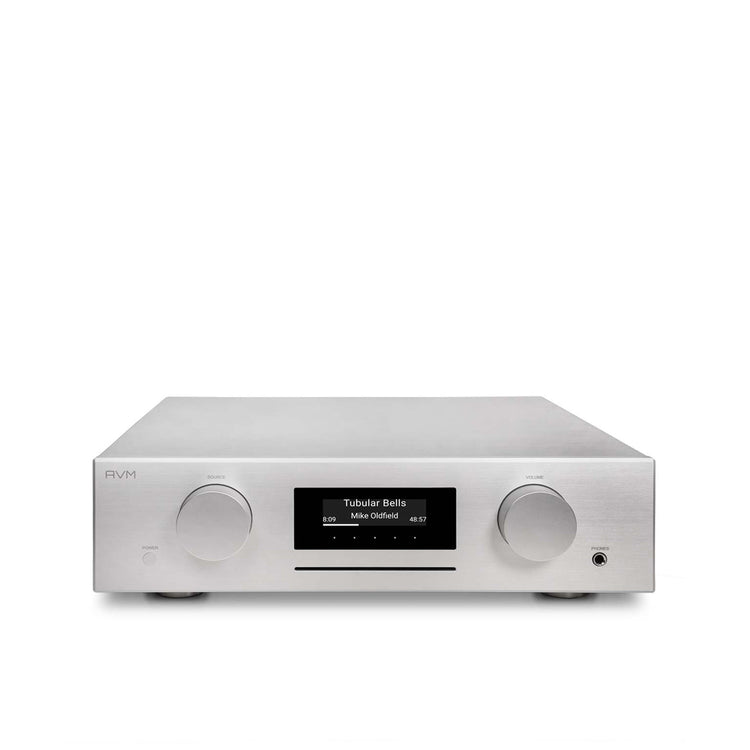

AVM CS 3.3

Im CS 3.3 arbeitet komplett als reines Transistor Gerät. Alle übrigen Anschluss- und Leistungsdaten entsprechen denen im CS 5.3. Augenscheinlichstes Unterscheidungsmerkmal ist der geschlossene, gebürstete Aluminiumgehäusedeckel.

EVOLUTION CS 5.3 und CS 3.3 in Stichworten

-All-in-One Streaming CD Receiver with 2 x 350 W
-Speaker A & B
-X-Stream Engine® for HiRes streaming incl. DSD, controllable over RC X APP
-Prepared for Spotify, QOBUZ, TIDAL Connect, Webradio (upgradeable)
-High performance phono input and switchable with complete adjustment possibilities MM & MC in the personal set-up menu (CS HMI or with the RC X APP)
-HDMI (ARC) Input
-2 digital inputs (SPDIF coax & opt.)
-USB A for external harddrives (NTFS & FAT)
3 RCA + 1 XLR line inputs, switchable as signal sensitive inputs, switchable as Hometheatre Thruput
-Bluetooth 5.0, Airplay 2/1, ROON ready
AVM multiroom function
-2 Digital outputs (SPDIF, opt.), also switchable to variable volume
-Headphone output 6,3mm on the front panel with dedicated headphone amp
-Pure CD Drive with Slot-in (Red-Book)
-Digital signal conversion with selected Double-Quad DAC for max. 384/32 PCM (ESS 9028PRO) and/or DSD 256
-Tone control and parametric loudness with bypass-function (also over RC X APP)
-Dimmable white graphic display with touchpoint sensoric and proximity sensor
-Numerous menu functions (adjustable input sensitivity, individual naming of inputs and many more)
-Minimal stand-by power consumption (APD)
-Compact size: 43mm x 12mm x 350mm (WHD)
-Housing versions: Hand brushed aluminium silver or black or as CELLINI version with chrome front panel (additional charges apply)
-Trigger in, ext. IR Sensor, 2 x Trigger out

Verstärkungsfaktor:
30

Klirrfaktor:
< 0,005%

Störabstand:
> 95dB

Eingangsempfindlichkeit (2x350W, 4Ω):
1,2V

Frequenzgang CS 5.3 (-3dB):
< 5Hz bis > 35kHz

Frequenzgang CS 3.3 (-3dB):
0Hz bis > 80kHz

Ausgangsleistung:
2 x 350W [4 Ω] / 2 x 180W [8 Ω]
