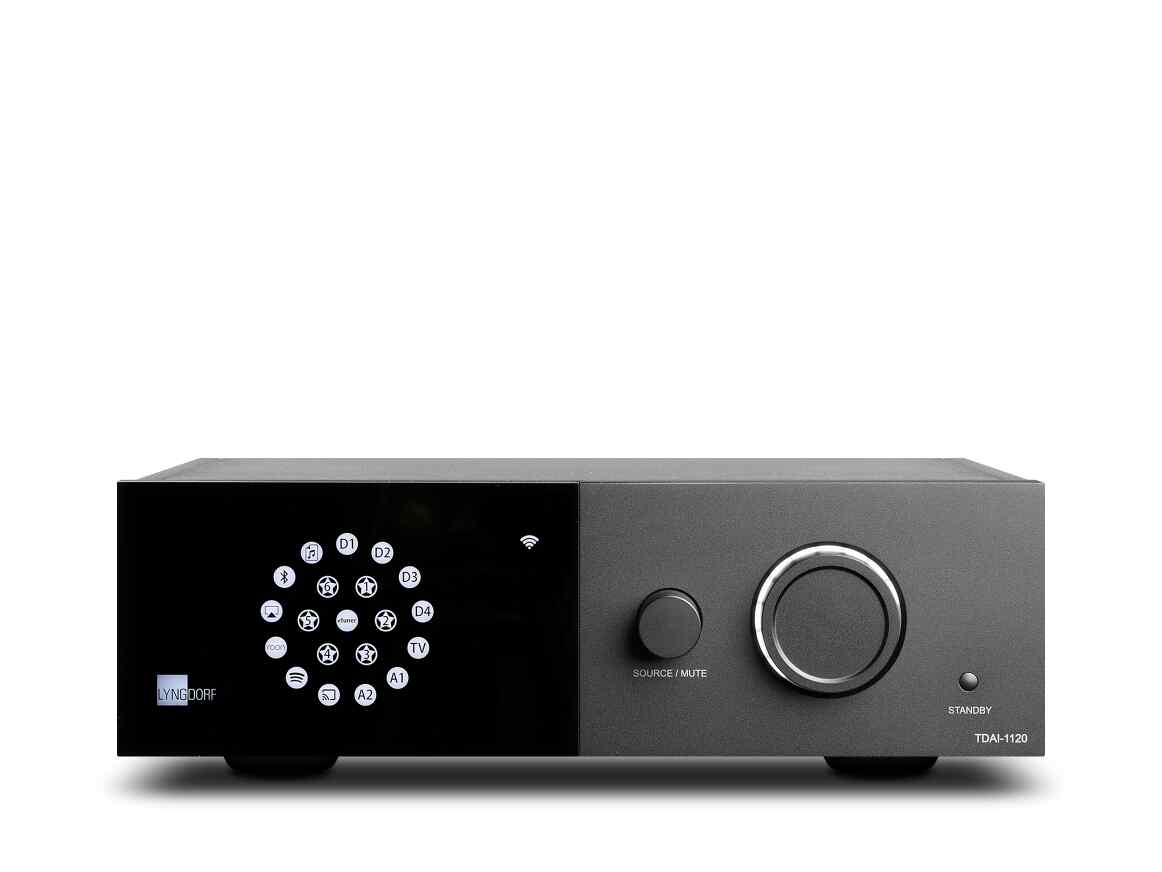

Description: 2-channel streaming amplifier
Power rating: 2 x 120 W RMS @ 4Ohm / 2 x 60 W RMS @ 8Ohm

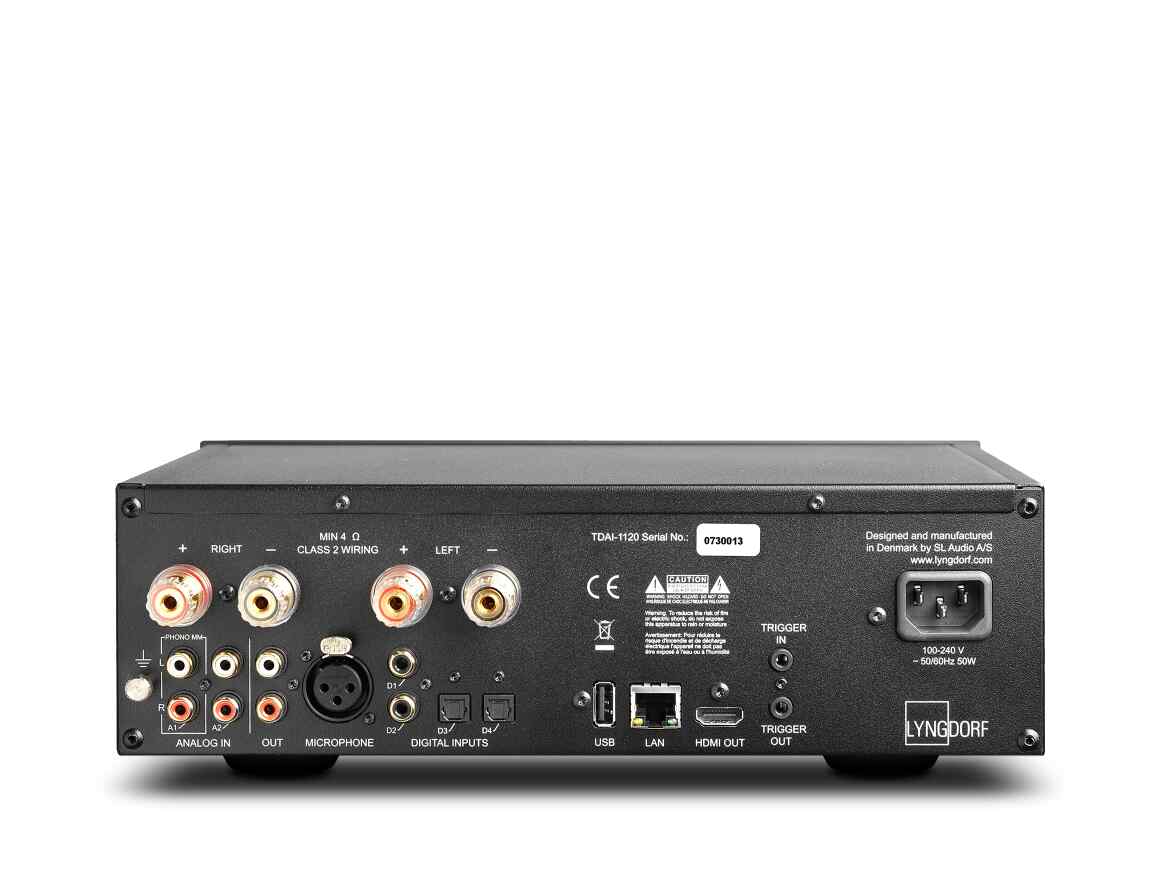

Digital inputs: 2 x Coaxial (≤192kHz/24bit)
(Asynchronous) 2 x Optical (≤96 kHz/24bit)
1 x HDMI eARC (≤24 bit/192 kHz)
Analog inputs: 1 x Phono Single Ended RCA (RIAA / 47kOhm 100pF)
1 x Analog Single Ended RCA (Max level: 4.0V = 0dBFS)
1 x Microphone input (XLR) for RoomPerfect™ calibration
Analog output: 1 x Stereo Analog RCA (75ohm-Max output level 4 Vrms)
Audio specifications: Frequency Response: ±0,5dB from 20 to 20,000 Hz
Total Harmonic Distortion: 0.05% max from 20 to 20,000 Hz
THD-N 1w/4ohm 0,04%
Media player: Internet Radio (vTuner), Spotify Connect, Roon Ready, DLNA Support (uPnP),
AirPlay2, Chromecast built-in, Bluetooth, Local file playback (USB devices)
Network connections: Ethernet, Wi-Fi (802.11 n/ac)
Control interfaces: Web-interface for setup and media player
Remote application for IOS and Android
IP control
1 x DC trigger input / 1 x DC trigger output
1 x RJ45 Ethernet LAN connector
1 x USB A connector for SW update and media storage
Accessories included: RoomPerfect™ microphone, microphone stand, and cable
Optional accessory: IR remote control
Speaker connections: Screw terminals
Speaker safety: Overload protection, AC-loss detection, pop-limiting circuit on analog output
Stand-by power consumption: <0.5W in Deep Sleep
1.2W in network mode, CEC disabled
1.7 W in network mode, CEC enabled (Active HDMI Module)
Mains voltage: Automatic voltage selection: 100-240V AC
Active Power Factor Correction, Sinus shaped input current
Highly effective resonant power supply
Heat output: On/Idle: 18W/62BTU - Music/Average: 43W/147BTU
Placement options: Freestanding
Optional 3U Rack Mounting Kit (1 amplifier)
Optional 7U Rack Mounting Kit (4 amplifiers)
Dimensions (H x W x D): 10.1 x 30 x 26 cm (including connectors)
3.98 x 11.8 x 10.3 inches (including connectors and dials)
Weight: 3.3 kg / 7.3 lb
Finish: Anodized aluminum, matte black
Item no: 900010380
