Keces

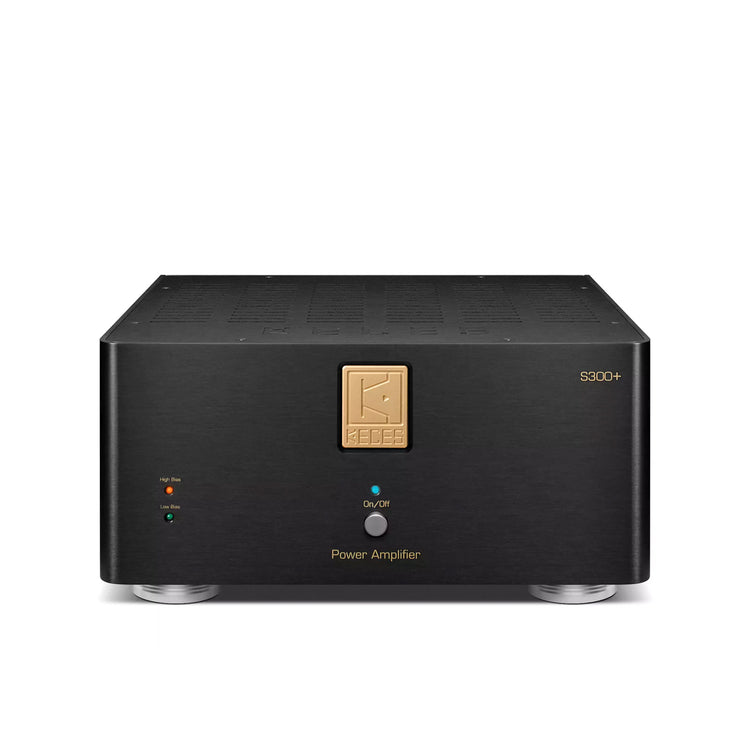

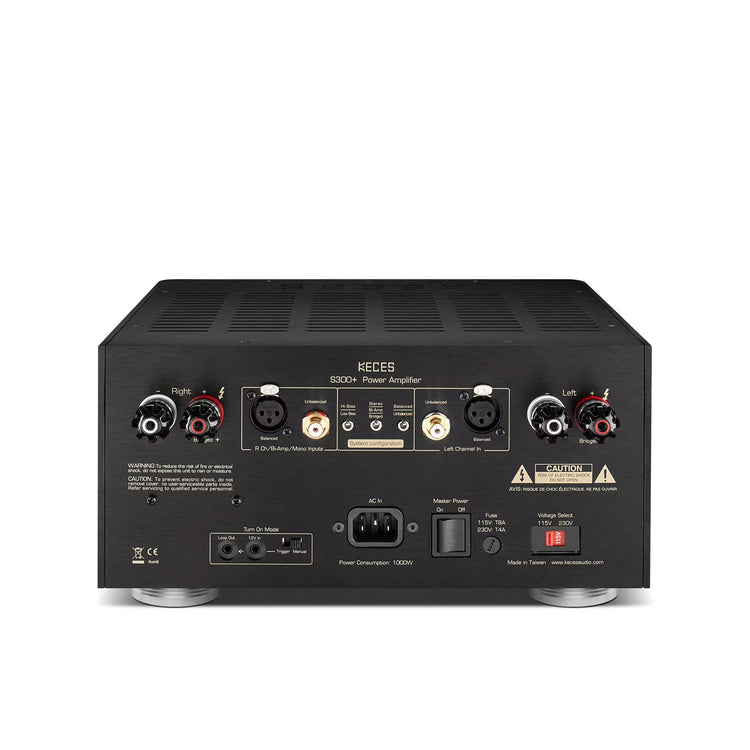

S-300

Normaler Preis
€3.190,00
Normaler Preis
Verkaufspreis
€3.190,00

Stückpreis inkl. MwSt. zzgl. Versandkosten

Lieferzeit 2-3 Tage

Gebraucht gegen neu

Machen Sie den Artikel den Sie haben, zu dem den Sie wünschen.
Jetzt anfragen

Endstufe

Produktbeschreibung

• 2 OZ Copper PCB for Power Layer, Ground Layer and Signal Layer to get high damping factor and get more sound quality.
• 130 watts x2 @ 8 ohm continuous output power / Maximum output power 240 watts x2 @ 8 ohm
• 225 watts x2 @ 4 ohm continuous output power / Maximum output power 300 watts x2 @ 4 ohm
• 410 watts x1 @ 8 ohm in bridge mode
• High bias Class A/AB operation
• 5 watts per channel of pure Class A power at high bias setting
• 45 amperes peak current per channel
• Stable with speaker impedance dips below 2 Ω
• Operation model selection: Stereo, Bi-Amp, Bridged
• Dual-mono design
• Direct-coupled signal path, no capacitors or inductors
• DC Servo and relay protection circuits
• JFET input stage, MOSFET driver stage
• 1.2 kVA toroid power transformer with independent secondary windings for each channel
• Independent power supplies for left & right channel input stages, driver. stages, output stages
• 65,600 µF Rubycon filter capacitors for output stages
• Automatic turn-on by 12 V trigger
• Neutrik locking XLR input connectors
• Heavy-duty 24K gold-plated RCA input jacks
• Heavy-duty 24k gold-plated 5-way speaker binding posts
• AC turn-on inrush surge protection
• Overload/Over Temperature Protection
• The 4mm thickness of the aluminum chassis to effective to blocks
• EMI/RFI interference

Technische Details

Leistung
130 watts x2 @ 8 ohm continuous output power
Maximum 240 watts x2 @ 8 ohm
225 watts x2 @ 4 ohm continuous output power
Maximum 300 watts x2 @ 4 ohm
BTL: 410W x1 @ 8 ohm

Leistungsbandbreite
5Hz – 160kHz, +0/-3dB
10Hz – 20kHz, +0/-0.1dB

Spitzenleistung
45 A Peak pro Kanal

Total harmonic distortion
(THD+N)
<0.04% at full power
<0.004% at 60 watts

S / N R
110dB, input shorted, IHF A-weighted
101dB, input shorted, unweighted

Eingangsempfindlichkeit
Unbalanced: 1.6V
Balanced: 0.8V per leg

Eingangsimpedanz
Unbalanced: 50 kΩ
Balanced: 100 kΩ

Eingangsspannung
220V-240V, 50Hz

Leistungsaufnahme
Standby: 0.5 Watt
Maximum: 1000 Watts

Gehäuse
Vollaluminum

Abmessungen: (B x T x H)
300x279x133mm

Gewicht
14 kg
