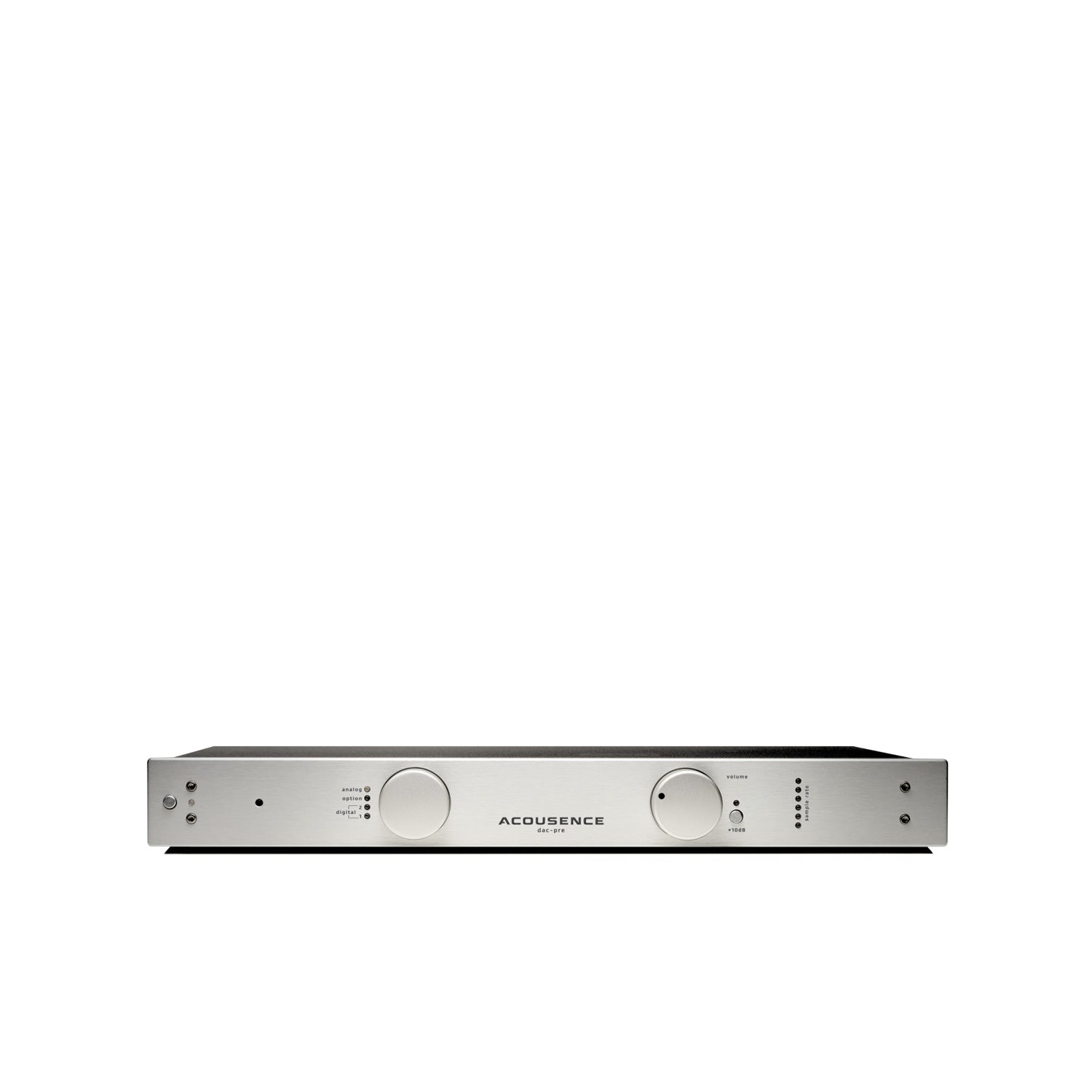

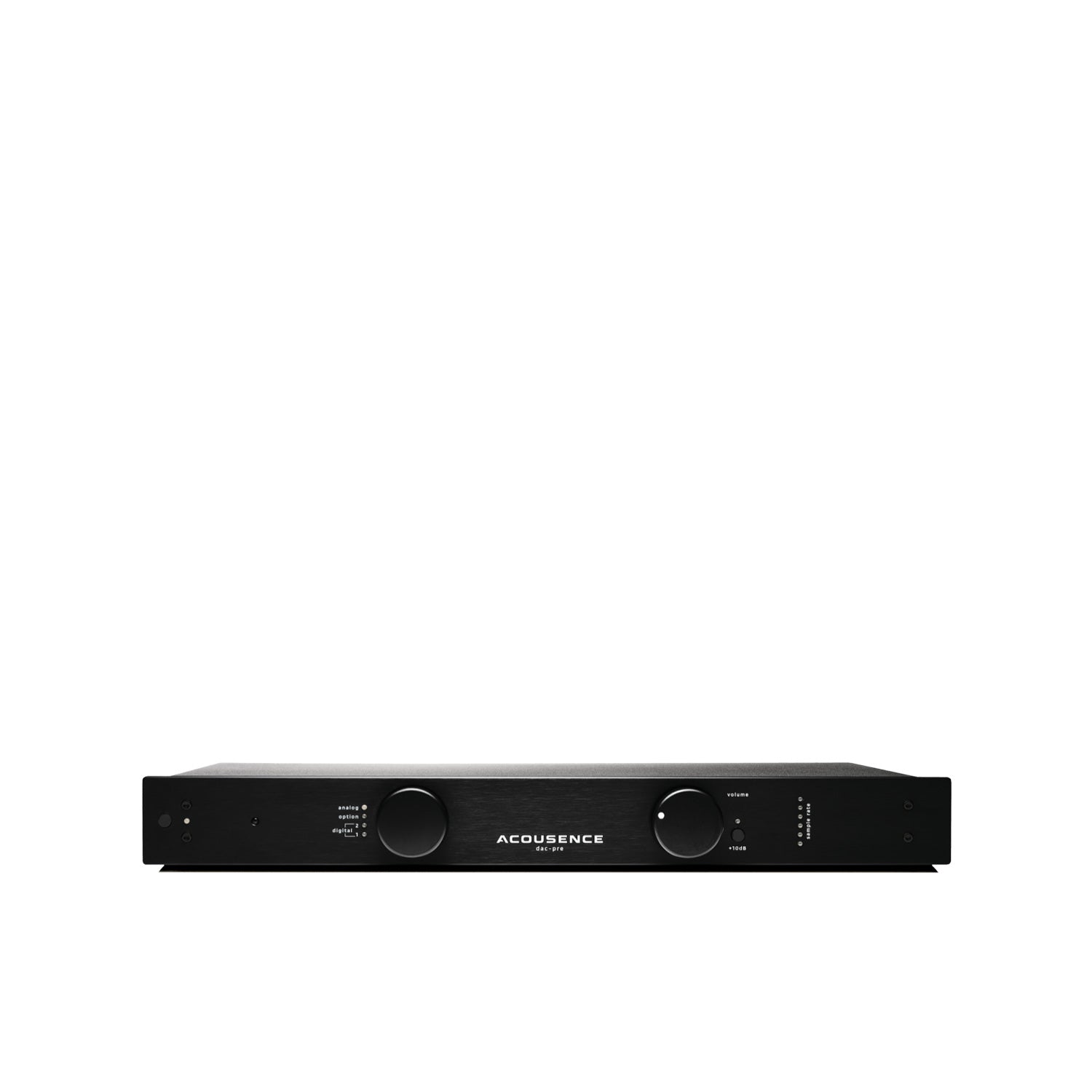

ACOUSENCE dac-pre reference UX – High-end DAC and reference preamplifier for uncompromising musical enjoyment

The ACOUSENCE dac-pre reference UX is the central centerpiece of a sophisticated high-end audio system. It combines an exceptional digital-to-analog converter with a precise analog preamplifier, creating a direct link between digital music sources and an emotional musical experience.

Developed for the highest standards of sound purity, dynamics, and spatial imaging, the dac-pre reference UX stands for uncompromising signal processing without sonic compromises. The elaborate arfi-reference DAC topology with eight converter signals and a high-quality transformer I/V stage enables a particularly natural, detailed, and musical reproduction.

Precision through innovative technology

A special feature of the ACOUSENCE dac-pre reference UX is the specially developed galvanically isolated USB interface. Dual isolation reduces interference from digital sources and ensures a particularly clean signal transmission – ideal for modern music servers, streaming systems, and high-resolution audio.

The fully balanced signal processing, high-quality analog volume control with switched fixed resistors, and precise femto-clock technology form the basis for an exceptionally transparent sound image.

Experiencing music instead of just listening

The dac-pre reference UX was developed to fully preserve the essence of a recording: the finest tonal nuances, natural voices, authentic instruments, and an impressive spatial depth.

Whether high-resolution streaming, CD playback, or analog sources – the ACOUSENCE dac-pre reference UX combines state-of-the-art digital technology with audiophile passion and makes music tangible in all its emotional impact.

The reference for demanding HiFi systems

With flexible connection options, optional phono expansion, and its consistently modular architecture, the dac-pre reference UX offers a future-proof solution for ambitious music lovers. It is more than a DAC and more than a preamplifier: it is the control center of an uncompromising audiophile music system.

ACOUSENCE dac-pre reference UX – when perfect technology creates genuine musical emotion.

Options

• Phono MM module “reference”, one pair XLR 390 Euro
• Phono MC module “reference”, one pair XLR 1,790 Euro
• One pair RCA connectors instead of an XLR input, gold-plated, input or output: 390 Euro
• Additional analog input, one pair RCA: 390 Euro
• Additional transformer-balanced analog input, one pair XLR: 690 Euro

Upgrade

• Replacement module MC for phono module: 790 Euro
• Replacement module MM for phono module: 790 Euro

High-end D/A converter and reference preamplifier in one device
arfi-reference-DAC technology with 8x converter signal processing
Fully balanced signal path for maximum sound purity
High-quality transformer I/V stage
Precise Femto-Clock II timing
Galvanically isolated USB interface with double decoupling
USB audio up to 32 bit / 768 kHz
Support for DSD64, DSD128, and DSD256 (Native & DoP)

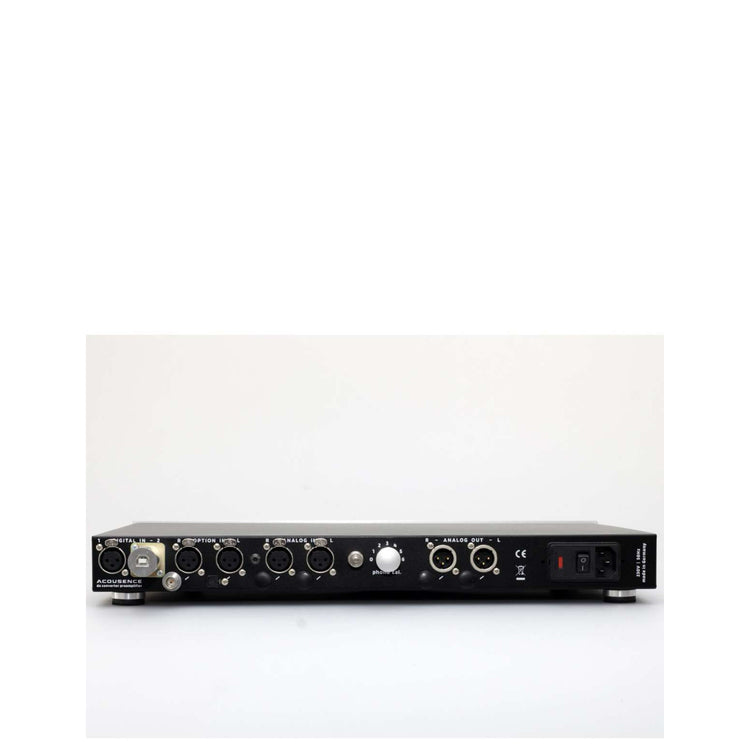

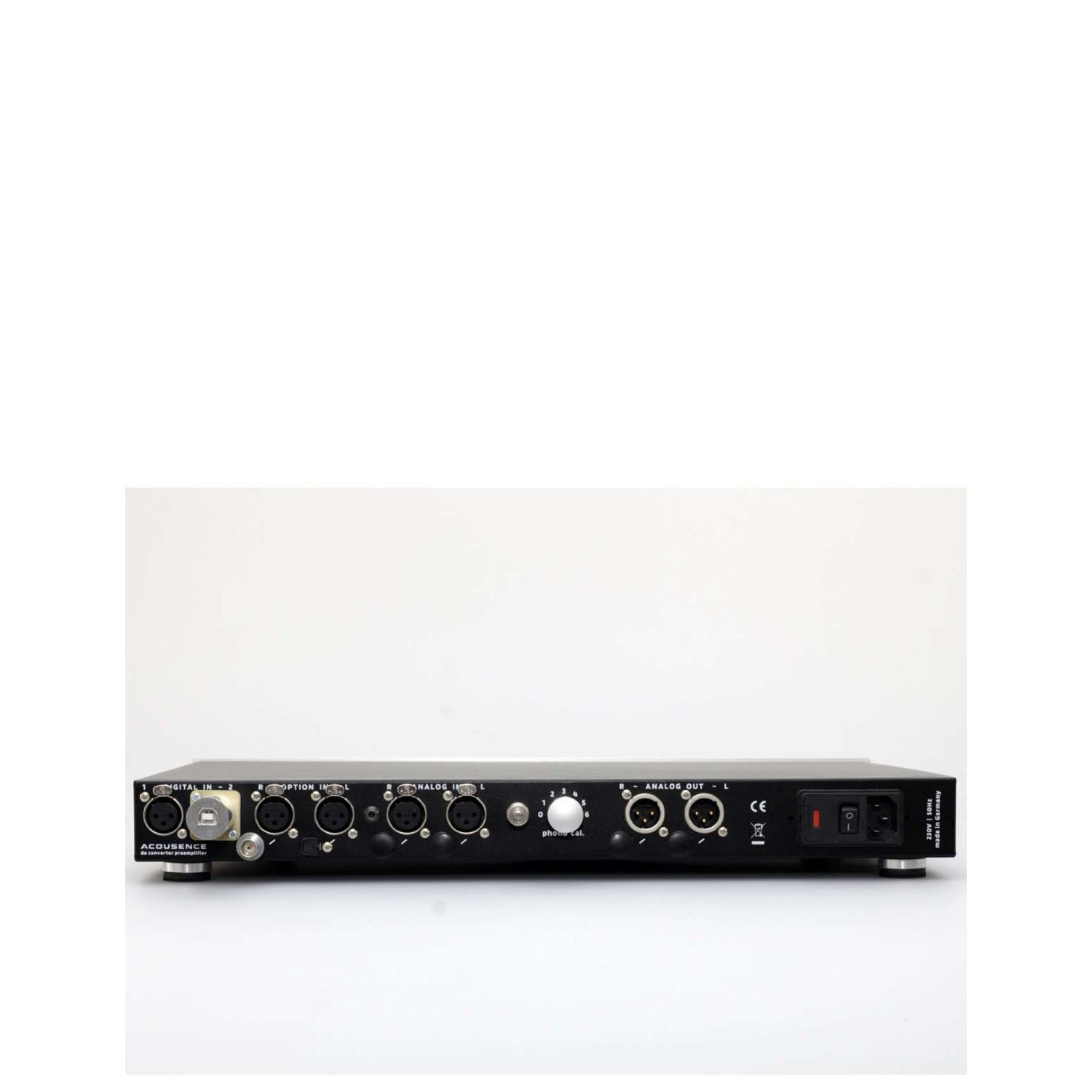

Digital inputs: USB, AES/EBU, S/PDIF (BNC), Toslink
Galvanically isolated digital inputs to reduce interference
Analog line inputs (optionally expandable)
Optional phono modules for MM and MC
Analog volume control with switched precision fixed resistors
Gold-contact relays for highest signal accuracy
Motorized volume control with remote control
Balanced XLR outputs with high-quality transformer technology
Optional RCA outputs
Output level up to approx. 20 dBu
Frequency response 20 Hz – 87 kHz
Extremely low distortion and high dynamic range
Precise spatial imaging and natural music reproduction
High-quality aluminum housing
Dimensions: 450 × 50 × 315 mm (W × H × D)
Weight: approx. 9 kg
Standby consumption below 0.5 W
Shielded power supply unit with high-quality filtering
Developed and manufactured for uncompromising high-end audio systems
