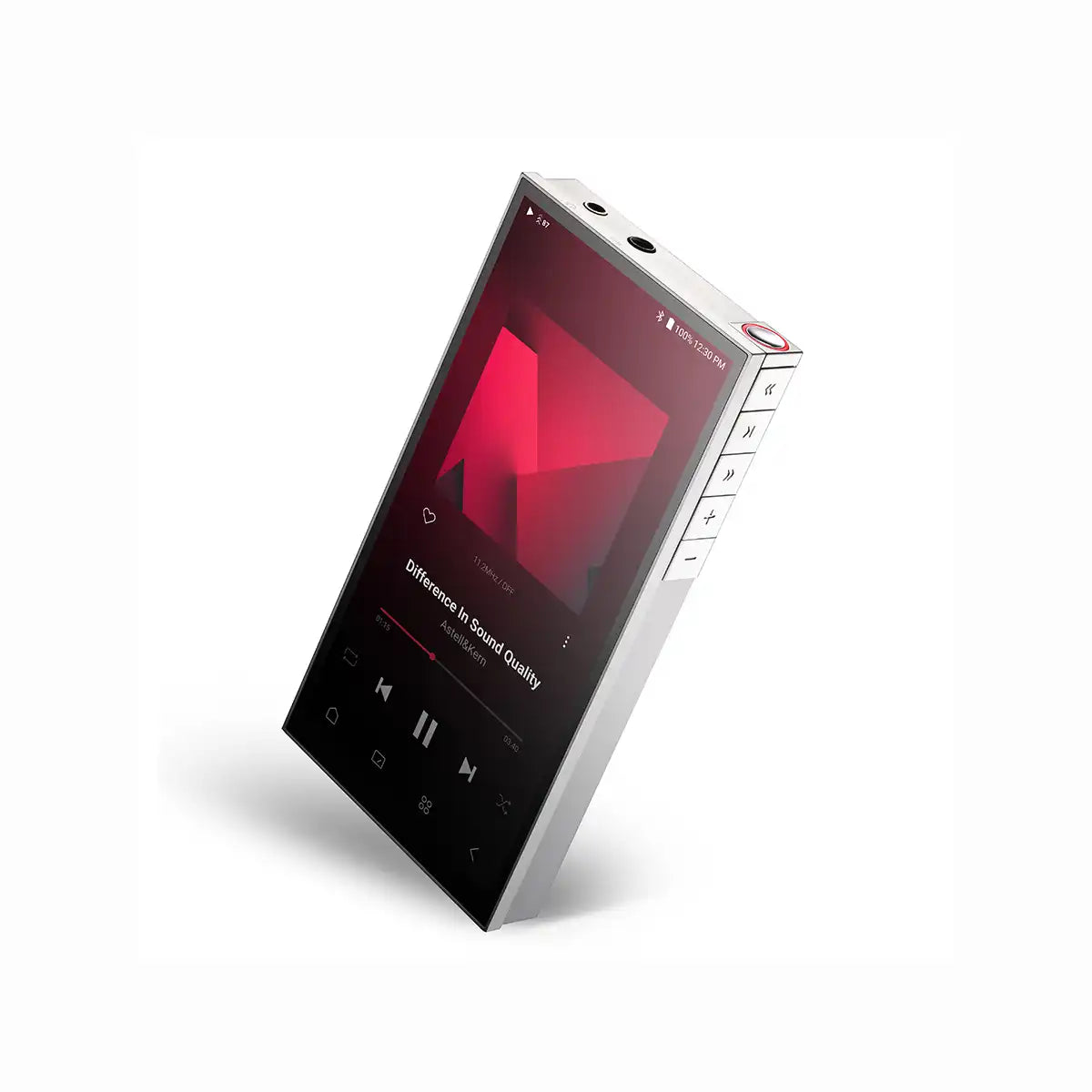

Astell&Kern PD10 – The new benchmark for portable high-end audio players

High-end sound redefined

With the Astell&Kern PD10, Astell&Kern opens a new chapter in the development of audiophile digital audio players. It combines uncompromising sound quality, state-of-the-art audio technologies, and a completely new operating concept to create an exceptional music player for demanding music lovers. As the first model of a new product generation, the PD10 consciously moves away from the brand's classic design concepts, setting new standards in terms of functionality, sound, and user convenience.

Revolutionary HEXA audio architecture

The Astell&Kern PD10 adopts the innovative HEXA audio circuit of the SP3000 reference model and is the world's first digital audio player to feature the new AKM AK4498EX DACs.

Four AK4498EX digital-to-analog converters work in tandem with two separate AK4191EQ digital processors, allowing digital and analog signal processing to be completely separated. This sophisticated architecture minimizes interference, reduces signal loss, and enables exceptionally precise, natural, and detailed music reproduction.

Independent dual audio circuits

Unlike conventional digital audio players, the PD10 features two completely separate audio circuits for balanced and unbalanced outputs.

This means each output is processed independently, ensuring that maximum sound quality is always available without signal loss, regardless of the connection used.

Dual amplifier with intelligent impedance matching

The PD10 features two specially developed amplifier stages that are optimally tuned to different headphones.

The normal-gain amplifier delivers an especially clean, low-noise sound for sensitive in-ear monitors. The high-gain amplifier offers significantly higher power reserves and drives even demanding high-end headphones with impressive dynamics and spaciousness.

Smart Gain – Automatic amplifier adjustment

Thanks to the intelligent Smart Gain technology, the PD10 automatically detects the impedance of the connected headphones.

• Headphones up to 32 ohms automatically use the normal-gain mode.

• Headphones over 32 ohms automatically switch to high-gain mode.

This ensures that every pair of headphones operates with optimal amplification at all times – without the need for manual settings.

Full Android operating system

The PD10 is the first Astell&Kern digital audio player with full Android operating system support.

Thanks to the proprietary Astell&Kern Direct Path (ADP) technology, the limitations of Android audio processing are completely bypassed. This allows music to be played back in a bit-perfect and lossless manner – even when streaming via popular music services.

Second-generation DAR

With the new Digital Audio Remaster (DAR) technology, Astell&Kern takes digital signal processing to a new level.

Before actual upsampling, the Virtual Sound Extender (VSE) technology reconstructs lost overtones and improves the sound structure in the very first processing step. The DAR engine then optimizes the signal through high-precision upsampling, ensuring an exceptionally natural, detailed, and authentic music playback.

New Generation 4.5 user interface

The PD10 features the completely redeveloped Astell&Kern Generation 4.5 user interface.

An animated LP browser turns browsing through your music collection into an emotional experience. At the same time, the characteristic Crimson design remains, blending modern operation with Astell&Kern's unmistakable design language.

Modern design for maximum usability

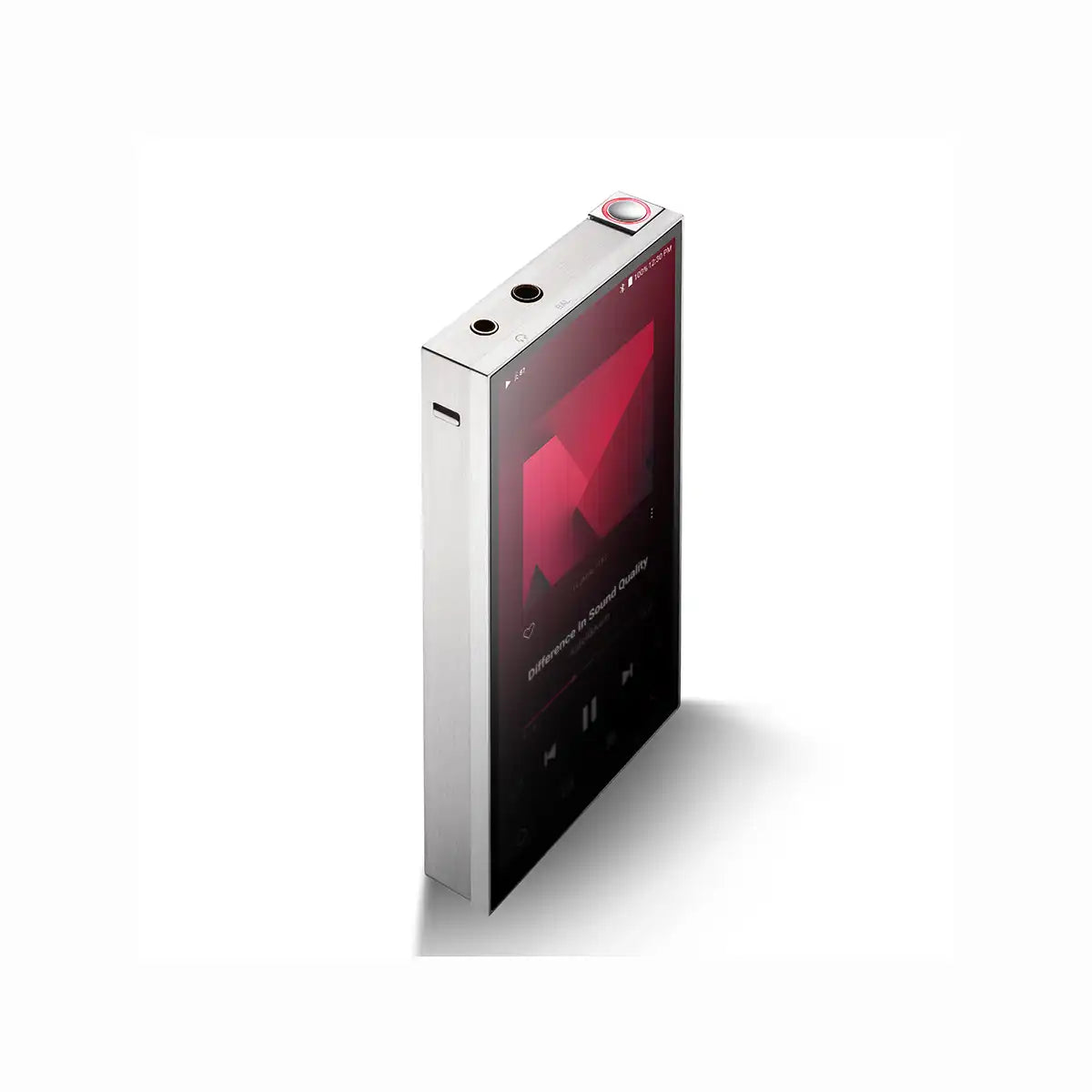

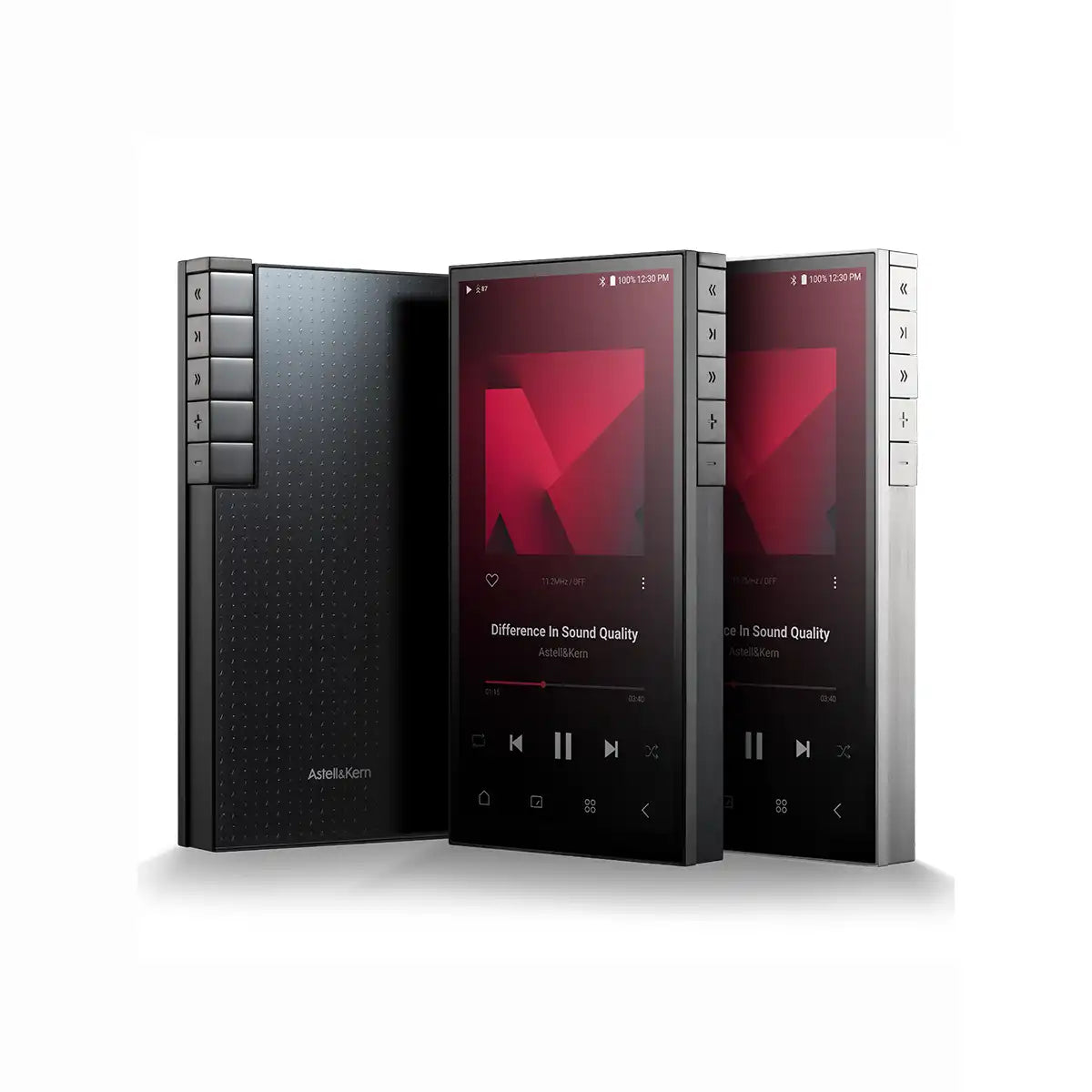

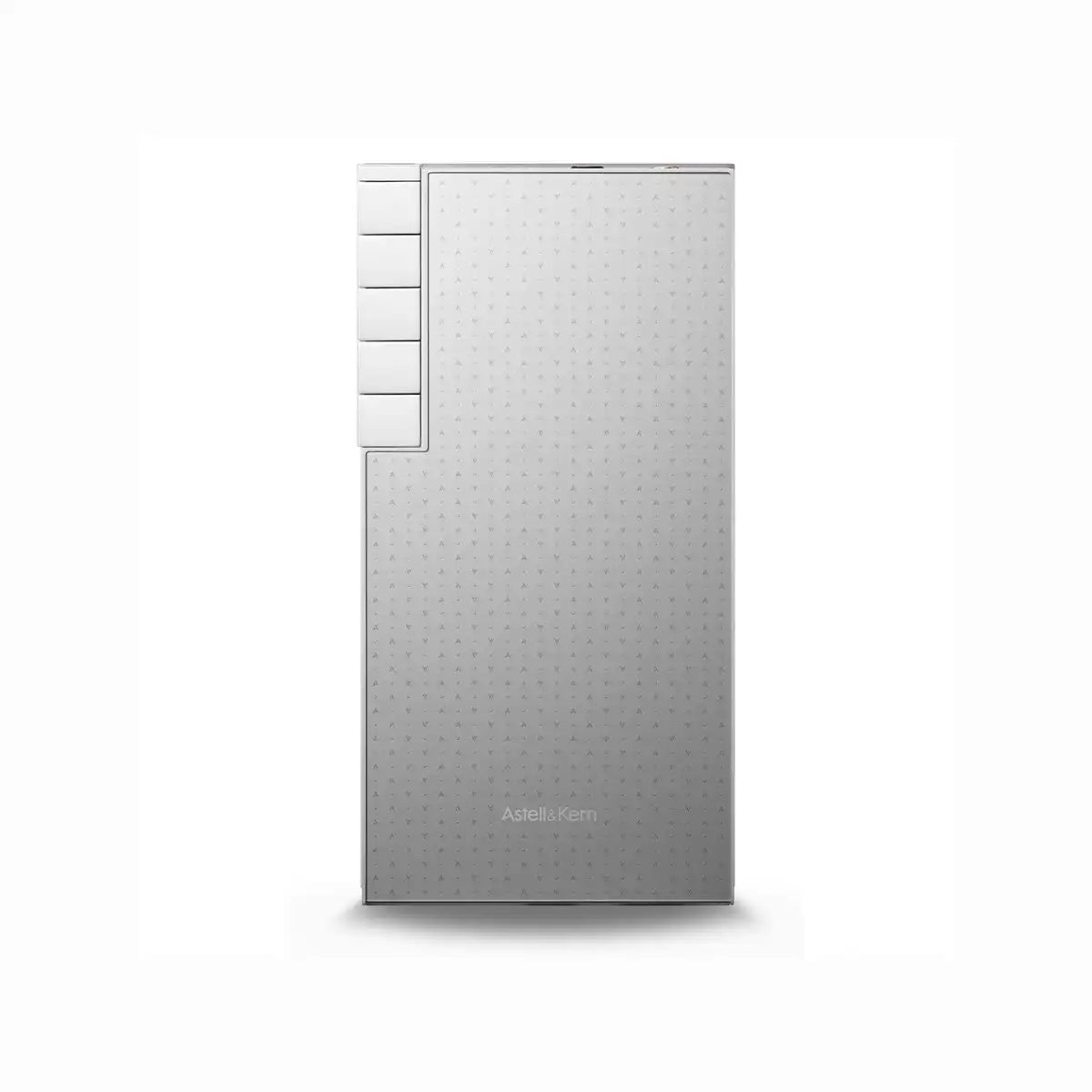

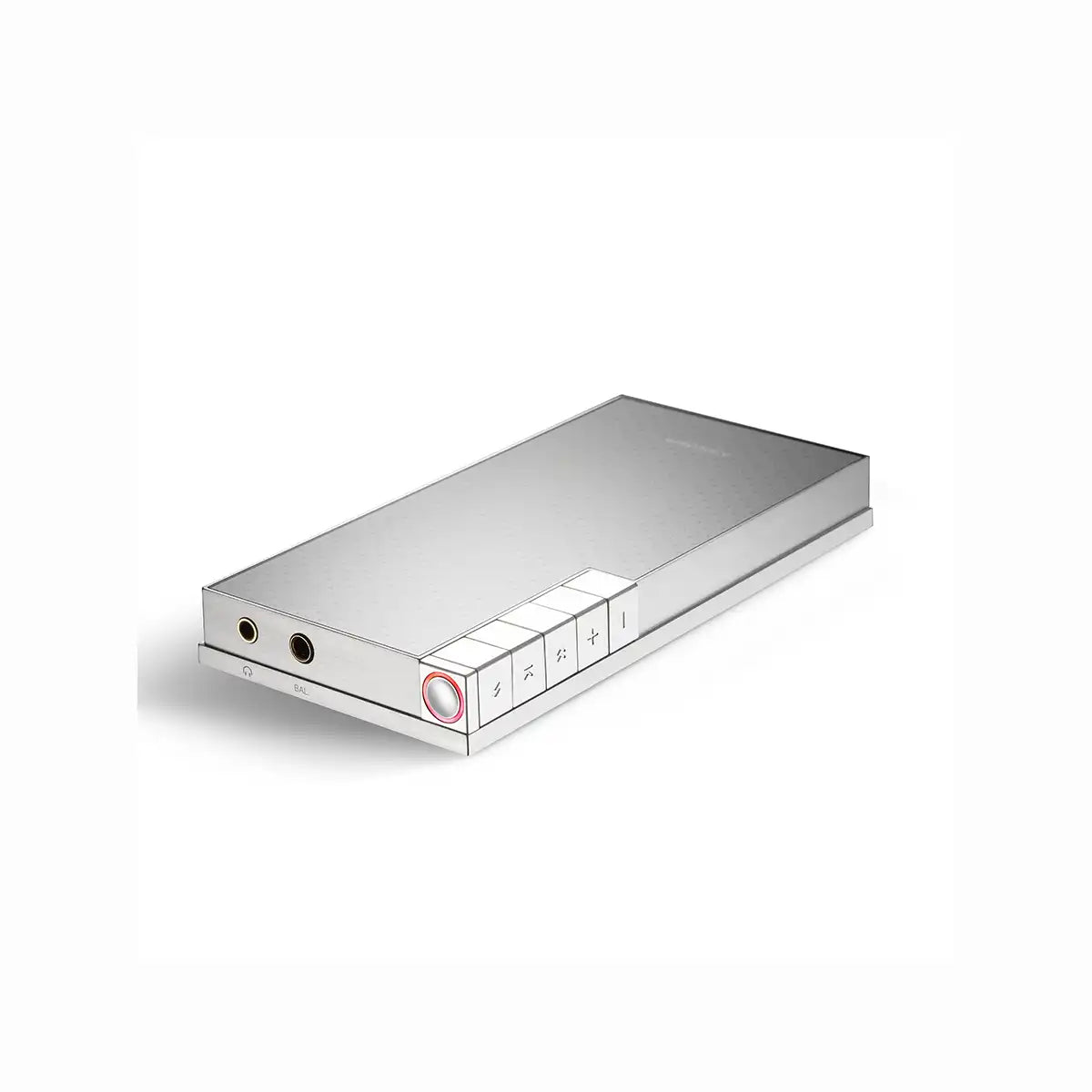

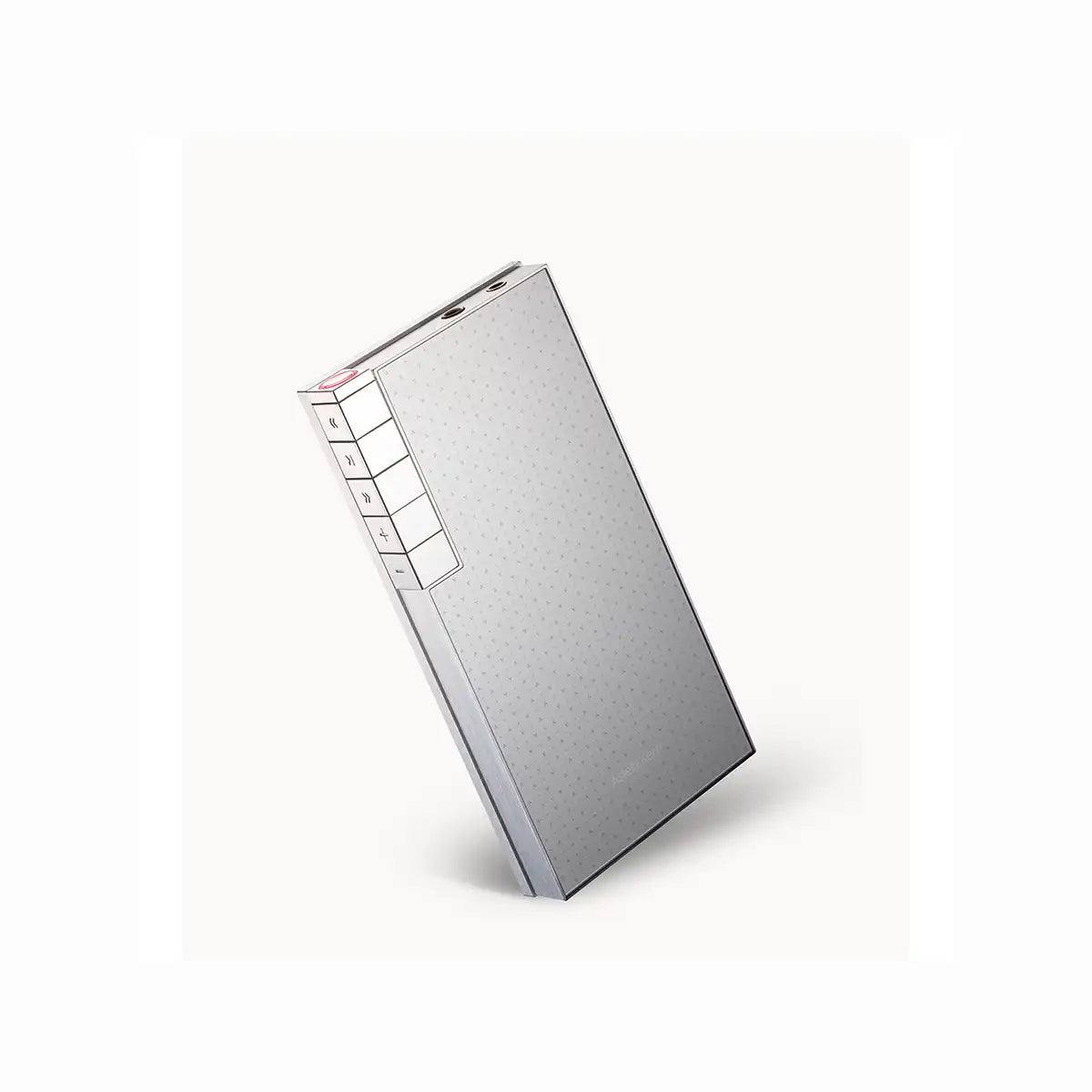

The design follows the new Contrast Cube concept and combines high-quality stainless steel with glass to create an elegant and modern form.

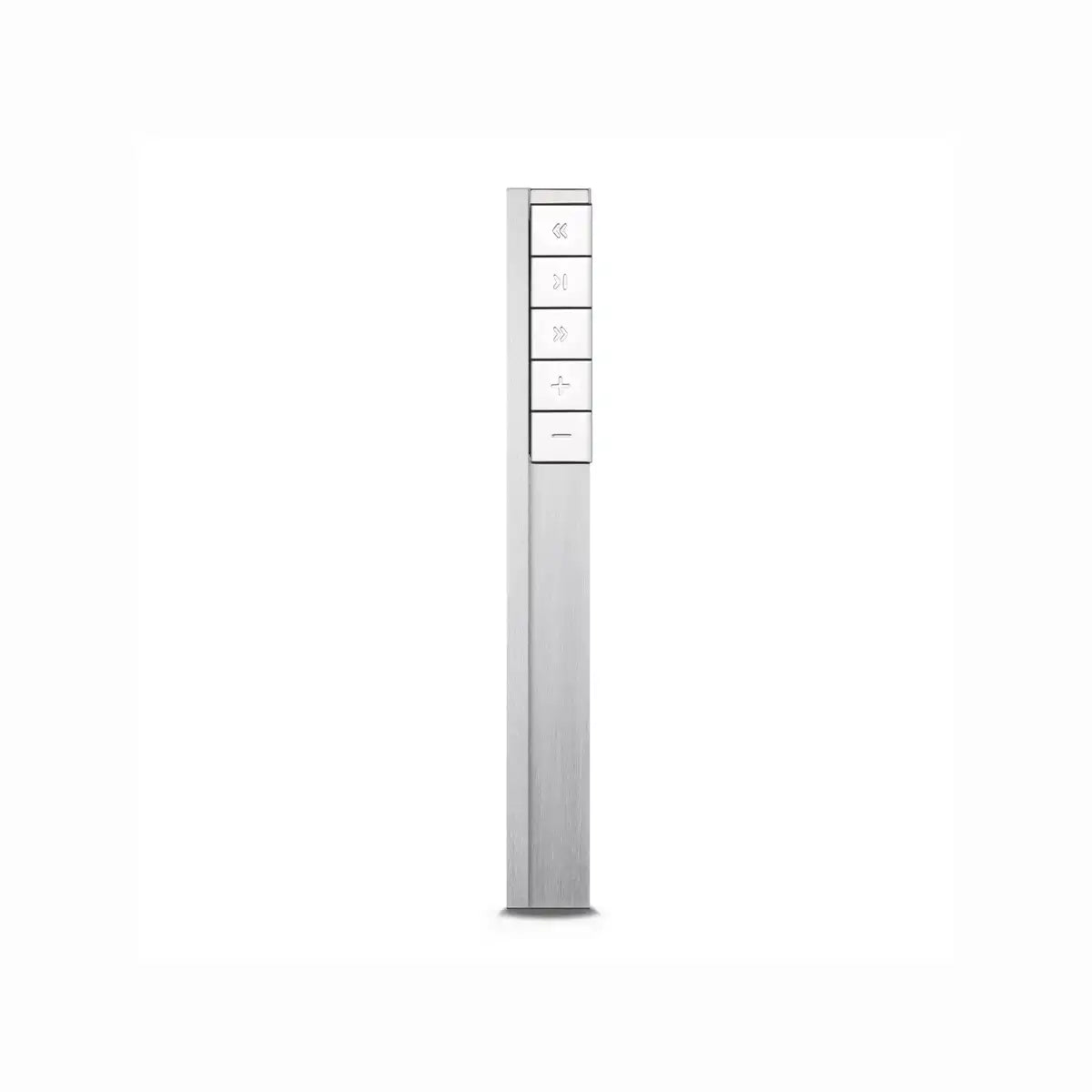

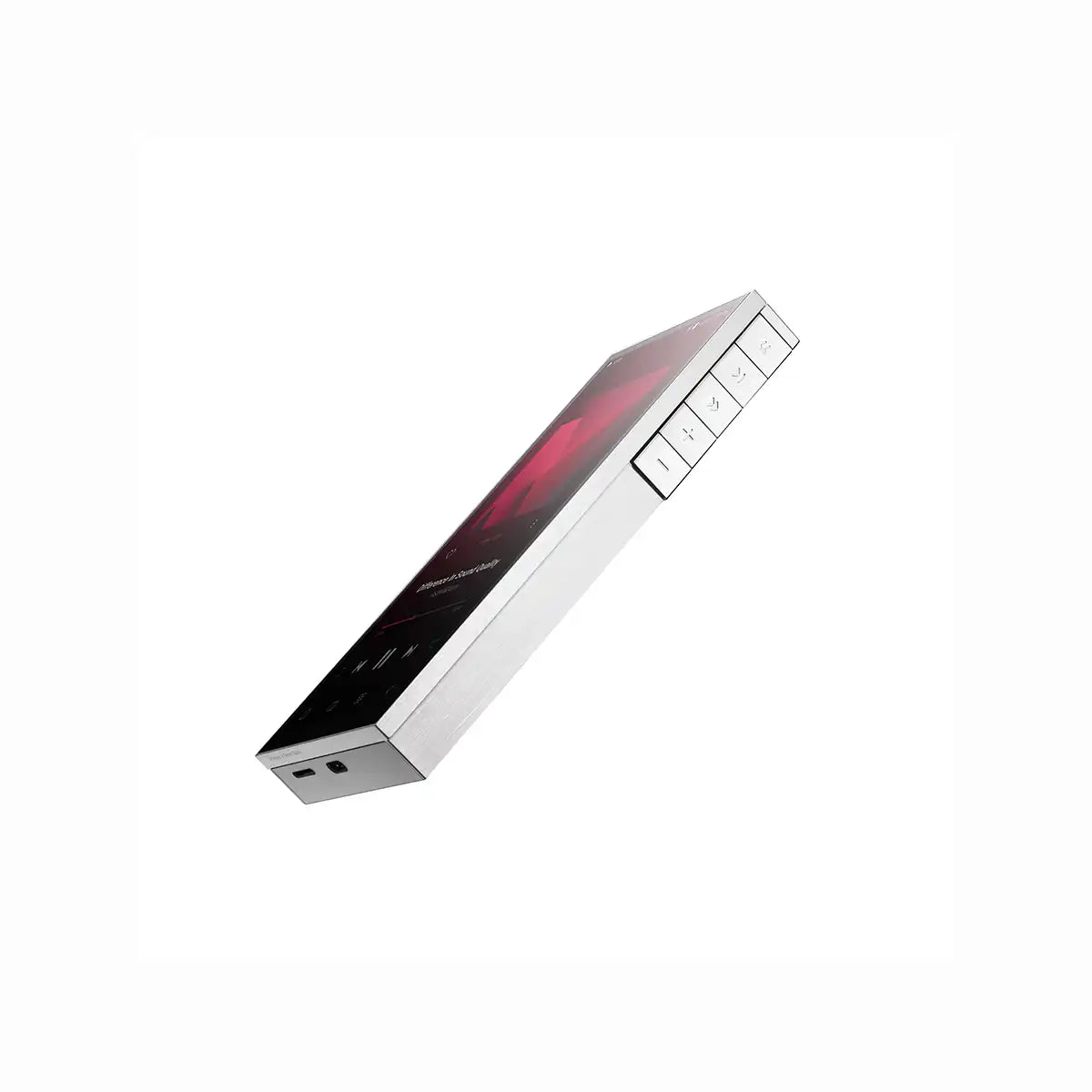

For the first time, Astell&Kern has moved away from the classic volume wheel in favor of precise control buttons. This creates an especially minimalist look while simultaneously allowing for comfortable one-handed operation.

Extensive features for audiophile music lovers

The Astell&Kern PD10 impresses not only with its sound but also with its extensive technical specifications:

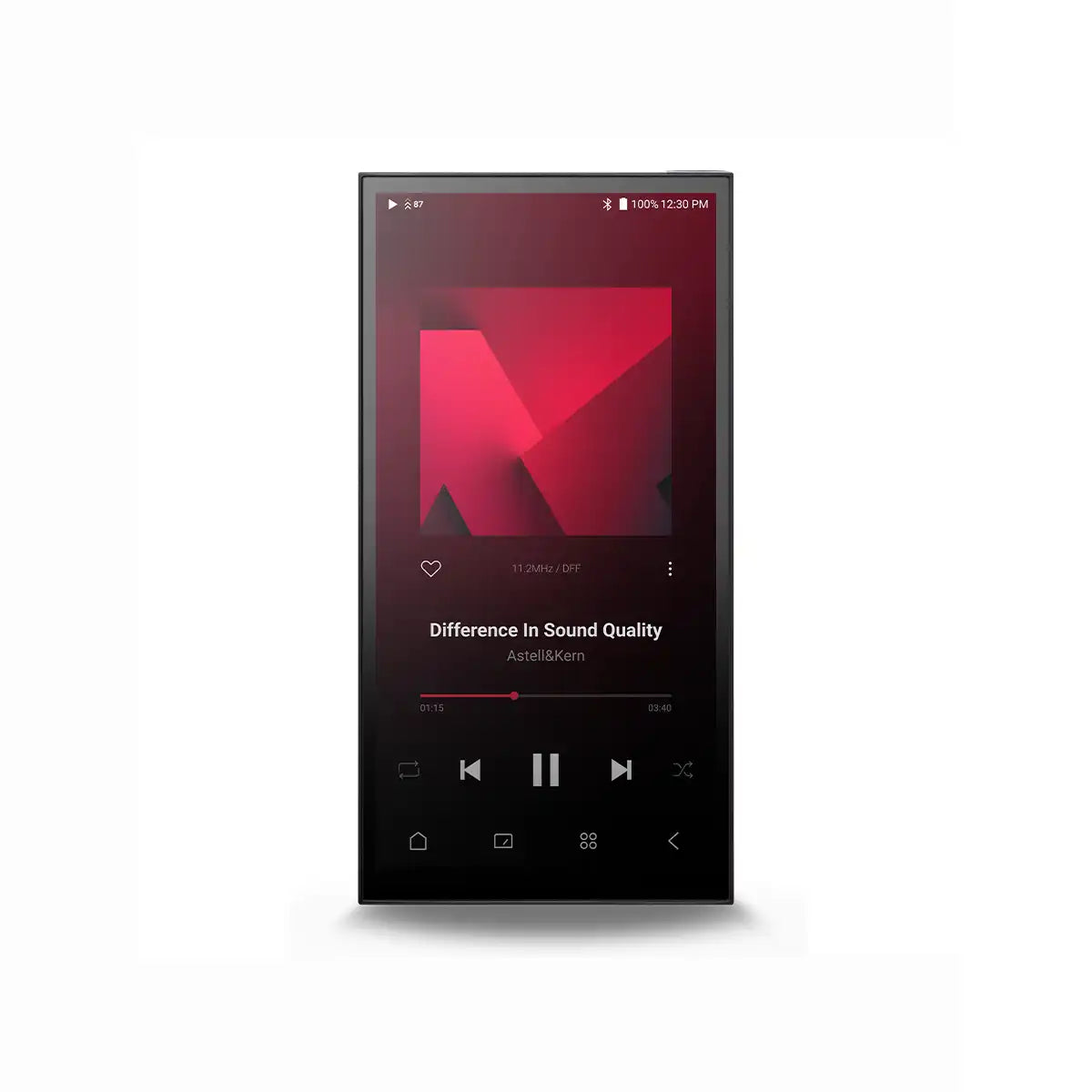

• 6-inch Full HD touch display (1080 × 2160 pixels)

• 256 GB internal memory, expandable via microSD up to 2 TB

• Native playback up to 32-bit / 768 kHz PCM and DSD512

• Bluetooth 5.3 with LDAC, LHDC, and aptX HD

• BT Sink mode for use as a Bluetooth DAC

• ReplayGain for consistent volume levels

• AK File Drop for wireless file transfer

• AirPlay support

• Roon Ready certification

• Crossfeed function for more natural headphone playback

• Power Delivery 3.0 with fast-charging function

• Up to 15 hours of battery life

Highlights of the Astell&Kern PD10

• Latest generation high-end digital audio player

• World's first DAP with AKM AK4498EX DACs

• HEXA audio architecture with complete separation of digital and analog signal processing

• Independent audio circuits for balanced and unbalanced outputs

• Dual amplifier with intelligent Smart Gain technology

• Full Android operating system with bit-perfect streaming

• Second-generation DAR technology including Virtual Sound Extender

• New Generation 4.5 user interface

• 6-inch Full HD touch display

• Bluetooth 5.3 with LDAC, LHDC, and aptX HD

• 256 GB storage, expandable up to 2 TB

• Up to 15 hours of battery life

• Elegant premium design made of stainless steel and glass

The Astell&Kern PD10 combines cutting-edge digital technology, audiophile sound quality, and maximum flexibility into one of the most innovative high-end digital audio players in its class. Whether on the go with high-quality headphones or as the central source of a sophisticated hi-fi system, the PD10 delivers uncompromising performance and sets new standards for mobile music enjoyment at a reference level.

Audio Specifications:

Frequency Response:

· ±0.066 dB (Condition: 20 Hz ~ 20 kHz) Unbalanced │ · · ±0.066 dB (Condition: 20 Hz ~ 20 kHz) Balanced
· ±0.62 dB (Condition: 20 Hz ~ 70 kHz) Unbalanced │ · · · ±0.61 dB (Condition: 20 Hz ~ 70 kHz) Balanced
· Signal-to-Noise Ratio: 125 dB @ 1 kHz, Unbalanced │ 128 dB @ 1 kHz, Balanced
· Crosstalk: -137 dB @ 1 kHz, Unbalanced │ -138 dB @ 1 kHz, Balanced
· THD+N: 0.0007% @ 1 kHz, Unbalanced │ 0.0006% @ 1 kHz, Balanced
· IMD SMPTE: 0.0004% 800 Hz 10 kHz (4:1) Unbalanced │ Balanced
· Output Impedance: Unbalanced Out 3.5 mm (1 ohm) │ Balanced Out 4.4 mm (1.6 ohms)

Clock Source
· Clock Jitter: 25 pS (typ.)
· Reference Clock Jitter: 250 Femtoseconds

Storage Capacity
· Internal Memory: 256 GB [NAND]
· External Memory: microSD x1 (max. 2 TB)

Battery
· Capacity: 5,770 mAh 3.8 V Li-Polymer
· Charging Time: approx. 4 hours (PD3.0 charging)
· Playback Time: approx. 15 hours (Standard: FLAC, 16-bit, 44.1 kHz, Vol. 50, LCD Off, Normal Gain)
Supported OS

Supported OS:
· Windows 8, 10, 11 (32/64-bit), macOS X 10.7
