Astell&Kern PD10 with Docking Station – High-End Digital Audio Player for home and on the go

Audiophile peak performance in any environment

The Astell&Kern PD10 combines uncompromising high-end sound quality with maximum flexibility. Thanks to state-of-the-art audio technology, innovative amplifier circuitry, and the included docking station with XLR outputs, the PD10 is both a powerful portable Digital Audio Player (DAP) and a high-quality hi-fi source for stationary audio systems. With its new HEXA audio architecture, intelligent amplifier control, and comprehensive streaming features, the PD10 sets new standards in the premium segment.

HEXA audio architecture for maximum sound purity

The Astell&Kern PD10 adopts the innovative HEXA audio circuitry of the flagship SP3000 and is among the first digital audio players to feature four AKM AK4498EX DACs and two AK4191EQ digital processors.

By completely separating digital and analog signal processing, interference is effectively minimized. The result is exceptionally precise, transparent, and detailed music playback with impressive dynamics and spatiality.

Separate audio circuits for the highest sound quality

Unlike conventional DAPs, the PD10 uses two completely independent audio circuits for balanced and unbalanced outputs.

This prevents signal loss between output stages and ensures that each connection delivers its maximum sound quality – regardless of whether you are using in-ear monitors or demanding high-end headphones.

Dual amplifier with intelligent impedance matching

The PD10 features two specially developed amplifier stages for different headphone types.

The normal-gain amplifier impresses with a particularly low noise floor and is ideal for sensitive in-ear monitors. The high-gain amplifier provides significantly more power reserves for high-impedance and power-hungry headphones, ensuring impressive dynamics and a larger soundstage.

Smart Gain – Automatic amplifier selection

With the intelligent Smart Gain technology, the PD10 automatically detects the impedance of the connected headphones.

• Up to 32 ohms, the normal-gain mode is automatically activated.

• Above 32 ohms, the player independently switches to high gain.

This ensures that every pair of headphones always operates with optimal amplification – without the need for manual settings.

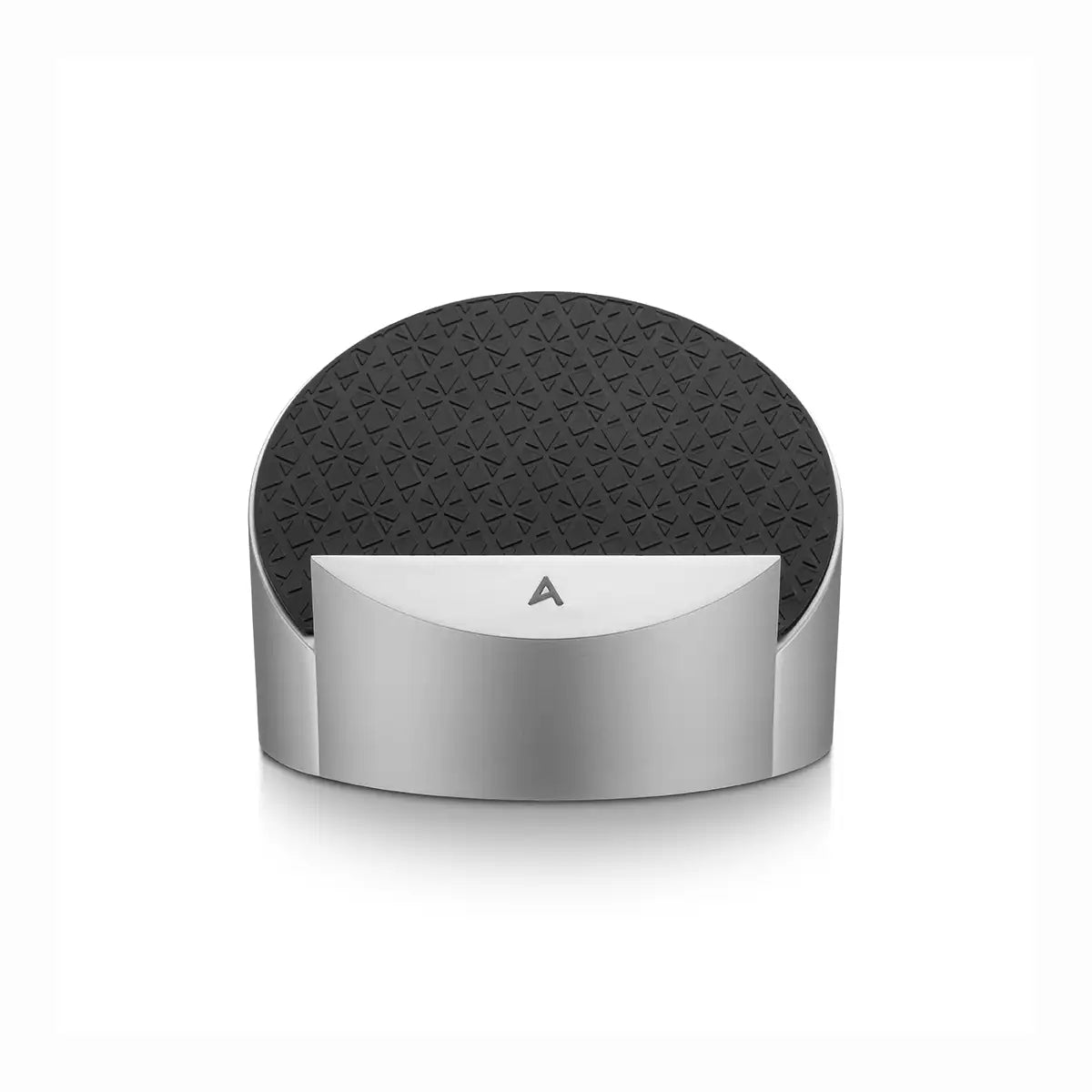

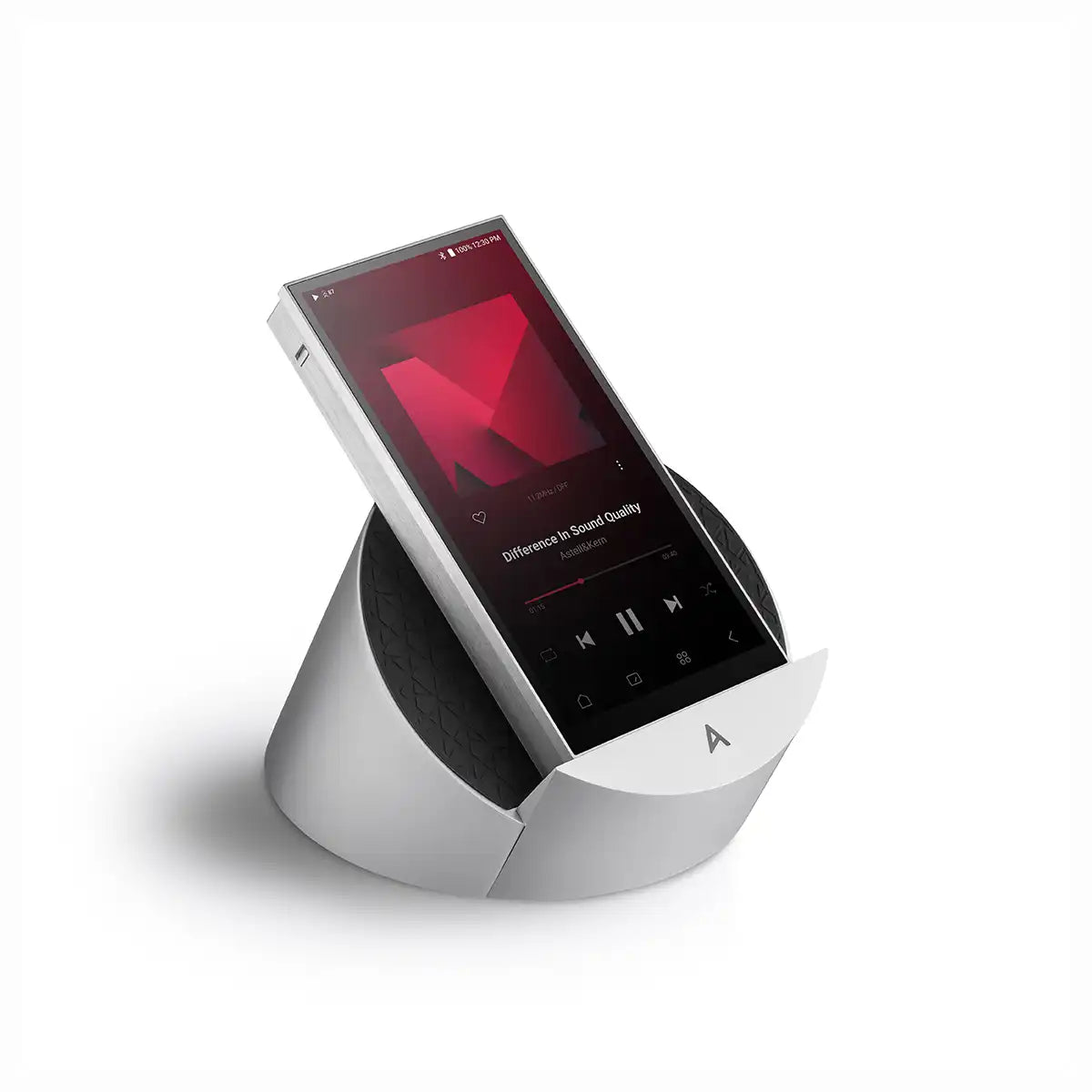

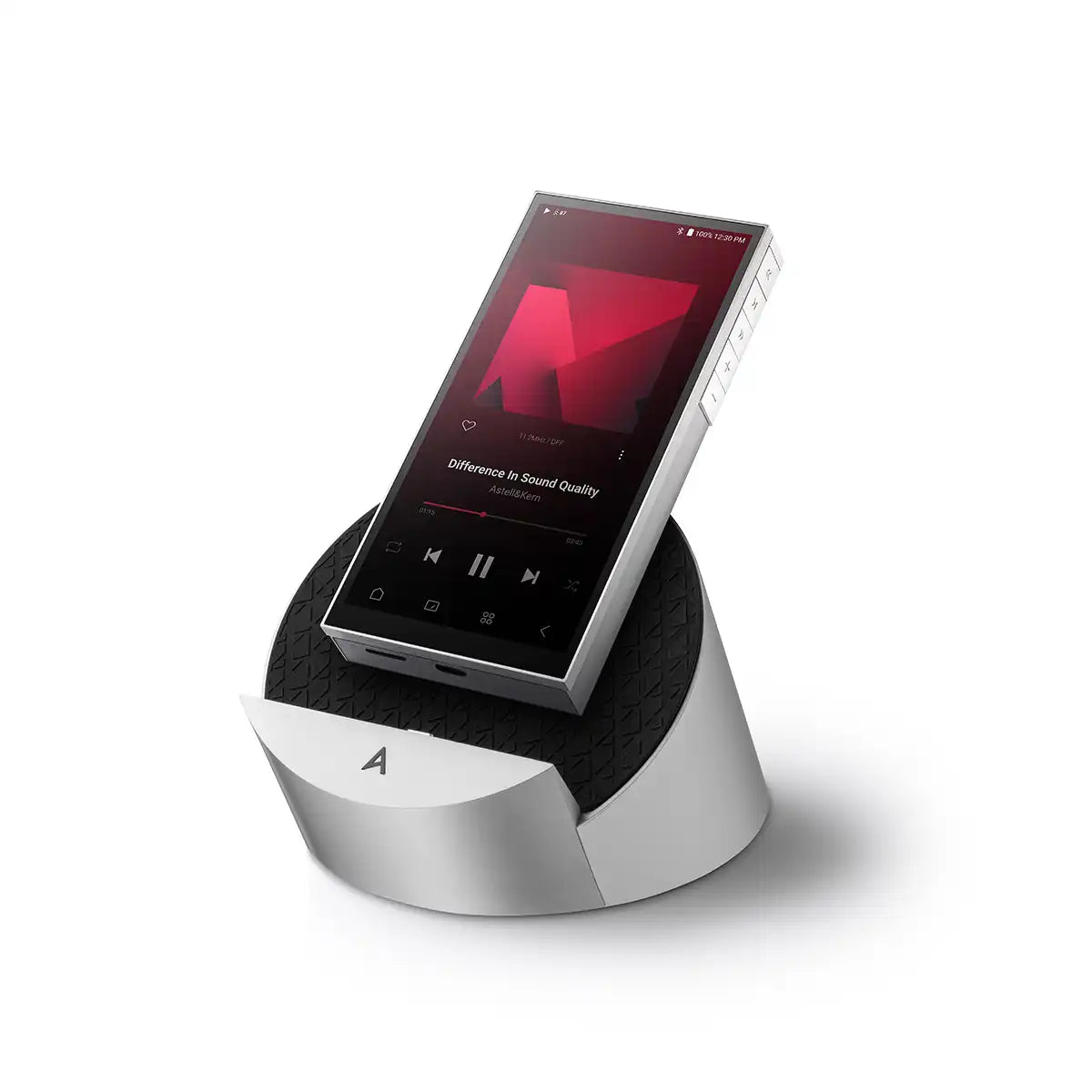

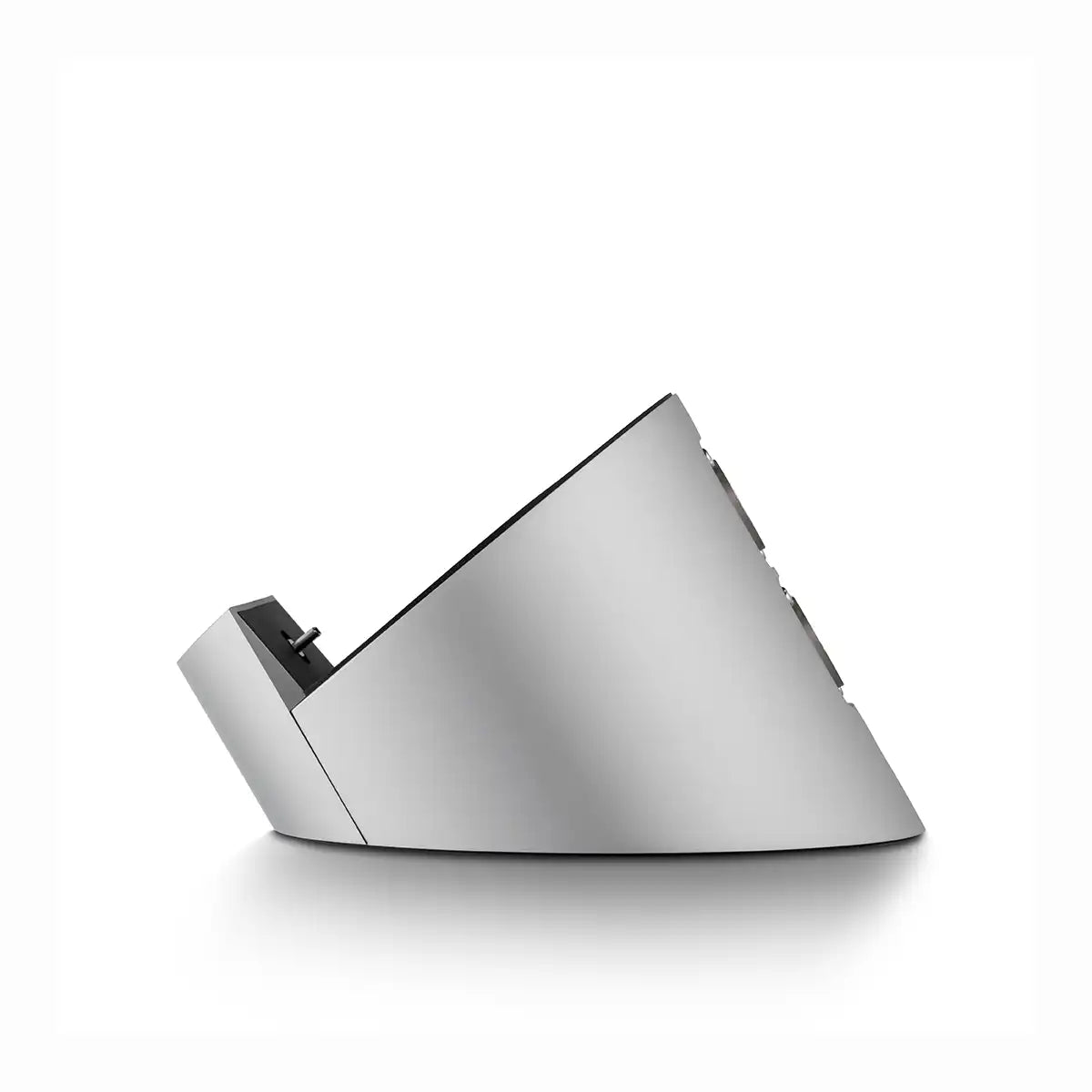

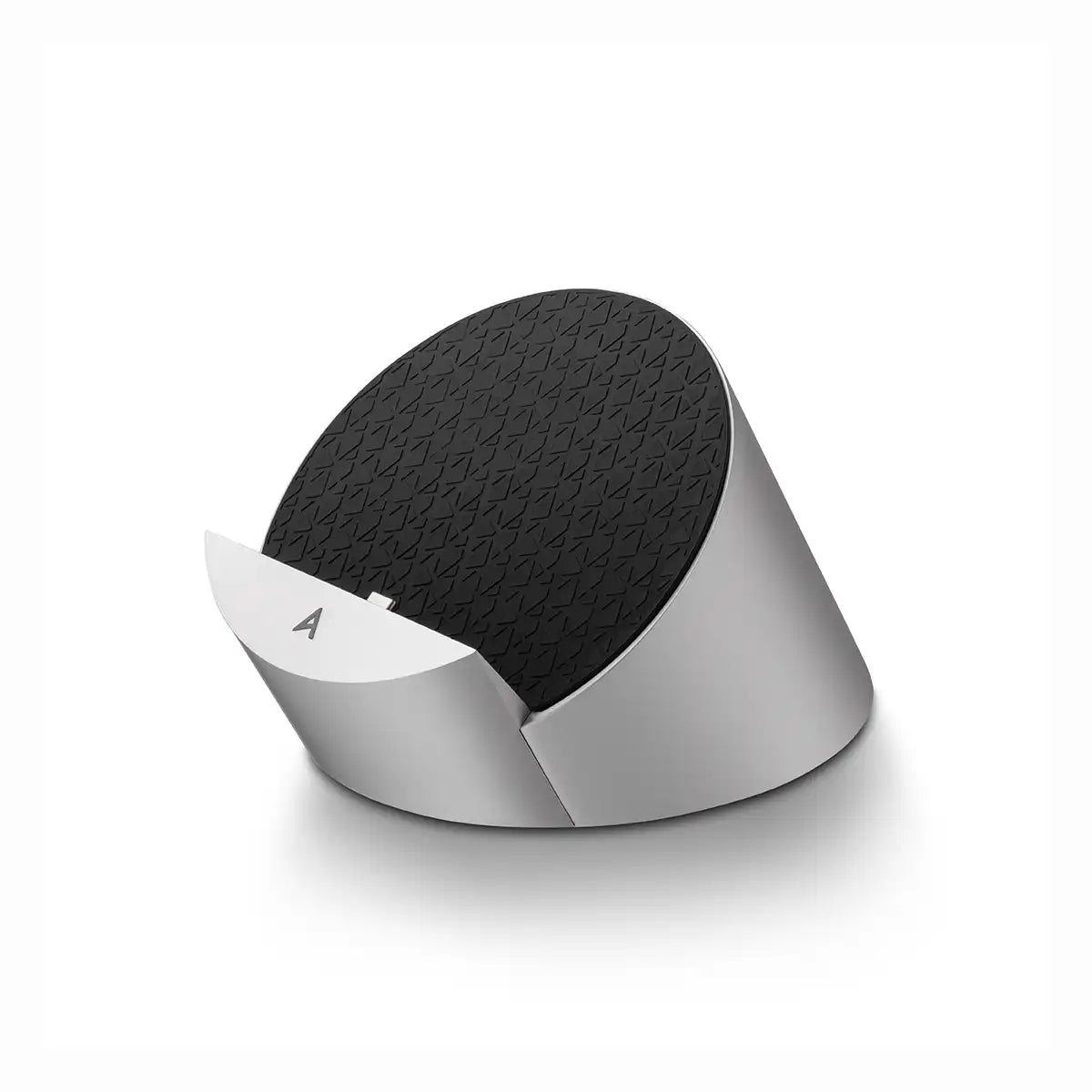

Docking station for the perfect hi-fi system

The included docking station turns the PD10 into a high-quality audio source for stationary hi-fi systems.

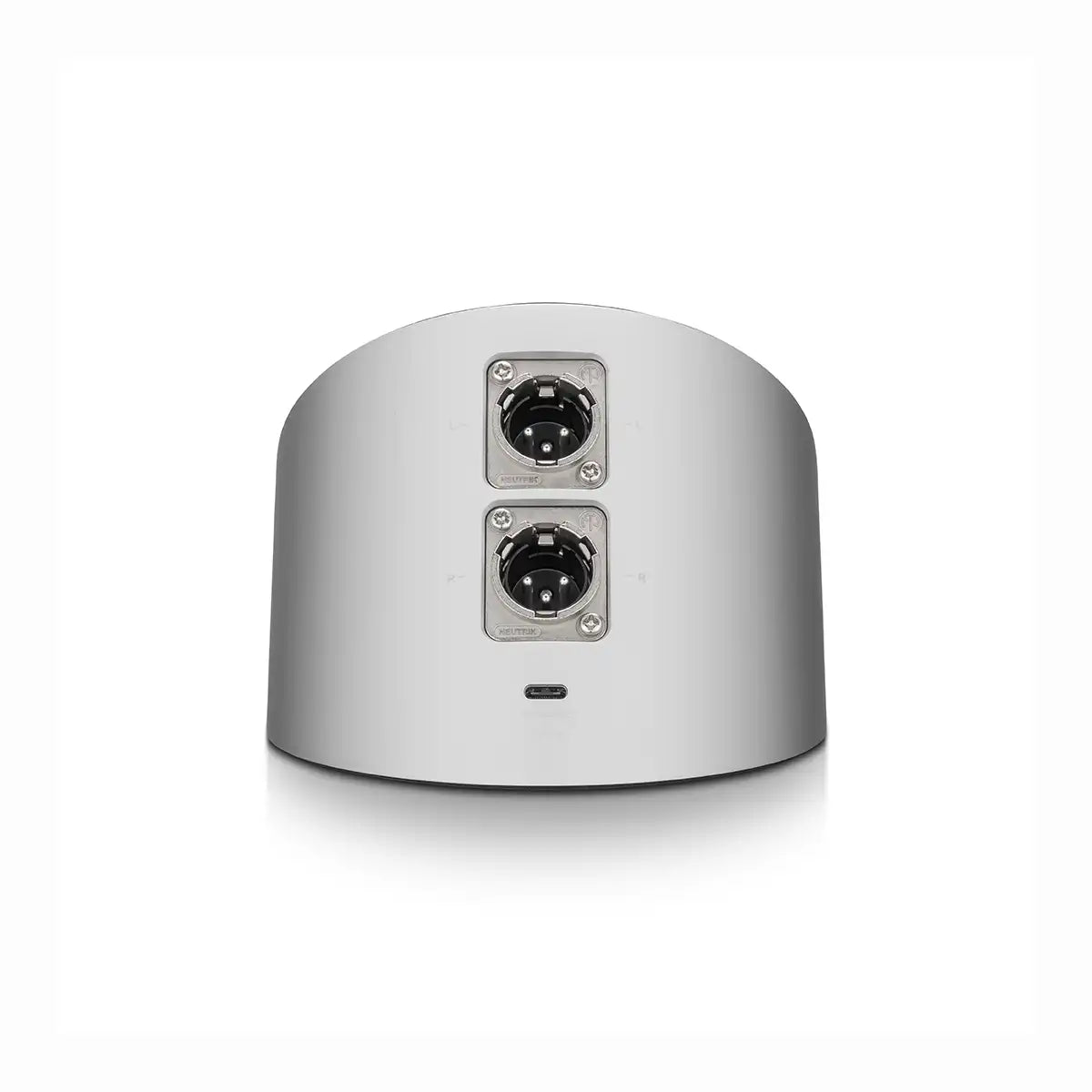

Equipped with balanced XLR outputs, a USB port, and a charging function, the player integrates seamlessly into high-end stereo systems or active speakers. The integrated LED display shows the current bitrate in real time, underlining the system's professional standard.

State-of-the-art streaming and network features

The PD10 offers all the features that modern music lovers expect.

Thanks to Roon Ready, AirPlay support, AK File Drop, as well as full Android support, streaming services and music libraries can be enjoyed with ease. With a future firmware update, the player will also receive the full Android operating system, the new generation 4.5 user interface, and the latest DAR technology, as already used in the flagship SP4000.

High-resolution music enjoyment without compromise

The PD10 supports virtually all modern high-resolution formats.

Music files are played back natively up to 32-bit / 768 kHz PCM as well as DSD512. Modern Bluetooth codecs such as LDAC, LHDC, and aptX HD also allow for high-quality wireless music playback.

The integrated BT Sink mode also transforms the player into a high-quality Bluetooth DAC for smartphones or other source devices.

Convenience for audiophile music lovers

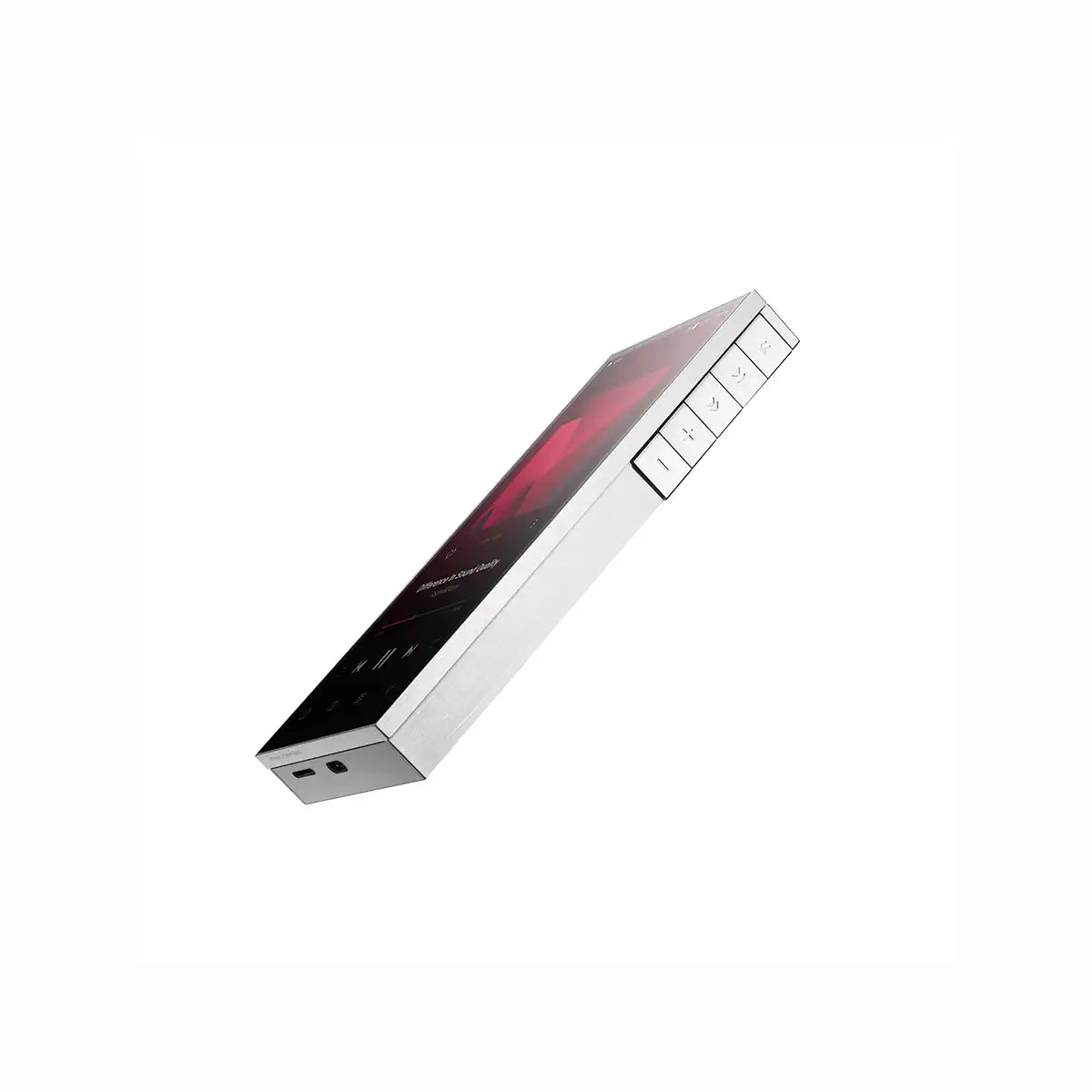

The generous 6-inch Full HD touchscreen ensures smooth and intuitive operation.

With 256 GB of internal storage, expandable via microSD up to 2 TB, the PD10 provides sufficient space for extensive hi-res music collections. Functions such as ReplayGain and Crossfeed additionally optimize the listening experience and ensure natural, relaxed playback.

Thanks to Power Delivery 3.0, the battery is fully charged in about 3.5 hours and allows for up to 15 hours of music playback.

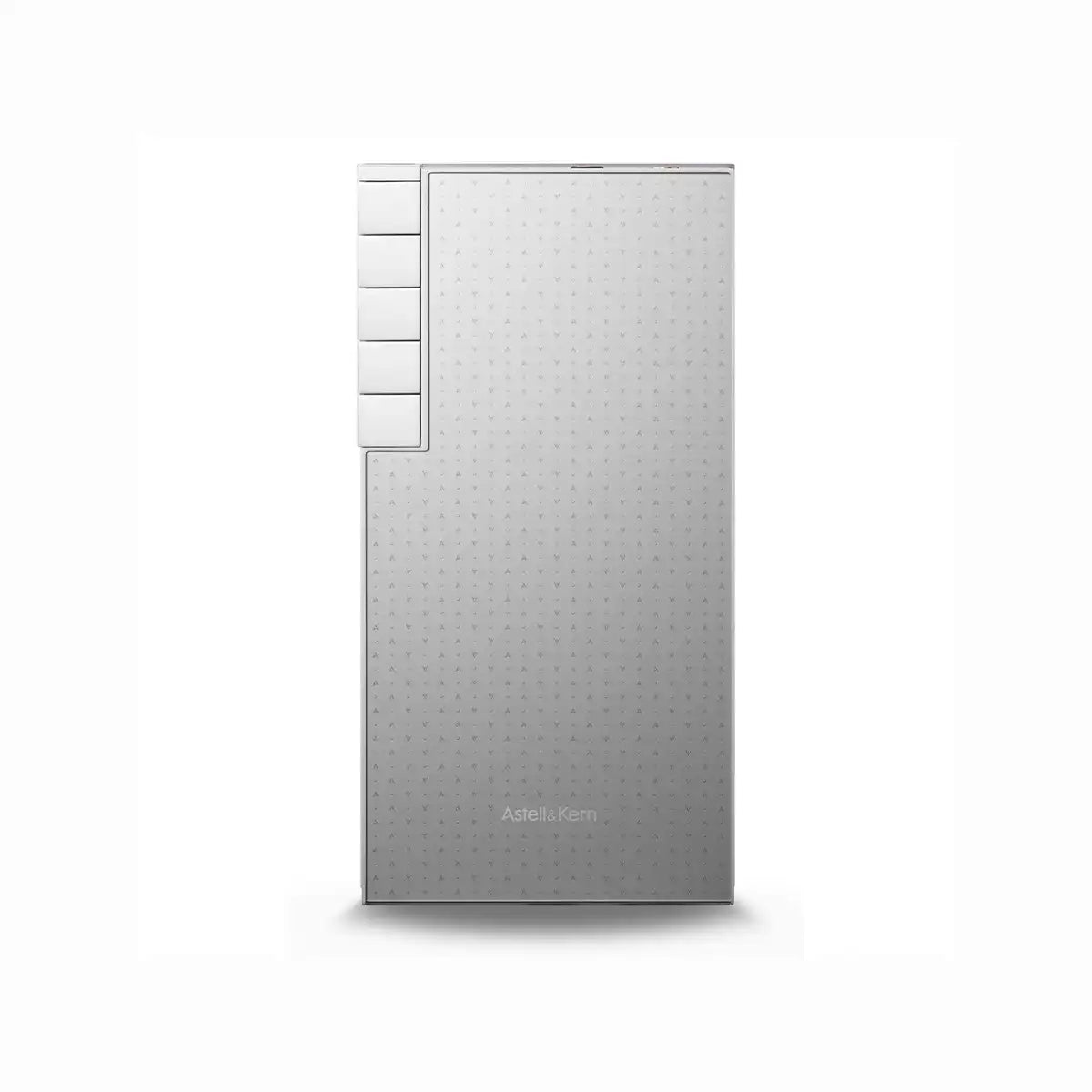

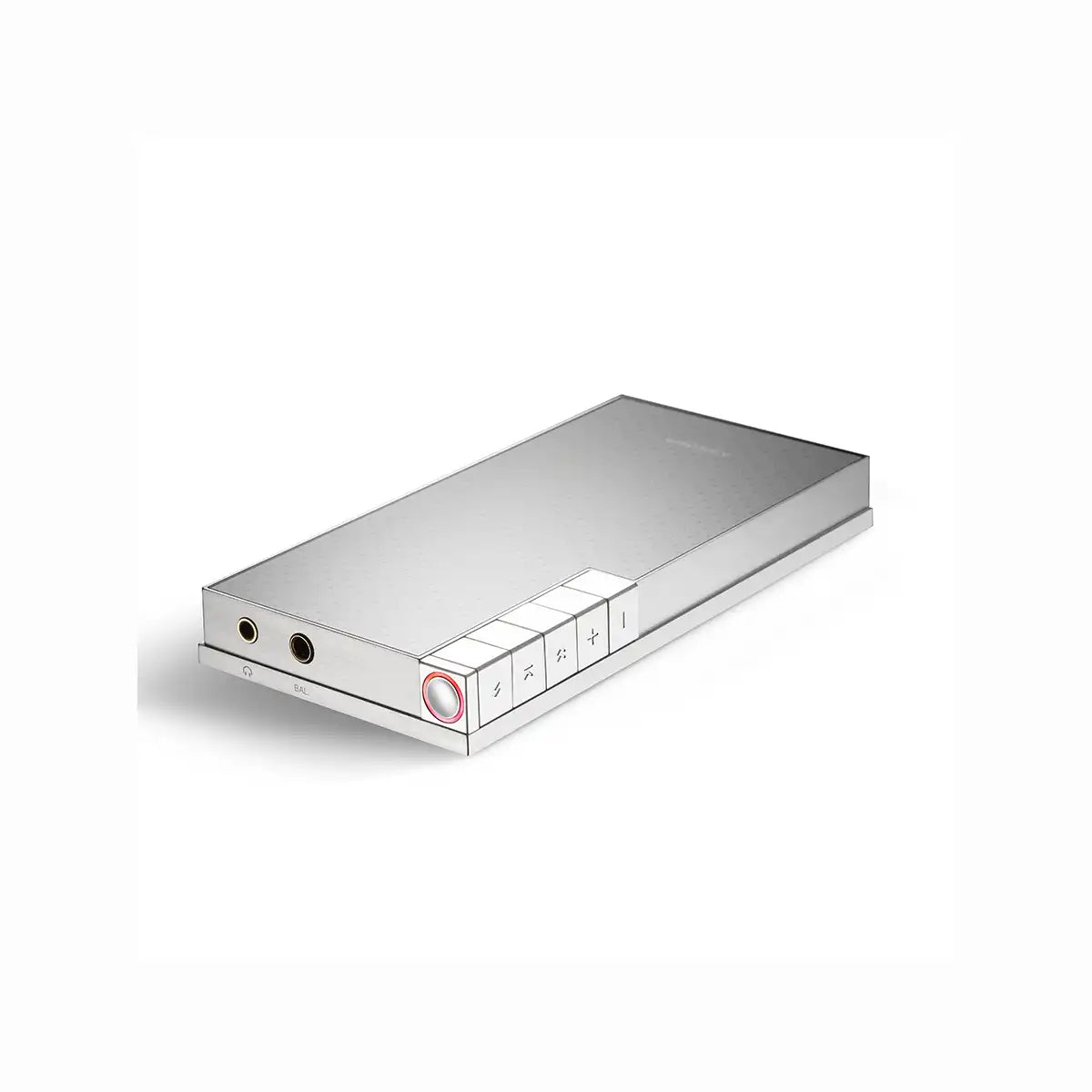

Elegant design in premium quality

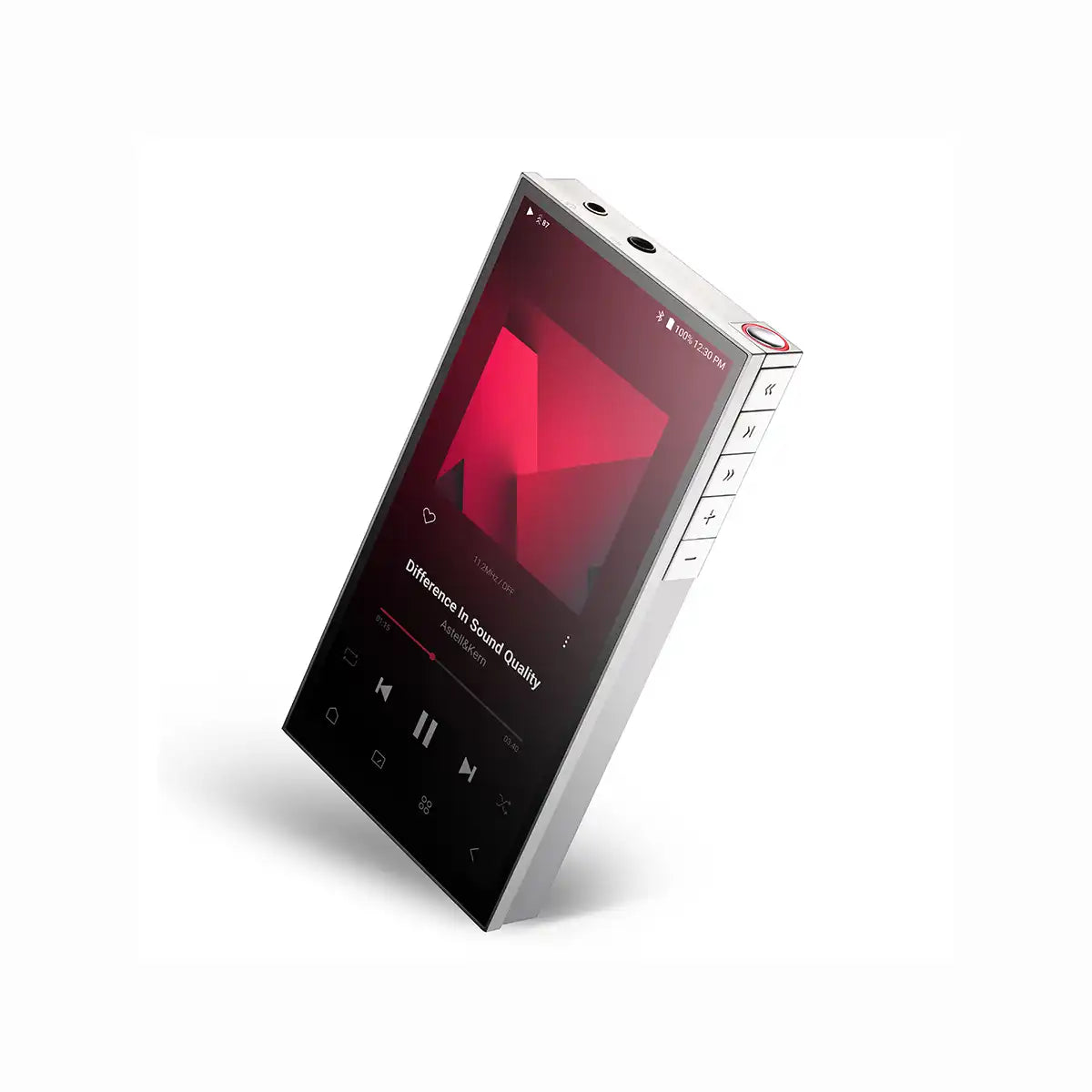

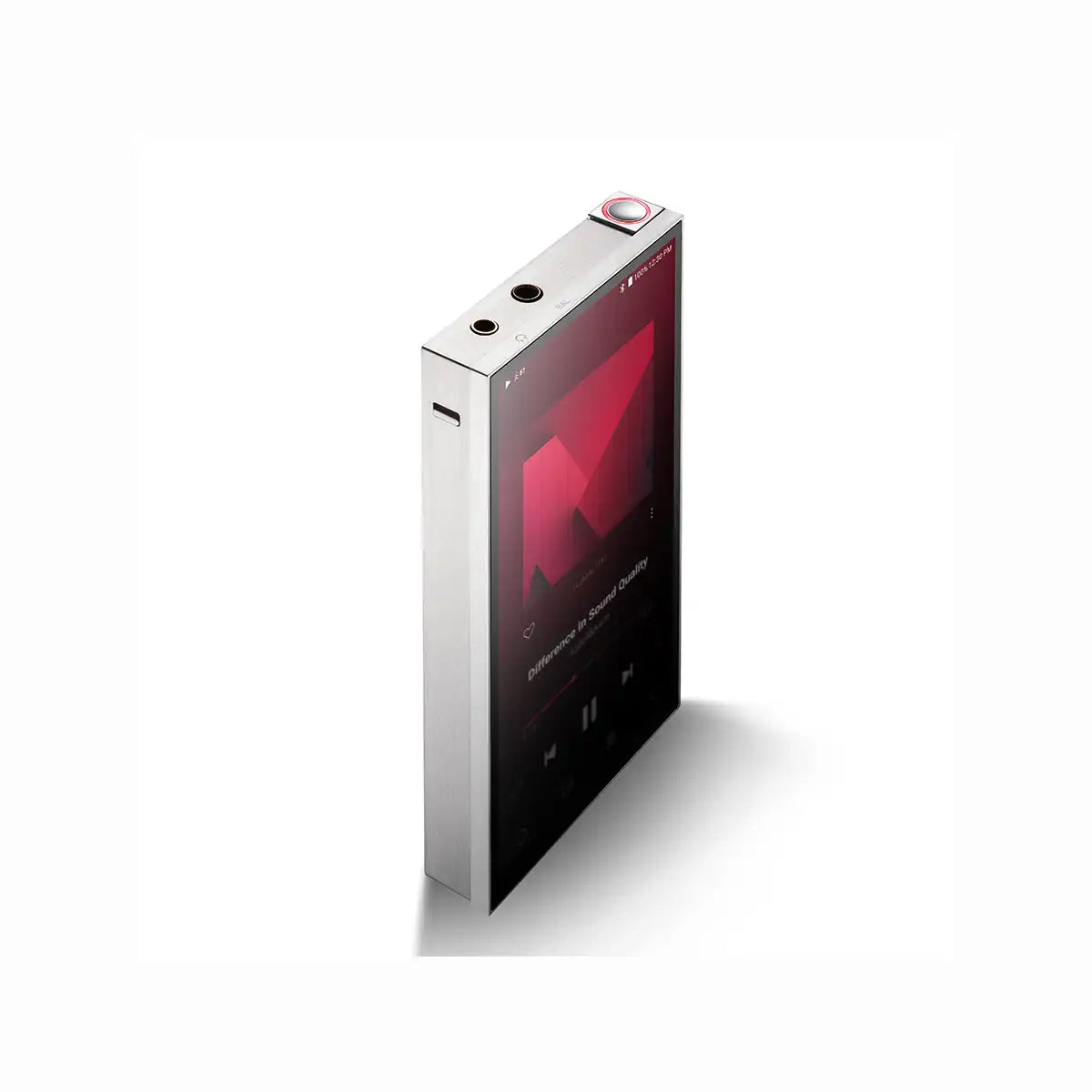

The design of the PD10 follows the new Contrast Cube concept from Astell&Kern.

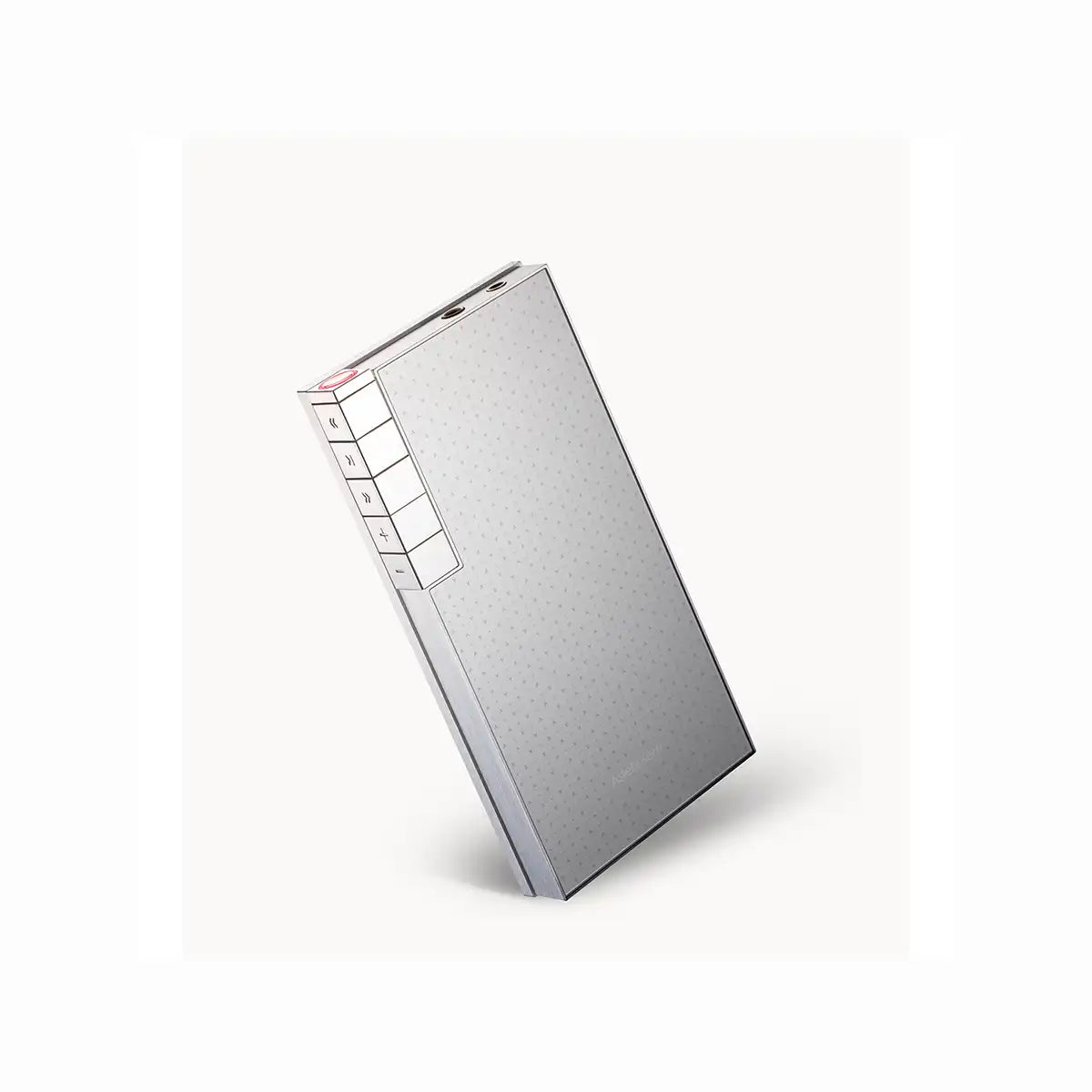

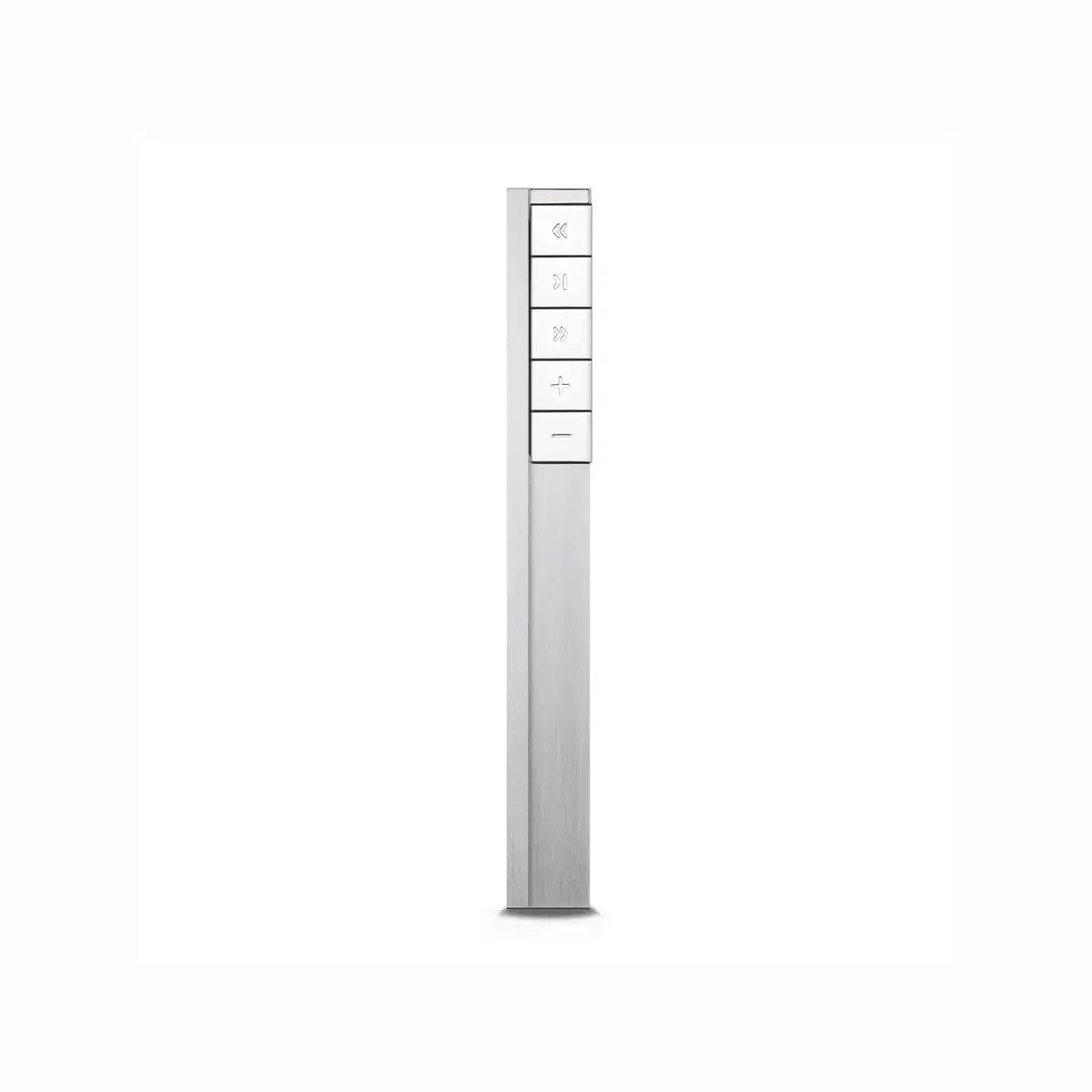

The combination of high-quality stainless steel and glass gives the player a modern and elegant look. For the first time, Astell&Kern replaces the classic volume wheel with precise control buttons, resulting in a particularly minimalist appearance. At the same time, the player was consistently developed for comfortable one-handed operation.

Highlights of the Astell&Kern PD10

• High-end digital audio player including docking station

• HEXA audio architecture with 4 × AK4498EX DACs

• Separate digital and analog signal processing

• Independent audio circuits for balanced and unbalanced outputs

• Dual amplifier with Smart Gain technology

• Docking station with balanced XLR outputs

• 6-inch Full HD touchscreen

• 256 GB internal storage, expandable up to 2 TB

• Playback up to 32-bit / 768 kHz PCM and DSD512

• Bluetooth 5.3 with LDAC, LHDC, and aptX HD

• Roon Ready, AirPlay, and AK File Drop

• Crossfeed and ReplayGain function

• Up to 15 hours of battery life with Power Delivery 3.0

• Firmware update with full Android system and new DAR technology

The Astell&Kern PD10 with docking station combines audiophile sound quality, cutting-edge streaming technology, and stationary hi-fi functionality in an exceptionally versatile high-end music player. Whether on the go with high-quality headphones or at home as the central source of a reference system – the PD10 delivers uncompromising performance at the highest level.

Audio Specifications:

Frequency Response:

· ±0.066 dB (Condition: 20 Hz ~ 20 kHz) Unbalanced │ · · ±0.066 dB (Condition: 20 Hz ~ 20 kHz) Balanced
· ±0.62 dB (Condition: 20 Hz ~ 70 kHz) Unbalanced │ · · · ±0.61 dB (Condition: 20 Hz ~ 70 kHz) Balanced
· Signal-to-Noise Ratio: 125 dB @ 1 kHz, Unbalanced │ 128 dB @ 1 kHz, Balanced
· Crosstalk: -137 dB @ 1 kHz, Unbalanced │ -138 dB @ 1 kHz, Balanced
· THD+N: 0.0007% @ 1 kHz, Unbalanced │ 0.0006% @ 1 kHz, Balanced
· IMD SMPTE: 0.0004% 800 Hz 10 kHz (4:1) Unbalanced │ Balanced
· Output Impedance: Unbalanced Out 3.5 mm (1 ohm) │ Balanced Out 4.4 mm (1.6 ohms)

Clock Source
· Clock Jitter: 25 pS (typ.)
· Reference Clock Jitter: 250 femtoseconds

Storage Capacity
· Internal Memory: 256 GB [NAND]
· External Memory: microSD x1 (max. 2 TB)

Battery
· Capacity: 5,770 mAh 3.8 V Li-Polymer
· Charge Time: approx. 4 hours (PD3.0 charging)
· Playback Time: approx. 15 hours (Standard: FLAC, 16-bit, 44.1 kHz, volume 50, LCD off, normal gain)

Supported OS

Supported OS:
· Windows 8, 10, 11 (32/64-bit), macOS X 10.7
