The ATC C1C is an uncompromisingly designed center channel loudspeaker for high-end home cinema and multi-channel systems. Developed based on legendary ATC studio technology, it delivers exceptionally clear speech intelligibility, precise dialogue imaging, and an impressively natural sound reproduction. Voices feel tangible, effects are positioned accurately within the room, and even complex film scenes remain transparent and controlled.

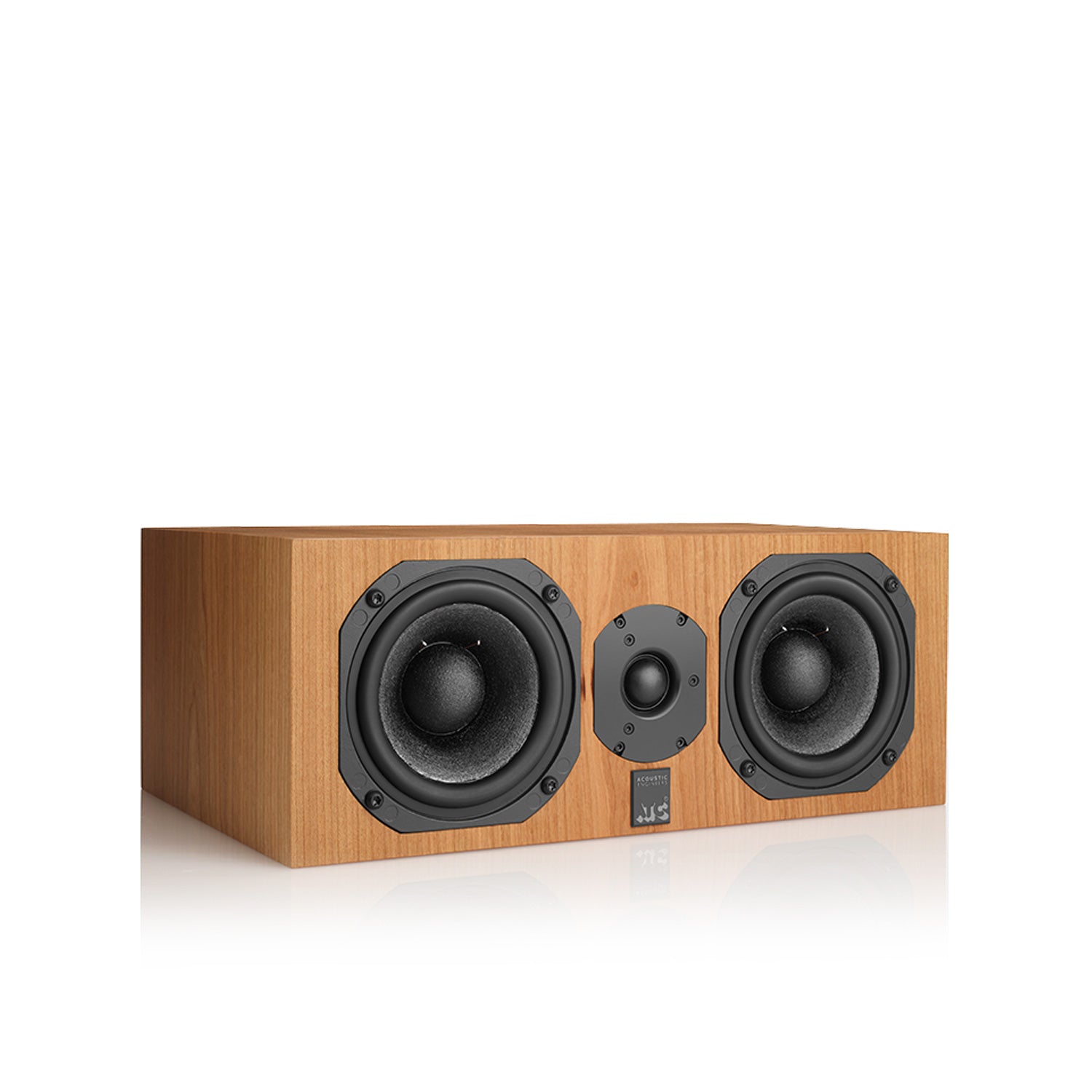

At the heart of the C1C is the combination of the famous 75mm ATC soft dome midrange driver, two powerful woofers, and a precise 25mm neodymium soft dome tweeter with waveguide. The sealed enclosure ensures fast, controlled bass and exceptionally coherent reproduction without artificial emphasis. This allows the C1C to integrate perfectly into high-end stereo and surround systems featuring ATC loudspeakers.

Like all ATC loudspeakers, the C1C is manufactured in England and selected with a pair matching tolerance of just ±0.5 dB – a guarantee for the highest manufacturing quality and long-term sonic consistency.

Design principle:
Passive 3-way centre loudspeaker

Cabinet:
Sealed (Acoustic Suspension)

Bass driver:
2 × 164 mm ATC Super Linear Bass Driver

Mid-range driver:
75 mm ATC Soft-Dome

Tweeter:
25 mm ATC neodymium soft-dome with waveguide

Frequency response (-6 dB):
55 Hz – 22 kHz

Sensitivity:
85 dB (1 W / 1 m)

Maximum SPL:
112 dB

Nominal impedance:
8 ohms

Recommended amplifier power:
75 – 300 watts

Crossover frequencies:
380 Hz / 3.5 kHz

Pair matching:
±0.5 dB

Dispersion:
±80° horizontal, ±10° vertical

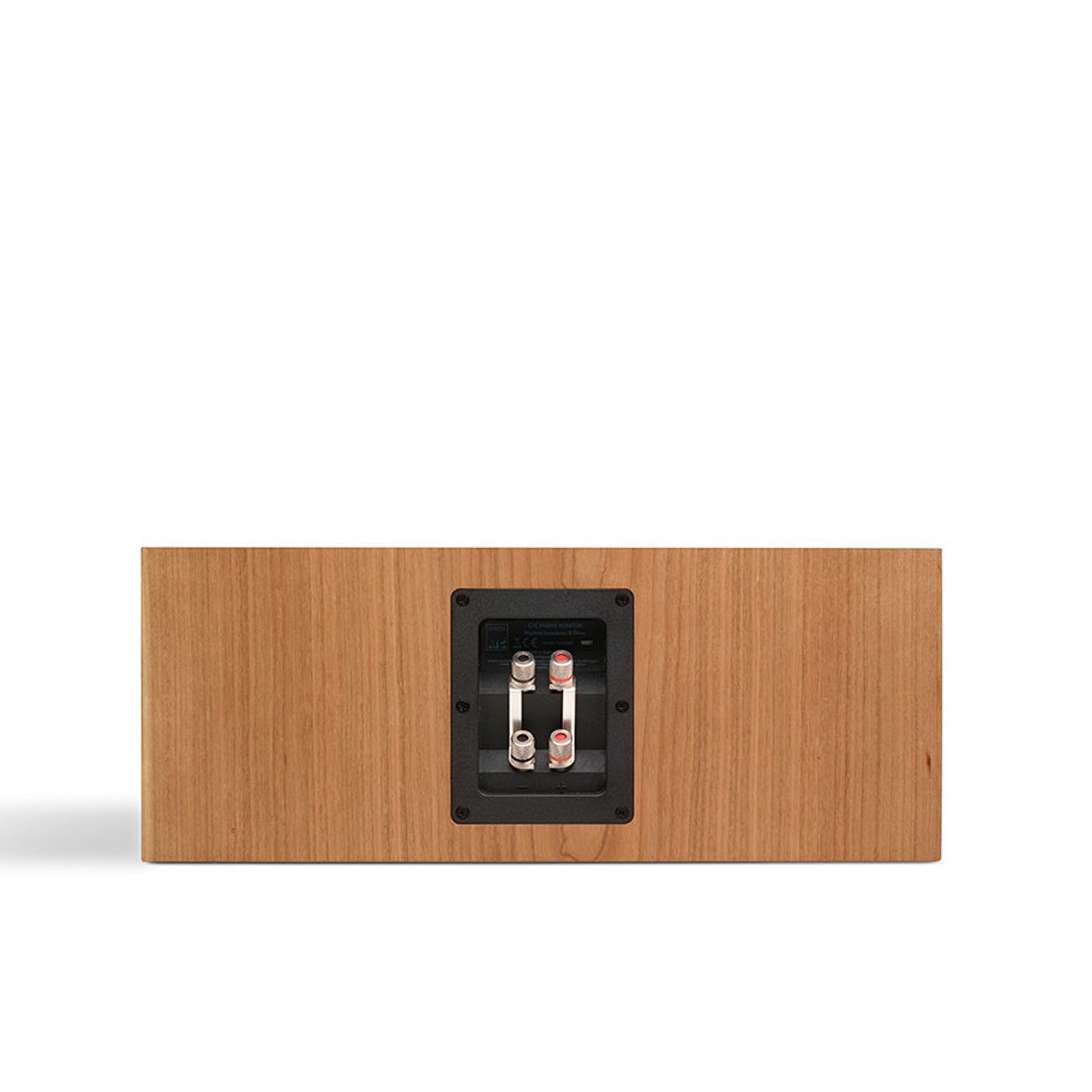

Connectors:
Bi-wire terminals / 4 mm banana plug compatible

Dimensions (H × W × D):
approx. 265 × 730 × 300 mm

Weight:
approx. 28 kg
