ATC C3C – High-performance center speaker for demanding home cinemas

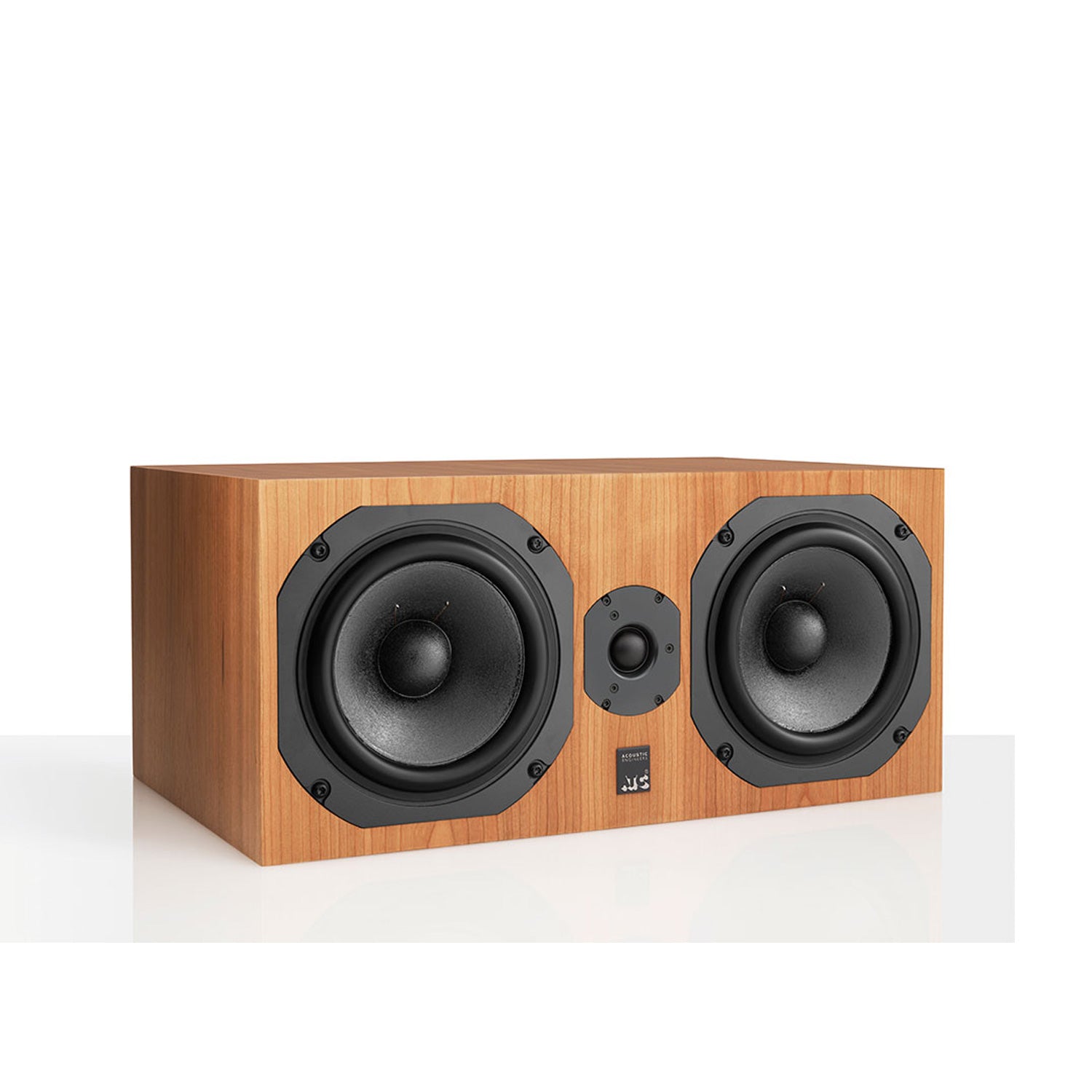

The ATC C3C is the larger center speaker in the ATC Entry series and has been specially developed for high-quality home cinema and multi-channel systems. With its two 150mm CLD mid/bass drivers and the ATC-developed 25mm neodymium soft-dome tweeter, it offers exceptionally clear speech intelligibility, high dynamics, and an impressively natural reproduction of dialogue, music, and effects.

Thanks to the sealed enclosure design, the C3C impresses with precise transient response and controlled bass reproduction. The high-quality crossover and the drivers manufactured in-house by ATC ensure an exceptionally homogeneous sound balance and perfect integration into home cinema systems using ATC SCM11, SCM19, or SCM40 speakers.

Whether it's dialogue in films, concert recordings, or action-packed soundtracks – the C3C delivers a confident, low-distortion performance even at high volume levels. The neutral tuning typical of ATC ensures maximum speech intelligibility and an authentic sound representation.

Design principle:
Passive 2-way center speaker

Cabinet:
Closed (Acoustic Suspension)

Tweeter:
25 mm ATC Soft Dome with neodymium magnet and waveguide

Woofer/Midrange driver:
2 × 150 mm ATC CLD driver

Frequency response (-6 dB):
54 Hz – 22 kHz

Efficiency:
88 dB (1 W / 1 m)

Maximum SPL:
108 dB

Nominal impedance:
8 ohms

Recommended amplifier power:
75 – 300 watts

Crossover frequency:
2.2 kHz

Matched response:
±0.5 dB

Dimensions (H × W × D):
230 × 500 × 303 mm

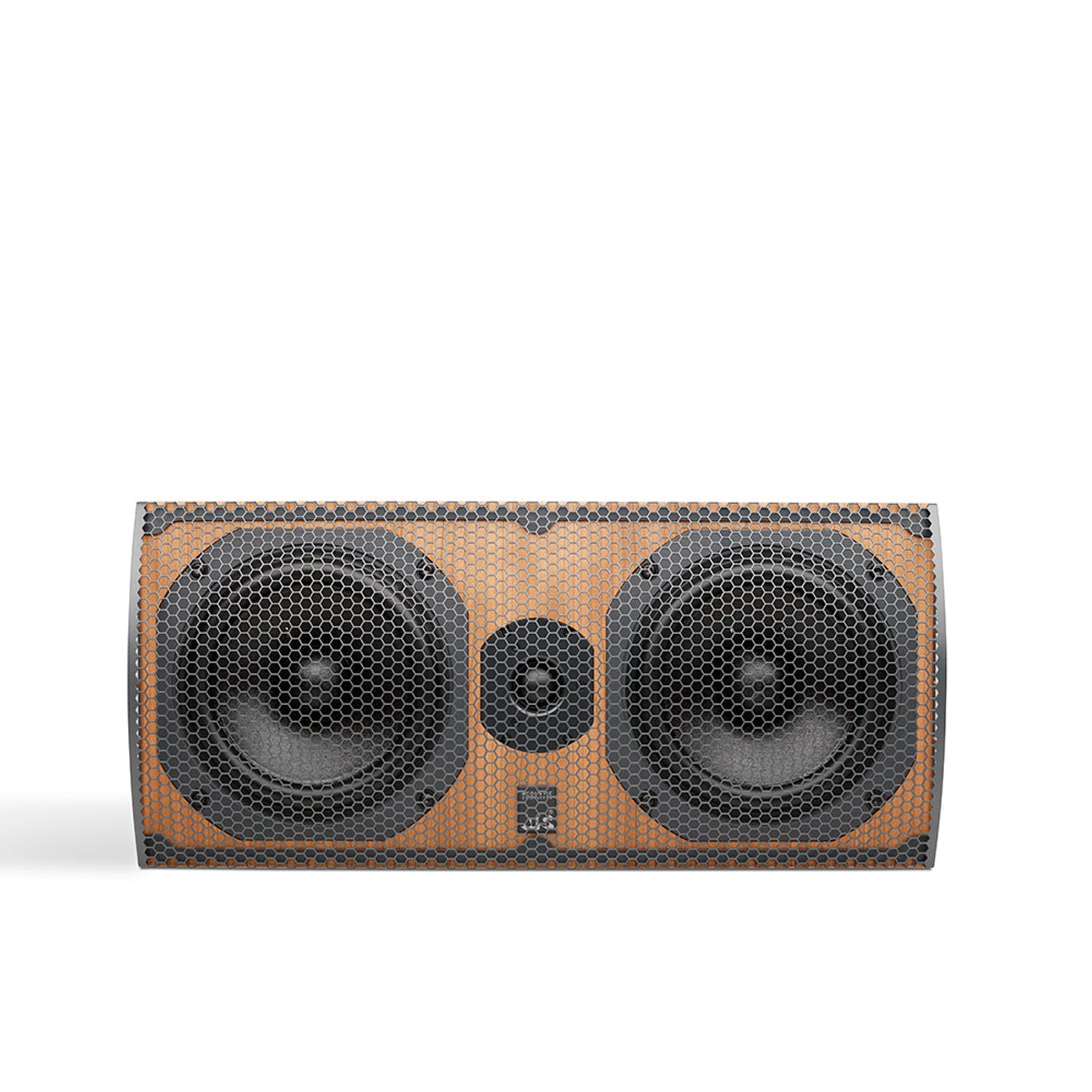

Front grille:
Depth +28 mm

Weight:
18 kg
