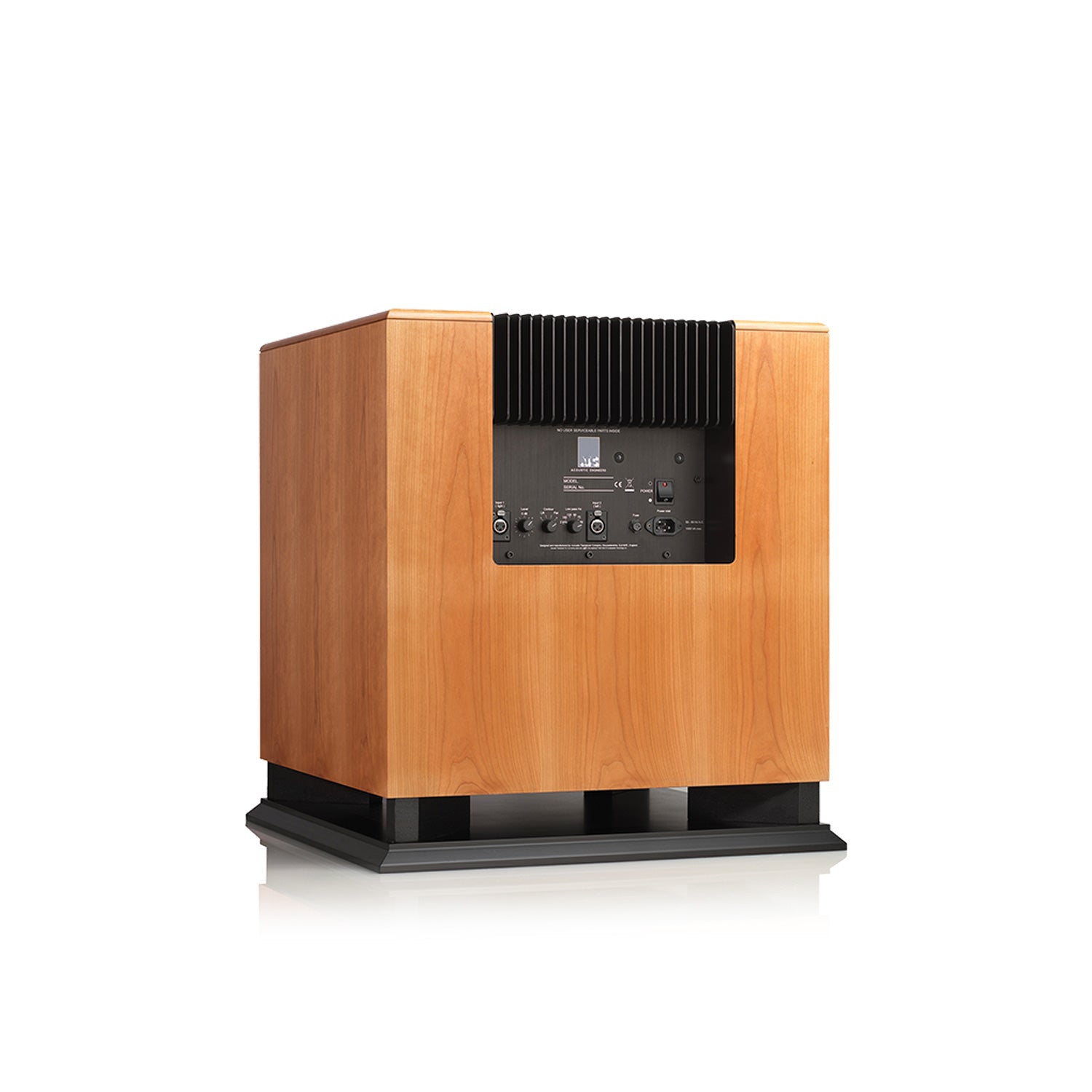

ATC C6 Sub – C Series Reference Subwoofer

The ATC C6 Sub is the largest and most powerful subwoofer in the ATC C Series, designed for uncompromising deep bass reproduction in high-end stereo and home cinema systems. It combines extreme low-frequency capability with typical ATC precision and control – without artificial bass emphasis or "boom".

At its core is a 375mm (15") Super Linear woofer, which operates in a massively braced, sealed enclosure. It is driven by an integrated high-performance amplifier with up to 450W continuous power (Class G) and significantly higher dynamic headroom. The result is extremely controlled, fast, and low-distortion bass down to the lowest frequencies.

Design principle:
Active subwoofer

Enclosure:
Sealed (Acoustic Suspension)

Woofer:
1 × 375 mm (15") ATC Super Linear

Amplifier power:
450 W Class G (up to approx. 1000 W peak)

Frequency response (-6 dB):
approx. 18 Hz – 250 Hz

Maximum SPL:
approx. 115 dB SPL

Low-pass filter:
variable (multi-stage adjustable, depending on setup)

Phase:
0–180° adjustable

Gain:
variable

Inputs:
2 × balanced XLR

Outputs:
XLR (link/daisy-chain possible)

Input impedance:
>10 kΩ (balanced)

Dimensions (H × W × D):
624 × 580 × 580 mm

Weight:
approx. 60–64 kg
