ATC

ATC HTS7C

Regular price
€760,00
Regular price
Sale price
€760,00

Preis inkl. MwSt. zzgl. Versandkosten

€737,20
Um den Skontopreis zu erhalten, wählen Sie im Warenkorb die Option „Banküberweisung“ und schicken die Bestellung ab.

Wir schicken Ihnen dann eine korrigierte Rechnung inkl. 3 % Skonto per Email.

Weitere Fragen?

Skonto (Vorkasse per Banküberweisung -3%)

Execution
Variant
Delivery time 3-4 days

Product description

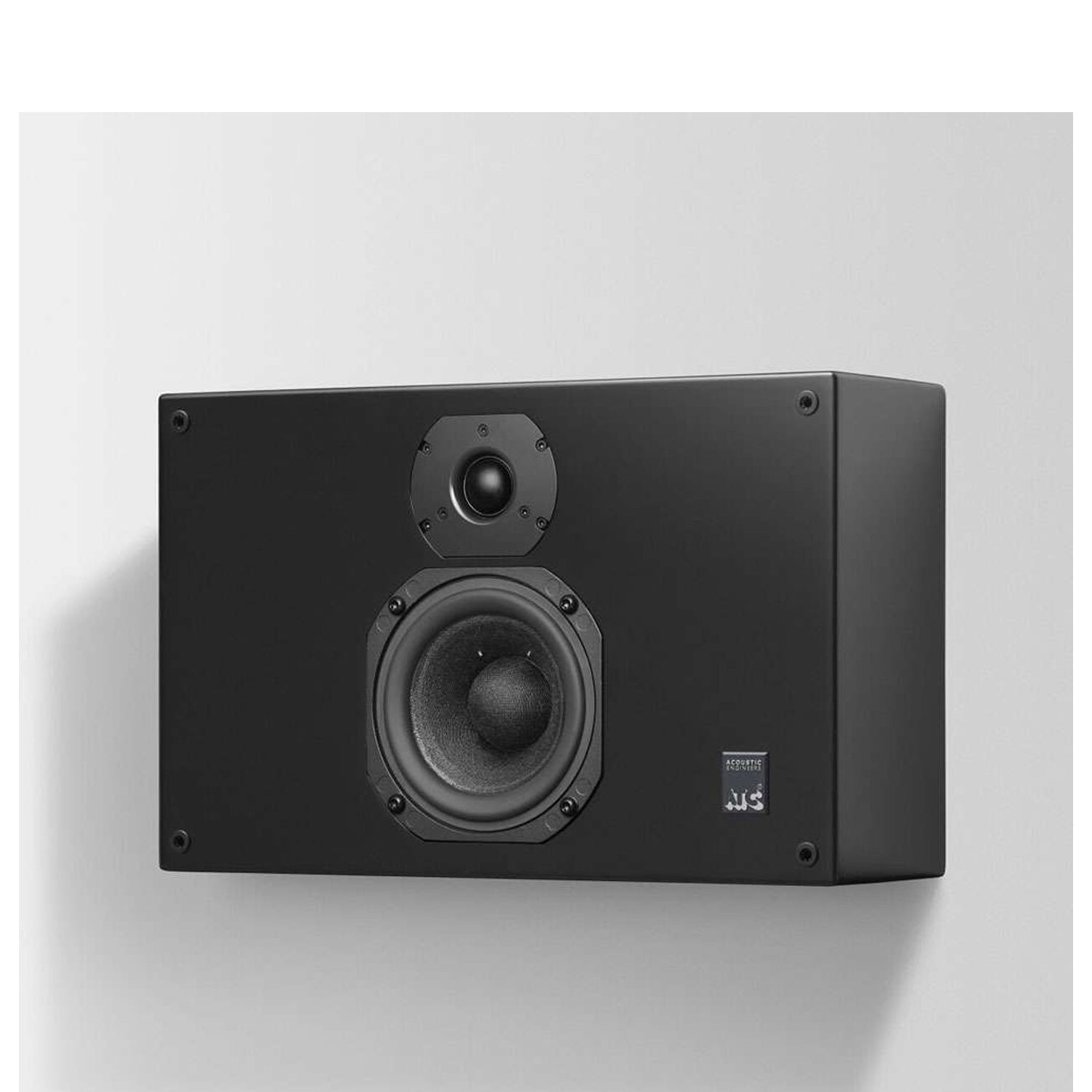

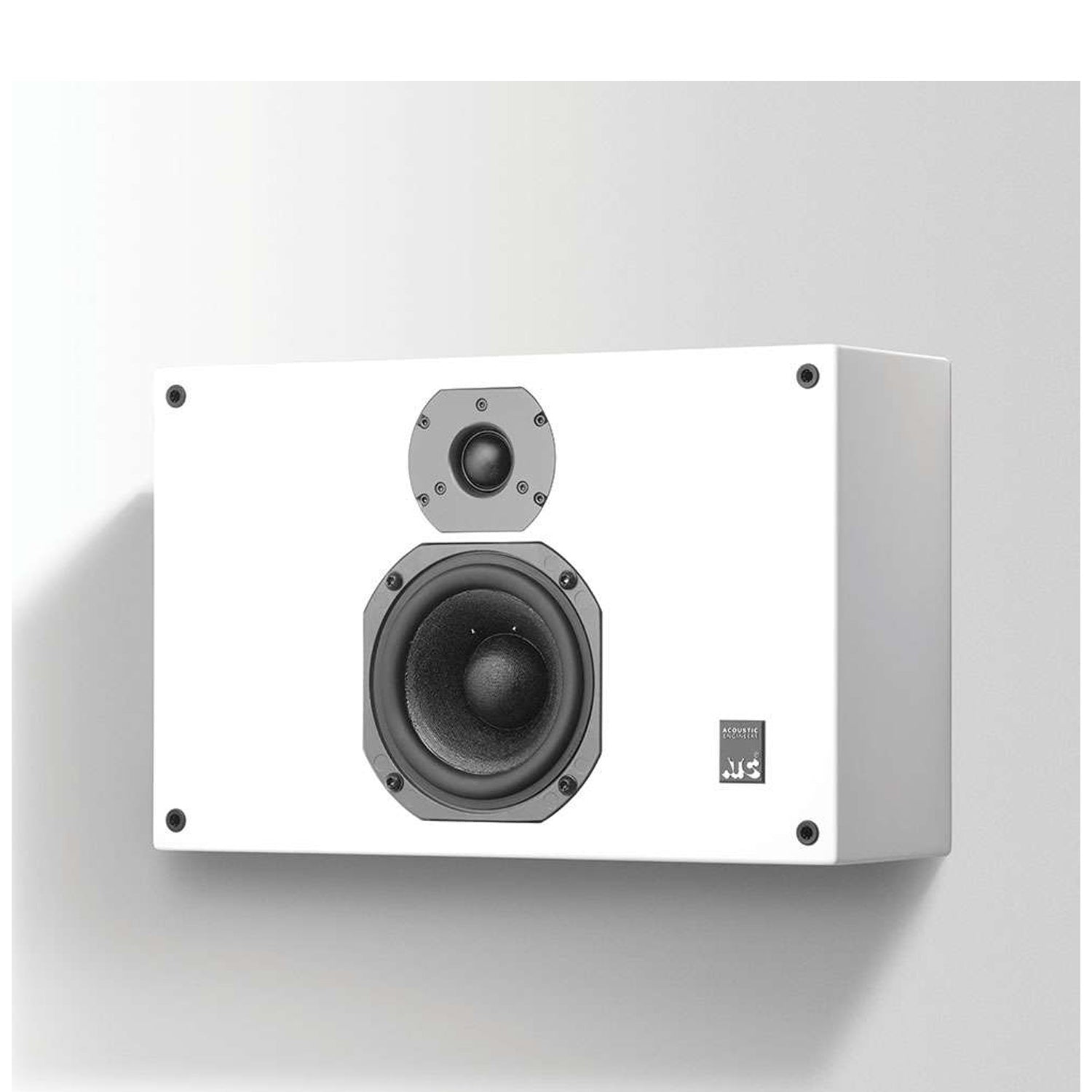

The ATC HTS7C is the horizontal center version of the HTS7 and was developed specifically for home cinema and multi-channel systems. It is a compact, passive 2-way on-wall loudspeaker designed for direct wall mounting, allowing it to integrate unobtrusively into living rooms or home cinemas.

Inside, it features the same ATC studio technology as the manufacturer's larger hi-fi and studio monitors. A 25 mm soft-dome tweeter provides fine resolution and clear vocal reproduction, while a 125 mm mid/bass driver is responsible for controlled midrange and surprisingly powerful bass from the shallow enclosure. The result is a very neutral, precise, and dynamic performance—especially important for dialogue in home cinema.

The HTS7C is designed to anchor voices precisely to the screen and create a stable soundstage between the front loudspeakers. Thanks to its wide horizontal dispersion, speech intelligibility remains very high even outside the sweet spot. When combined with other HTS models, it creates a consistent, seamless surround system.

Thanks to its slim enclosure (only approx. 14 cm deep), the HTS7C is particularly suitable for installations where space or visual discretion is crucial, without having to sacrifice professional sound quality.

Technical details

Design principle:
Passive 2-way on-wall center loudspeaker

Cabinet:
sealed, optimized for wall mounting

LF/MF driver:
1 × 125 mm ATC cone driver

HF driver:
1 × 25 mm ATC soft dome (neodymium, dual suspension)

Frequency response (-6 dB):
44 Hz – 22 kHz

Frequency response (typical/linear):
approx. 50 Hz – 20 kHz

Efficiency:
approx. 84 dB (1 W / 1 m)

Maximum SPL:
approx. 103 dB SPL

Nominal impedance:
8 ohms

Recommended amplifier power:
75 – 300 W

Crossover frequency:
approx. 2.5 kHz

Dispersion:
±80° horizontal / ±10° vertical

Matched response:
±0.5 dB

Connectors:
binding posts / 4 mm banana plugs

Dimensions (H × W × D):
390 × 245 × 137 mm (inc. grille)

Weight:
8 kg
