ATC

ATC SCM100ASL

Regular price: €14.540,00
Regular price
Sale price: €14.540,00
Unit price: per

€14.103,80

Um den Skontopreis zu erhalten, wählen Sie im Warenkorb die Option „Banküberweisung“ und schicken die Bestellung ab.

Wir schicken Ihnen dann eine korrigierte Rechnung inkl. 3 % Skonto per Email.

Skonto (Vorkasse per Banküberweisung -3%)

Execution Unit price Price per pair

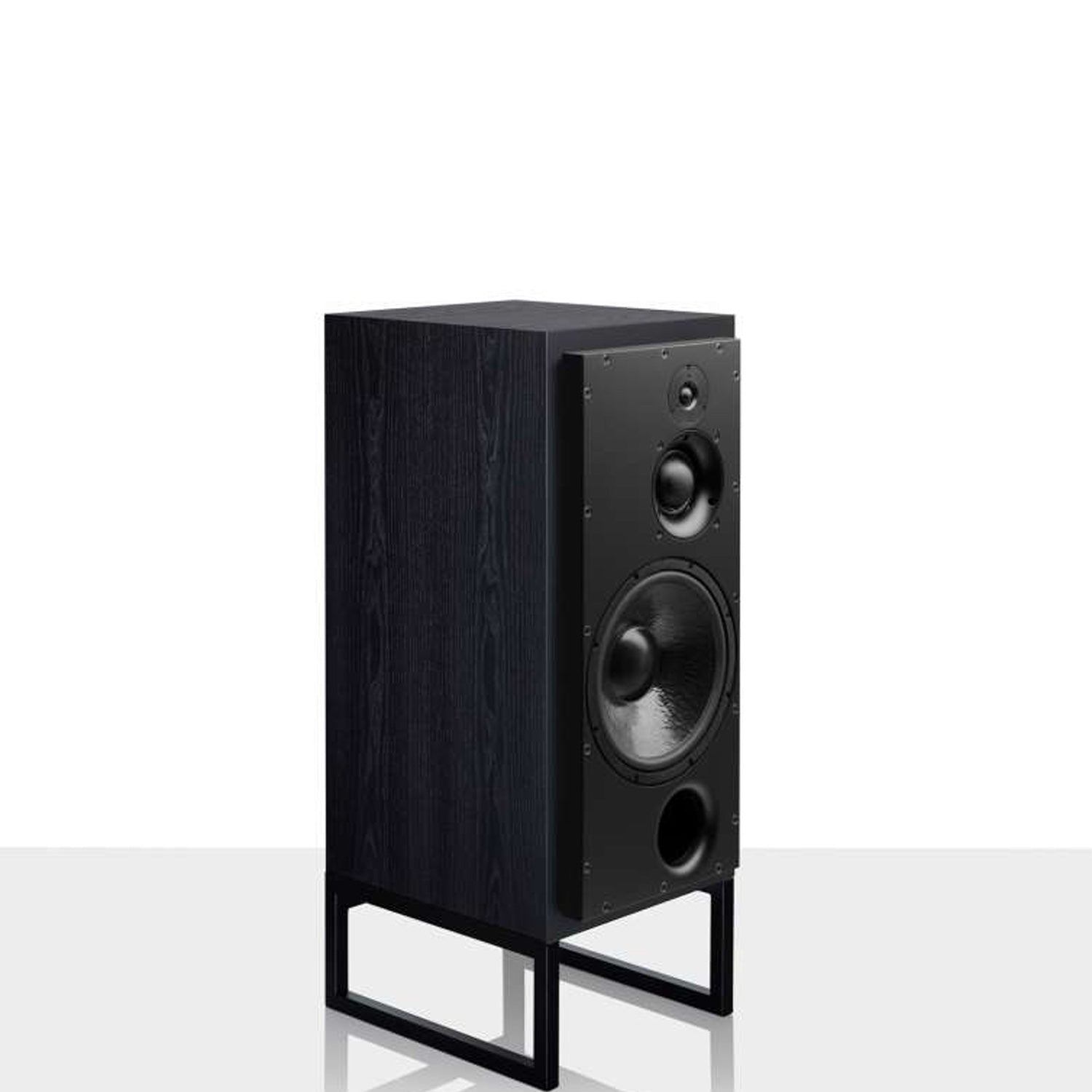

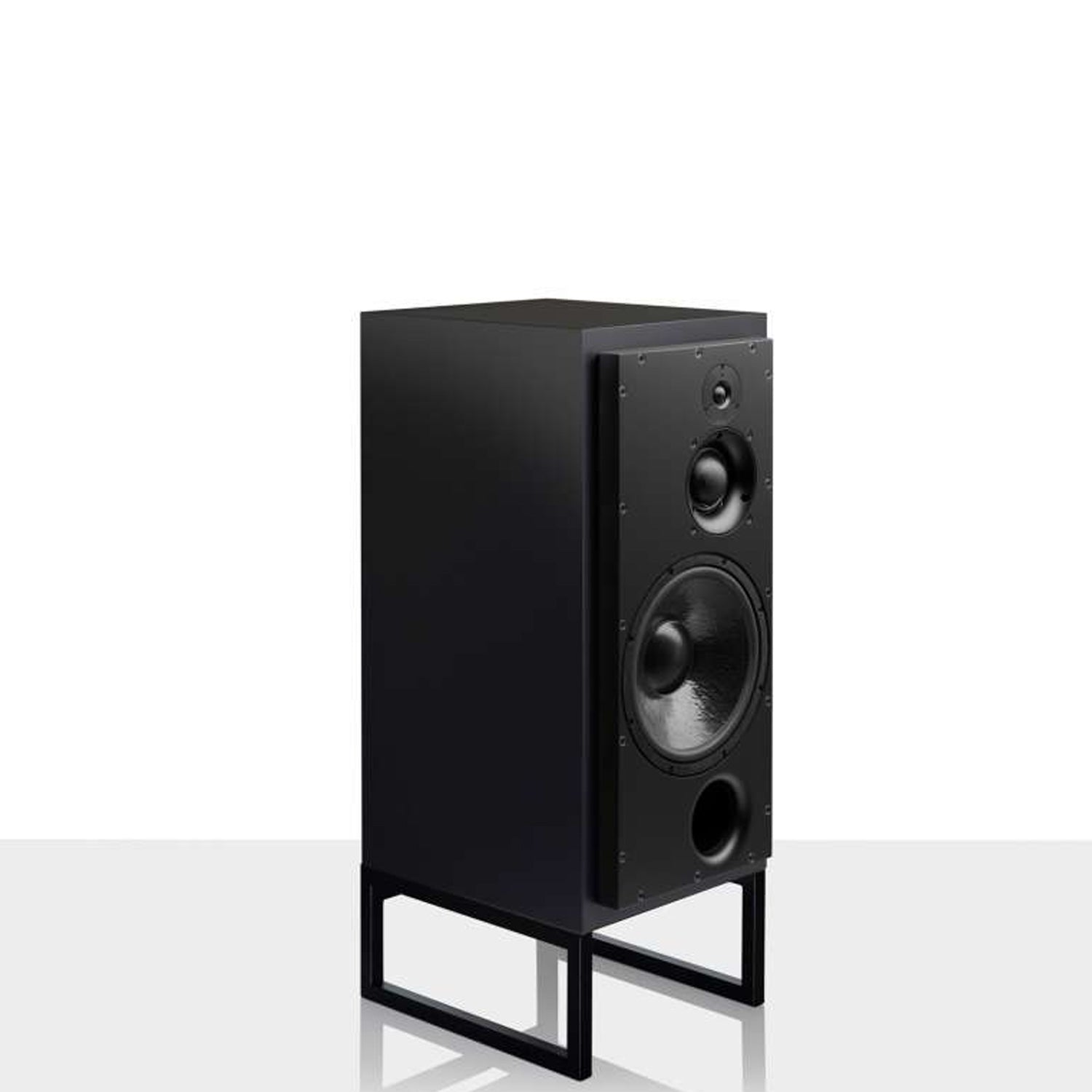

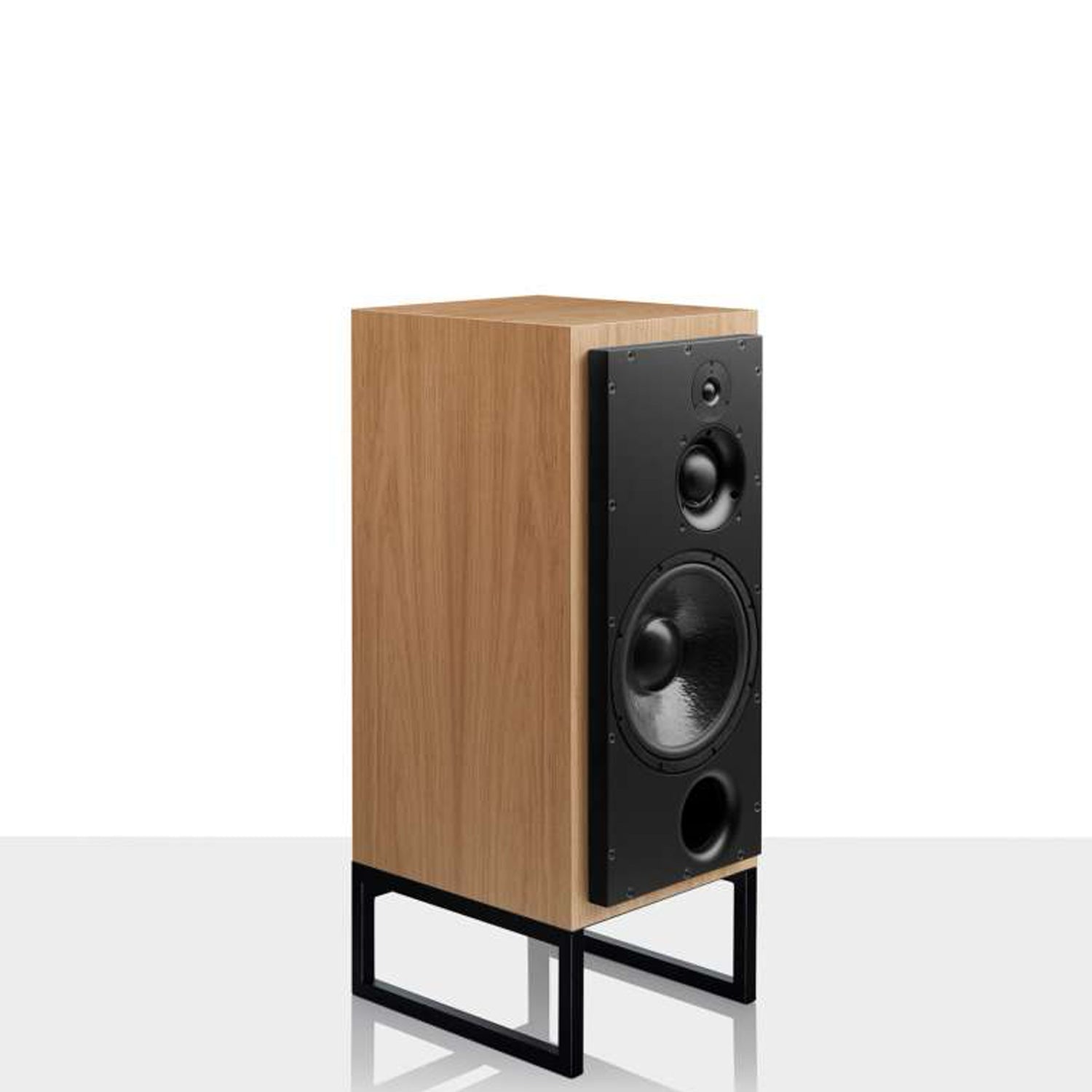

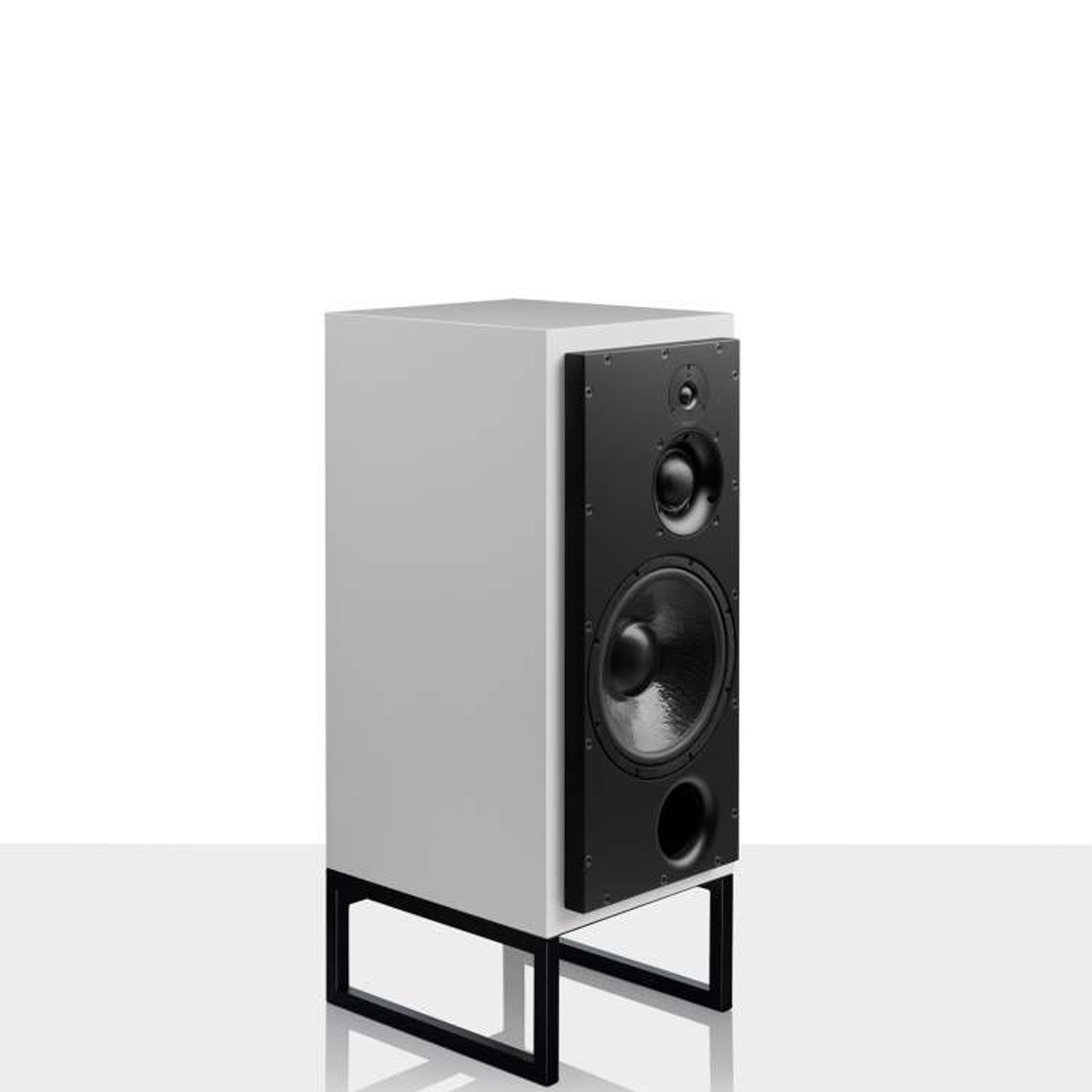

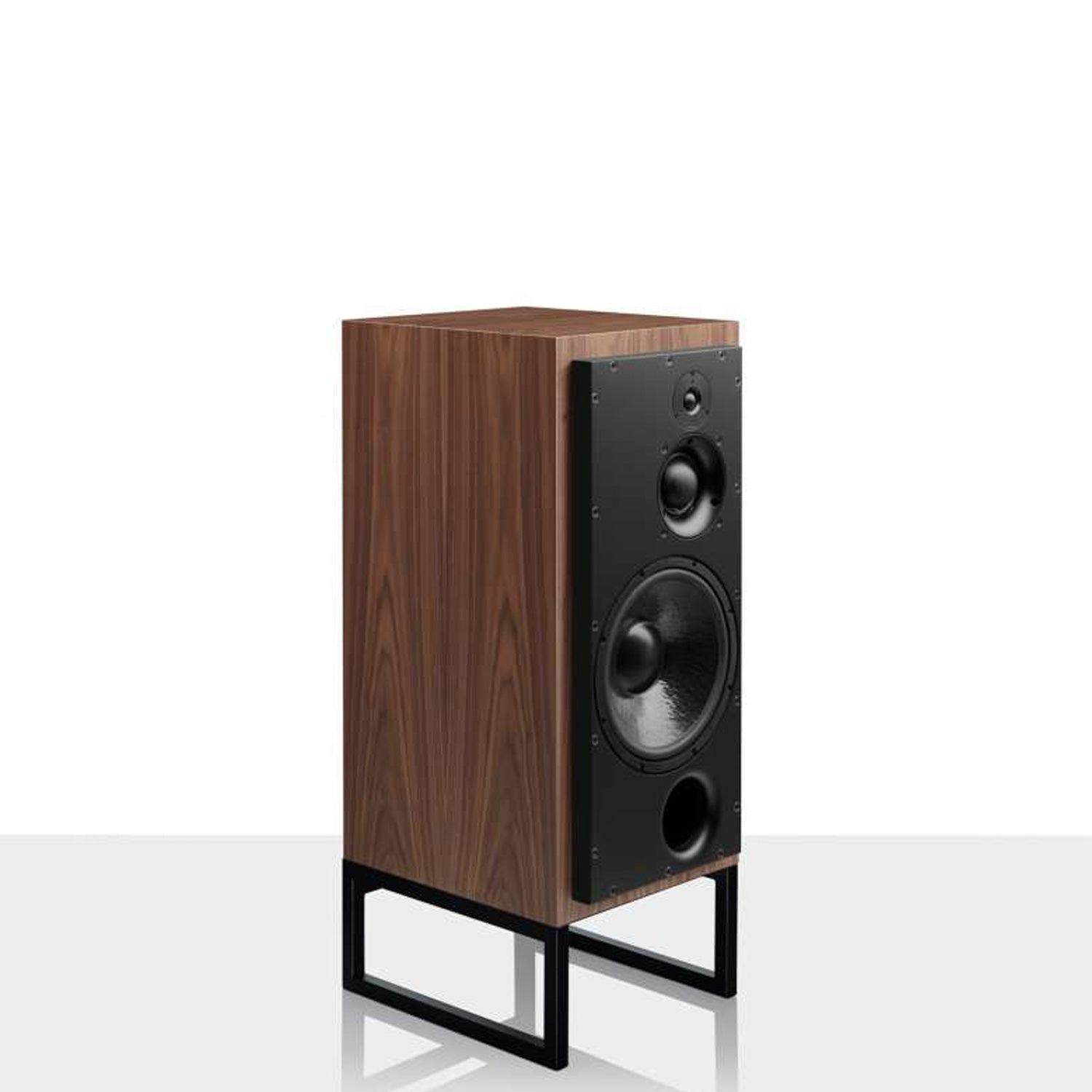

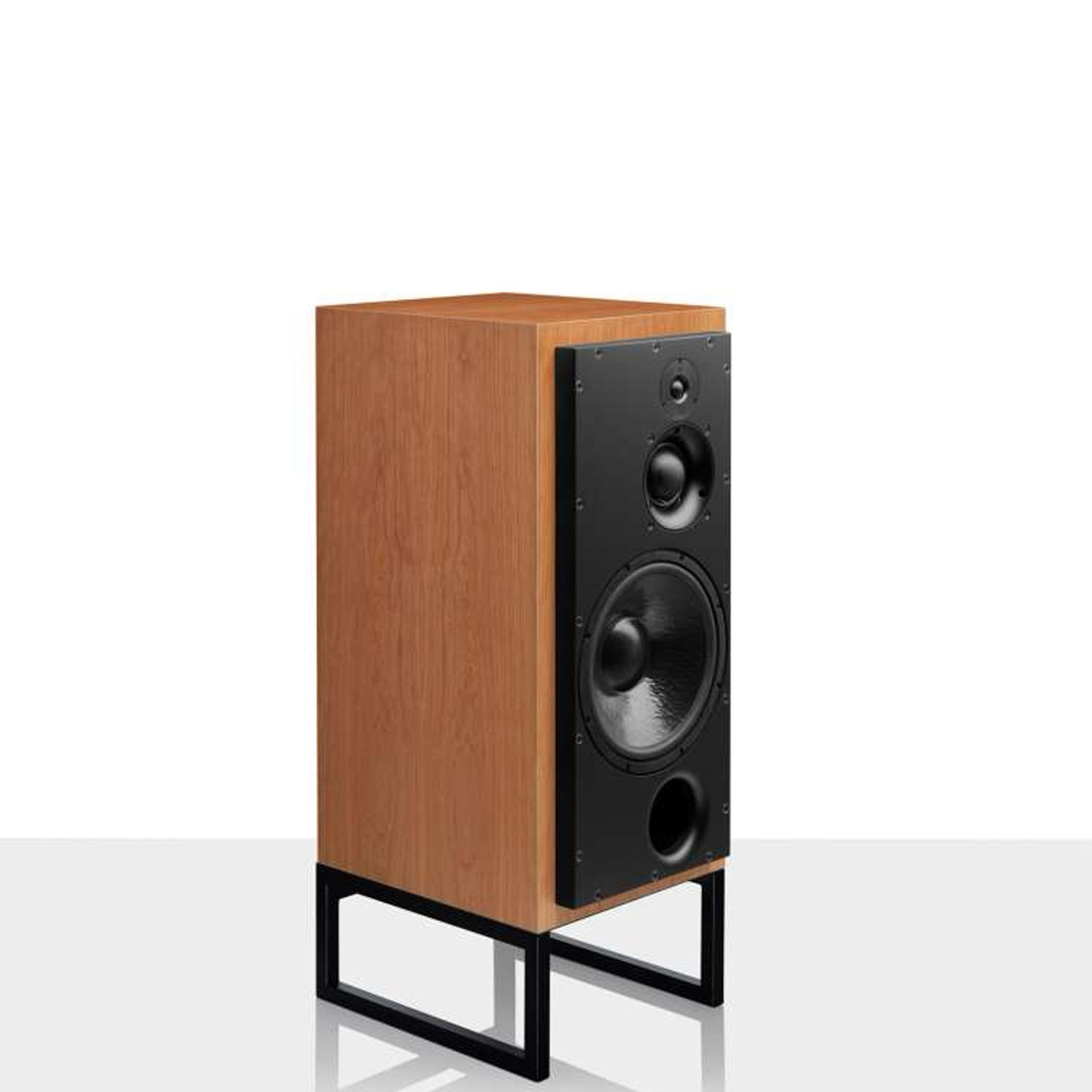

Variant Black Ash Satin Black Satin White Cherry Walnut Oak Premium Rosewood Veneer

Product variants

Quantity

Delivery time 3-4 days

Product description

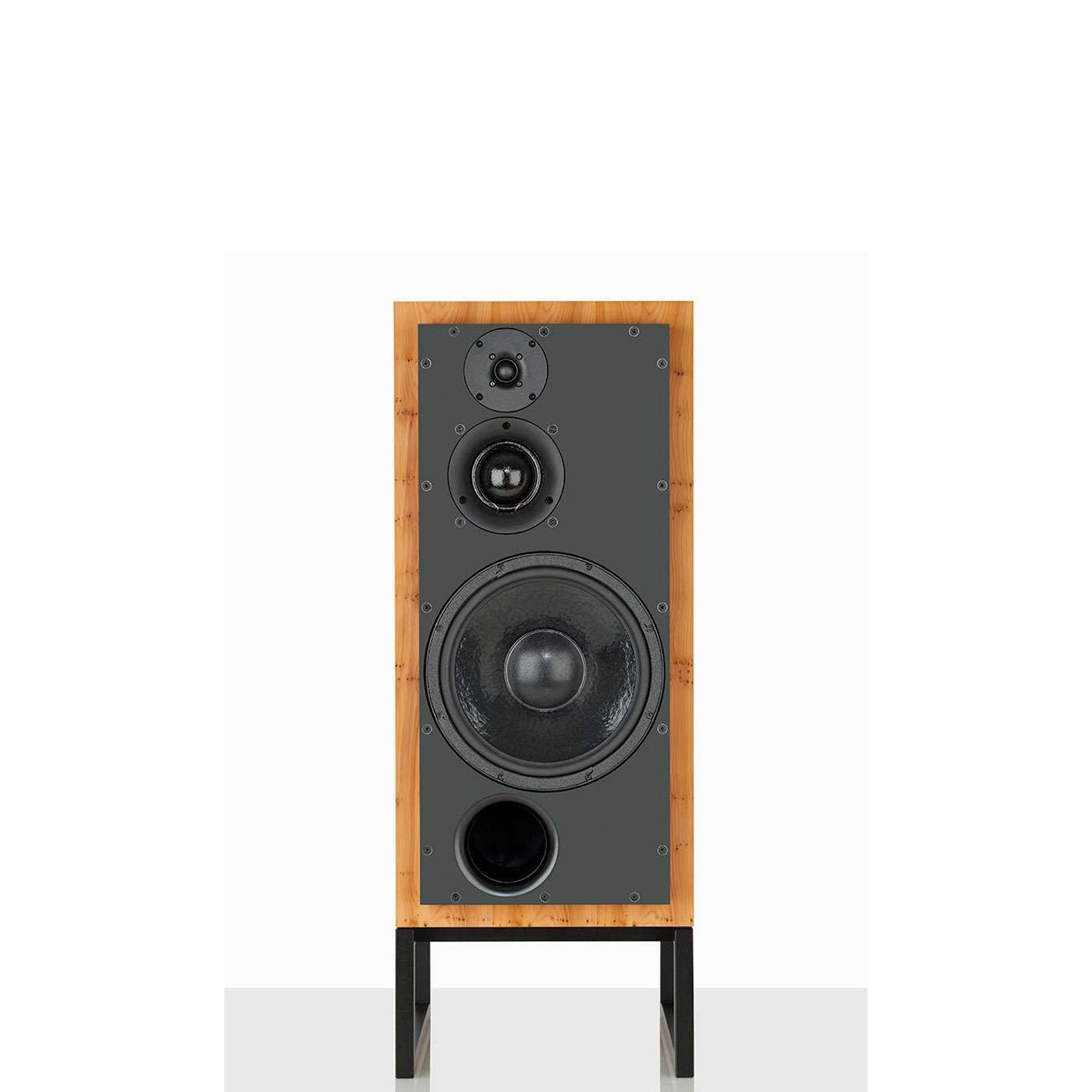

ATC SCM100ASL – Active reference loudspeaker for the highest demands

The ATC SCM100ASL is one of the legendary active loudspeakers from the British manufacturer ATC and was developed for discerning music lovers as well as professional applications. With its powerful 314 mm Super Linear bass driver, the famous 75 mm soft-dome midrange driver, and the high-resolution 25 mm S-Spec tweeter, it offers exceptionally precise, dynamic, and uncolored music reproduction.

Thanks to its fully active design, each driver has its own dedicated MOSFET power amplifier. The active crossover and perfectly matched amplifiers ensure maximum control, excellent transient response, and impressive dynamics. The SCM100ASL effortlessly fills even large rooms with deep, controlled bass and an impressive soundstage.

The closed-box cabinet design ensures the precision in the low-frequency range that is typical for ATC. Vocals, instruments, and complex musical passages are reproduced with extraordinary naturalness and transparency. The SCM100ASL is considered a global reference for authentic music reproduction and combines studio quality with audiophile musicality.

Technical details

Design principle:
Active 3-way floorstanding loudspeaker

Cabinet:
Sealed (Acoustic Suspension)

Woofer:
314 mm (12") ATC Super Linear Bass Driver

Midrange driver:
75 mm ATC Soft-Dome Midrange Driver

Tweeter:
25 mm ATC S-Spec Soft Dome with neodymium magnet

Frequency response (-6 dB):
32 Hz – 22 kHz

Frequency response linearity (±2 dB):
65 Hz – 17 kHz

Maximum sound pressure level:
115 dB

Crossover frequencies:
380 Hz / 3.5 kHz

Bass amplifier power:
200 Watts Class A/B MOSFET

Midrange amplifier power:
100 Watts Class A/B MOSFET

Tweeter amplifier power:
50 Watts Class A/B MOSFET

Total power:
350 Watts per loudspeaker

Input:
Balanced XLR input

Input sensitivity:
1 Volt

Input impedance:
> 10 kOhms

Channel matching:
±0.5 dB

Dispersion:
±80° horizontal, ±10° vertical

Dimensions (H × W × D):
834 × 400 × 585 mm

Additional height from stand:
+200 mm

Weight:
64.8 kg per loudspeaker
