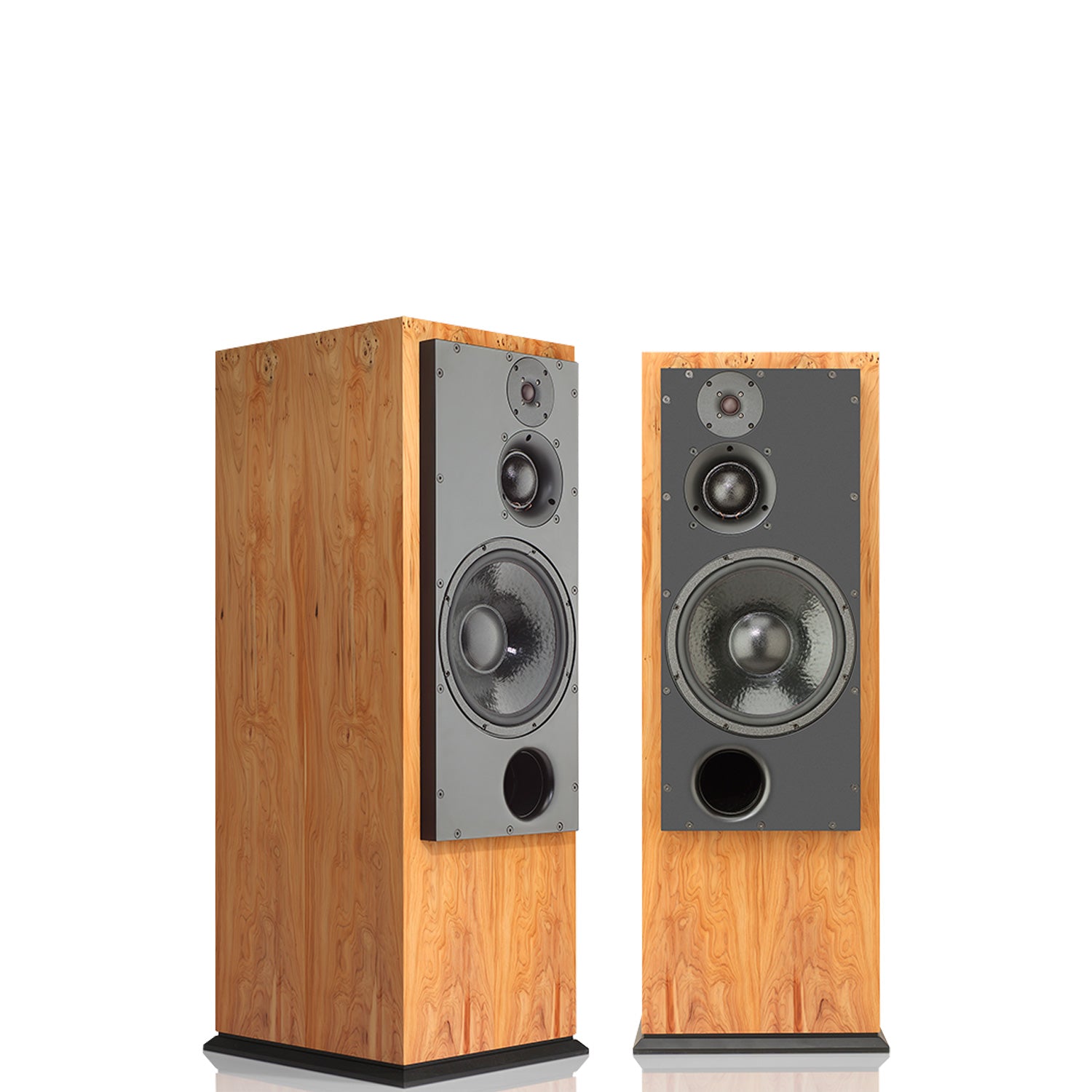

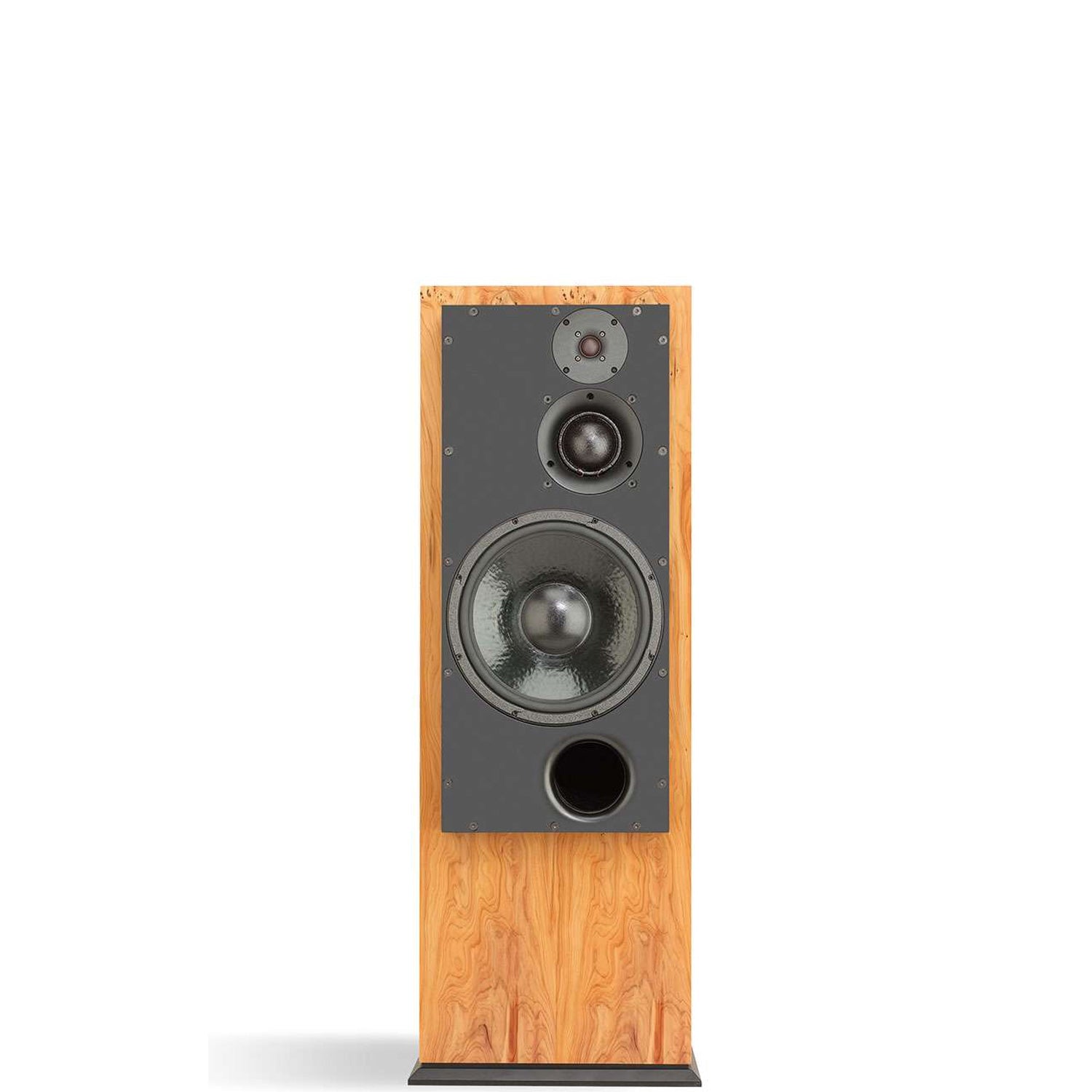

ATC SCM100ASLT – Active Reference Floorstanding Loudspeaker (Tower Series)

The ATC SCM100ASLT is the active version of the SCM100PSLT and belongs to the reference models of the ATC Tower series. Developed for the highest demands in large living spaces and professional studios, it combines extreme dynamics with ATC's signature neutrality and precision. Thanks to the fully active design, each driver is powered by its own dedicated, custom-tuned MOSFET amplifier, allowing for maximum control and minimal distortion.

At its core is the legendary 75mm soft-dome midrange driver (SM75-150 S), which ensures exceptionally natural vocal reproduction. It is complemented by the 314mm Super Linear bass driver as well as the 25mm neodymium soft-dome tweeter. The result is an extremely coherent soundstage with high resolution, very stable imaging, and enormous dynamic headroom.

The sealed enclosure ensures fast, controlled bass without boominess and enables highly precise transient response. The SCM100ASLT performs masterfully in large rooms while remaining consistently neutral, direct, and high-resolution.

Design principle:
Active 3-way floorstanding loudspeaker

Cabinet:
Sealed (Acoustic Suspension)

Woofer:
314 mm ATC Super Linear

Midrange driver:
75 mm ATC Soft-Dome (SM75-150 S)

Tweeter:
25 mm ATC Neodymium Soft Dome

Frequency response (-6 dB):
32 Hz – 22 kHz

Frequency response (±2 dB):
65 Hz – 17 kHz

Maximum sound pressure level:
115 dB SPL

Crossover frequencies:
380 Hz / 3.5 kHz

Amplifier power (integrated):
200 W bass
100 W midrange
50 W high frequency

Total:
350 W per loudspeaker

Inputs:
Balanced XLR

Dimensions (H × W × D):
1167 × 428 × 581 mm

Weight:
approx. 63 kg per loudspeaker
