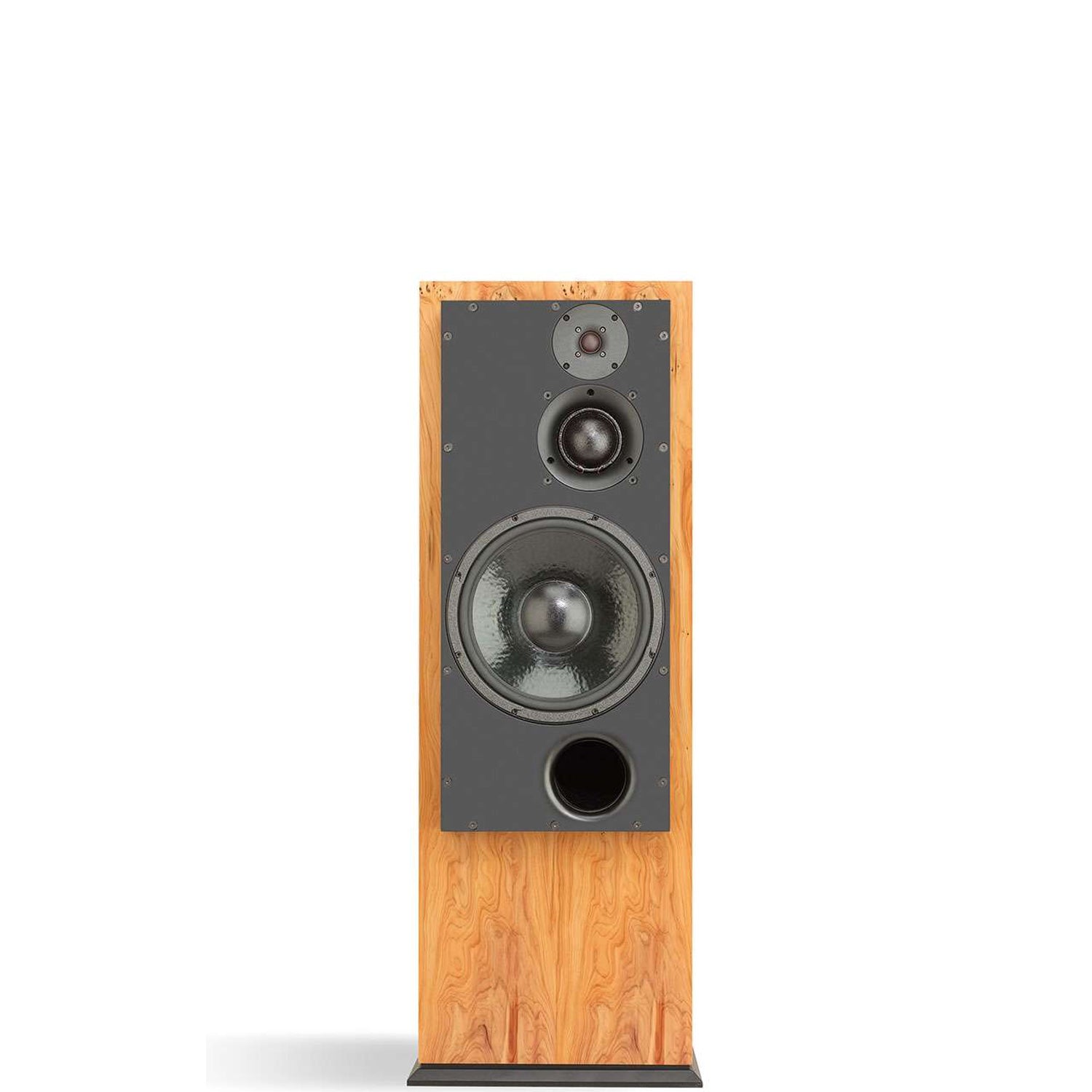

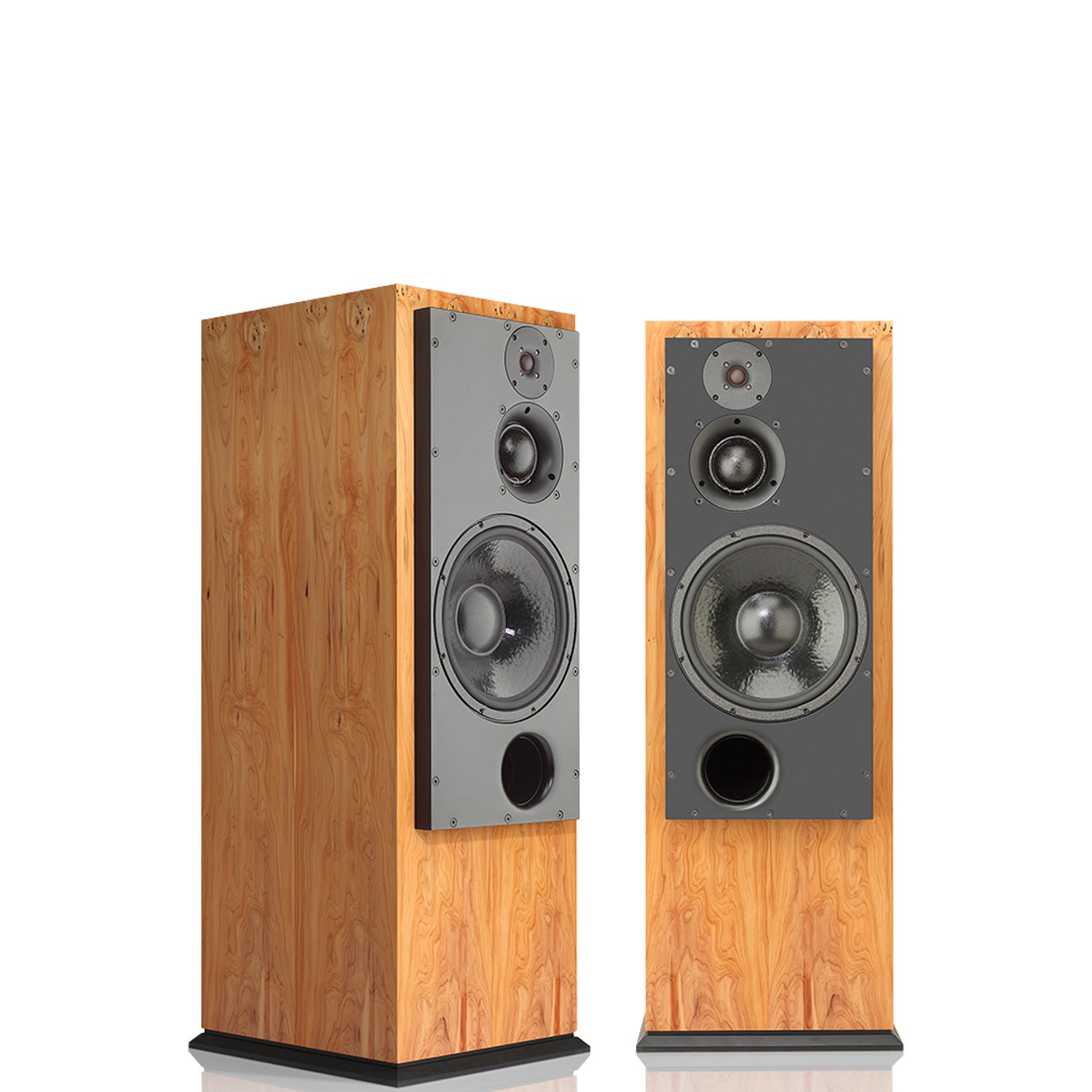

ATC SCM100PSLT – Reference floorstanding loudspeakers for large listening rooms

The ATC SCM100PSLT is an uncompromising 3-way floorstanding loudspeaker from the ATC Tower Series, designed for music enthusiasts who expect the highest levels of dynamics, neutrality, and fidelity. Equipped with a powerful 314mm Super Linear bass driver, the legendary 75mm soft-dome midrange driver, and the latest 25mm S-Spec neodymium tweeter, the SCM100PSLT delivers exceptionally precise, natural, and low-distortion reproduction. The combination of enormous dynamic headroom and impressive resolution of fine detail makes it the ideal choice for large living spaces and ambitious high-end systems.

The sealed-box design ensures deep, controlled bass without artificial emphasis. Vocals and instruments are reproduced with impressive authenticity, while the wide and uniform dispersion allows for a precise spatial representation. The SCM100PSLT combines professional studio technology with living-room-friendly elegance and is considered one of the most recognized reference loudspeakers in its class worldwide.

Design principle:
Passive 3-way floor-standing loudspeaker

Cabinet:
Closed (Acoustic Suspension)

Bass driver:
314 mm (12") ATC Super Linear Bass Driver

Midrange driver:
75 mm ATC Soft-Dome

Tweeter:
25 mm ATC S-Spec Soft Dome with neodymium magnet

Frequency response (±2 dB):
65 Hz – 17 kHz

Frequency range (-6 dB):
35 Hz – 22 kHz

Sensitivity:
88 dB (1 W / 1 m)

Maximum SPL:
115 dB SPL

Nominal impedance:
8 ohms

Recommended power amplifier:
100 – 1500 watts

Crossover frequencies:
380 Hz / 3.5 kHz

Matched response:
±0.5 dB

Dispersion:
±80° horizontal, ±10° vertical

Connectors:
Tri-wire terminals for banana plugs, spade lugs or bare wire

Dimensions (H × W × D):
1,070 × 397 × 560 mm

Weight:
approx. 68 kg per loudspeaker
