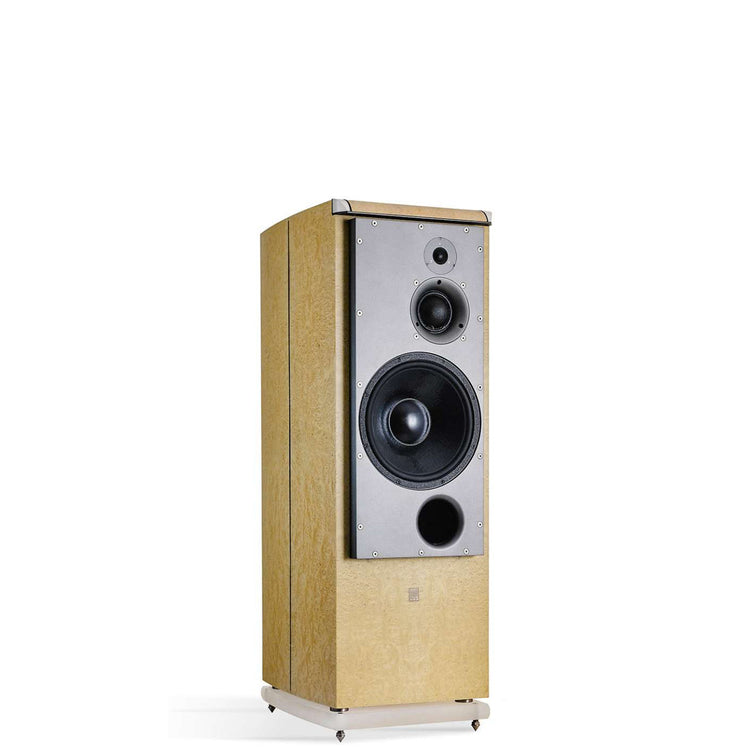

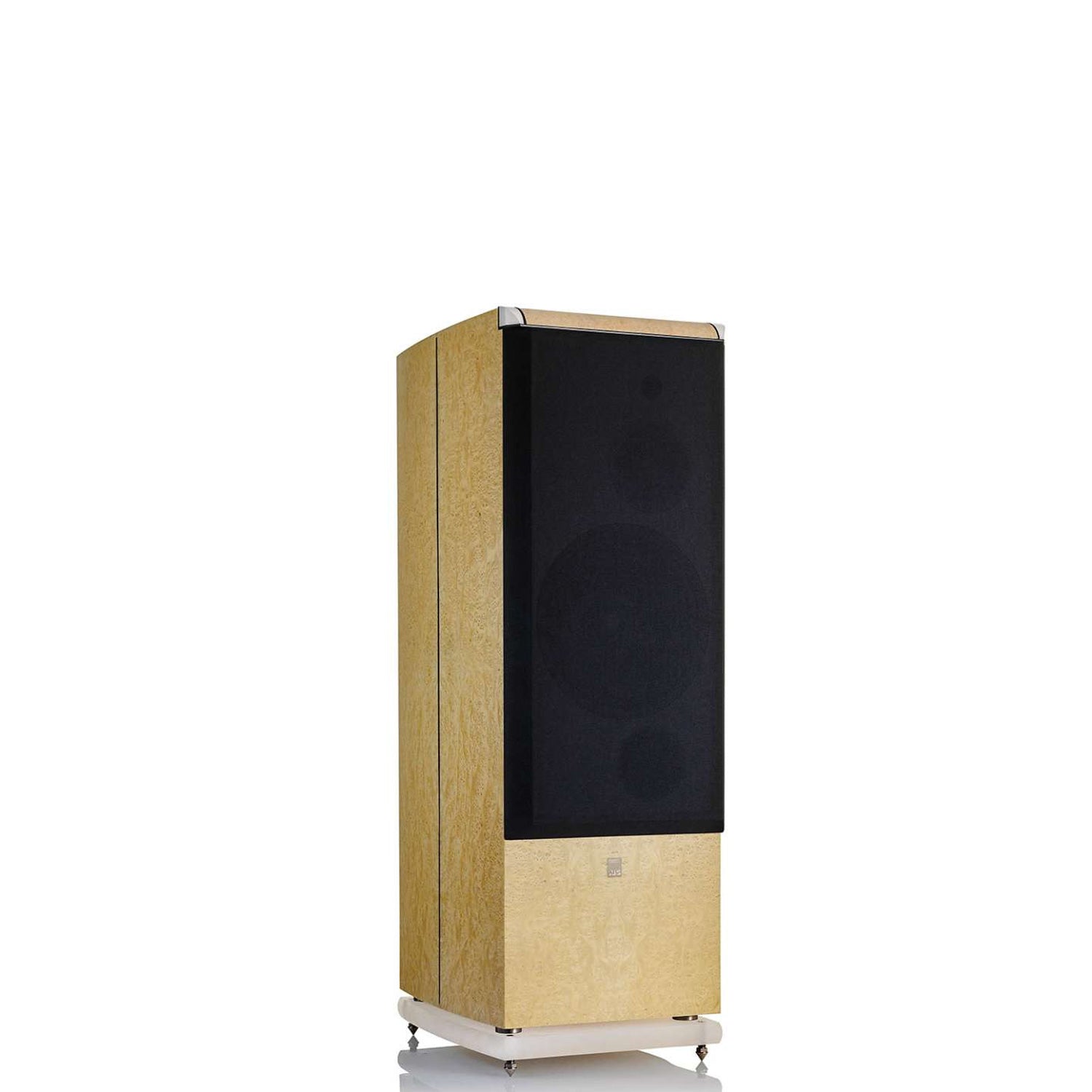

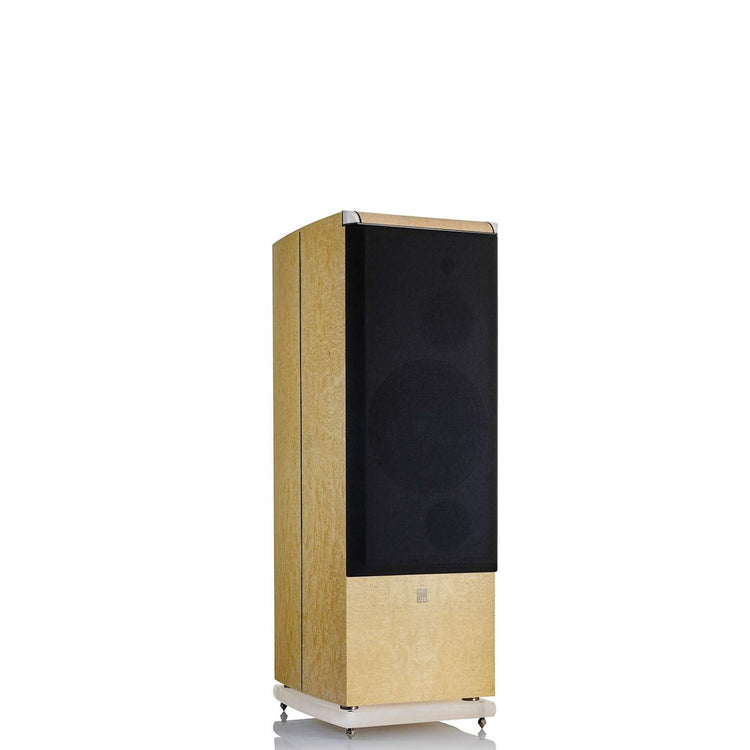

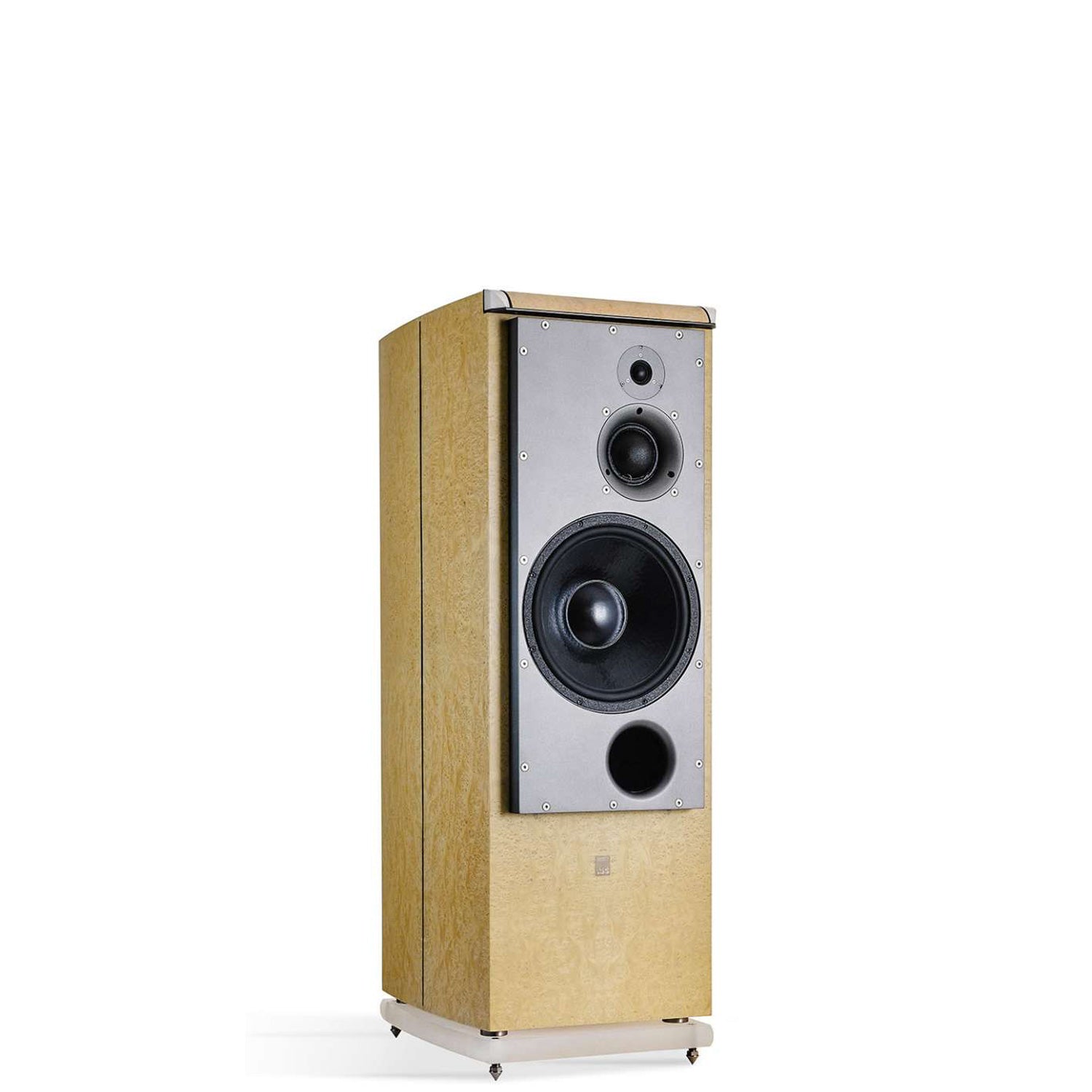

ATC SCM100SE Active – Active Reference Floorstanding Loudspeaker (Special Edition)

The ATC SCM100SE Active is the exclusive special edition of the classic SCM100ASL and ranks among the reference loudspeakers in both the high-end and studio sectors. It combines the legendary ATC sound philosophy with hand-selected components, further optimized, fully discrete amplifier electronics, and premium cabinet finishes. The result is an exceptionally neutral, dynamic, and detailed musical reproduction at the highest level.

Equipped with a 314 mm Super Linear woofer, the legendary 75 mm Soft Dome midrange driver (SM75-150S), and the 25 mm S-Spec Soft Dome tweeter (SH25-76S), the SCM100SE Active offers exceptionally precise vocal reproduction, deep and controlled bass, and impressive spatial imaging. Each driver is powered by its own dedicated MOSFET power amplifier and is optimally tuned via an active crossover with phase correction.

The SCM100SE Active is particularly well-suited for listening rooms from approximately 30 m² and is aimed at music enthusiasts and professional users who expect uncompromising sound quality.

Design principle:
Active 3-way floorstanding loudspeaker

Cabinet:
Sealed (Acoustic Suspension)

LF driver:
314 mm (12") ATC Super Linear

Mid driver:
75 mm ATC Soft-Dome (SM75-150S)

HF driver:
25 mm ATC S-Spec Soft Dome (SH25-76S)

Frequency response (±2 dB):
65 Hz – 17 kHz

Frequency range (-6 dB):
32 Hz – 25 kHz

Maximum SPL:
115 dB SPL

Crossover frequencies:
380 Hz / 3.5 kHz

Amplifier output:
200 W LF
100 W Mid
50 W HF

Total output:
350 W per loudspeaker
Active crossover with phase correction

Input:
Balanced XLR

Input sensitivity:
1 V

Input impedance:
>10 kΩ

Matched pair:
±0.5 dB

Dispersion:
±80° horizontal / ±10° vertical

Dimensions (H × W × D):
1,150 × 419 × 585 mm

Weight:
79 kg per loudspeaker
