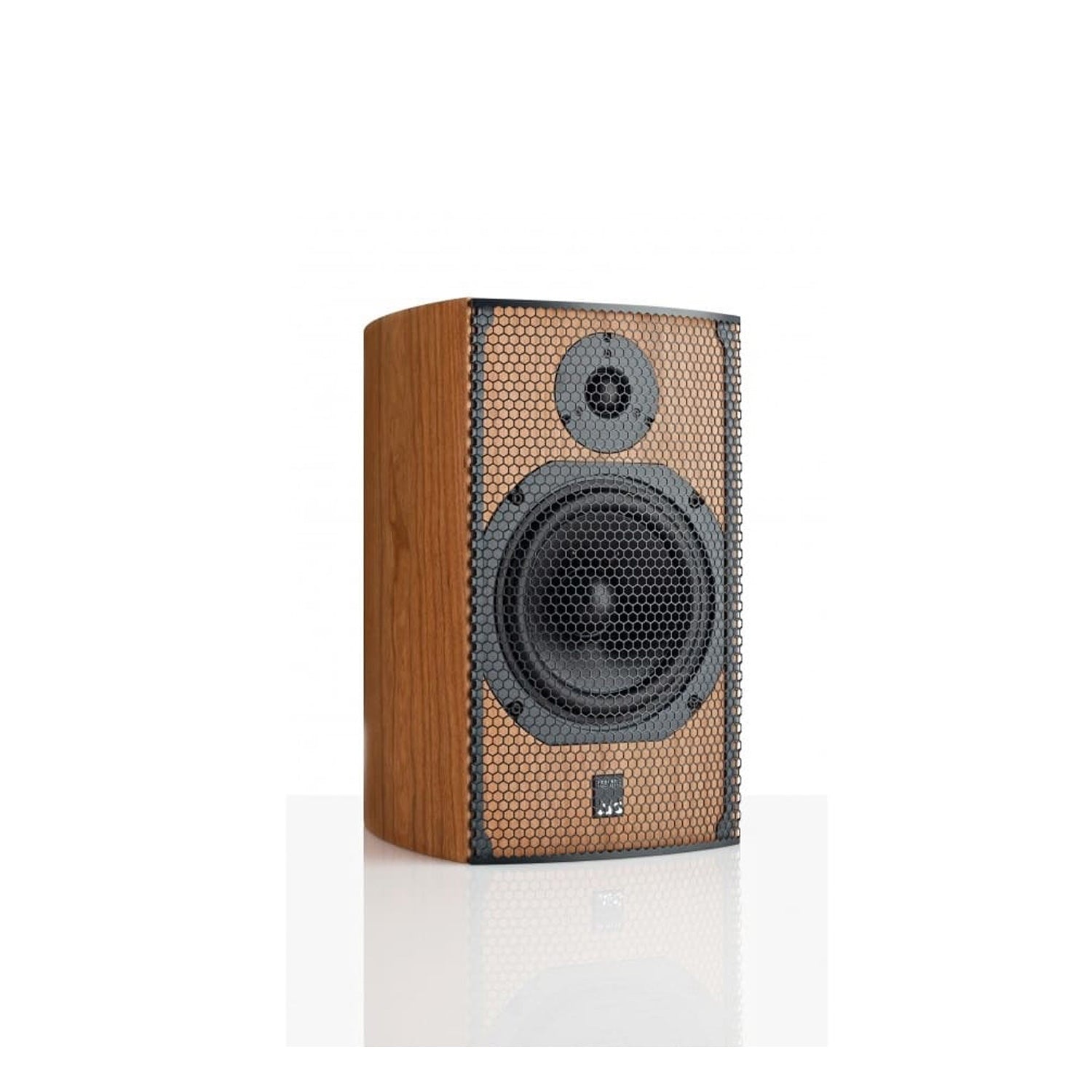

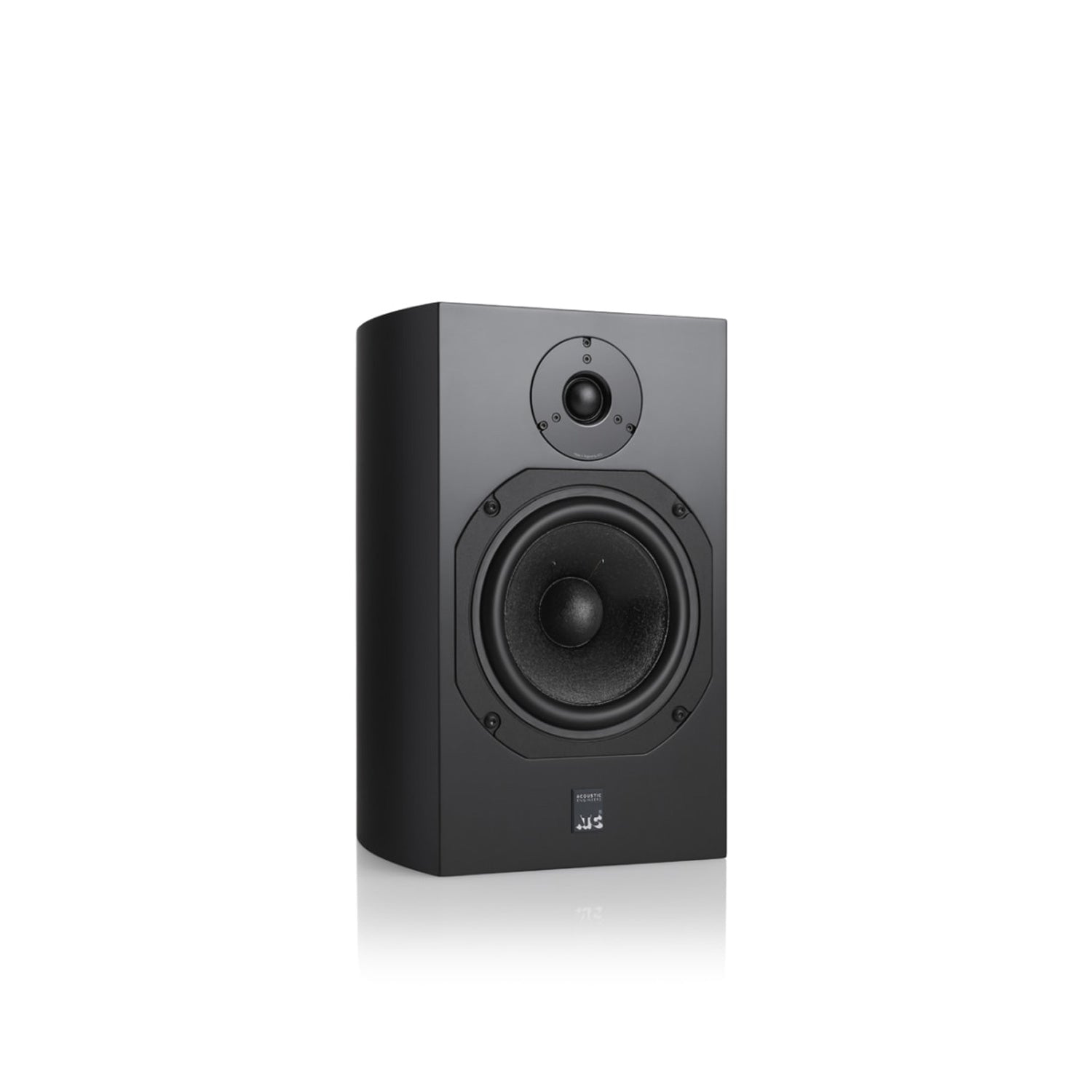

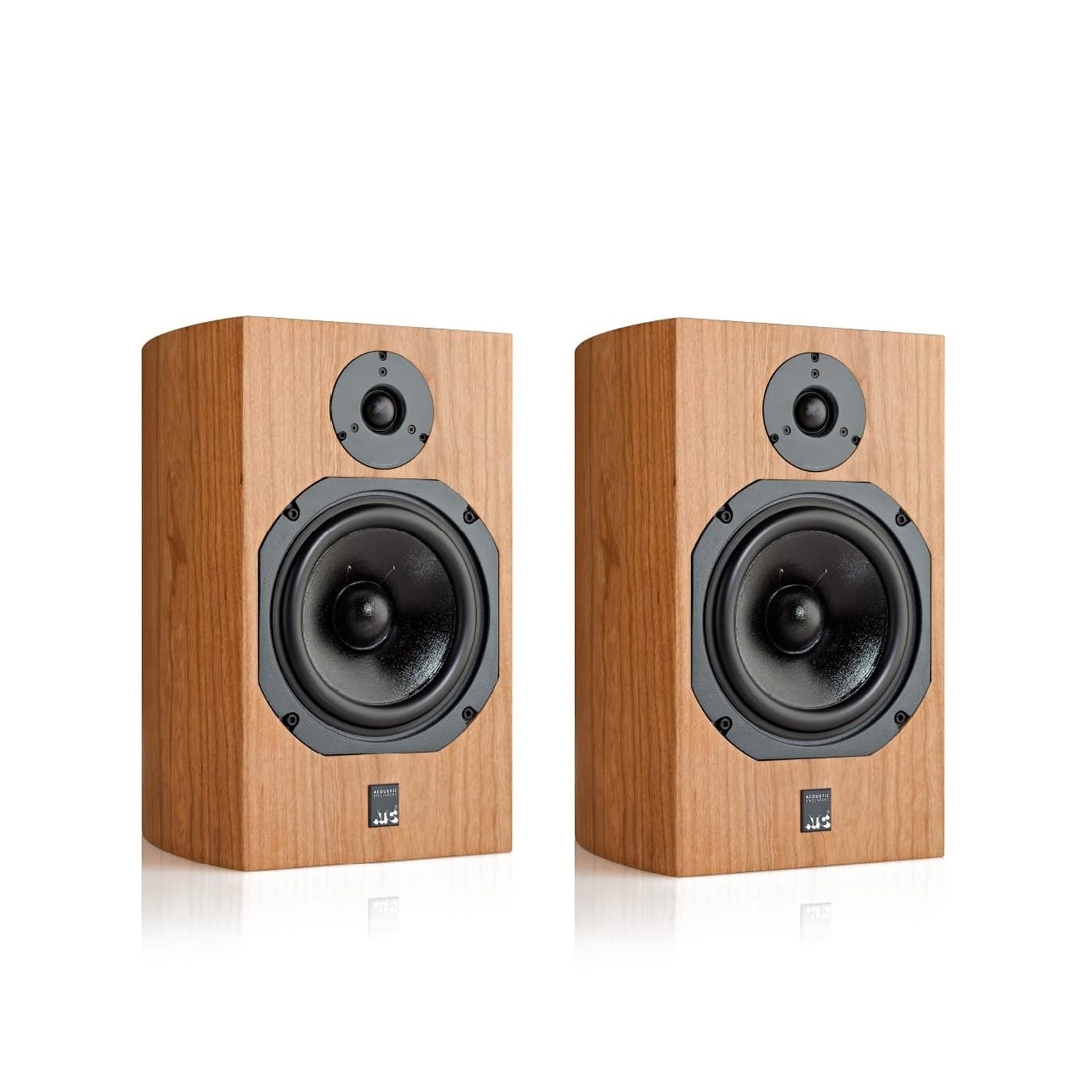

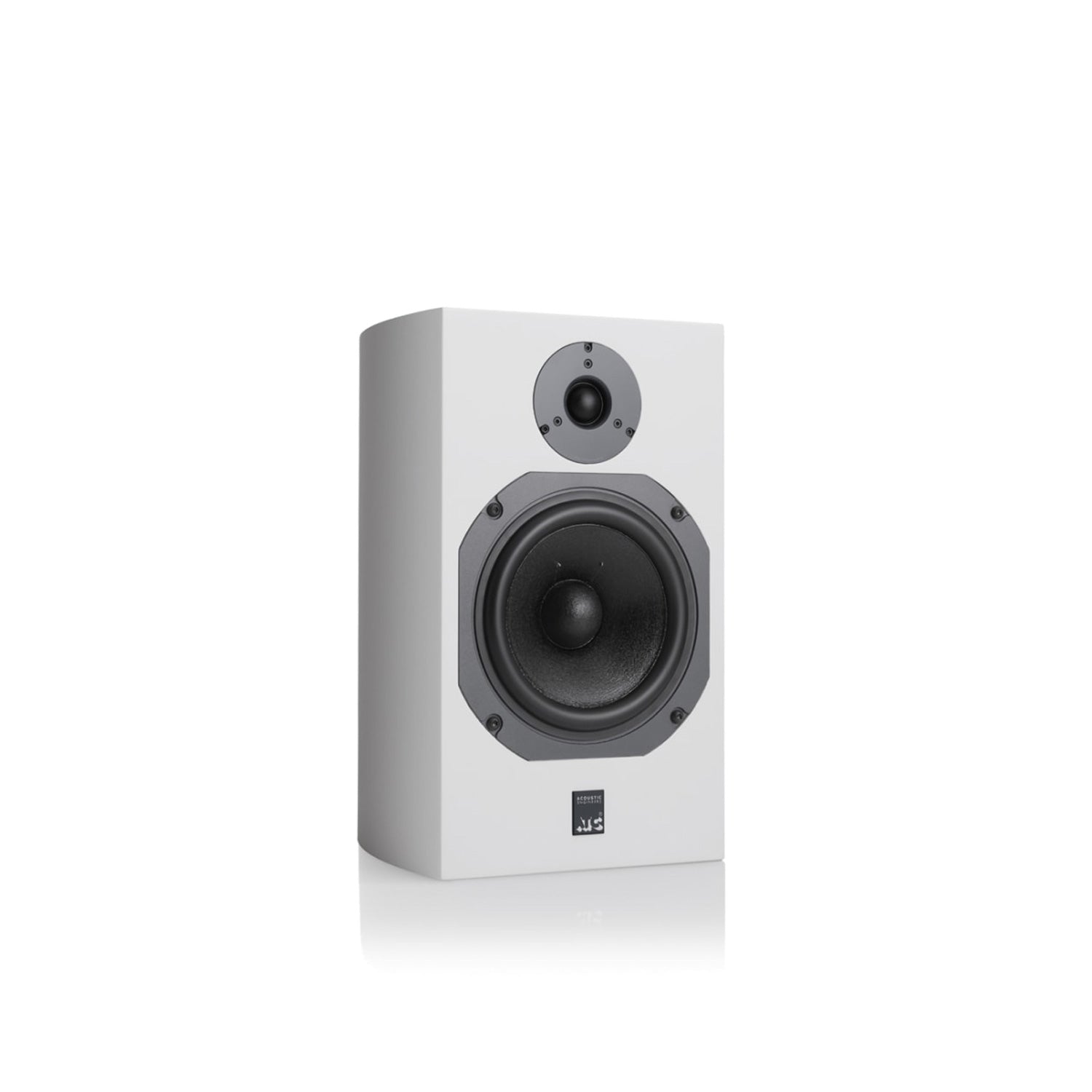

ATC SCM11 – Compact loudspeakers with impressive dynamics and precision

The ATC SCM11 is the ideal loudspeaker for music lovers who want to experience the legendary ATC sound in a compact format. Equipped with an ATC-developed 150mm CLD mid-bass driver and a 25mm neodymium soft-dome tweeter, the SCM11 offers exceptionally natural vocal reproduction, high dynamics, and impressive detail resolution. The sealed enclosure ensures precise, controlled bass and exceptionally clean transient response.

The SCM11 performs in a significantly more mature, powerful, and confident manner than the smaller SCM7, impressing with remarkable spaciousness and an authority in the bass range that is astonishing for its size. Thanks to its linear impedance and high-quality driver technology, it harmonizes excellently with high-performance amplifiers. Meticulous manufacturing in England, strict pair matching, and uncompromising construction make the SCM11 a true reference loudspeaker in its class.

Only available in pairs.

Design principle:
Passive 2-way compact loudspeaker

Cabinet:
Closed (Acoustic Suspension)

Bass/mid-range driver:
150 mm ATC CLD driver with integrated soft dome

Tweeter:
25 mm ATC neodymium soft dome with precision waveguide

Frequency response (-6 dB):
56 Hz – 22 kHz

Sensitivity:
85 dB (1 W / 1 m)

Maximum SPL:
108 dB

Nominal impedance:
8 ohms

Recommended power amplifier:
75 – 300 watts

Crossover frequency:
2.2 kHz

Matched response:
±0.5 dB

Dispersion:
±80° horizontal, ±10° vertical

Connectors:
Bi-wiring terminals / 4 mm banana plugs

Dimensions (H × W × D):
381 × 232 × 236 mm

Weight:
10.9 kg per loudspeaker
