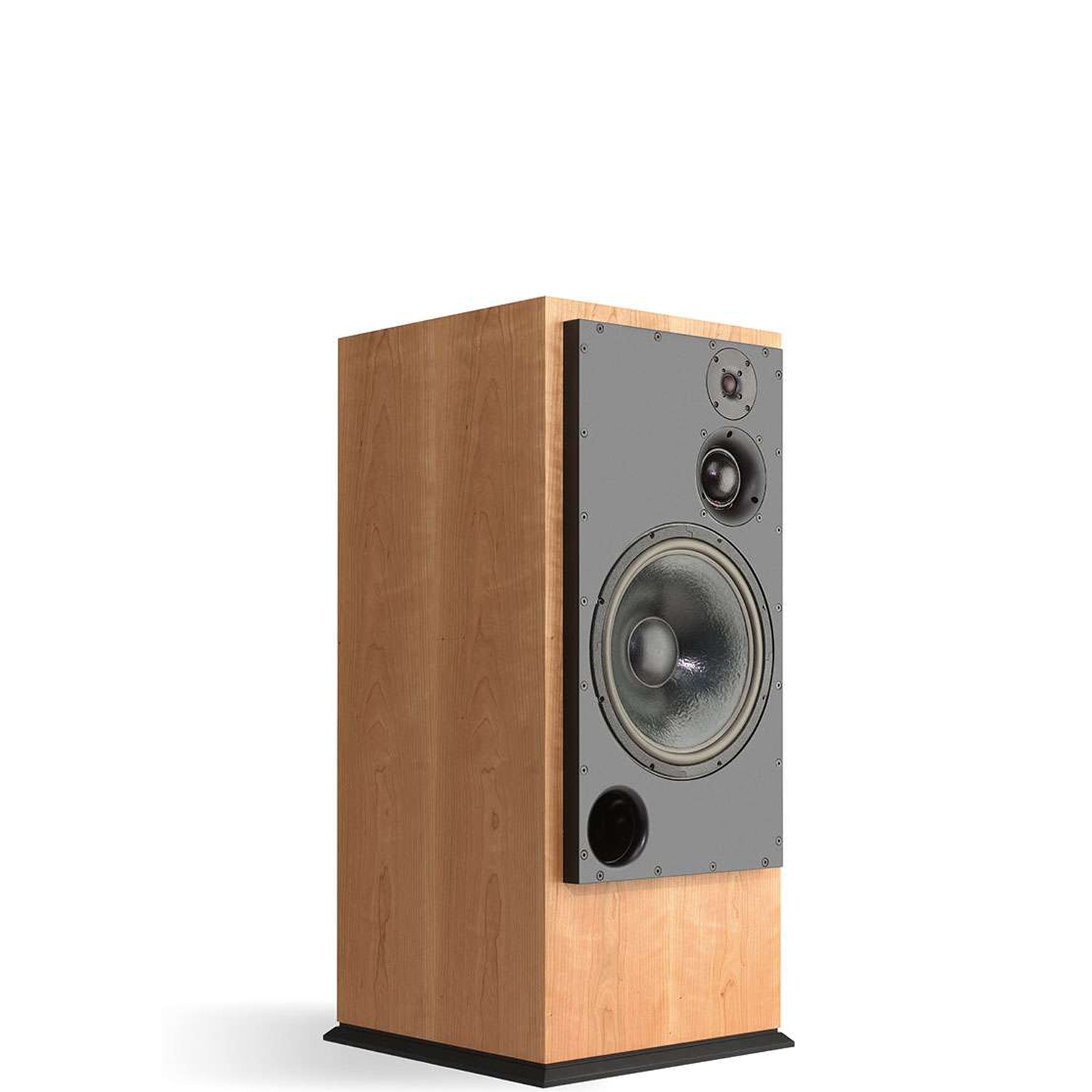

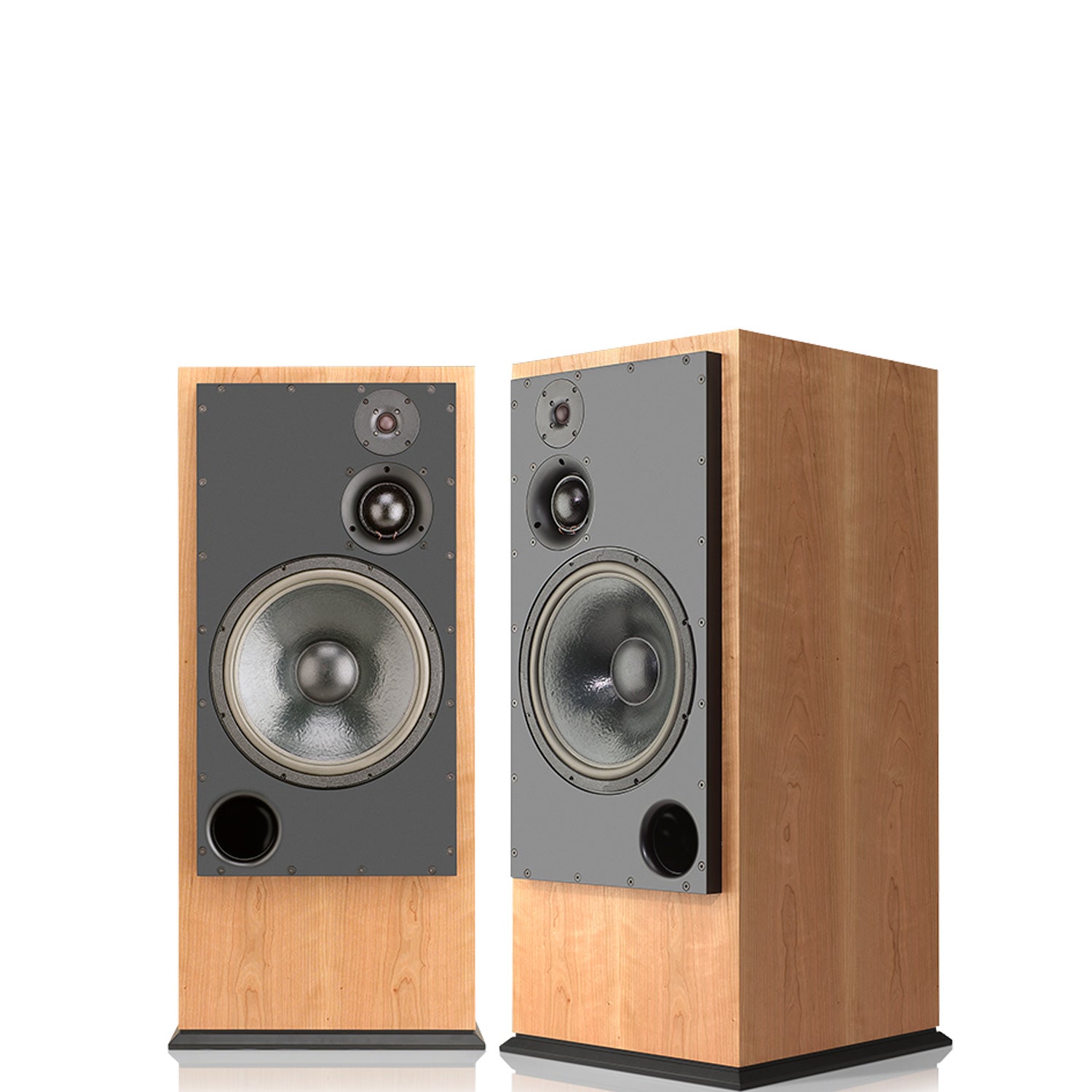

ATC SCM150PSLT – Reference floorstanding speakers with maximum dynamics and control

The ATC SCM150PSLT is the flagship model of ATC’s passive tower series and ranks among the most capable high-end floorstanding speakers in the world. Developed for large listening rooms and uncompromising music reproduction, it combines studio technology with exceptional dynamics, precision, and power handling. At its heart is the legendary 375mm Super Linear bass driver, which reproduces even the deepest frequencies with enormous control and speed. (ATC Audio )

This is complemented by the famous 75mm soft dome mid-range driver and the high-resolution 25mm S-Spec tweeter, which together create an extremely coherent, neutral, and spatially stable soundstage. The sealed cabinet ensures precise, fast bass without boominess and allows for an exceptionally realistic reproduction of vocals and instruments. (ATC Audio )

With up to 117 dB of sound pressure reserve and very high efficiency, the SCM150PSLT plays effortlessly even in very large rooms with a live character and maximum authority.

Design principle:
Passive 3-way floorstanding loudspeaker

Cabinet:
Sealed (Acoustic Suspension)

Woofer:
375 mm (15") ATC Super Linear

Mid-range driver:
75 mm ATC Soft-Dome

Tweeter:
25 mm ATC S-Spec Soft Dome

Frequency response (-6 dB):
25 Hz – 22 kHz

Linearity (±2 dB):
60 Hz – 17 kHz

Sensitivity:
91 dB (1 W / 1 m)

Maximum SPL:
117 dB

Nominal impedance:
8 ohms

Recommended power amplifier:
100 – 1500 watts

Crossover frequencies:
380 Hz / 3.5 kHz

Matched response:
±0.5 dB

Dispersion:
±80° horizontal, ±10° vertical

Connectors:
Tri-wire terminals (banana plugs, spades or bare wire)

Dimensions (H × W × D):
approx. 1104 × 495 × 635 mm

Weight:
approx. 77 kg per speaker
