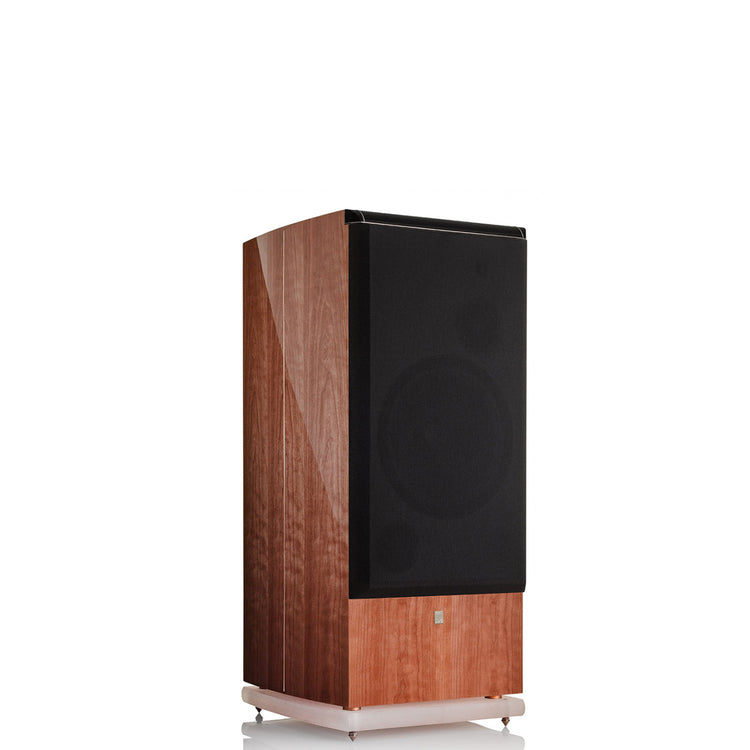

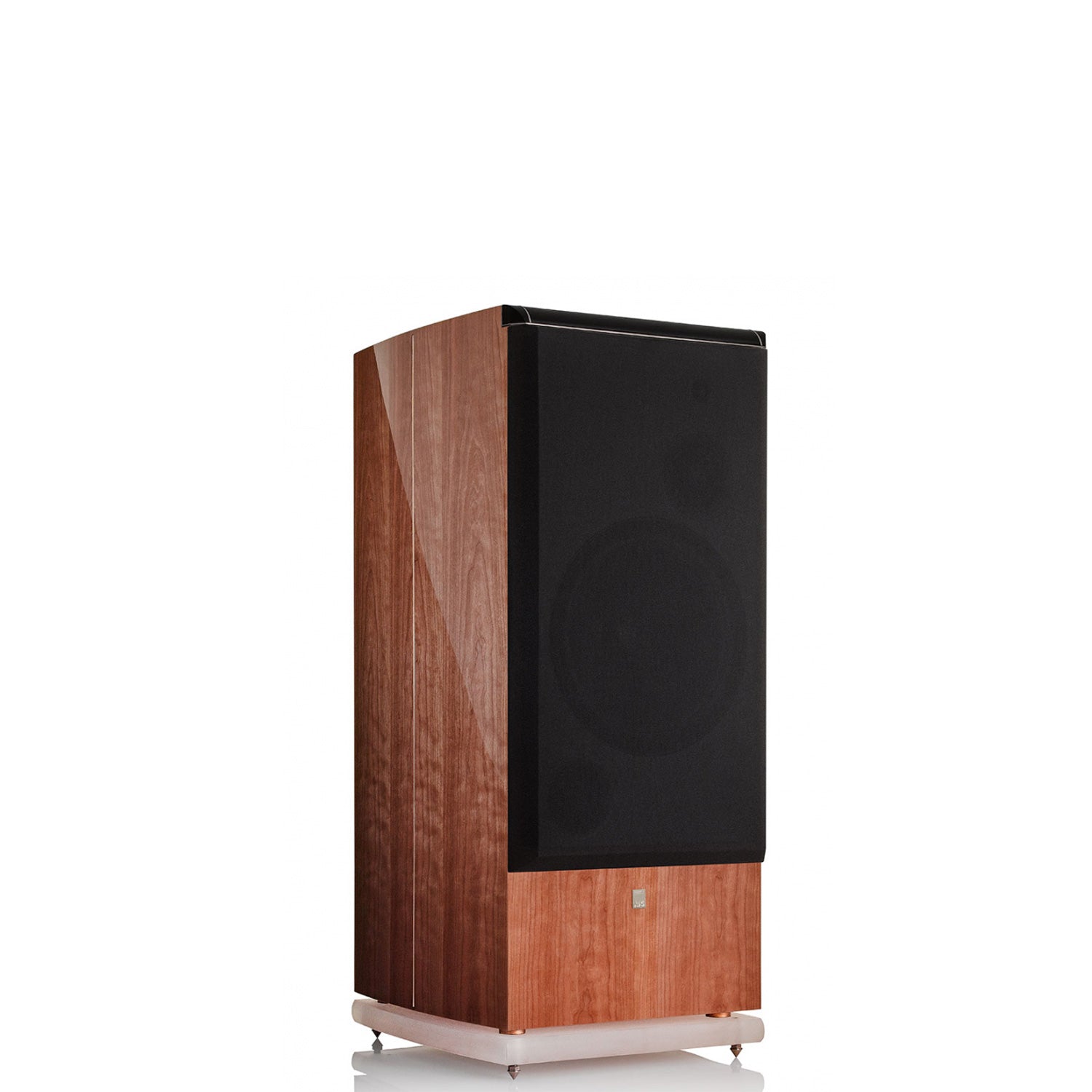

ATC SCM150SE Active – High-end reference loudspeakers with integrated active technology

The ATC SCM150SE Active is the flagship of the ATC Special Edition series, combining uncompromising studio technology with exclusive craftsmanship and the finest materials. As a fully active 3-way floorstanding loudspeaker, it has been developed for the most demanding music lovers and professional users who expect maximum neutrality, impressive dynamics, and absolute control.

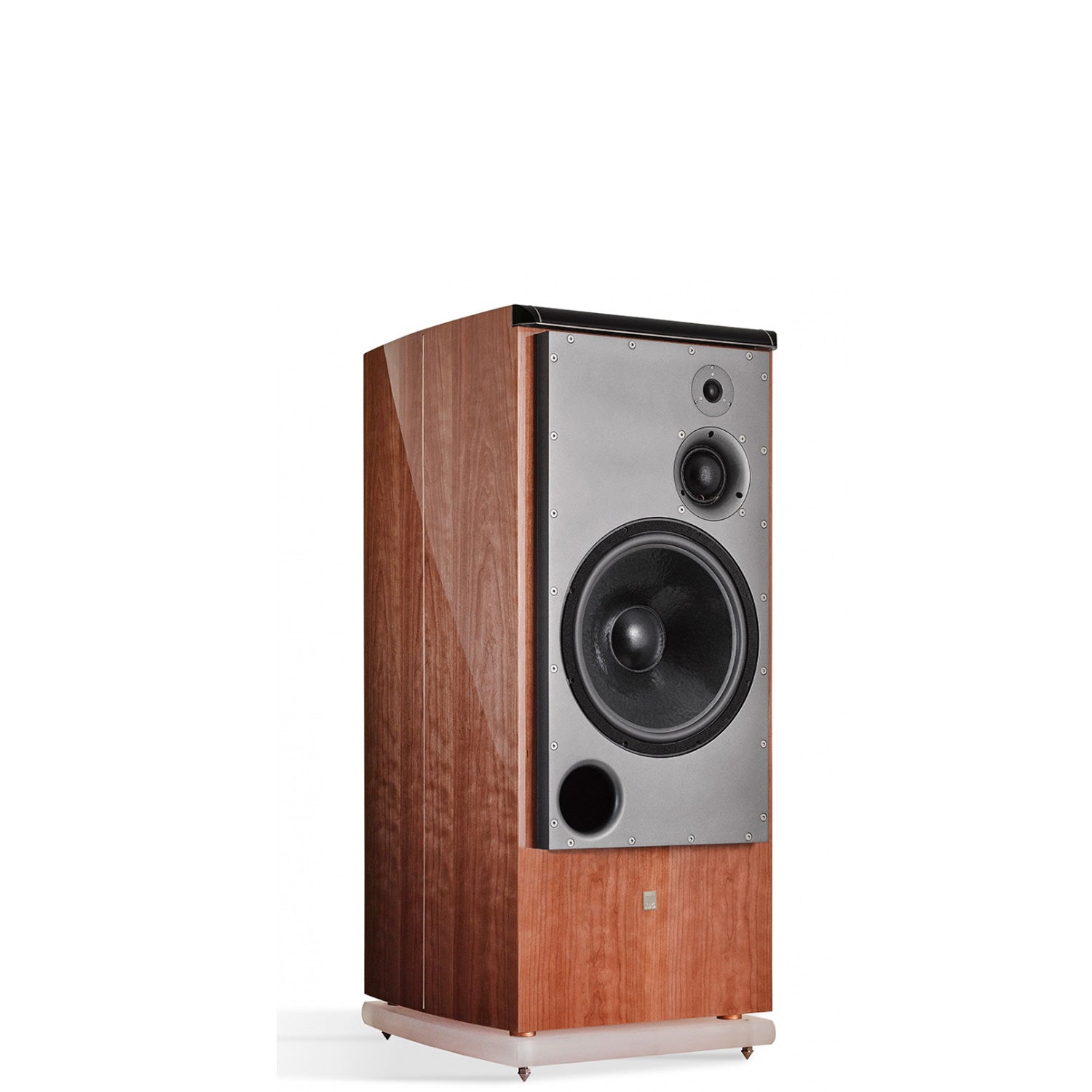

Equipped with a 375 mm Super Linear bass driver, the legendary 75 mm ATC Soft-Dome mid-range driver (SM75-150S), and the 25 mm S-Spec soft-dome tweeter (SH25-76S), the SCM150SE Active impresses with extraordinary detail resolution, powerful deep bass down to 25 Hz, and an impressively natural soundstage. Each driver is powered by its own dedicated, discrete MOSFET amplifier. The active crossover with phase correction ensures maximum precision and minimal distortion.

With a maximum sound pressure level of 117 dB SPL and a total amplifier output of 350 watts per speaker, the SCM150SE Active is ideally suited for large listening rooms and uncompromising high-end systems.

Design Principle:
Active 3-way floor-standing loudspeaker

Cabinet:
Closed (Acoustic Suspension)

Bass Driver:
375 mm (15") ATC Super Linear

Midrange Driver:
75 mm ATC Soft-Dome (SM75-150S)

Tweeter:
25 mm ATC S-Spec Soft Dome (SH25-76S)

Frequency Response (±2 dB):
60 Hz – 17 kHz

Frequency Range (-6 dB):
25 Hz – 25 kHz

Maximum SPL:
117 dB SPL

Crossover Frequencies:
380 Hz / 3.5 kHz

Amplifier Output:
200 W LF
100 W Mid
50 W HF

Total Power:
350 W per loudspeaker

Active crossover with phase correction

Input:
Balanced XLR

Input Sensitivity:
1 V for full output

Input Impedance:
>10 kΩ

Matched Pair Tolerance:
±0.5 dB

Dispersion:
±80° horizontal / ±10° vertical

Dimensions (H × W × D):
1,205 × 533 × 634 mm

Weight:
97 kg per loudspeaker
