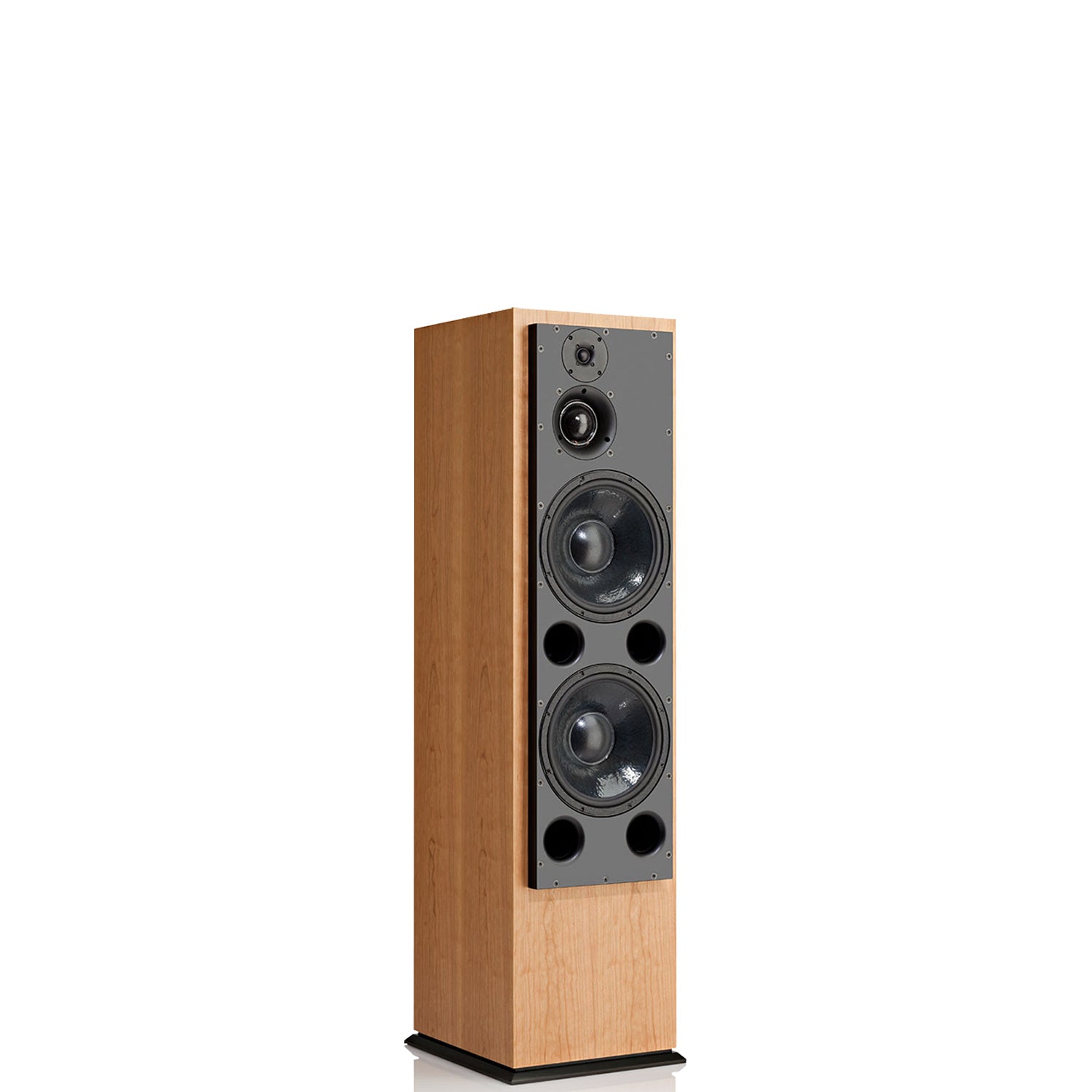

ATC SCM200PSLT – Reference floorstanding loudspeakers of the absolute top class

The ATC SCM200PSLT is one of the largest passive floorstanding loudspeakers in the ATC Tower Series and has been developed for uncompromising high-end and studio applications. Featuring two powerful 12" Super Linear bass drivers, the legendary 75mm soft-dome midrange driver, and the high-resolution 25mm S-Spec tweeter, it delivers exceptionally dynamic, neutral, and extremely precise music reproduction.

The sealed enclosure ensures tight, controlled bass down to the lowest frequencies, while the ATC-typical midrange section provides an almost "monitor-like" vocal reproduction with maximum transparency. The SCM200PSLT is designed to fill even large listening rooms effortlessly and authoritatively – without compression, without coloration, and with maximum control.

Design principle:
Passive 3-way floor-standing loudspeaker

Cabinet:
Closed (Acoustic Suspension)

Bass driver:
2 × 314 mm (12") ATC Super Linear

Midrange driver:
75 mm ATC Soft-Dome

Tweeter:
25 mm ATC S-Spec Soft Dome

Frequency response (-6 dB):
32 Hz – 20 kHz

Frequency response linearity (±2 dB):
60 Hz – 12 kHz

Maximum SPL:
118 dB SPL

Sensitivity:
approx. 91 dB (1 W / 1 m)

Nominal impedance:
8 ohms

Recommended amplifier power:
100 – 1500 watts

Crossover frequencies:
380 Hz / 3.5 kHz

Cabinet matching:
±0.5 dB

Dispersion:
±80° horizontal / ±10° vertical

Connectors:
Tri-wire terminals (banana plugs, spade lugs or bare wire)

Dimensions (H × W × D):
1586 × 398 × 535 mm

Weight:
approx. 96 kg per loudspeaker
