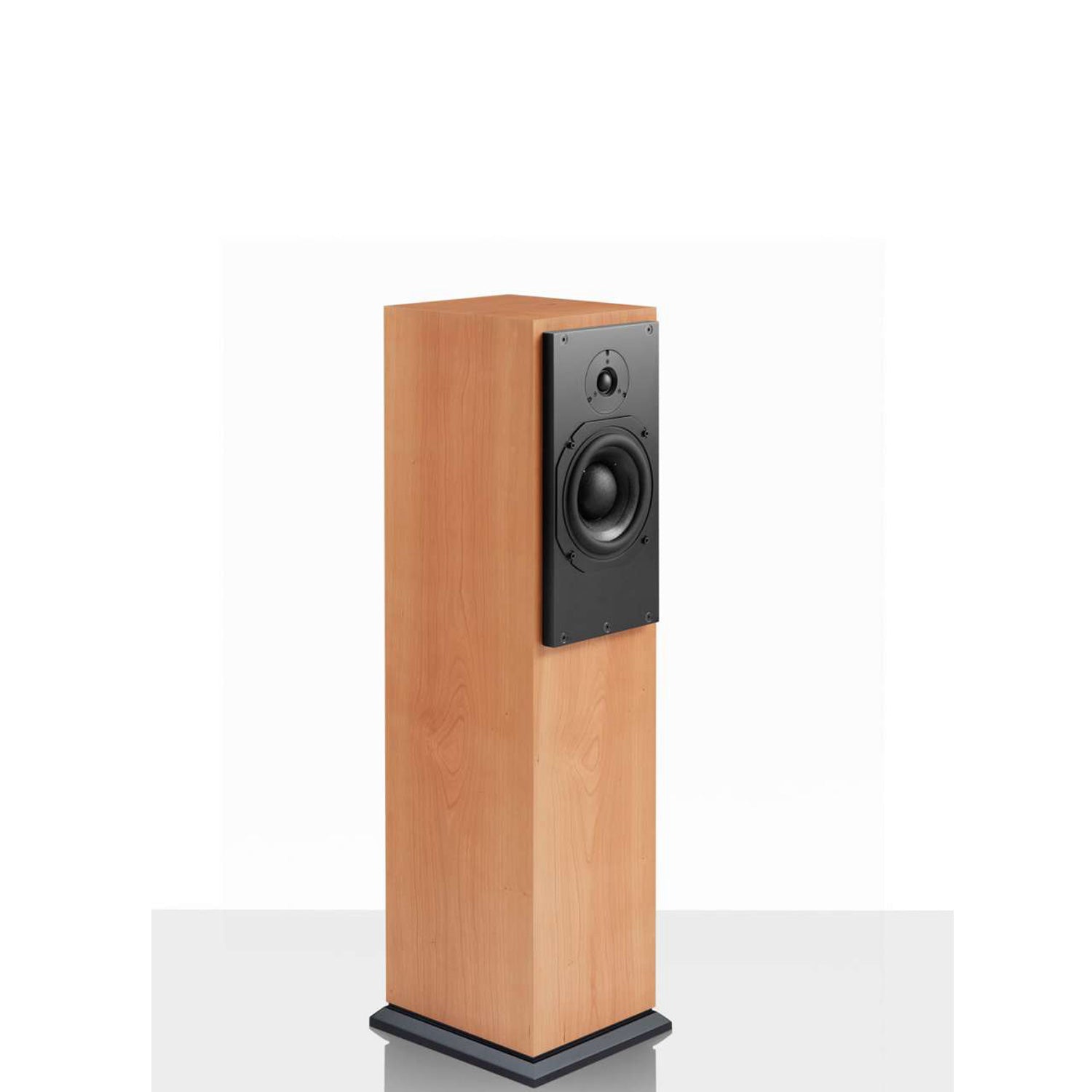

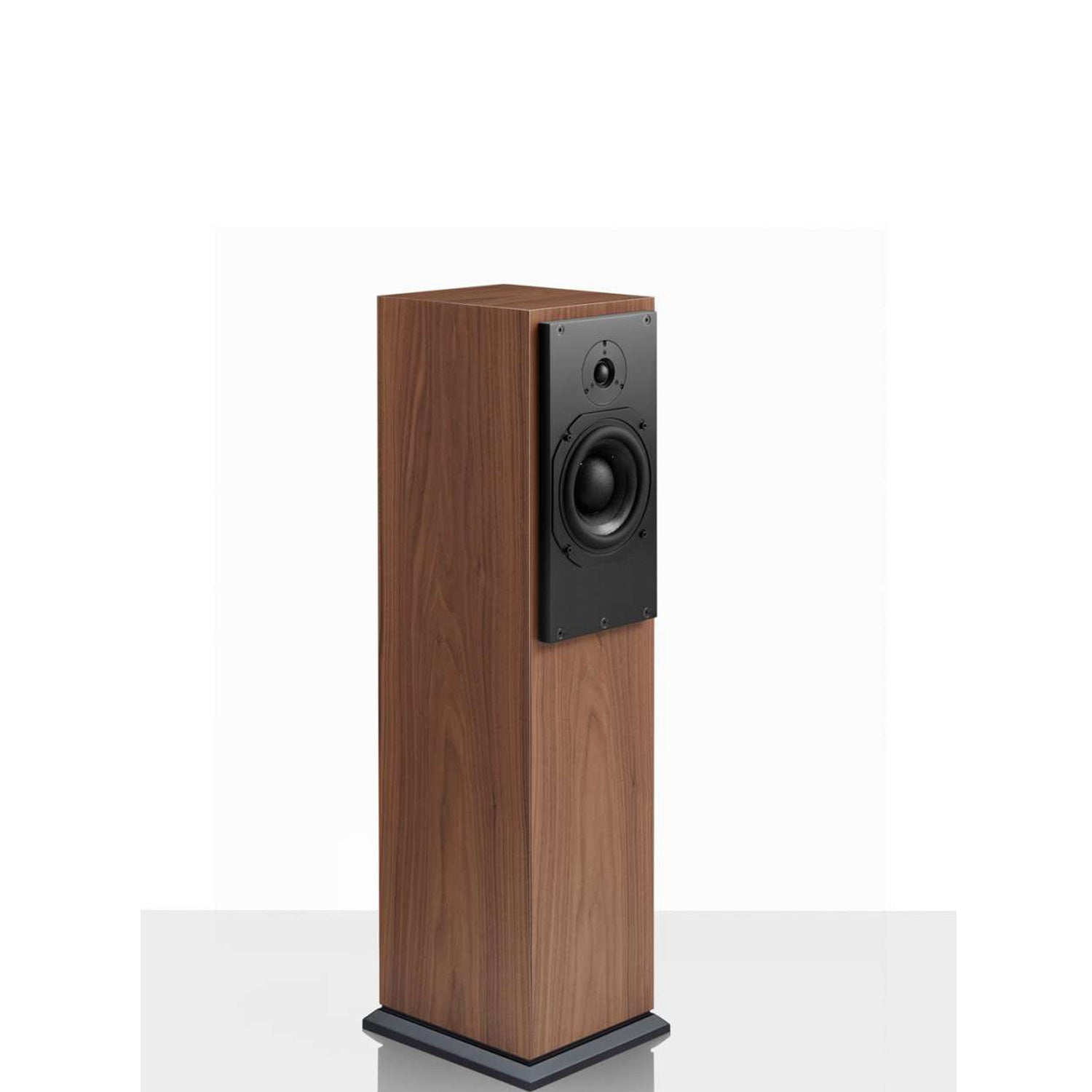

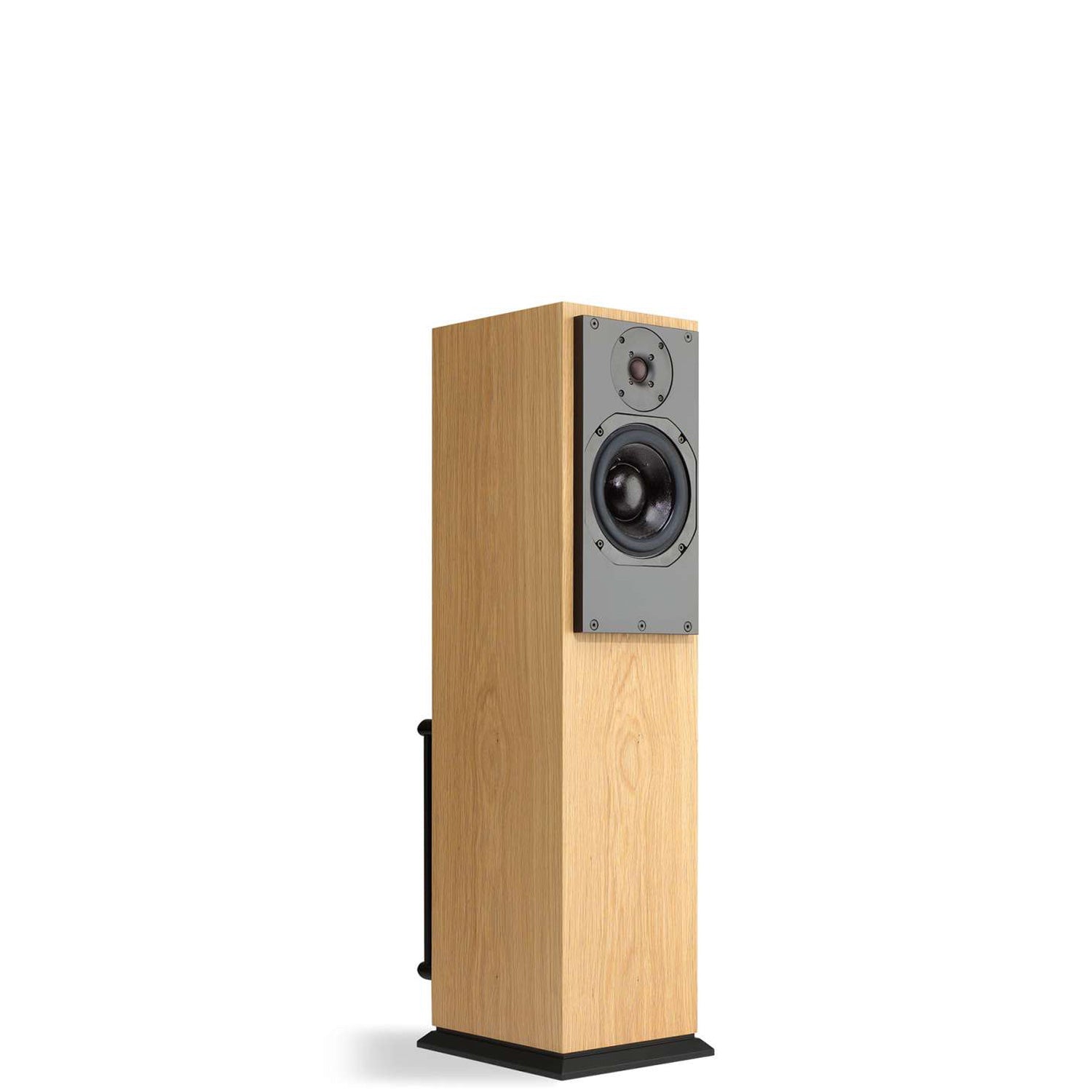

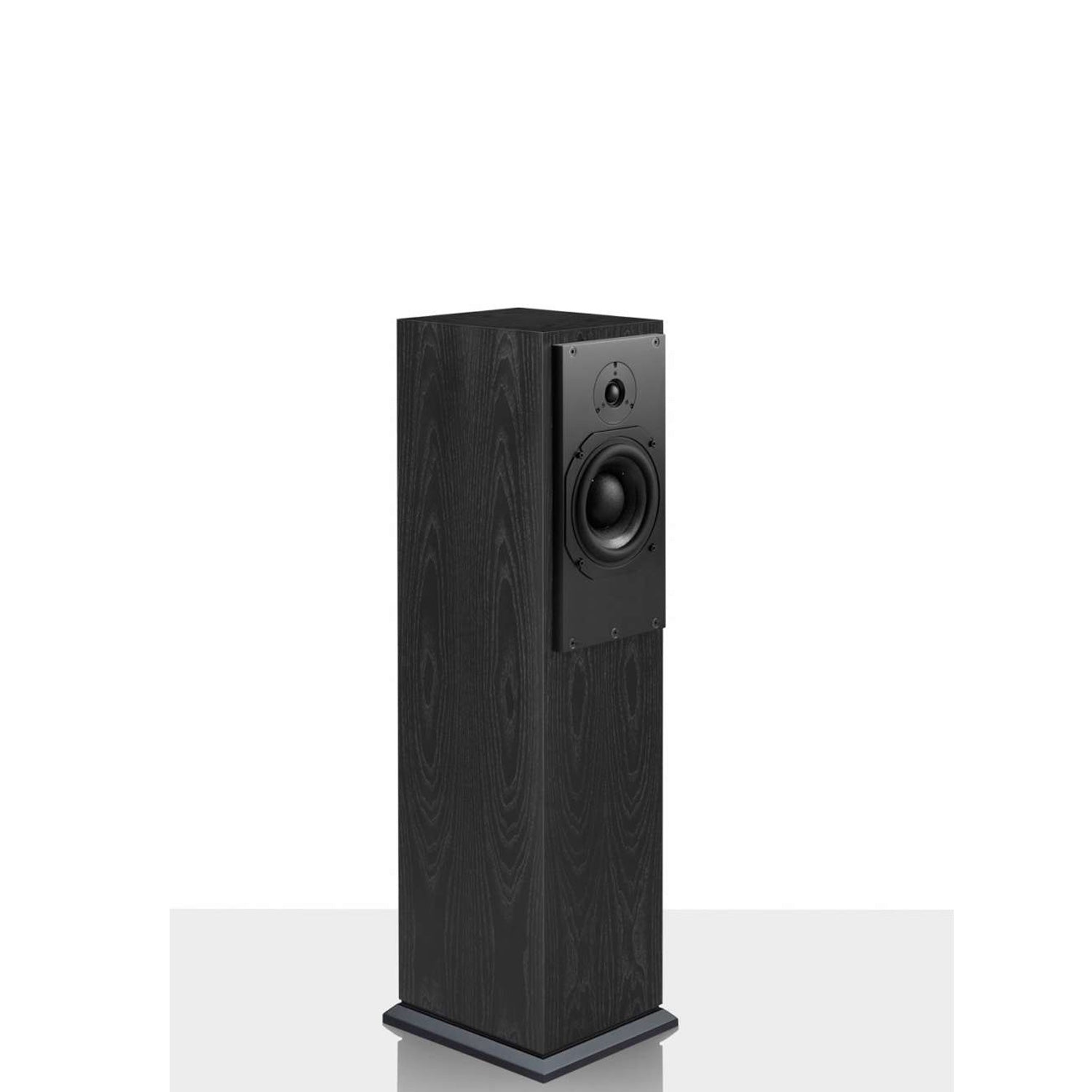

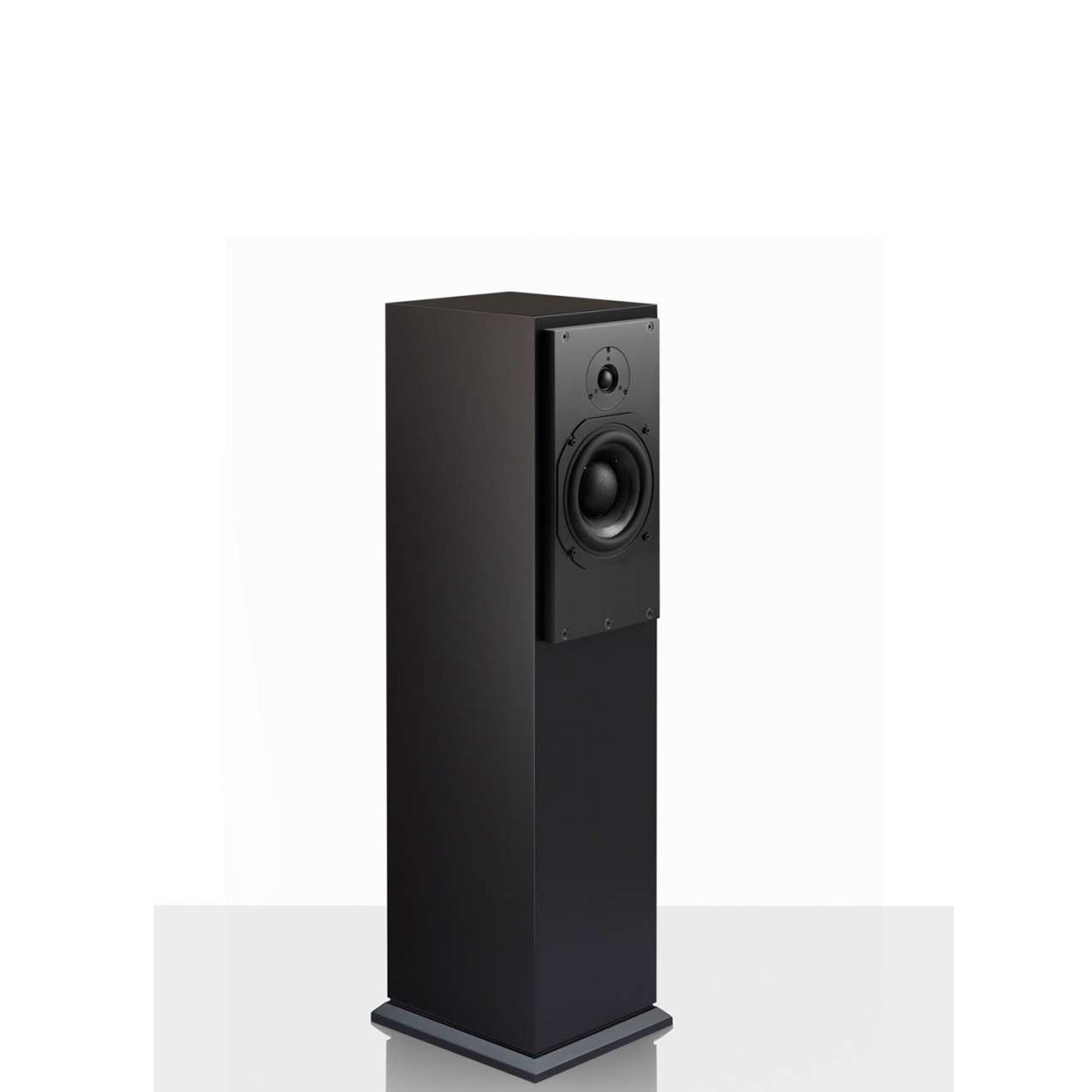

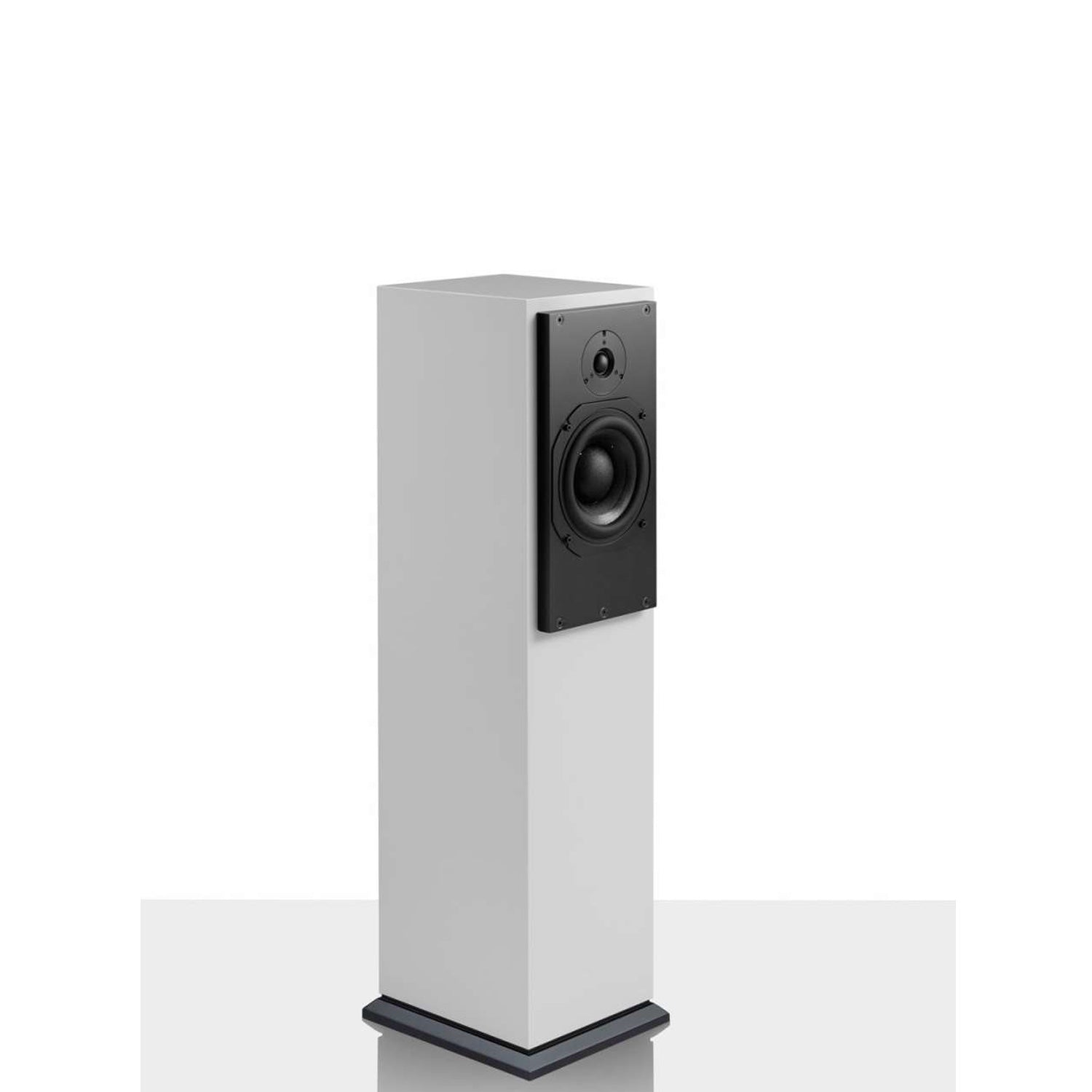

ATC SCM20ASLT – Active Reference Floorstanding Loudspeaker (Tower Version)

The ATC SCM20ASLT is the active floorstanding version of the SCM20 series and is considered the most compact "high-end reference system" in the ATC tower range. It combines the well-known SCM20 technology with an integrated active amplifier module, thereby offering extremely direct, precise, and dynamic reproduction without the need for external power amplifiers.

Due to its sealed enclosure, the SCM20ASLT operates with very high transient accuracy and controlled bass response. It is particularly suitable for small to medium-sized rooms where maximum sound quality is required in a compact space.

Inside, the renowned 150mm ATC Super Linear mid/bass driver works in tandem with the 25mm S-Spec dual-suspension soft-dome tweeter. Both are driven directly by an integrated 250-watt Class A/B MOSFET amplifier module with an active crossover. This ensures exceptional control, very low distortion, and high dynamic headroom.

Design principle:
Active 2-way floorstanding loudspeaker

Enclosure:
Sealed (Acoustic Suspension)

LF driver:
150 mm ATC Super Linear

HF driver:
25 mm ATC S-Spec Soft Dome (dual suspension)

Frequency response (-6 dB):
55 Hz – 25 kHz

Crossover frequency:
2.2 kHz

Amplification:
integrated ATC Amp-Pack
200 W (LF/Mid)
50 W (HF)

Total power:
250 W per loudspeaker

Inputs:
balanced XLR

Input impedance:
20 kΩ

Max. SPL:
108 dB (114 dB peak per pair)

Controls:
Input Sensitivity & Bass Shelf

Dimensions (H × W × D):
approx. 990 × 239 × 366 mm

Weight:
approx. 30.2 kg per loudspeaker
