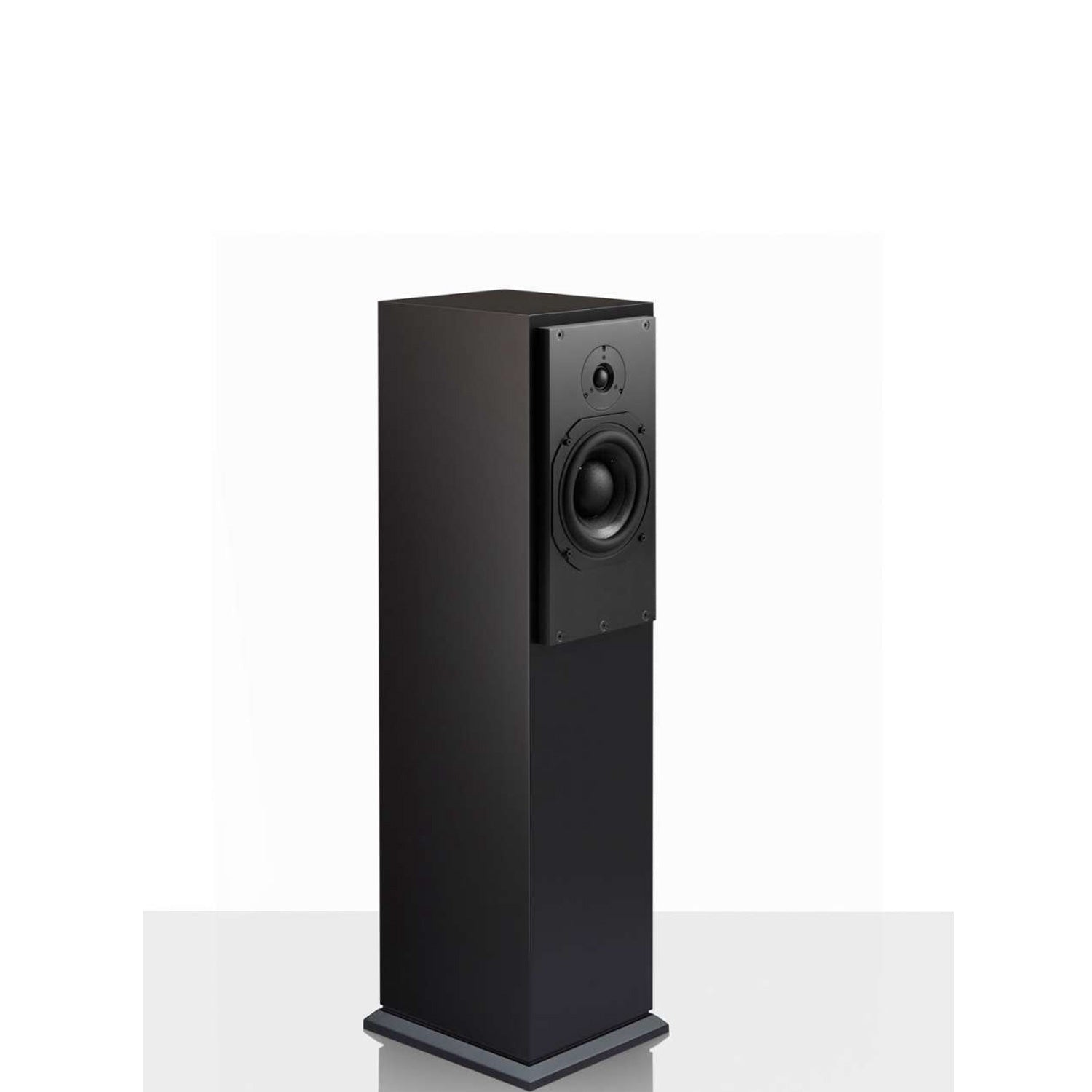

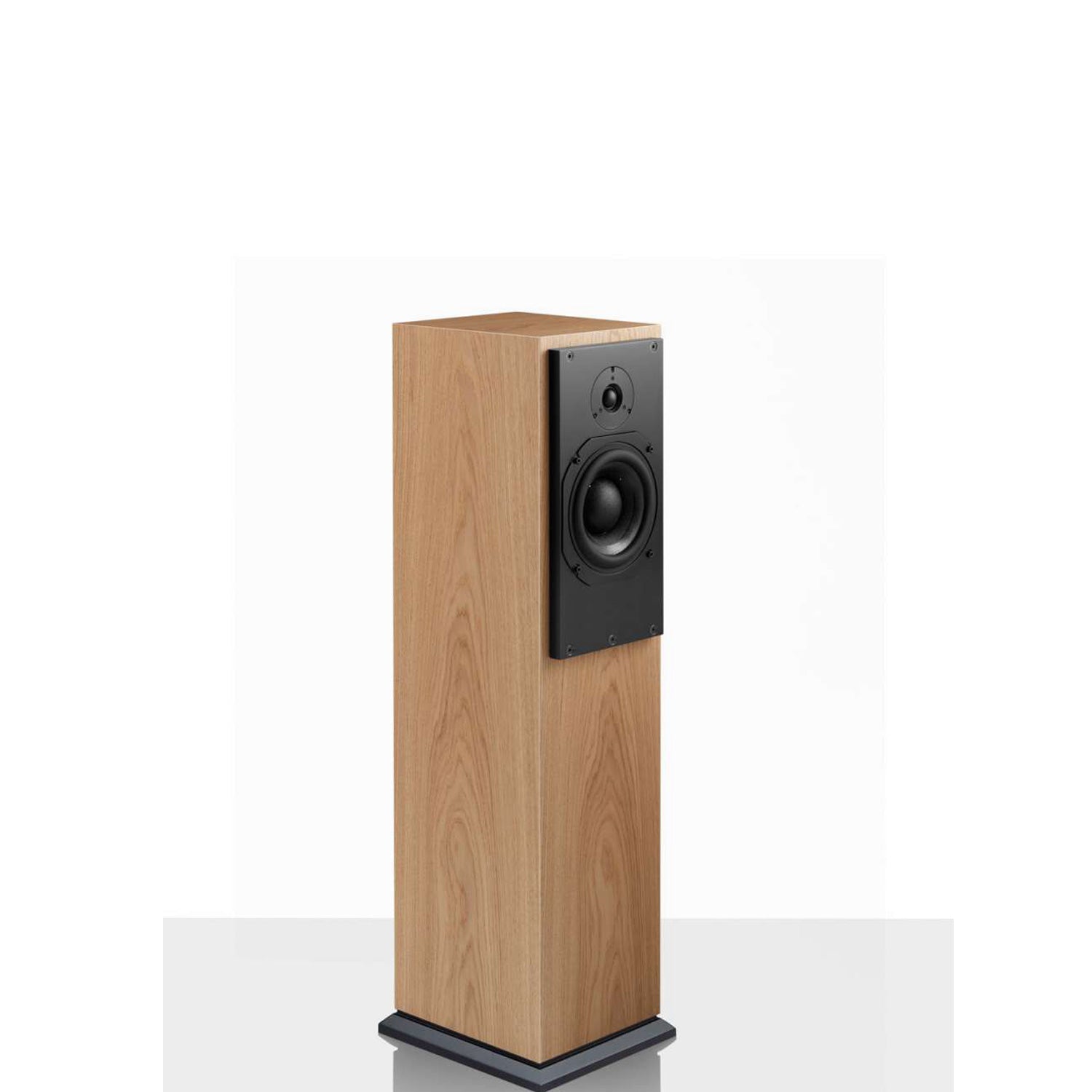

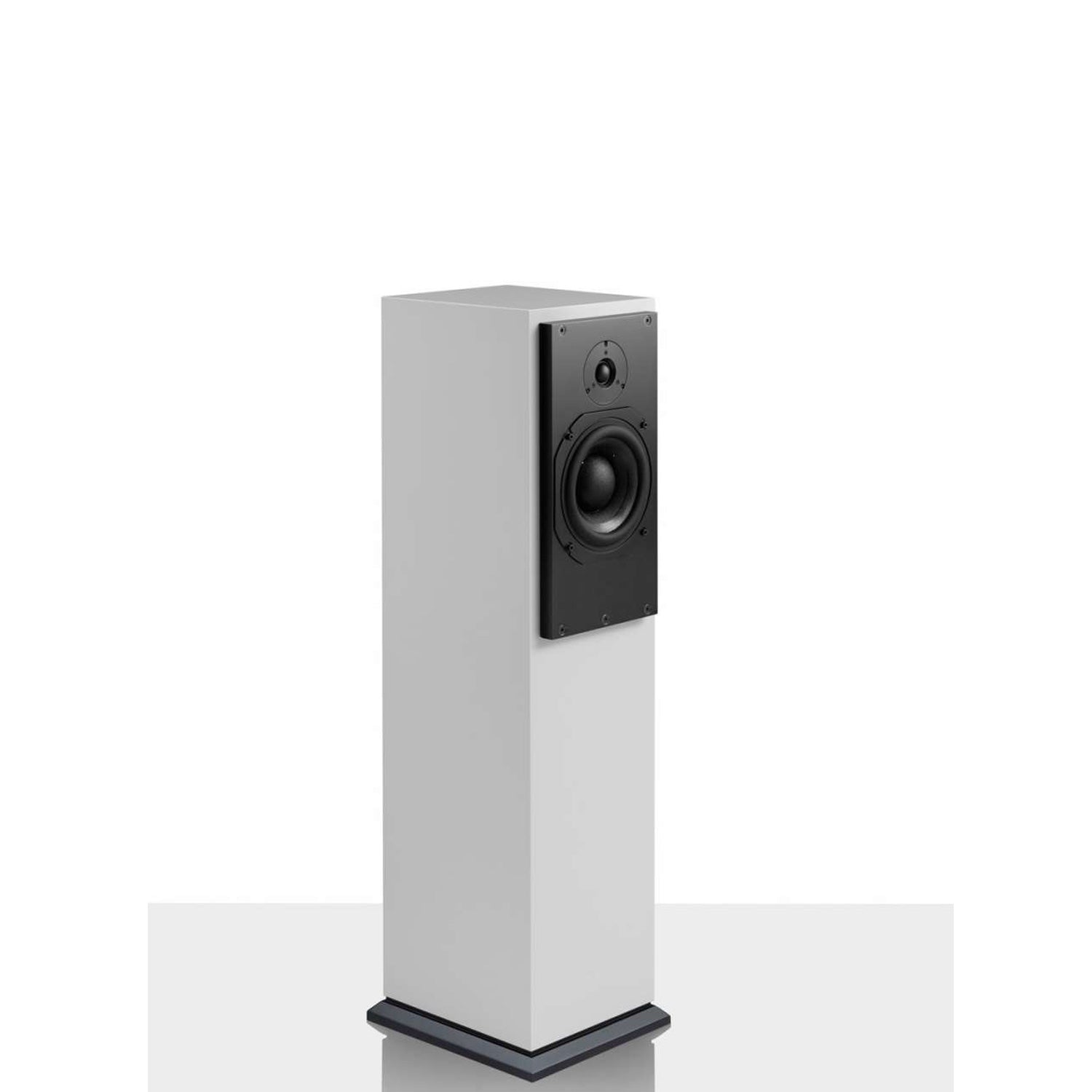

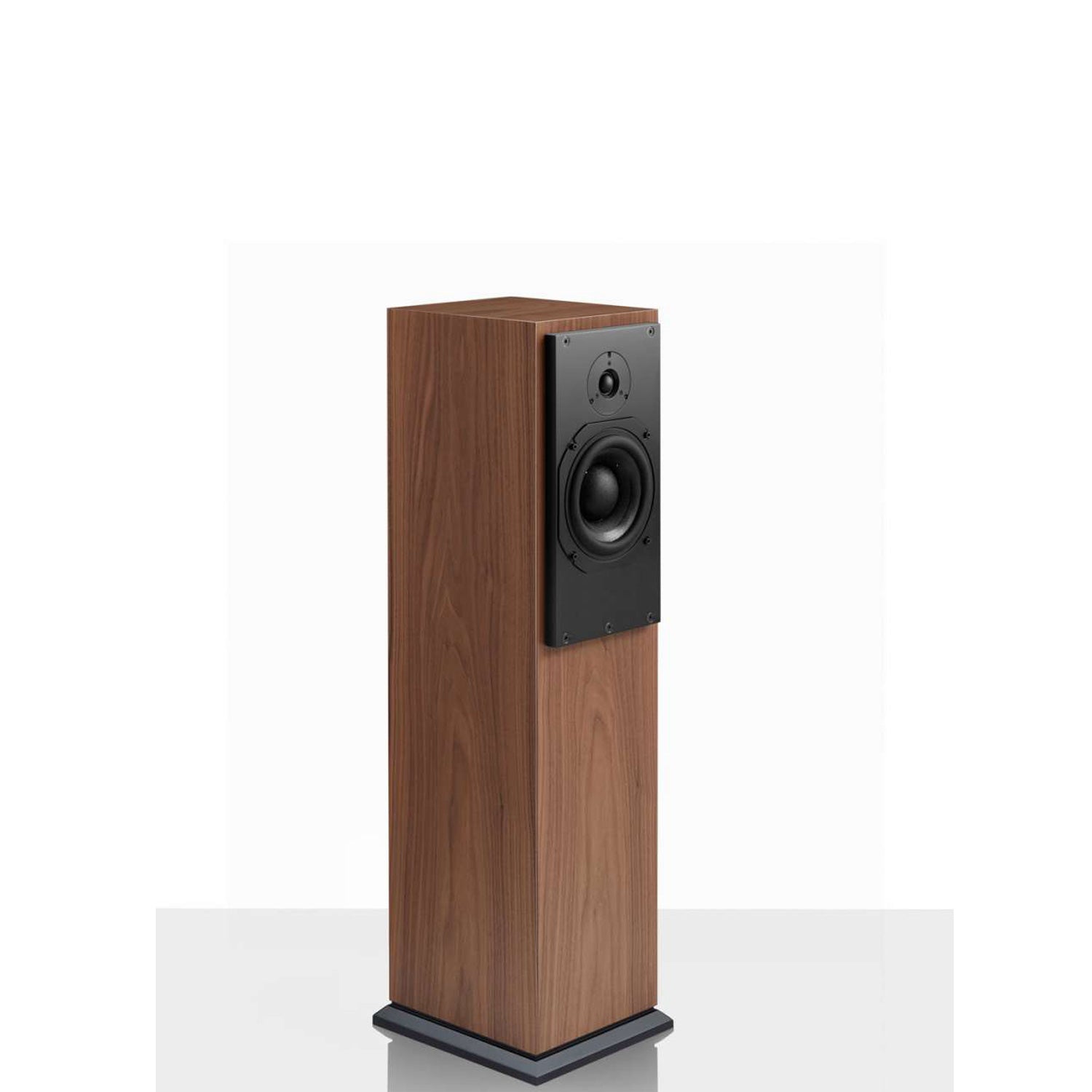

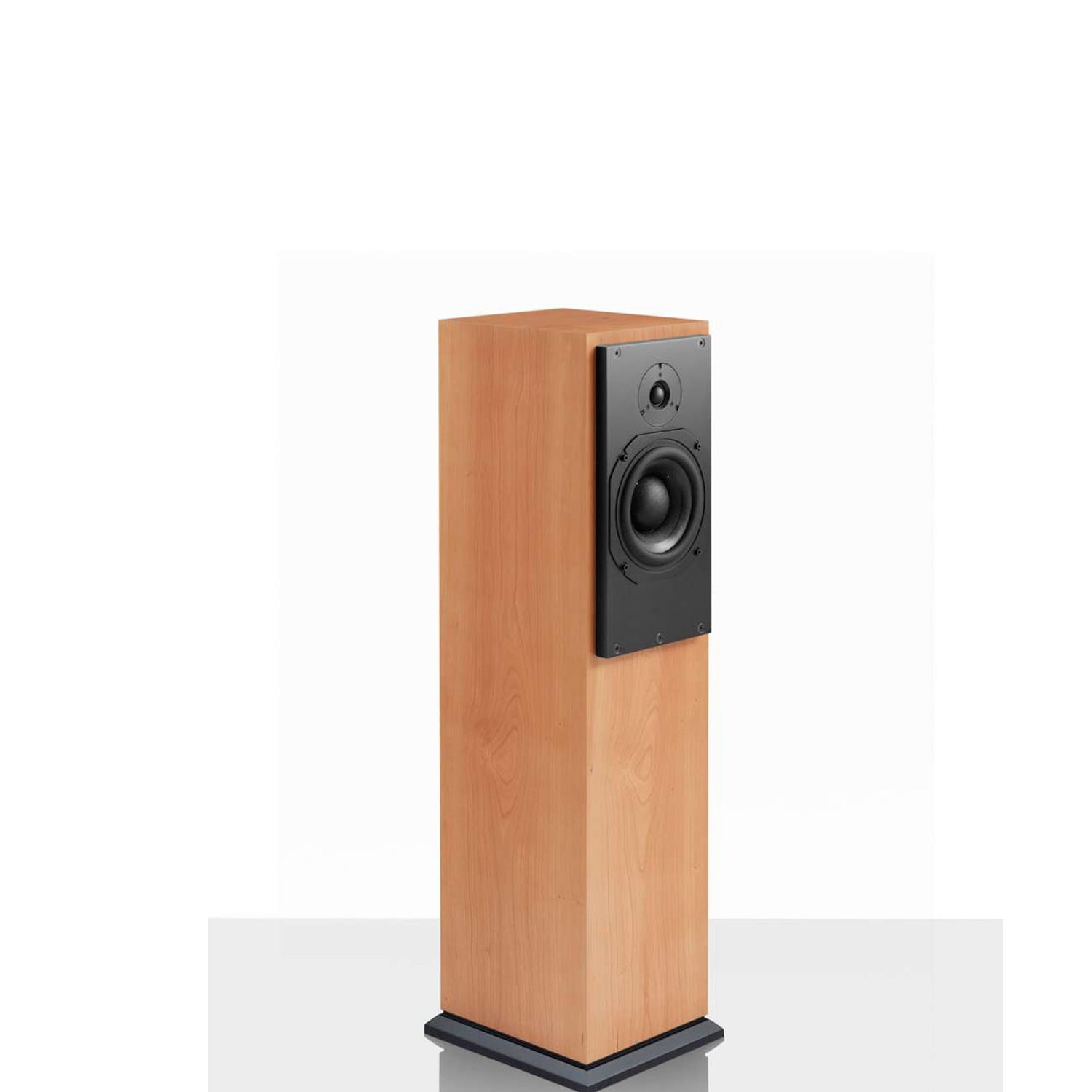

ATC SCM20PSLT – Compact high-end floorstanding loudspeaker with reference sound

The ATC SCM20PSLT is the floorstanding version of the renowned SCM20PSL, combining the sonic qualities of a reference bookshelf speaker with an elegant tower cabinet. Thanks to the sealed cabinet design and integrated stand, the SCM20PSLT offers exceptionally precise bass reproduction, exact timing, and an impressively natural soundstage. It was developed for music lovers seeking the highest sound quality in small to medium-sized listening rooms.

Equipped with the 150mm ATC Super Linear mid/bass driver and the new 25mm S-Spec soft-dome tweeter with dual suspension, the SCM20PSLT delivers exceptionally transparent, dynamic, and low-distortion reproduction. Vocals and instruments are reproduced with impressive authenticity, while the sealed cabinet design ensures tight and controlled bass.

The SCM20PSLT is considered the reference model among ATC's 2-way floorstanding speakers, combining studio technology with audiophile musicality at the highest level.

Design principle:
Passive 2-way floorstanding loudspeaker

Cabinet:
Sealed (Acoustic Suspension)

Bass/Mid driver:
150 mm ATC Super Linear (SB75-150SL)

Tweeter:
25 mm ATC S-Spec Soft Dome (SH25-76S)

Frequency response (-6 dB):
55 Hz – 25 kHz

Frequency response (±2 dB):
80 Hz – 20 kHz

Sensitivity:
85 dB (1 W / 1 m)

Nominal impedance:
8 ohms (5.5 ohms minimum)

Max SPL:
108 dB

Recommended power amplifier:
75 – 300 watts

Crossover frequency:
2.2 kHz

Pair matching:
±0.5 dB

Dispersion:
±80° horizontal, ±10° vertical

Connectors:
Bi-wiring terminals

Dimensions (H × W × D):
990 × 239 × 316 mm

Weight:
24.7 kg per speaker
