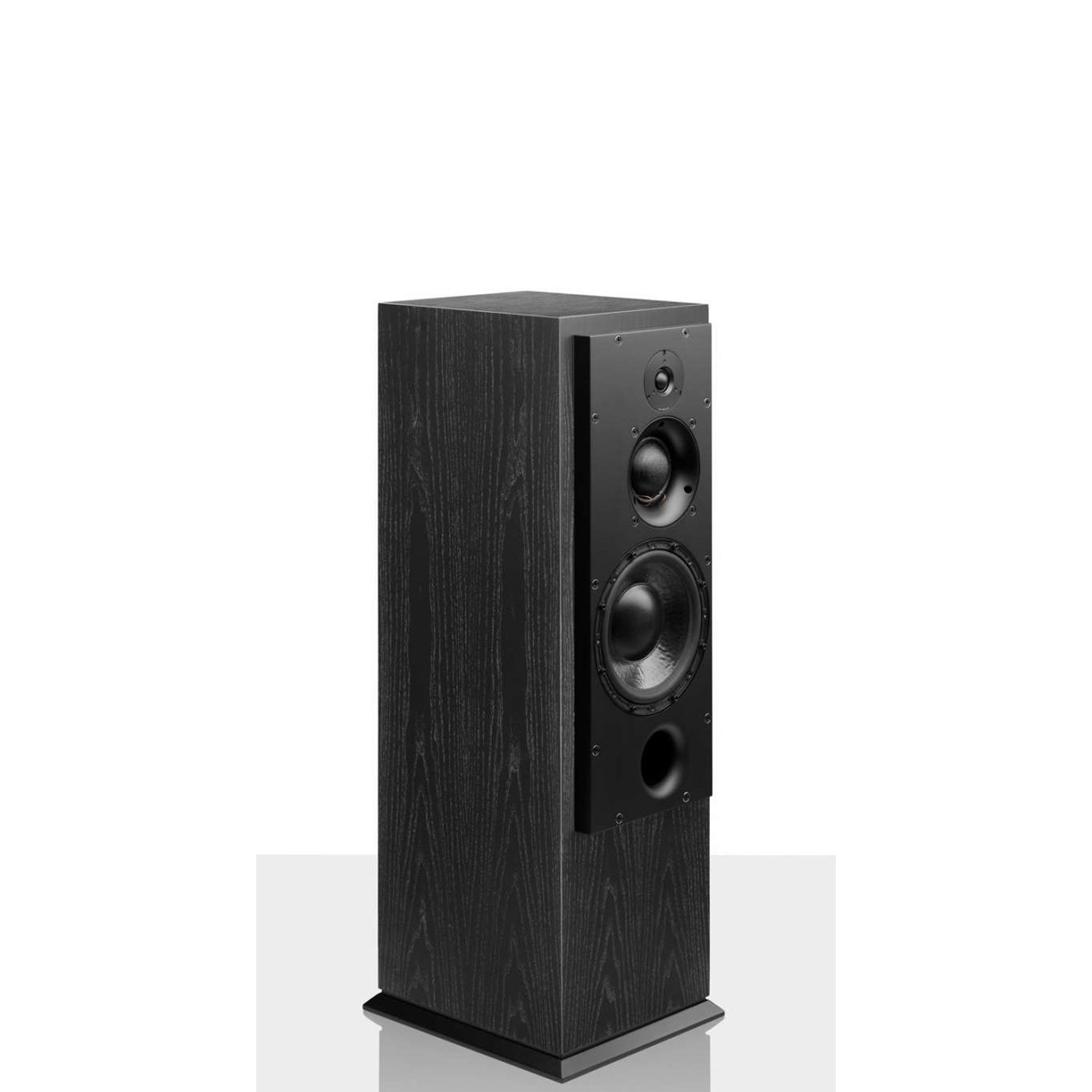

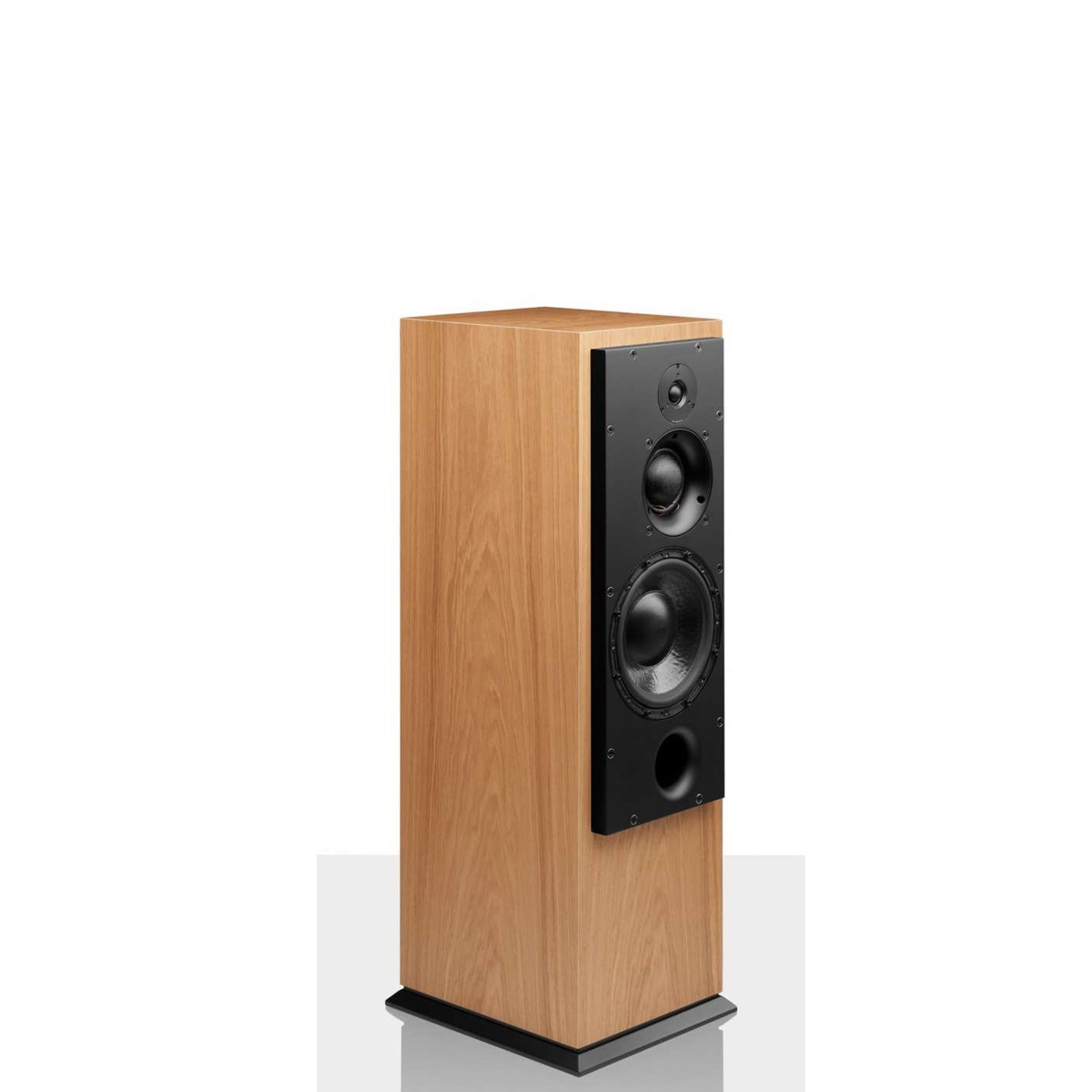

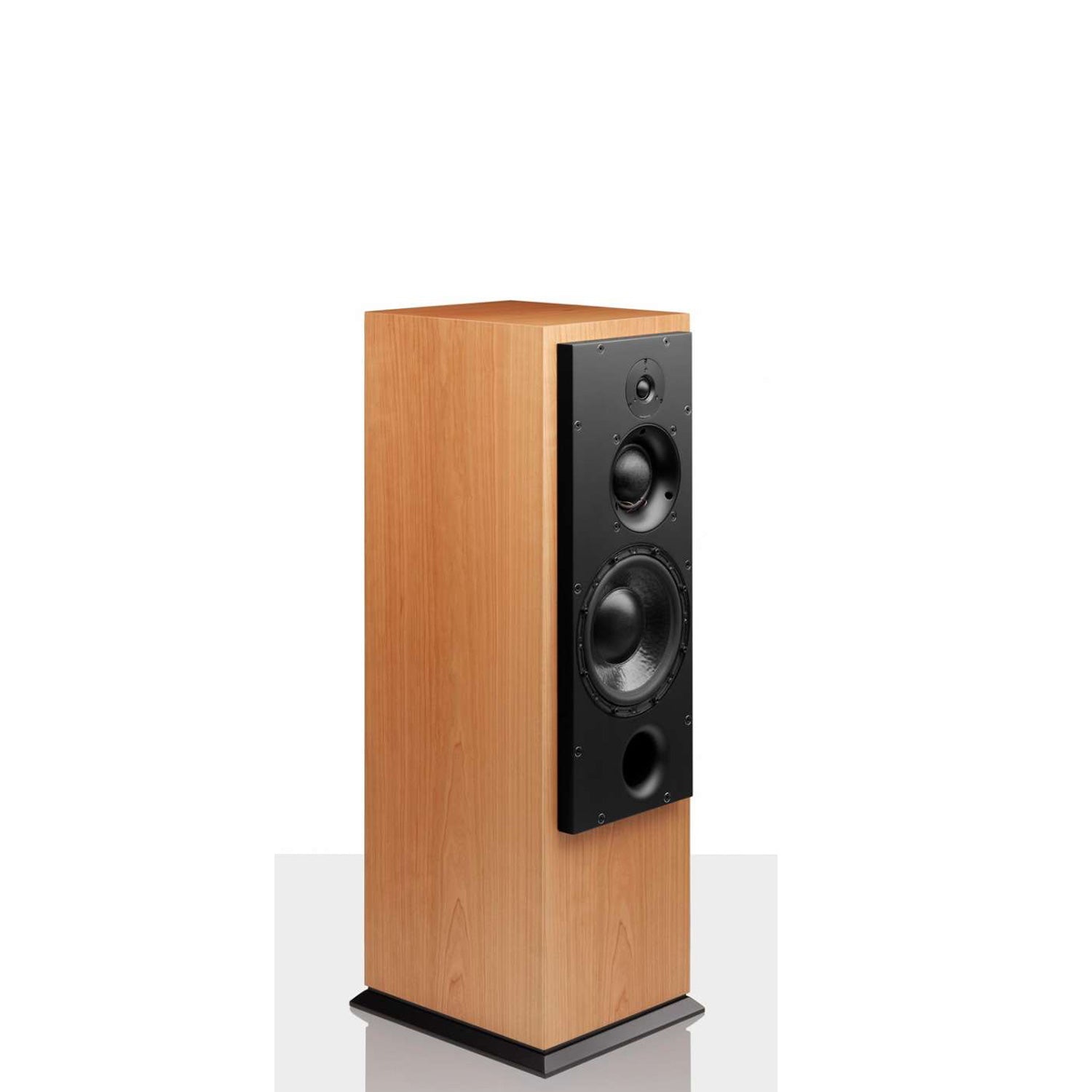

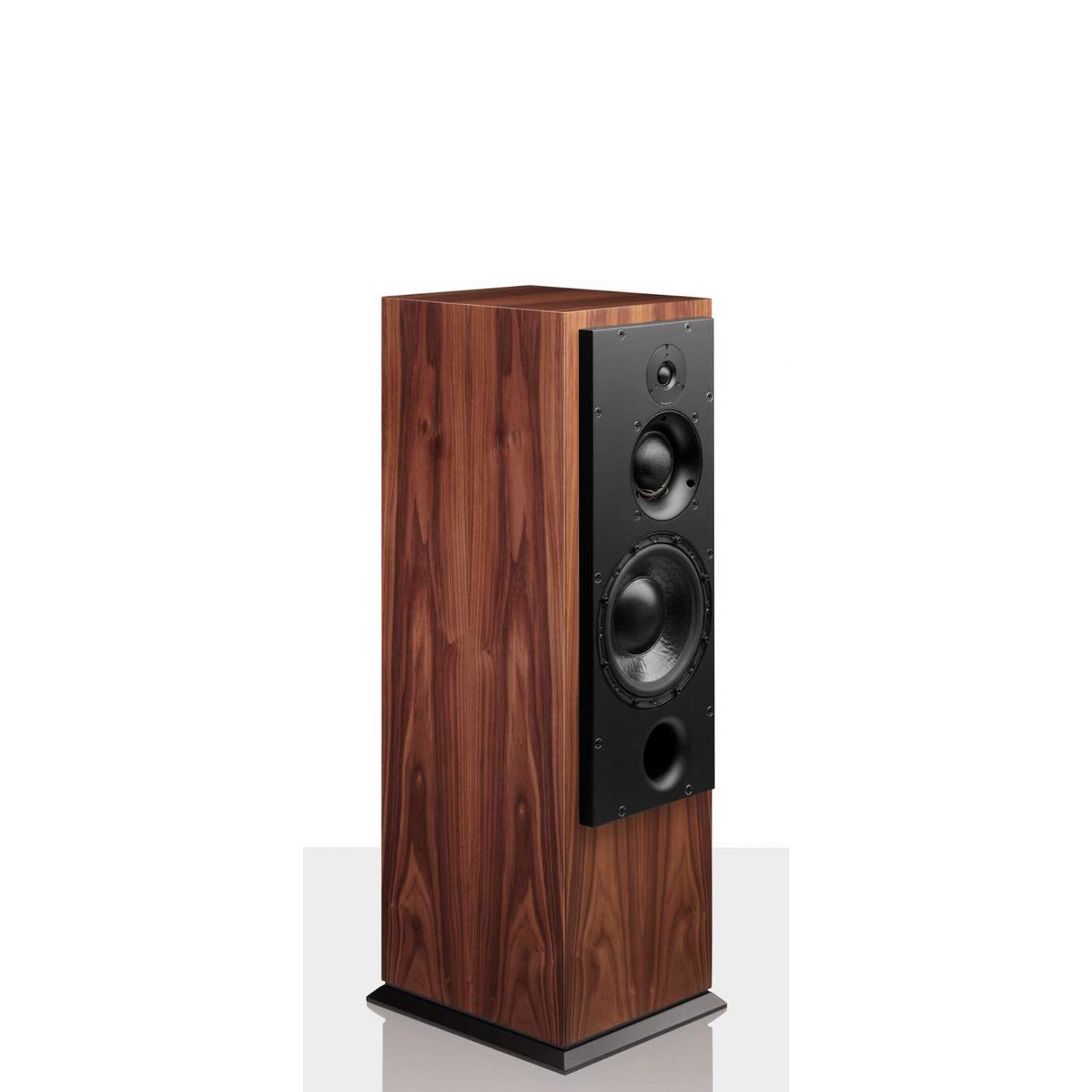

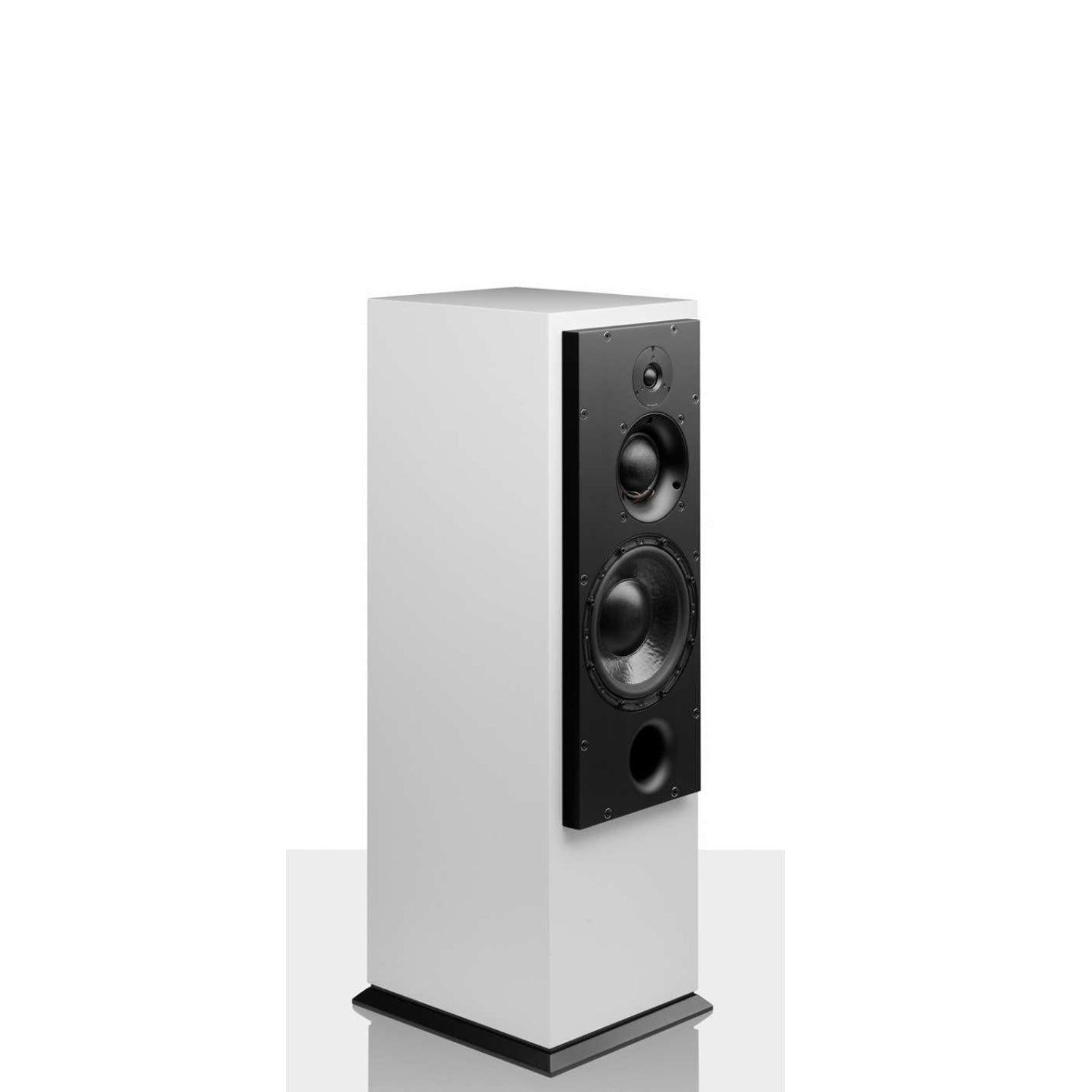

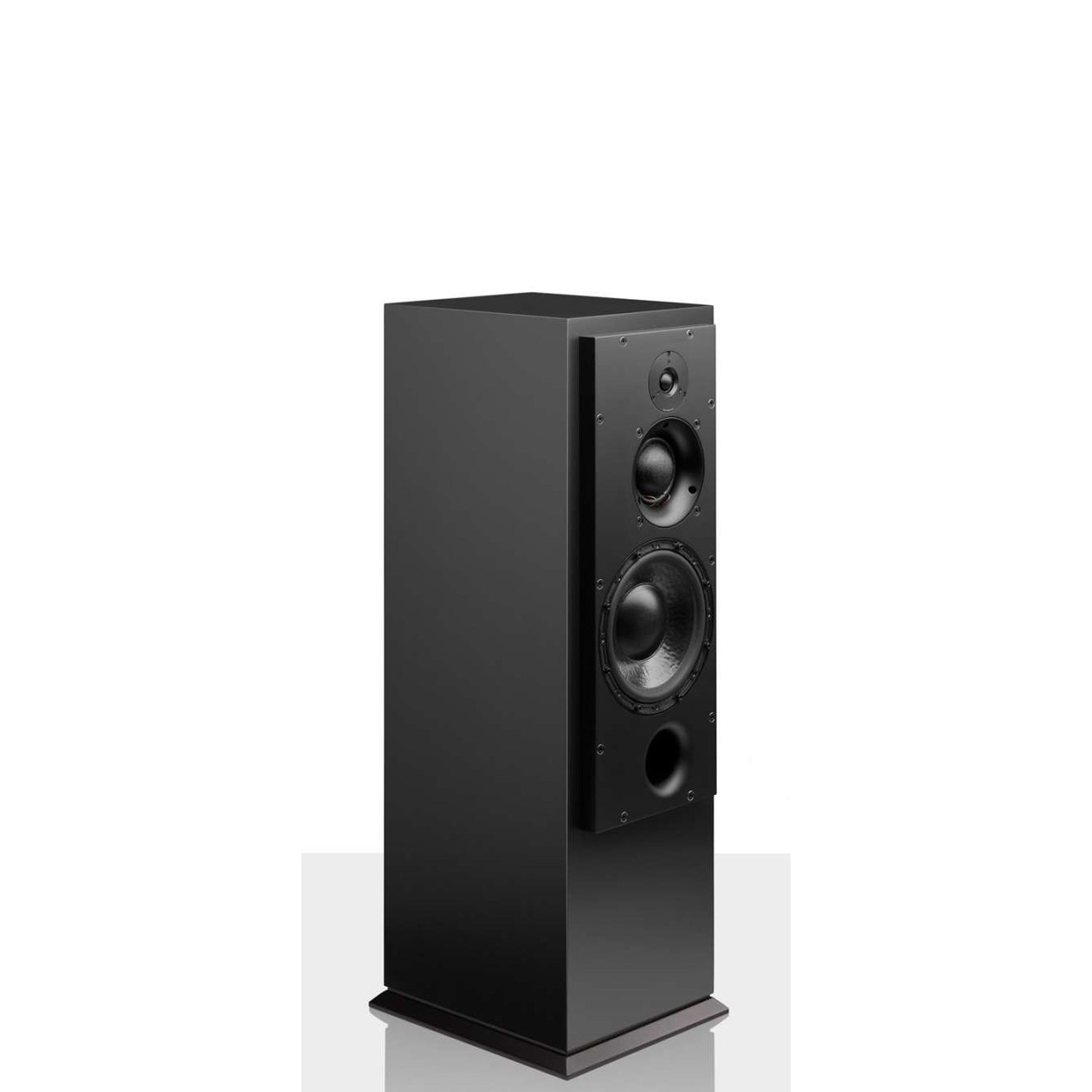

ATC SCM50ASLT – Active 3-Way Floorstanding Speaker (Tower Series)

The ATC SCM50ASLT is the active floorstanding version of the legendary SCM50 and belongs to the reference class of the ATC Tower Series. It combines studio monitor technology with high-end hi-fi aspirations, offering exceptionally precise, dynamic, and neutral reproduction—both in professional environments and upscale living spaces.

At its core is the famous 75mm ATC soft-dome midrange driver, known for its extraordinary naturalness and detailed resolution. It is complemented by a 234mm Super Linear bass driver as well as the current 25mm S-Spec neodymium tweeter. In this active system, each driver is powered by its own precisely matched amplifier, allowing for maximum control and minimal distortion.

The sealed cabinet ensures tight, controlled bass without artificial emphasis and highly accurate transient response. The SCM50ASLT is considered particularly coherent in the midrange and is often described as a "monitor with hi-fi musicality."

Design principle:
Active 3-way floor-standing loudspeaker

Cabinet:
Sealed (Acoustic Suspension)

Bass driver:
234 mm ATC Super Linear

Mid driver:
75 mm ATC Soft-Dome

HF driver:
25 mm ATC S-Spec Soft Dome (Neodymium)

Frequency response (-6 dB):
38 Hz – 25 kHz

Frequency response (±2 dB):
70 Hz – 17 kHz

Max SPL:
112 dB SPL

Crossover frequencies:
380 Hz / 3.5 kHz

Amplifier output (integrated):
200 W Bass
100 W Mid
50 W HF

Total:
350 W per loudspeaker

Inputs:
Balanced XLR

Input impedance:
>10 kOhm

Dispersion:
±80° coherent horizontal / ±10° coherent vertical

Matched response:
±0.5 dB

Dimensions (H × W × D):
1003 × 304 × 470 mm

Weight: approx.
53.3 kg per loudspeaker
