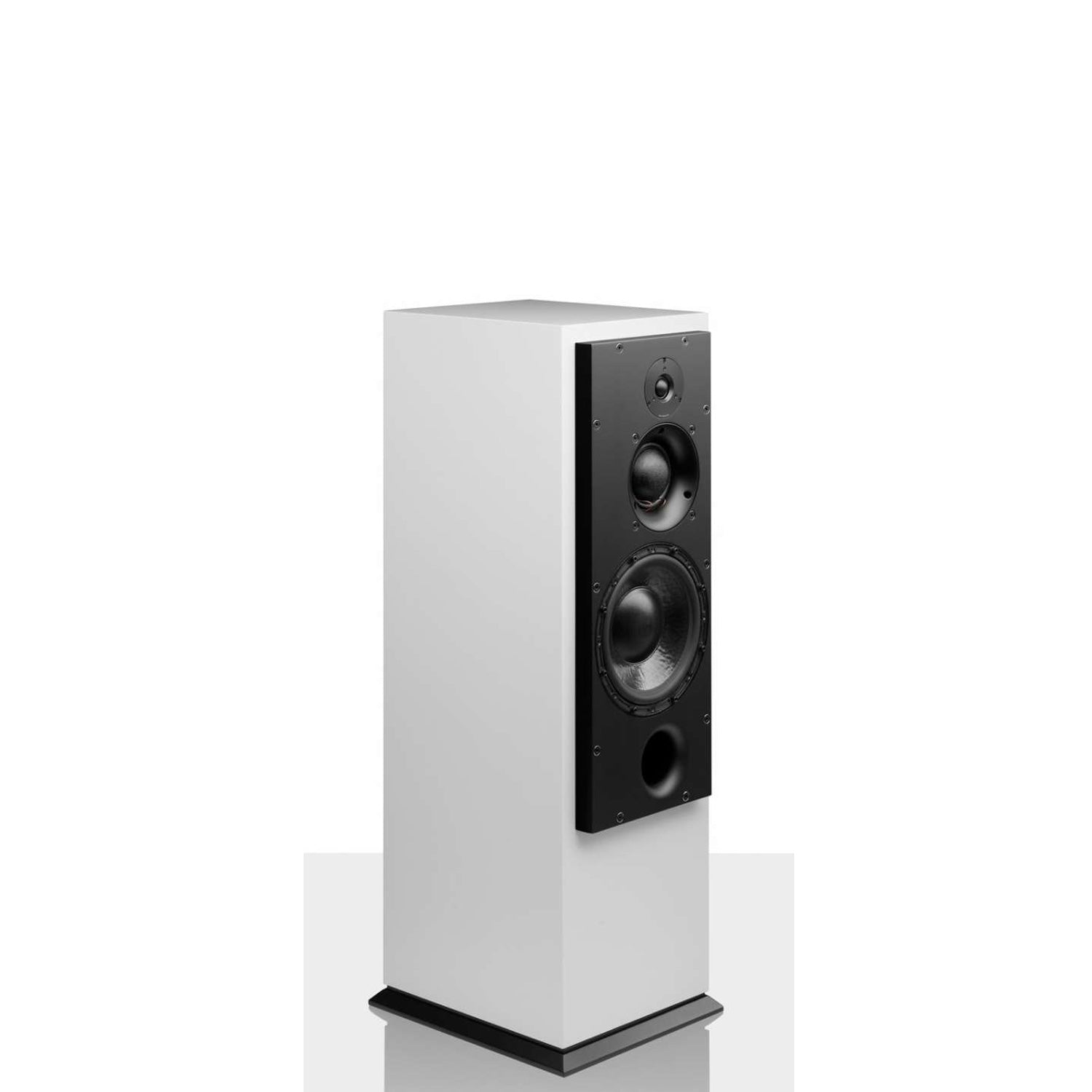

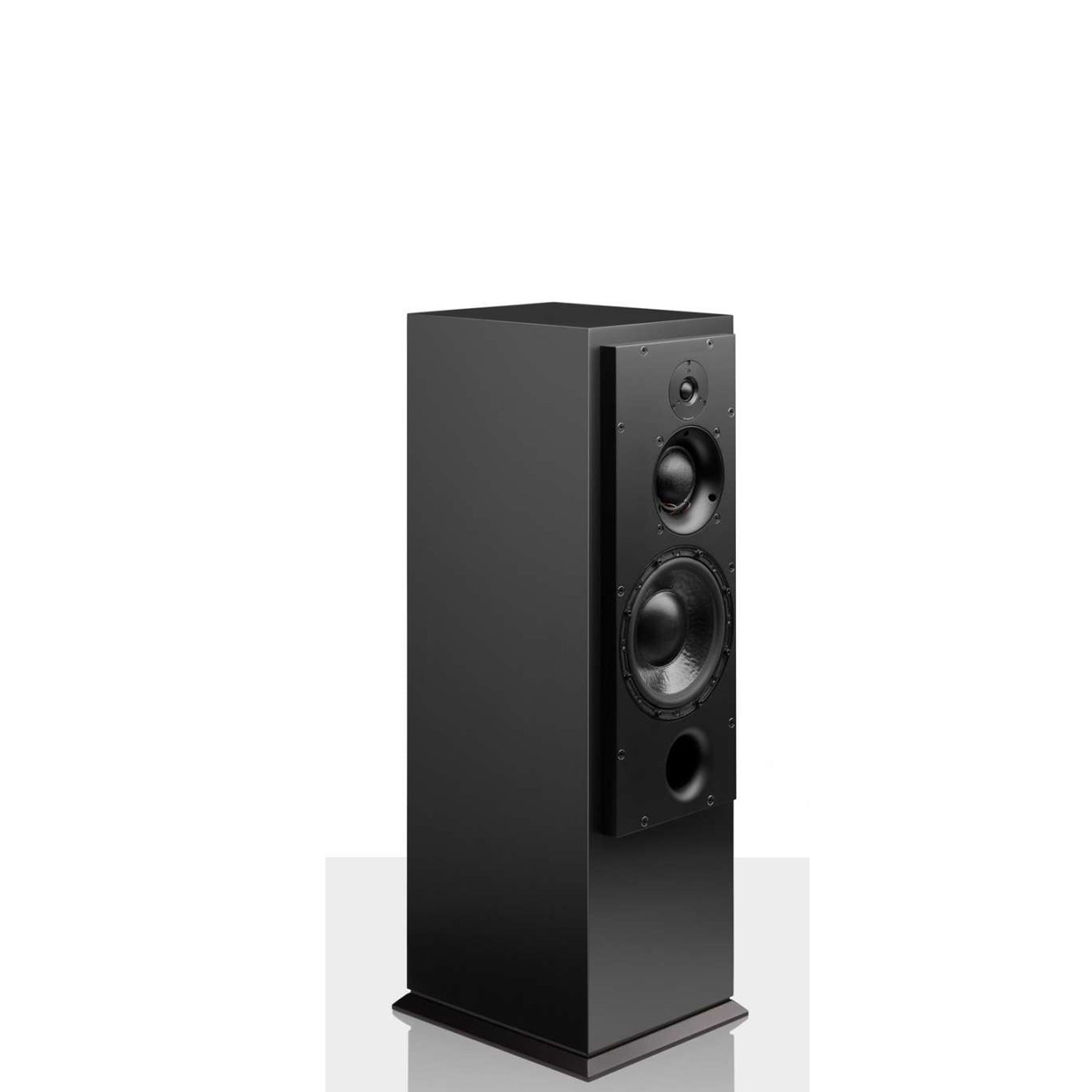

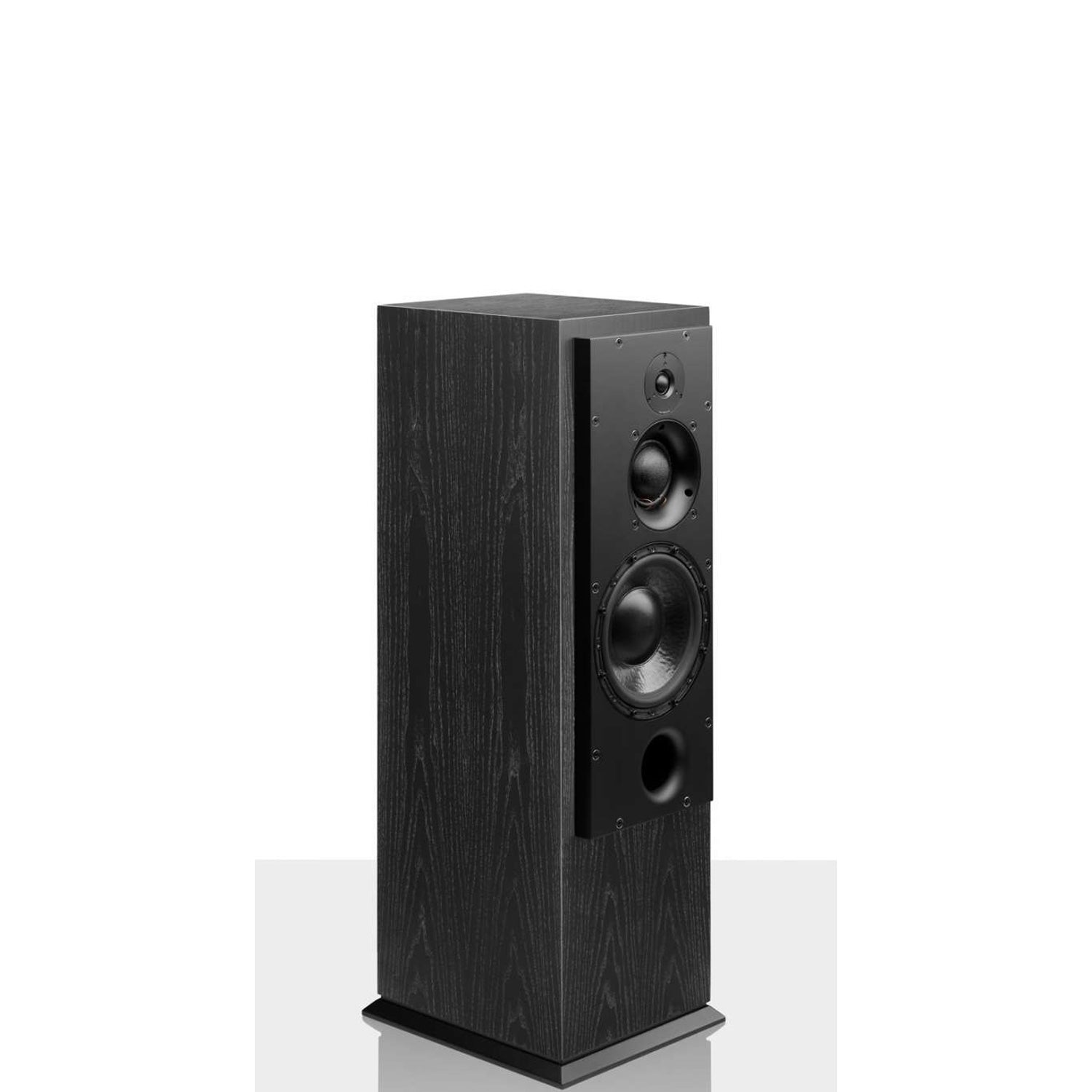

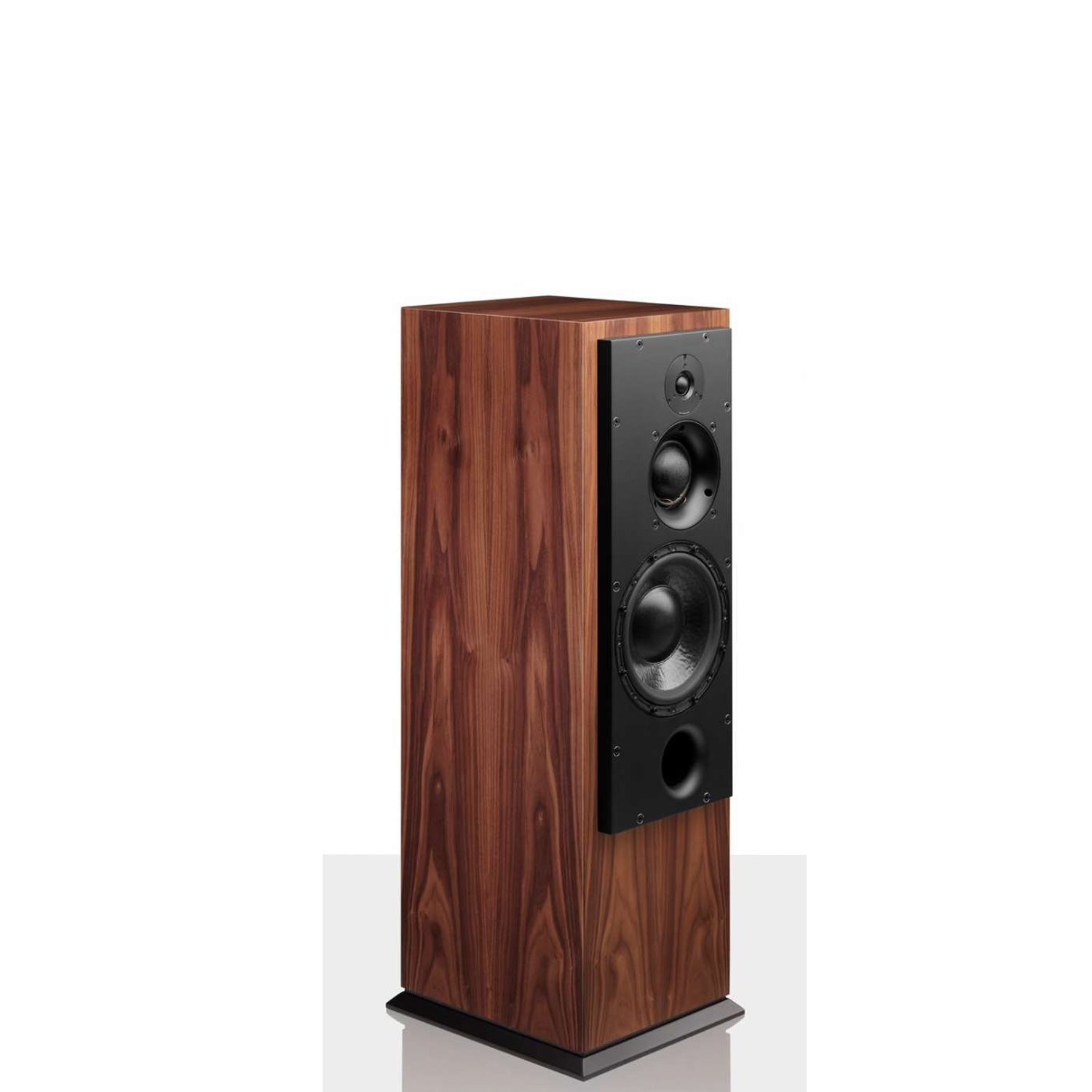

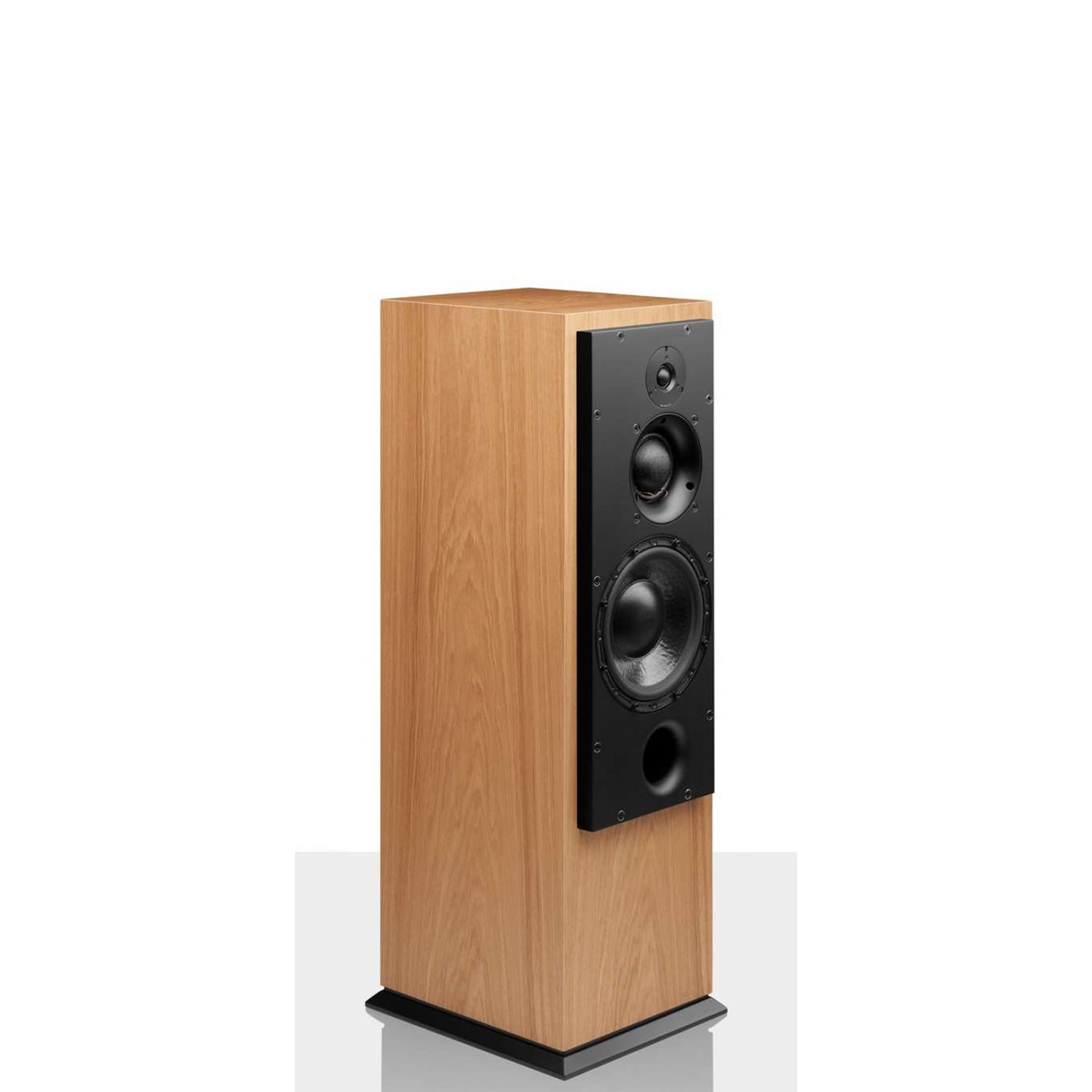

ATC SCM50PSLT – Reference floorstanding speakers with legendary soft-dome midrange technology

The ATC SCM50PSLT combines the sonic virtues of the famous SCM50 with an elegant tower cabinet. As a passive 3-way floorstanding speaker, it offers exceptionally natural music reproduction, enormous dynamic reserves, and a precision usually associated primarily with professional studio monitors. At the heart of the design is the legendary 75mm ATC soft-dome midrange driver, which reproduces voices and instruments with impressive authenticity and detail.

This is supported by a 234mm Super Linear bass driver and the current 25mm ATC S-Spec tweeter with a neodymium magnet. The sealed enclosure ensures precise, controlled bass and exceptionally clean transient response. The SCM50PSLT is excellently suited for medium to large listening rooms and is one of the most highly regarded speakers in its class worldwide.

Design principle:
Passive 3-way floorstanding loudspeaker

Cabinet:
Sealed (Acoustic Suspension)

Tweeter:
25 mm ATC SH25-76S Soft Dome

Midrange driver:
75 mm ATC Soft-Dome

Woofer:
234 mm (9") ATC Super Linear Bass Driver

Frequency response (±2 dB):
70 Hz – 20 kHz

Frequency range (-6 dB):
40 Hz – 25 kHz

Efficiency:
85 dB (1 W / 1 m)

Maximum SPL:
112 dB SPL

Nominal impedance:
8 ohms (minimum 5.5 ohms)

Recommended amplifier power:
100 – 1500 watts

Crossover frequencies:
380 Hz / 3.5 kHz

Matched pair tolerance:
±0.5 dB

Dispersion:
±80° horizontal, ±10° vertical

Connectors:
Bi-wiring terminals / 4 mm banana plugs

Dimensions (H × W × D):
1003 × 304 × 470 mm

Weight:
53.3 kg per loudspeaker
