ATC SCM50SE active

€26.540,00
€26.540,00

Preis inkl. MwSt. zzgl. Versandkosten

€25.743,80
Um den Skontopreis zu erhalten, wählen Sie im Warenkorb die Option „Banküberweisung“ und schicken die Bestellung ab.

Wir schicken Ihnen dann eine korrigierte Rechnung inkl. 3 % Skonto per Email.

Weitere Fragen?

Skonto (Vorkasse per Banküberweisung -3%)

Execution
Variant
Delivery time 3-4 days

Product description

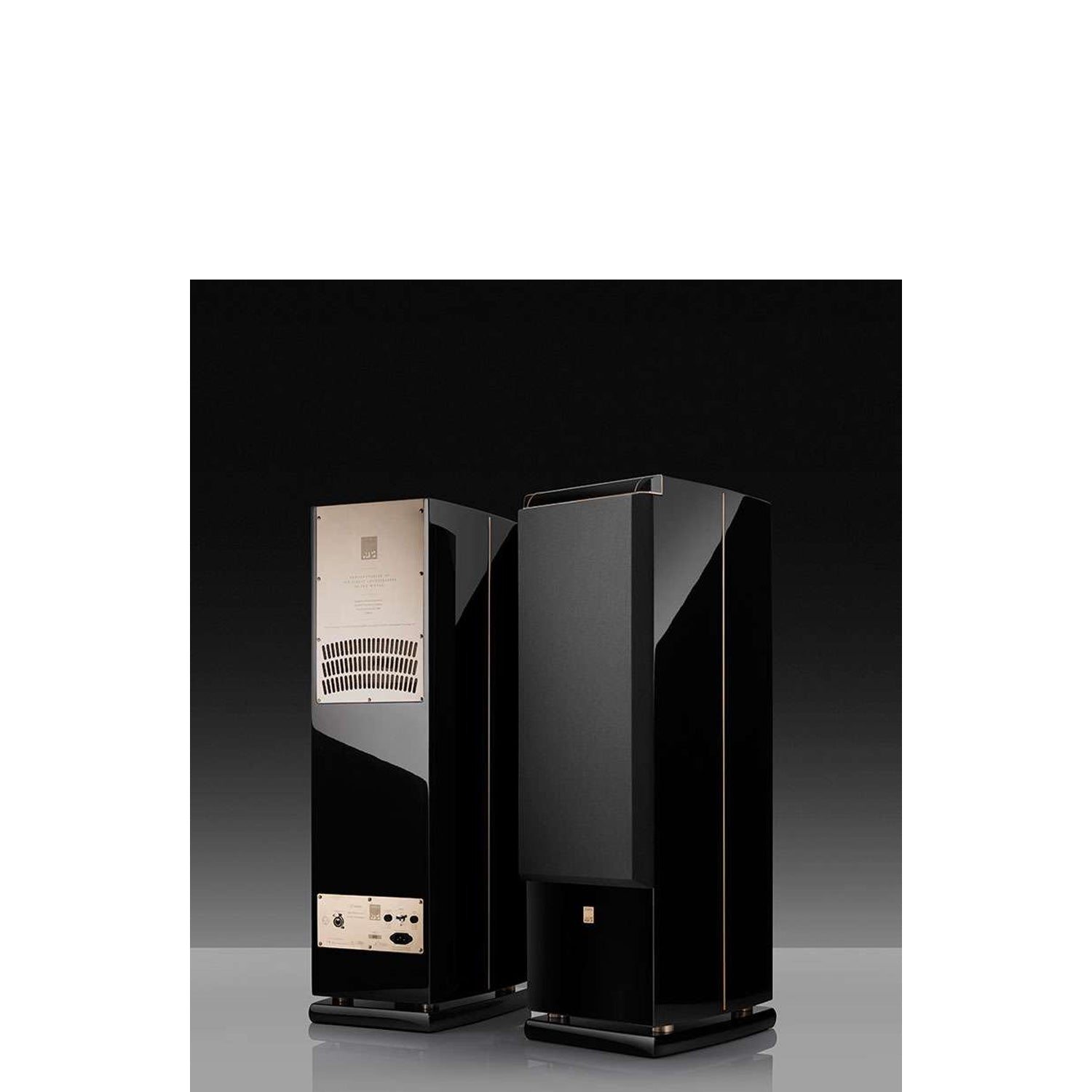

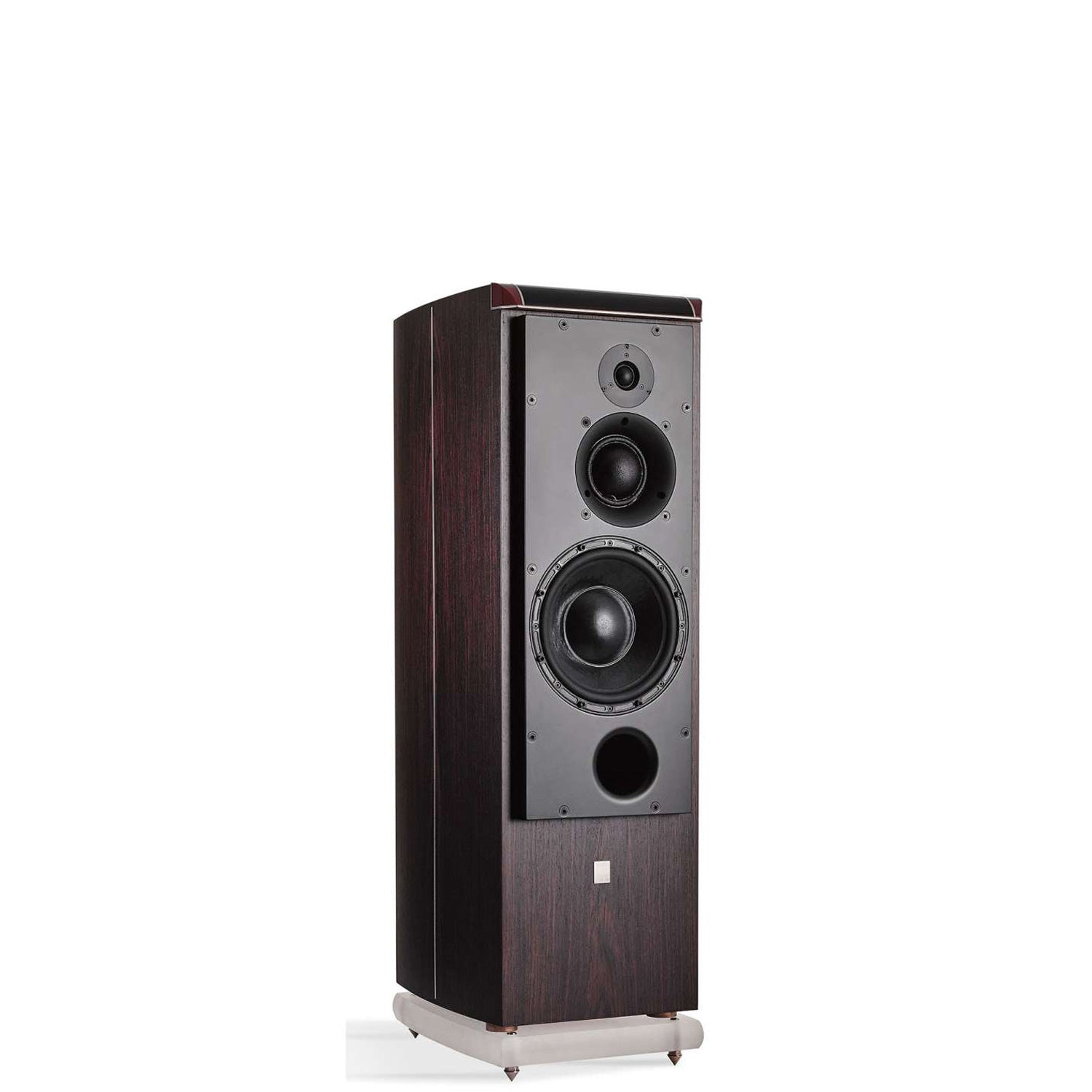

ATC SCM50SE Active – Active Reference Floorstanding Loudspeaker (Special Edition)

The ATC SCM50SE Active is the exclusive Special Edition of the proven SCM50ASLT, combining uncompromising studio technology with high-quality materials and further optimized electronics. Designed for discerning music lovers and professional users, it impresses with exceptional neutrality, dynamics, and an impressively natural reproduction.

At the heart of the speaker is the legendary 75mm ATC Soft-Dome midrange driver (SM75-150S), complemented by a 234mm Super Linear bass driver and the 25mm S-Spec soft-dome tweeter (SH25-76S). Each driver is powered by its own discrete MOSFET power amplifier. The integrated active crossover with phase correction and protection circuits ensures maximum control, exceptional transparency, and an extremely precise soundstage.

The SCM50SE Active is ideal for listening rooms starting from approximately 20 m² and offers an exceptionally authentic music reproduction with excellent spatiality and high power handling.

Technical details

Design principle:
Active 3-way floorstanding loudspeaker

Cabinet:
Sealed (Acoustic Suspension)

Woofer:
234 mm (9") ATC Super Linear

Midrange:
75 mm ATC Soft-Dome (SM75-150S)

Tweeter:
25 mm ATC S-Spec Soft Dome (SH25-76S)

Frequency response (±2 dB):
70 Hz – 17 kHz

Frequency range (-6 dB):
38 Hz – 25 kHz

Maximum SPL:
112 dB SPL

Crossover frequencies:
380 Hz / 3.5 kHz

Amplifier power:
200 W Bass
100 W Midrange
50 W Tweeter

Total power:
350 W per loudspeaker

Active crossover with phase correction

Input:
Balanced XLR

Input sensitivity:
1 V

Input impedance:
>10 kΩ

Matched pair tolerance:
±0.5 dB

Dispersion:
±80° horizontal / ±10° vertical

Dimensions (H × W × D):
1,045 × 330 × 475 mm

Weight:
64.5 kg per loudspeaker
