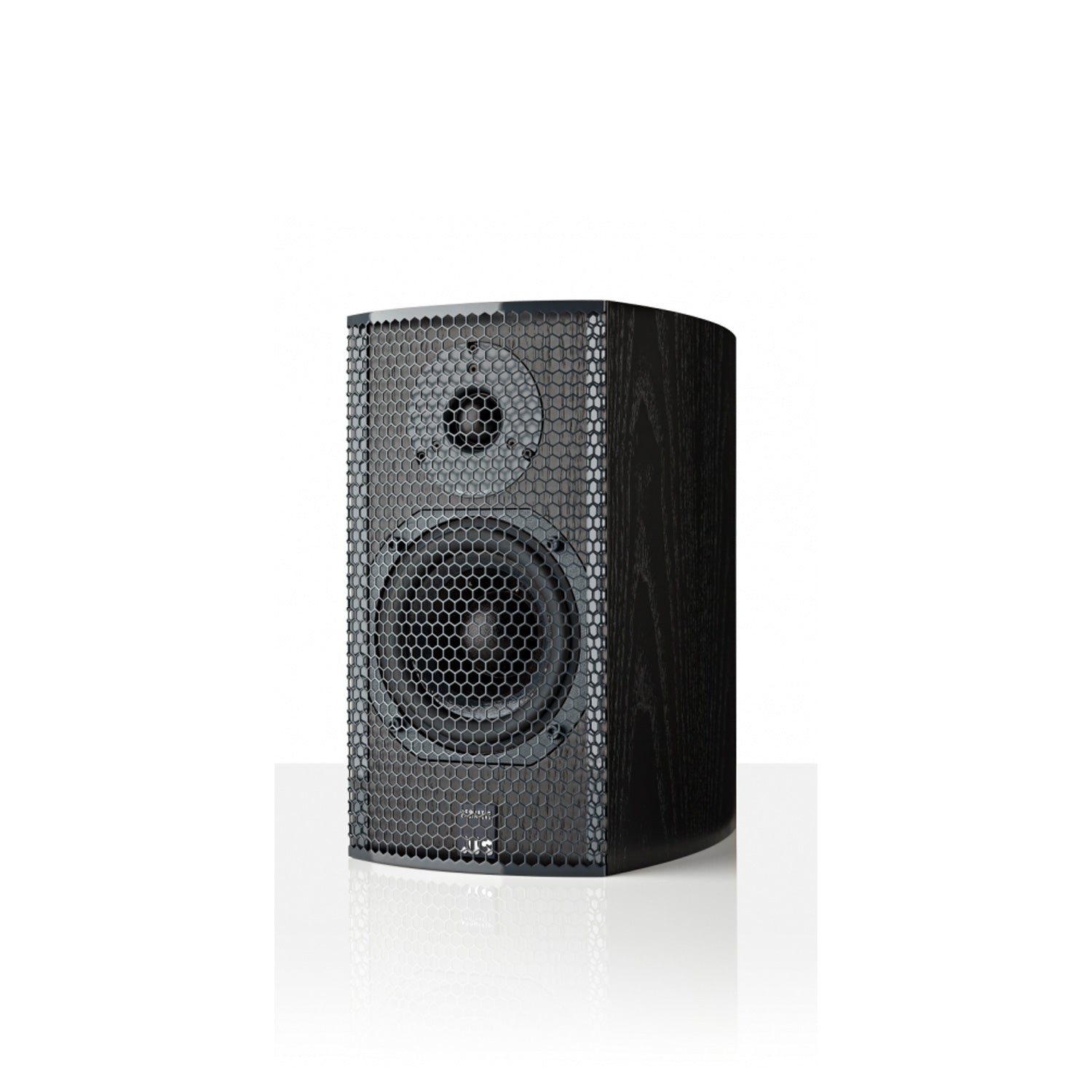

The ATC SCM7 is a passive two-way compact loudspeaker for discerning music lovers seeking maximum sonic fidelity even in smaller listening environments. Despite its compact dimensions, it impresses with an exceptionally precise, neutral, and detailed performance. Thanks to its sealed enclosure design, the SCM7 delivers tight, controlled bass and can also be positioned relatively close to walls.

ATC utilizes proprietary drivers designed and manufactured in-house for the SCM7, including a 125mm mid/bass driver with integrated soft-dome technology and a 25mm neodymium tweeter with waveguide. The result is impressively natural vocal reproduction, precise soundstage imaging, and exceptional sonic coherence across the entire frequency spectrum. High-quality craftsmanship, careful pair matching, and legendary ATC durability make the SCM7 a loudspeaker with genuine studio-monitor character for the home hi-fi system.

Only available in pairs.

Design principle:
Passive 2-way compact loudspeaker, sealed enclosure

LF/MF driver:
125 mm ATC driver with integrated soft dome

HF driver:
25 mm neodymium soft dome with waveguide

Frequency response (-6 dB):
60 Hz – 22 kHz

Sensitivity:
84 dB (1 W / 1 m)

Max. SPL:
103 dB

Nominal impedance:
8 ohms

Recommended amplifier power:
75 – 300 watts

Crossover frequency:
2.5 kHz

Matched response:
±0.5 dB

Dispersion:
±80° horizontal, ±10° vertical

Connectors:
Bi-wire terminals for banana plugs, spade lugs, or bare wire

Dimensions (H × W × D):
300 × 174 × 215 mm

Weight:
7.5 kg per loudspeaker

Finishes:
Black Ash, Cherry, Satin Black, Satin White
