Product description

ATC SIA2-150 – Description

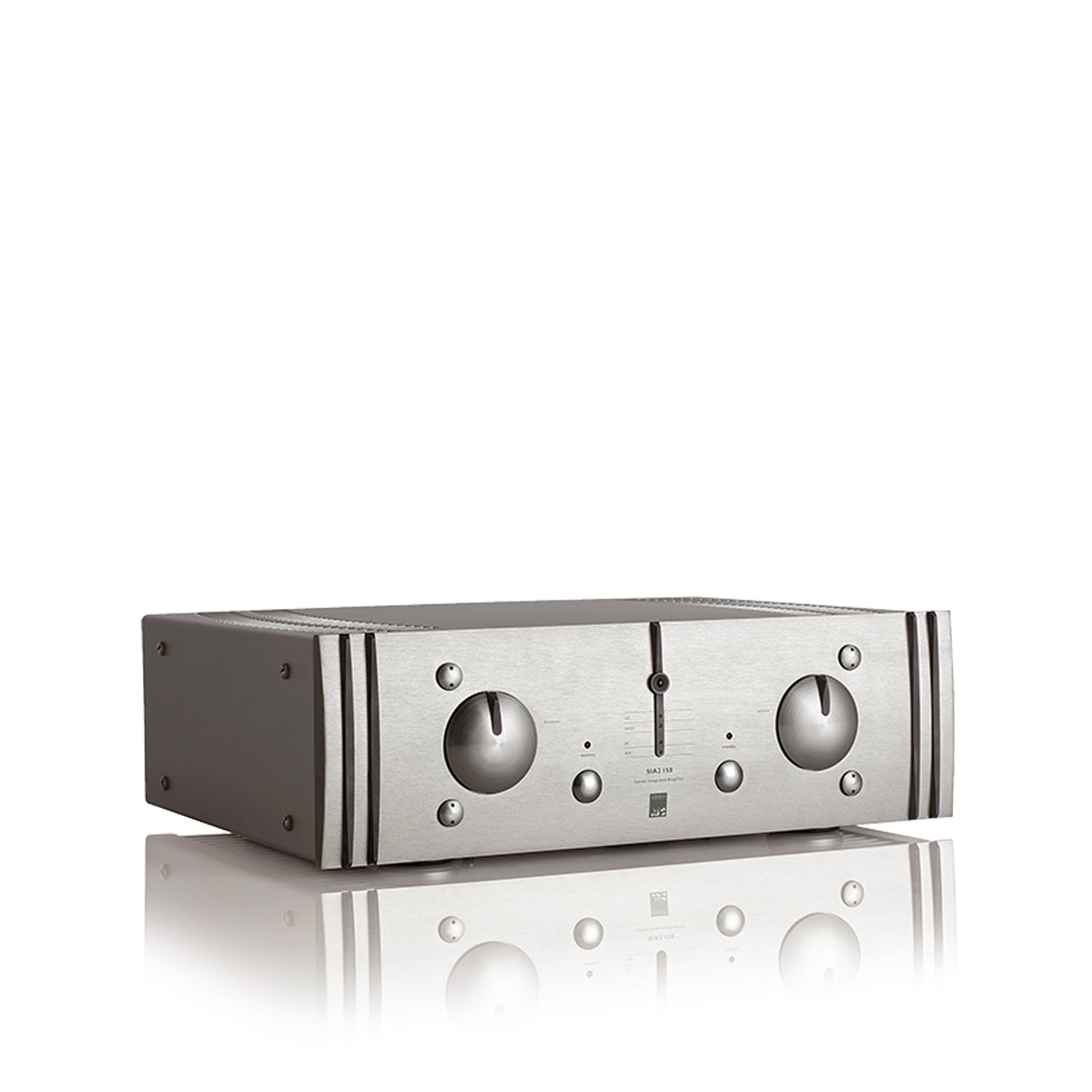

The ATC SIA2-150 is an uncompromisingly designed high-end integrated amplifier, specifically developed for driving high-quality passive loudspeakers. It combines the discrete preamplifier technology of the renowned ATC SCA2 preamp with a powerful MOSFET Class A/B power amplifier, delivering exceptionally neutral, dynamic, and controlled music reproduction.

With an output power of 2 × 150 watts into 8 ohms, the SIA2-150 offers enormous power reserves and high current delivery capability. As a result, it drives even demanding loudspeakers effortlessly and impresses with low distortion and outstanding control, even at high volumes.

The fully discrete Class A input stage and the MOSFET output stages ensure maximum signal purity. At the same time, the protection and gain management circuits, adopted from ATC's active studio monitors, reliably protect both loudspeakers and amplifier from overload without compromising sound quality.

Featuring five analog line-level inputs, preamp, subwoofer, and tape outputs, as well as an integrated headphone amplifier, the SIA2-150 offers a classic, fully analog configuration. Operation is convenient via the solid aluminum front panel or the included remote control.

Technical details

Design principle:
Stereo integrated amplifier, Class A/B MOSFET

Output power:
2 × 150 W into 8 ohms (continuous power, both channels driven)

Input stage:
Discrete Class A input stage

Output stage:
Discrete MOSFET Class A/B

Frequency response:
< 2 Hz – > 280 kHz (-3 dB)

Total harmonic distortion (THD):
< 0.0008 % at 1 kHz

Signal-to-noise ratio:
> 112 dB (IEC A-weighted)

Crosstalk attenuation:
> 90 dB (10 Hz – 20 kHz)

Input sensitivity:
350 mV

Input impedance:
22 kΩ

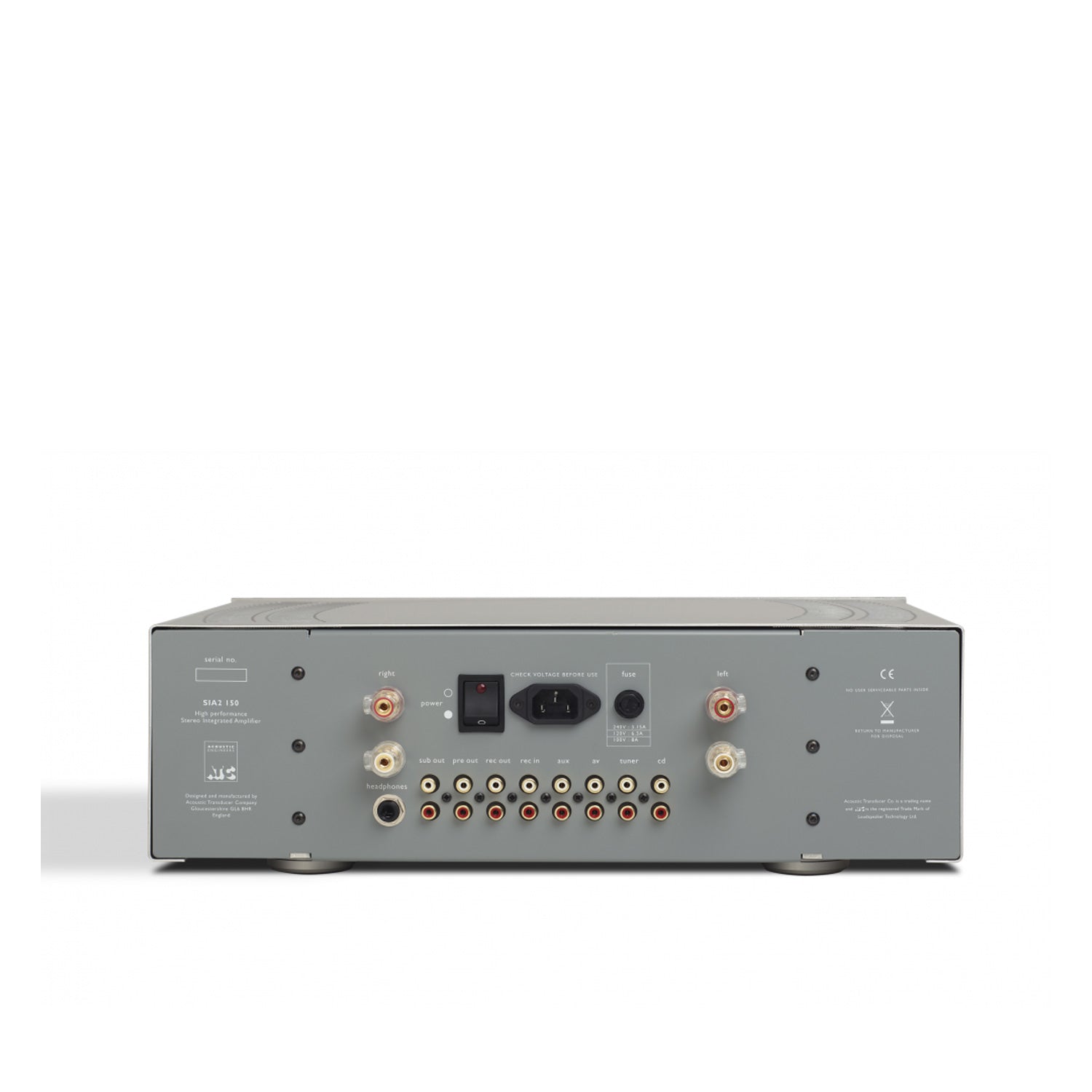

Analogue inputs:
5 × stereo RCA

Analogue outputs:
1 × Pre-Out, 1 × Sub-Out, 1 × Tape-Out (RCA)

Speaker outputs:
1 pair of binding posts

Headphone output:
6.35 mm jack

Remote control:
Infrared remote control included

Protection circuits:
Gain reduction and speaker protection as in the active ATC studio monitors

Power consumption:
up to 500 VA

Dimensions (H × W × D):
142 × 453 × 346 mm (incl. connectors)

Weight:
18.3 kg
