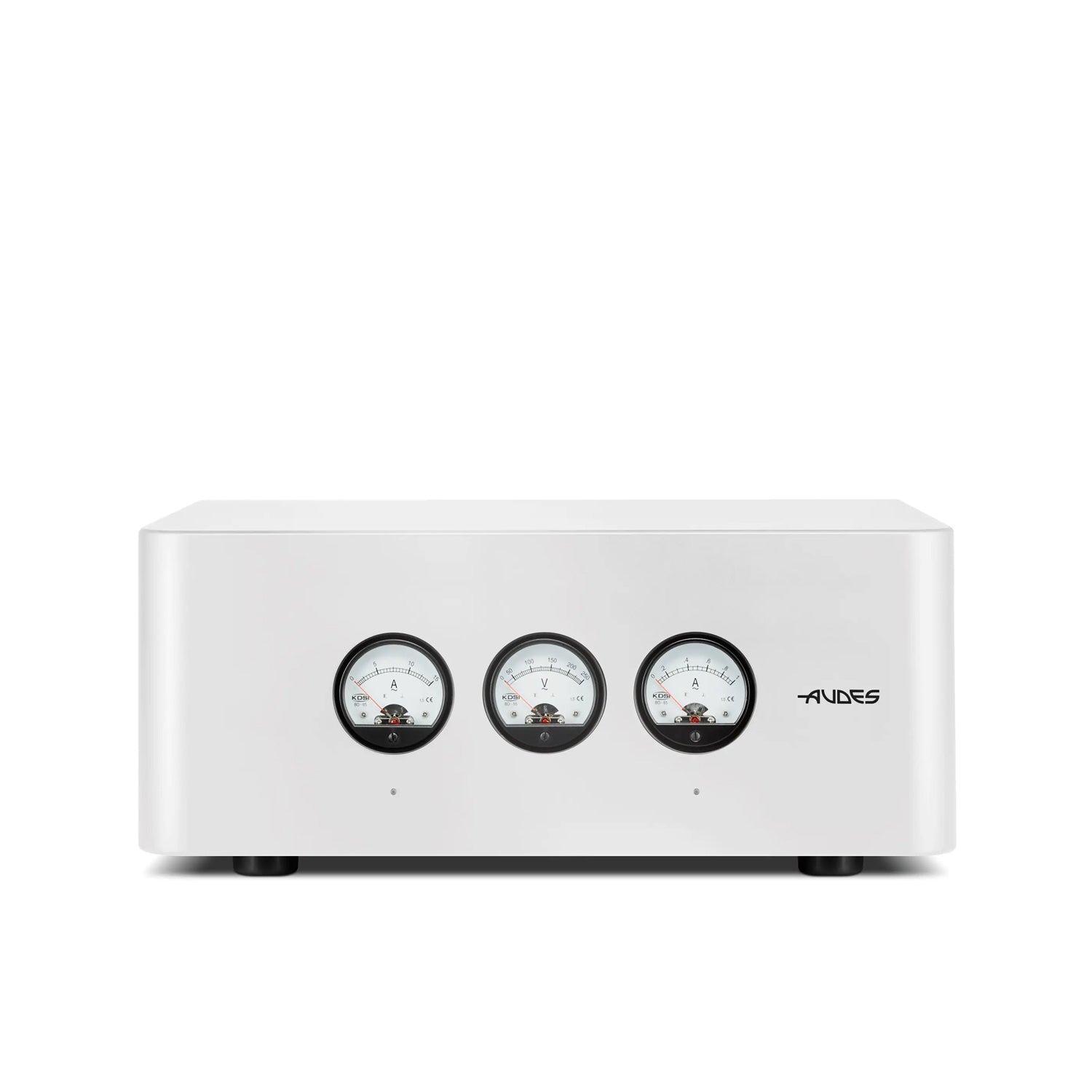

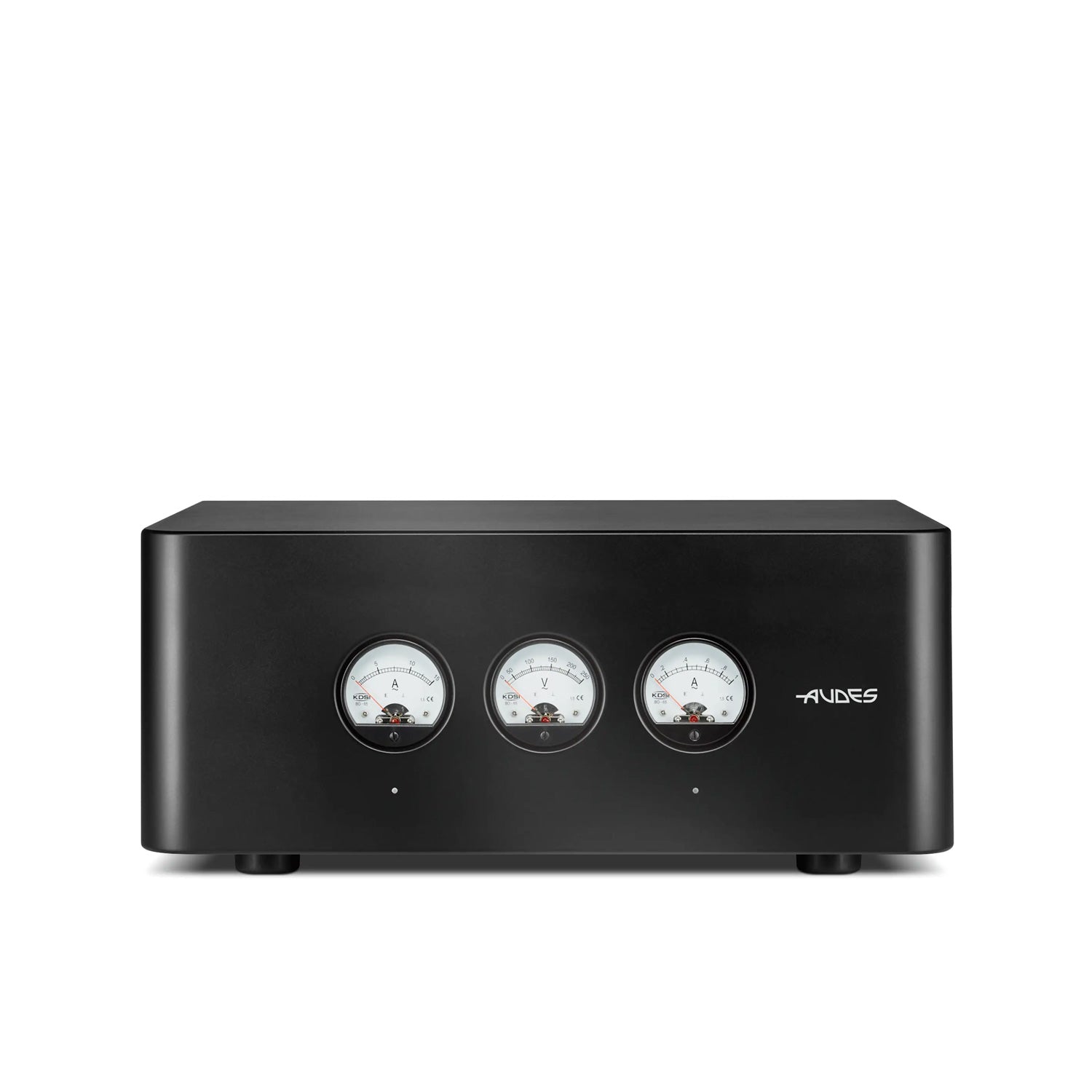

Audes TT-3200DC – Reference power conditioner with twin-transformer technology

The Audes TT-3200DC is an uncompromisingly developed high-end power conditioner for demanding hi-fi, home cinema, and audio reference systems. Its unique concept is based on two specially developed toroidal transformers that allow for separate power supply for high-power amplifiers and sensitive source components. This effectively keeps interference from switching power supplies or digital components away from analog audio equipment.

The main 3,000 VA transformer provides power amplifiers, integrated amplifiers, or active speakers with high current reserves, while a separate 200 VA transformer is specially designed for streamers, DACs, CD players, or other source devices. Both circuits are completely galvanically isolated from each other as well as from the public power grid and provide a balanced output voltage for maximum noise suppression.

The integrated DC blocker eliminates DC voltage components (DC offset) in the power grid, thereby effectively reducing mechanical transformer hum. At the same time, the specially developed transformers filter out high-frequency grid interference and electromagnetic influences. Thanks to the extremely low output impedance, large current reserves are available at all times, even during peak power demands – ideal for dynamic musical passages and high-power amplifiers.

For maximum operational safety, the TT-3200DC features an integrated soft-start to limit inrush current, overload protection, and automatic thermal protection. A total of eight high-quality Schuko sockets are available – four for high-current devices and four for source components. Handcrafted in Estonia, the Audes TT-3200DC impresses with its uncompromising build quality, highest reliability, and audiophile performance at a reference level.

Model:
Audes TT-3200DC

Product type:
High-end power conditioner / mains filter

Total power:
3,200 VA

Transformer group 1:
3,000 VA

Transformer group 2:
200 VA

Two balanced toroidal transformers

Integrated DC blocker

Galvanic mains isolation

Balanced output voltage (115 V + 115 V)

Maximum current group 1:
13.6 A

Maximum current group 2:
0.9 A

Soft start to limit inrush current

Overload protection

Automatic thermal protection (shutoff at 90 °C, automatic restart at 75 °C)

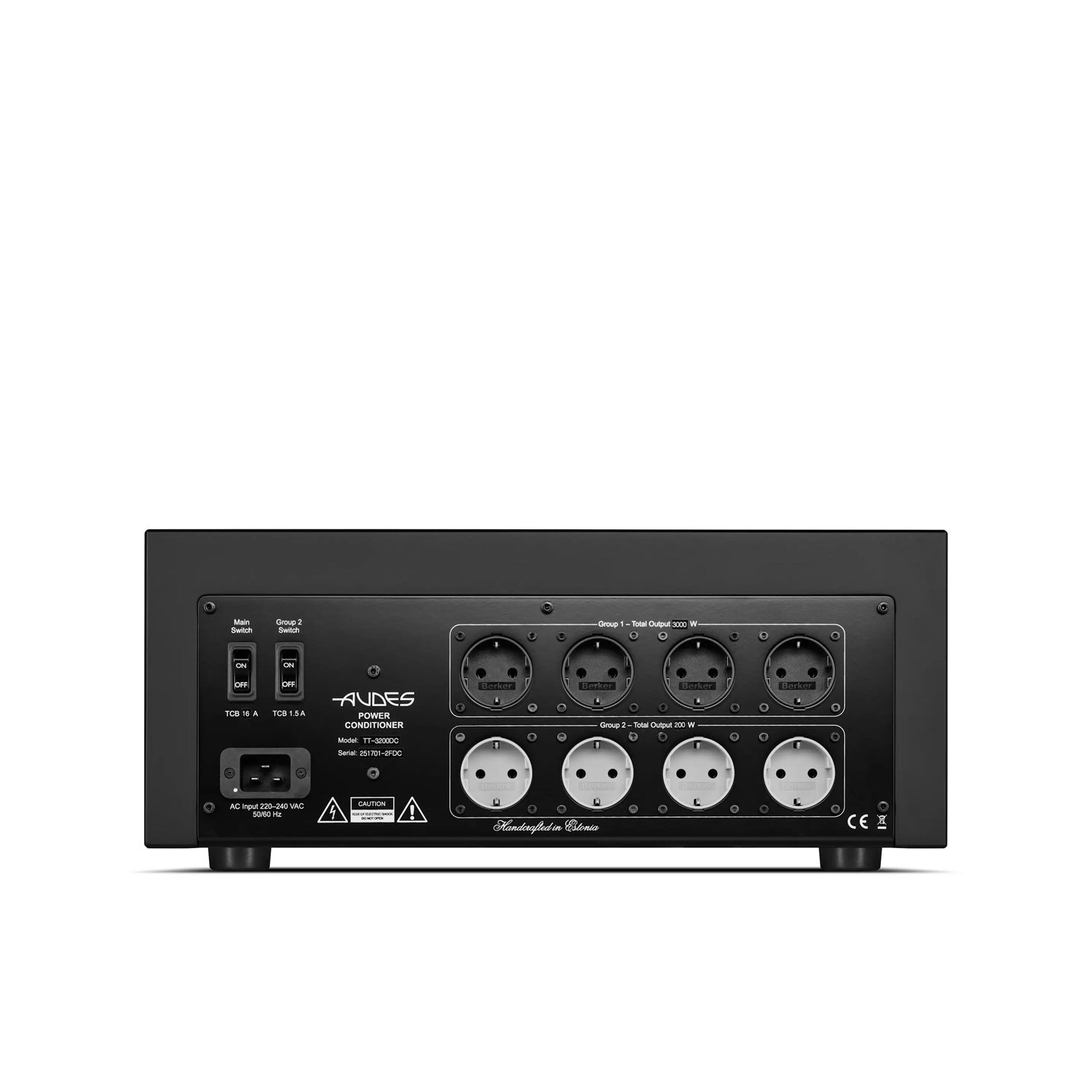

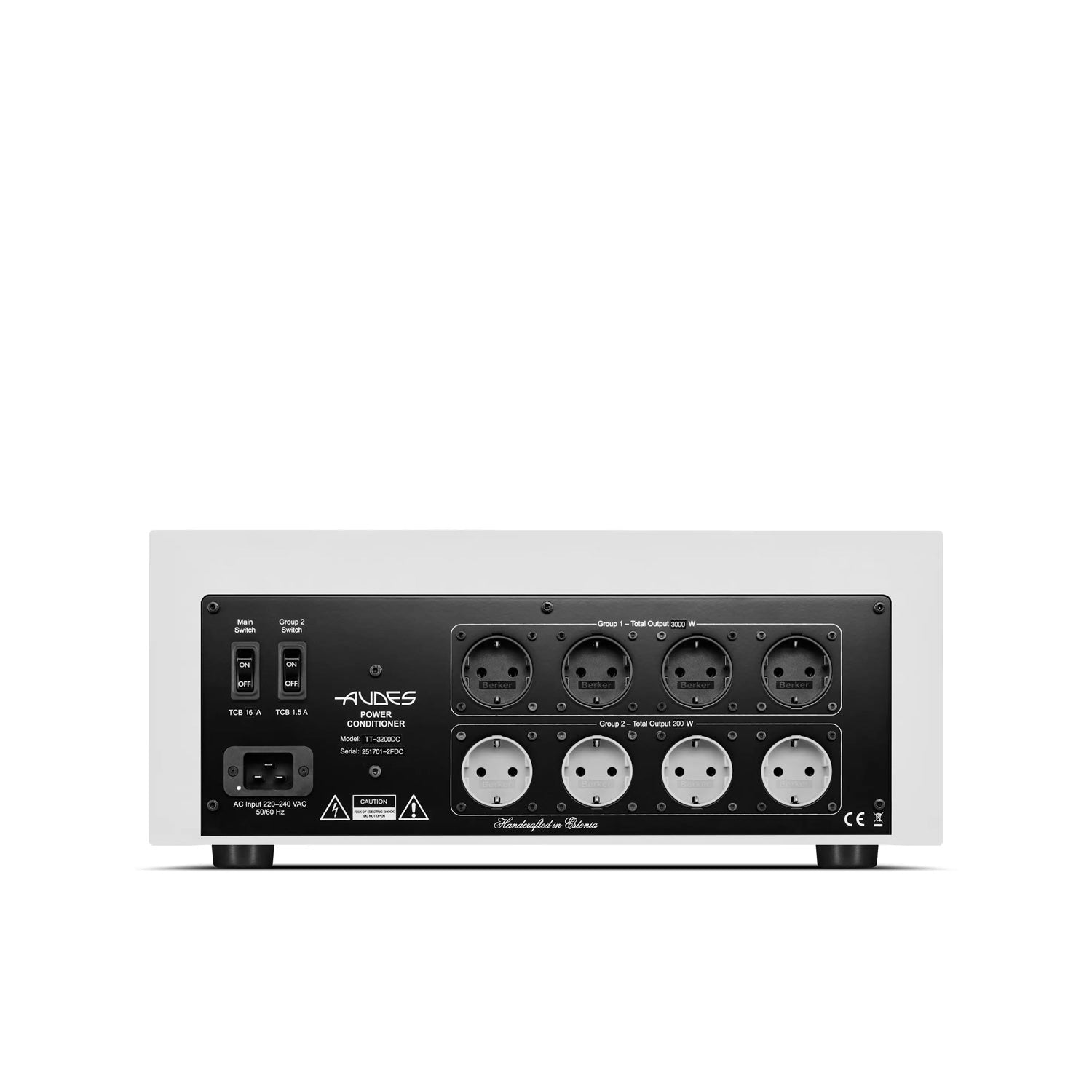

4 × Schuko sockets for high-current components (group 1)

4 × Schuko sockets for source devices (group 2)

Mains connection:
IEC C20 (16 A)

Power cord connection:
IEC C19

Dimensions (H × W × D):
209 × 477 × 372 mm

Weight:
37 kg
