Audio-Technica

Audio-Technica AT-33PTG/II

Regular price
€599,00
Regular price
Sale price
€599,00

Preis inkl. MwSt. zzgl. Versandkosten

€581,03
Um den Skontopreis zu erhalten, wählen Sie im Warenkorb die Option „Banküberweisung“ und schicken die Bestellung ab.

Wir schicken Ihnen dann eine korrigierte Rechnung inkl. 3 % Skonto per Email.

Weitere Fragen?

Skonto (Vorkasse per Banküberweisung -3%)

Delivery time 3-4 days

Product description

The latest update to the proven AT33 series – its first comprehensive revision in years – brings new warmth and richness to your favorite music. Thanks to technological and material improvements, including the first-time use of die-cast zinc for the cartridge base to eliminate unwanted resonance and improve expressiveness in the low-to-mid frequency range, the AT33x series cartridges allow you to hear the finest details across the entire audio spectrum.

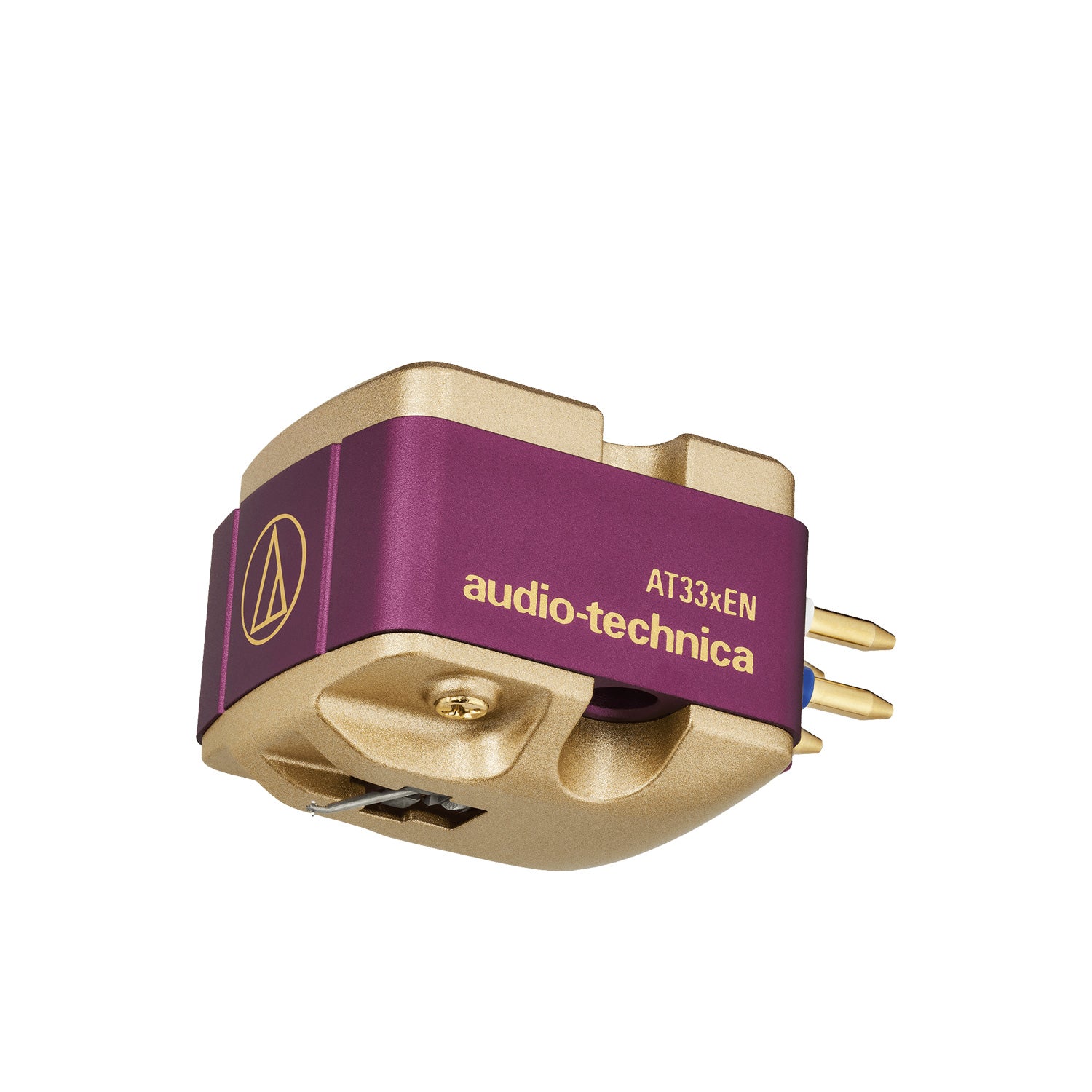

The AT33xEN is an excellent all-around cartridge that delivers warm, full-bodied audio reproduction. It features an elliptical stylus with a thickness of 0.3 x 0.7 mil, attached to a tapered hard duralumin cantilever, to ensure superior groove tracking with improved high-frequency control. Our newly developed suspension mechanism uses piano wire for even better tracking accuracy and slightly lowers the dynamic compliance to achieve a fuller sound, especially in the low-to-mid frequency range.

The AT33xEN is an excellent all-around cartridge that delivers warm, full-bodied audio reproduction. It features an elliptical stylus with a thickness of 0.3 x 0.7 mil, attached to a tapered hard duralumin cantilever, to ensure superior groove tracking with improved high-frequency control. Our newly developed suspension mechanism uses piano wire for even better tracking accuracy and slightly lowers the dynamic compliance to achieve a fuller sound, especially in the low-to-mid frequency range.

The cartridge’s composite body, made of die-cast zinc, aluminum, and high-strength polymer, reduces and distributes resonance throughout the body, resulting in a balanced, natural sound reproduction without favoring specific frequencies. The AT33x’s dual moving coil design features independent PCOCC (Pure Copper by Ohno Continuous Casting) coils for the left and right channels, ensuring superior channel separation and pure, consistent signal transmission. A neodymium magnet and a Permendur yoke create a strong magnetic field that maximizes power generation efficiency, leading to responsive, high-resolution analog reproduction.

Like all cartridges in the AT33x series, the AT33xEN body features threaded holes for easy mounting (only two screws required). These threaded holes are particularly useful when mounting the cartridge to an integrated tonearm.

Technical details

Frequency response
20 to 40,000 Hz

Channel separation
27 dB (1 kHz)

Vertical tracking angle
19°

Tracking force range
1.8 to 2.2 g (2.0 g standard)

Recommended load impedance
≥ 100 ohms (when head amplifier is connected)

Coil impedance
12 ohms (1 kHz)

DC resistance
12 ohms

Coil inductance
26 μH (1 kHz)

Output voltage
0.4 mV (1 kHz, 5 cm/sec.)

Output balance
1.0 dB (1 kHz)

Stylus shape
Nude elliptical

Cantilever
Duralumin, tapered

Static compliance
21 × 10-6 cm/dyne

Dynamic compliance
6 × 10-6 cm/dyne (100 Hz)

Dimensions
16.1 mm (0.63”) × 16.6 mm (0.65”) × 26.1 mm (1.0”) (H × W × D)

Included accessories
・Non-magnetic screwdriver
・Brush
・Washer × 2
・Installation screws (M2.6) (8.0 mm (0.31”) × 2, 10.0 mm (0.39”) × 2, 13.0 mm (0.51”) × 2)
・Protector
Threaded Hole
M2.6 × 2

Stylus curvature radius
0.3 × 0.7 mil

Type
MC

Weight
10.1 g (0.36 oz)
