Audio-Technica

Audio-Technica AT-33Sa

€799,00
€799,00

Preis inkl. MwSt. zzgl. Versandkosten

€775,03
Um den Skontopreis zu erhalten, wählen Sie im Warenkorb die Option „Banküberweisung“ und schicken die Bestellung ab.

Wir schicken Ihnen dann eine korrigierte Rechnung inkl. 3 % Skonto per Email.

Weitere Fragen?

Skonto (Vorkasse per Banküberweisung -3%)

Delivery time 3-4 days

Product description

The latest update to the trusted AT33 series – the first comprehensive overhaul in years – brings new warmth and richness to your favorite music. Thanks to technological and material improvements, including the first-ever use of die-cast zinc at the cartridge base to eliminate unwanted resonance and improve expressiveness in the low-to-mid frequency range, the AT33x series cartridges allow you to hear the finest details across the entire audio spectrum.

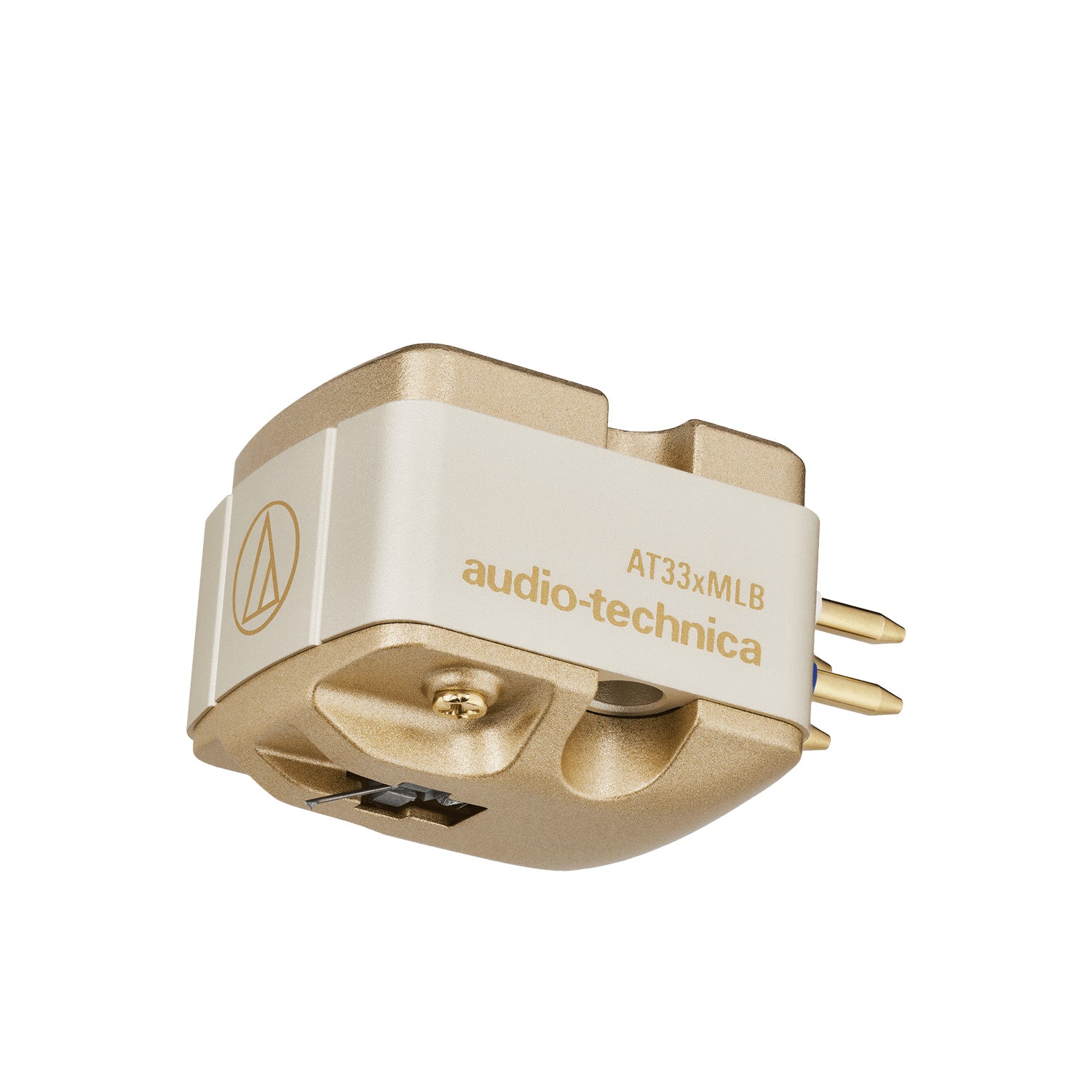

With its nude Microlinear stylus and solid tapered boron cantilever, the AT33xMLB is able to capture even the most subtle details from the grooves of a record. This high-resolution tracking ability is particularly noticeable when listening to orchestral recordings, where you can distinguish every instrument in a piece, or when playing records manufactured since the late 1970s that benefit from advances in hi-fi recording and manufacturing technology. Our newly developed suspension mechanism uses piano wire for even better tracking accuracy and slightly lowers the dynamic compliance to achieve a fuller sound, especially in the low-to-mid frequency range.

The cartridge's composite body of die-cast zinc, aluminum, and high-strength polymer reduces and disperses resonance throughout the entire body, resulting in a balanced, natural sound reproduction without favoring specific frequencies. The dual moving coil design of the AT33x features independent PCOCC (Pure Copper by Ohno Continuous Casting) coils for the left and right channels, ensuring excellent channel separation and pure, uniform signal transmission. A neodymium magnet and a Permendur yoke generate a strong magnetic field that maximizes power generation efficiency, resulting in responsive, high-resolution analog playback.

Like all cartridges in the AT33x series, the body of the AT33xMLB features threaded holes for easy mounting (only two screws required). These threaded holes are especially useful when mounting the cartridge to an integrated tonearm.

Technical details

Frequency response
20 to 45,000 Hz

Channel separation
27 dB (1 kHz)

Vertical tracking angle
19°

Tracking force range
1.8 to 2.2 g (2.0 g standard)

Recommended load impedance
≥ 100 ohms (when head amplifier is connected)

Coil impedance
12 ohms (1 kHz)

DC resistance
12 ohms

Coil inductance
26 μH (1 kHz)

Output voltage
0.42 mV (1 kHz, 5 cm/sec.)

Output channel balance
1.0 dB (1 kHz)

Stylus shape
Nude Microlinear

Cantilever
Boron, tapered

Static compliance
19 × 10-6 cm/dyne

Dynamic compliance
6 × 10-6 cm/dyne (100 Hz)

Dimensions
16.0 mm (0.63”) × 16.6 mm (0.65”) × 26.1 mm (1.0”) (H × W × D)

Included accessories:
Non-magnetic screwdriver
Brush
Washer × 2
Installation screws (M2.6) (8.0 mm (0.31”) × 2, 10.0 mm (0.39”) × 2, 13.0 mm (0.51”) × 2)
Protector

Threaded hole
M2.6 × 2

Stylus curvature radius
2.2 × 0.12 mil

Type MC

Weight
10.1 g
