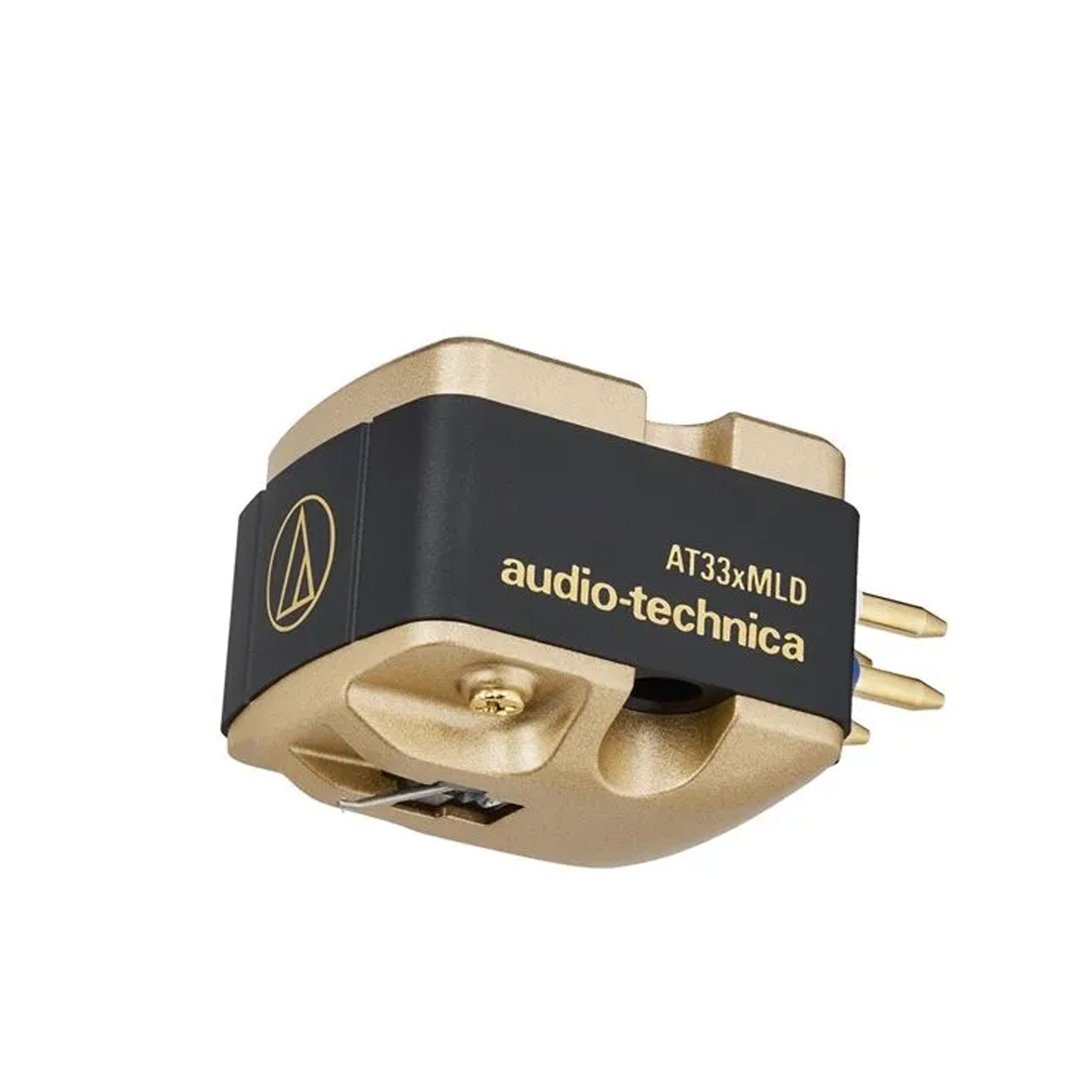

For the first time in years, the relaunched AT33 series has been extensively revised to bring extra warmth, fullness, and detail to your favorite music. A new composite body made of die-cast zinc, aluminum, and high-strength polymer effectively reduces resonance and ensures balanced, natural reproduction across the entire frequency range.

The AT33xMLD uses a die-cast zinc base for the first time to suppress vibrations and strengthen the mid and low-frequency ranges in particular. Its microlinear nude stylus on a tapered duralumin cantilever tracks the groove with extreme precision, delivering a warm, detailed sound – ideal for rock and jazz recordings.

The newly developed suspension mechanism with piano wire improves tracking accuracy and ensures a more powerful sound thanks to slightly reduced dynamic compliance. The dual moving coil system with independent PCOCC coils for the left and right channels provides excellent channel separation, while a neodymium magnet with a Permendur yoke generates a strong magnetic field for dynamic, high-resolution reproduction.

Threaded holes make mounting easier – especially on integrated tonearms. The stylus is not user-replaceable, however, Audio-Technica offers a paid moving coil replacement program.

Features (abridged):

• Stereo MC cartridge with microlinear nude stylus

• Warm, detailed sound – ideal for 50s–70s rock & jazz

• Dual moving coil with PCOCC coils for high channel separation

• Neodymium magnet + Permendur yoke for high efficiency

• Low-resonance composite body (die-cast zinc/alu/polymer)

• Tapered duralumin cantilever for precise high-frequency resolution

• New suspension with low compliance for versatile tonearm compatibility

• Gold-plated terminal pins, easy installation, handcrafted in Japan

Frequency response:
20 to 42,000 Hz

- Channel separation: 27 dB (1 kHz)
- Vertical tracking angle: 19°
- Tracking force range: 1.8 to 2.2 g (2.0 g standard)
- Recommended load impedance: ≥ 100 ohms (with preamp connected)
- Coil impedance: 12 ohms (1 kHz)
- DC resistance: 12 ohms
- Coil inductance: 26 μH (1 kHz)
- Output voltage: 0.4 mV (1 kHz, 5 cm/sec)
- Output balance: 1.0 dB (1 kHz)
- Stylus shape: Nude Microlinear
- Cantilever: Tapered duralumin
- Static compliance: 6 × 10-6 cm/dyne (100 Hz)
- Dynamic compliance: 21 × 10-6 cm/dyne
- Dimensions: 16.1 mm (0.63”) × 16.6 mm (0.65”) × 26.1 mm (1.0”) (H × W × D)
