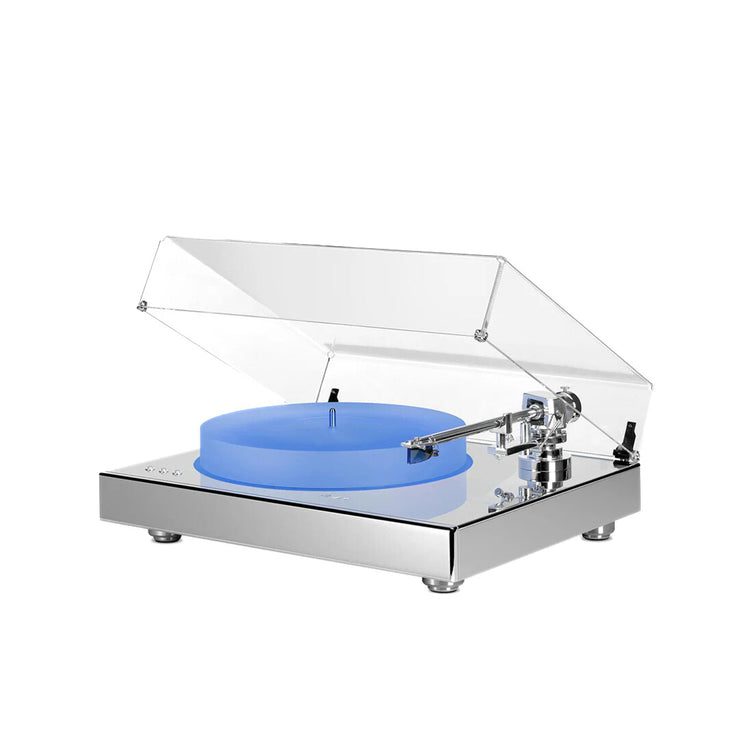

The ROTATION R 5.3 MK2 is an audiophile high-end turntable with a proprietary tonearm and Elipso Centric Belt Drive for true vinyl connoisseurs.

Equipped with a 10-inch gimbal-mounted tonearm specifically developed by AVM, the ROTATION R 5.3 MK2 turntable features an elipso-centric belt drive with a resulting zero-point tilting moment at the platter axis. The ROTATION R 5.3 MK2 boasts a rich cocktail of cleverly designed and perfectly crafted solutions. The illuminated platter, combined with the composite plinth reinforced by fully bonded aluminum parts, rounds off the design.

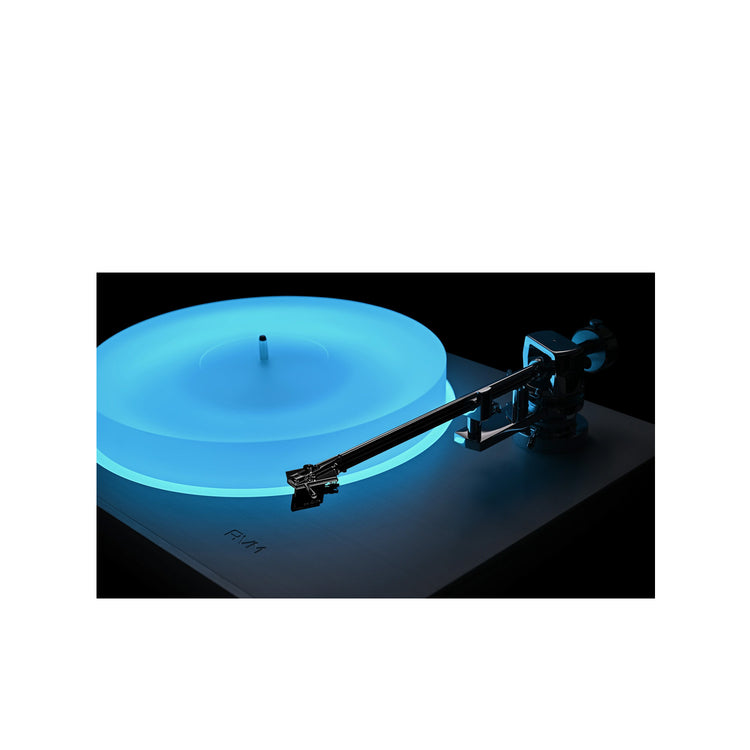

Give your listening room a very special touch with the brand-new RGB platter underlighting of the ROTATION R 5.3 MK2. Use the included remote control to select your desired color, dim the platter light, or turn it off completely – for a customized, world-class listening experience.

The first turntables in AVM's company history are a contribution to the resurgence of the beloved vinyl record.

Creating an analog source based on proprietary developments that meets the highest standards was a long-cherished dream and a top priority for AVM owner and managing director Udo Besser from the very beginning. The development of these two turntables was accompanied by new, further refined phono stages, such as the compact P30 preamplifier or the modular OVATION PH 8.3 flagship tube preamplifier. With AVM's simultaneous expertise in both disciplines, we, as a German boutique manufacturer, complete our comprehensive portfolio with a series of purely analog masterpieces. All AVM turntables are equipped with tonearms designed specifically by AVM and feature a whole range of technical refinements.

The ROTATION R 5.3 MK2 at a glance

Turntable with Elipso Centric Belt Drive
10” AVM tonearm, gimbal-mounted
Tilting moment: 0.0
Solid 60 mm HDF composite plinth, painted and reinforced with an aluminum cover
Sprung mass-loaded drive on four height-adjustable damping feet
33/45 RPM Look-Forward servo control
Resonance-free cover made of bent acrylic glass

RGB platter underlighting (all colors, dimmable & switchable)
Shipped without a cartridge
Recommended cartridge: AVM Cadenza Black (made by Ortofon)
External power supply
Standard finishes: Silver & Black
Warranty: 2+2 years upon online registration (cartridges are excluded from the warranty)

Analog outputs:
1 x RCA

Effective tonearm mass:
15 g

Effective tonearm length:
254 mm

Signal-to-noise ratio:
-72 dB

Overhang:
16 mm

Downforce Range:
0 – 35 mN, 0 – 3.5 g

Supplied counterweight
For cartridges 6 – 16 g

Headshell:
0.5‘‘ (12.7 mm) standard

Speed variance:
33rpm: ± 0.12% max, 45rpm: ± 0.10% max

Wow and Flutter:
33rpm: ± 0.10% max, 45rpm: ± 0.09% max

Mounting distance:
238 mm (platter – tonearm base, Linn standard mount)

Nominal Speed:
33/45 rpm, electronic speed change (microprocessor controlled)

Power Consumption:
15 V DC/1.6 A (100-240 V AC, 47 – 63Hz)

Finish:
Black aluminium + Ortofon Cadenza Black MC cartridge, silver aluminium + Ortofon Cadenza Black MC cartridge, CELLINI chrome + Ortofon Cadenza Black MC cartridge, silver aluminium, black aluminium, Cellini chrome

Product dimensions:
390 x 470 x 175 mm (D x W x H)

Product weight:
17 kg (chassis: 12 kg, platter: 5 kg)

Product line:
ROTATION
