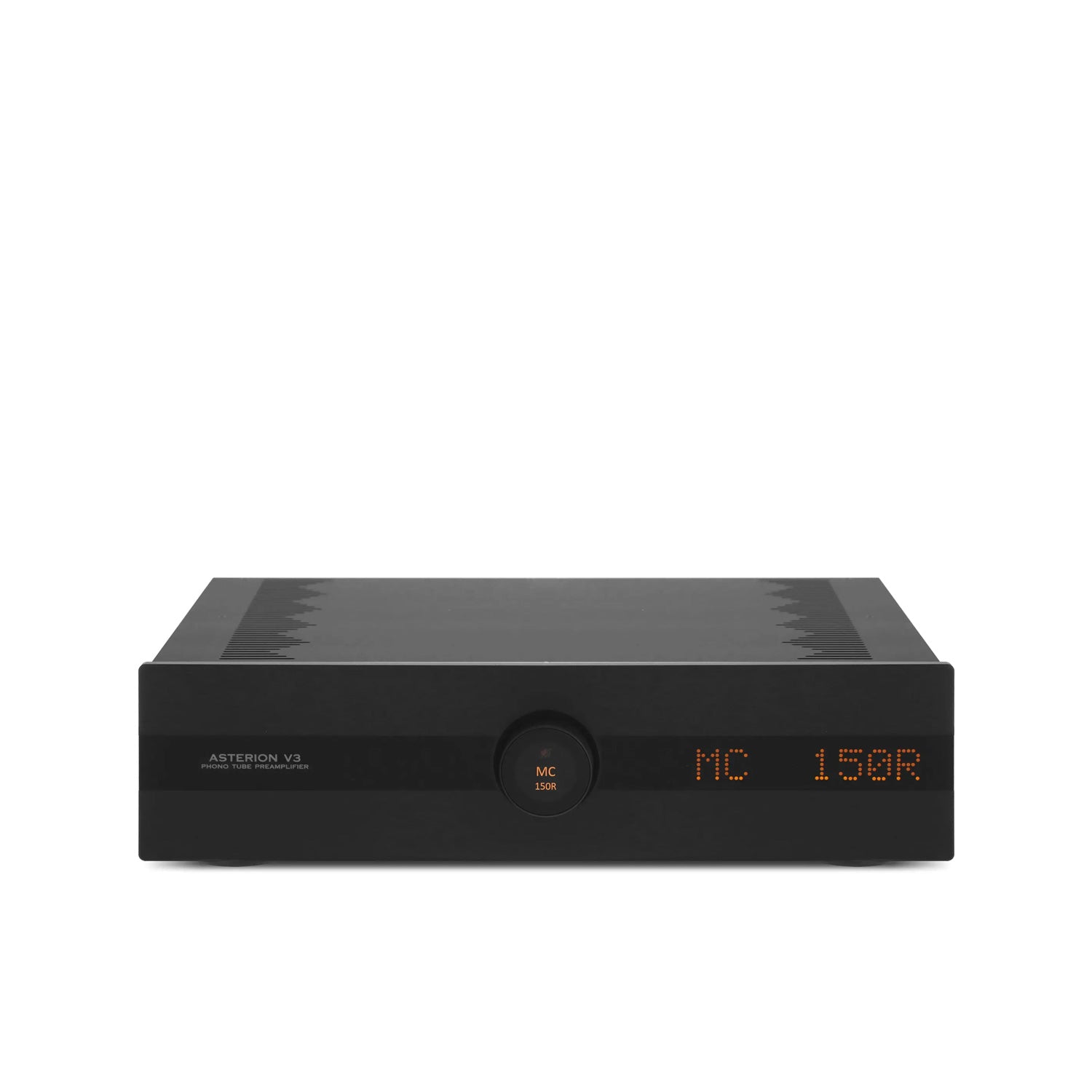

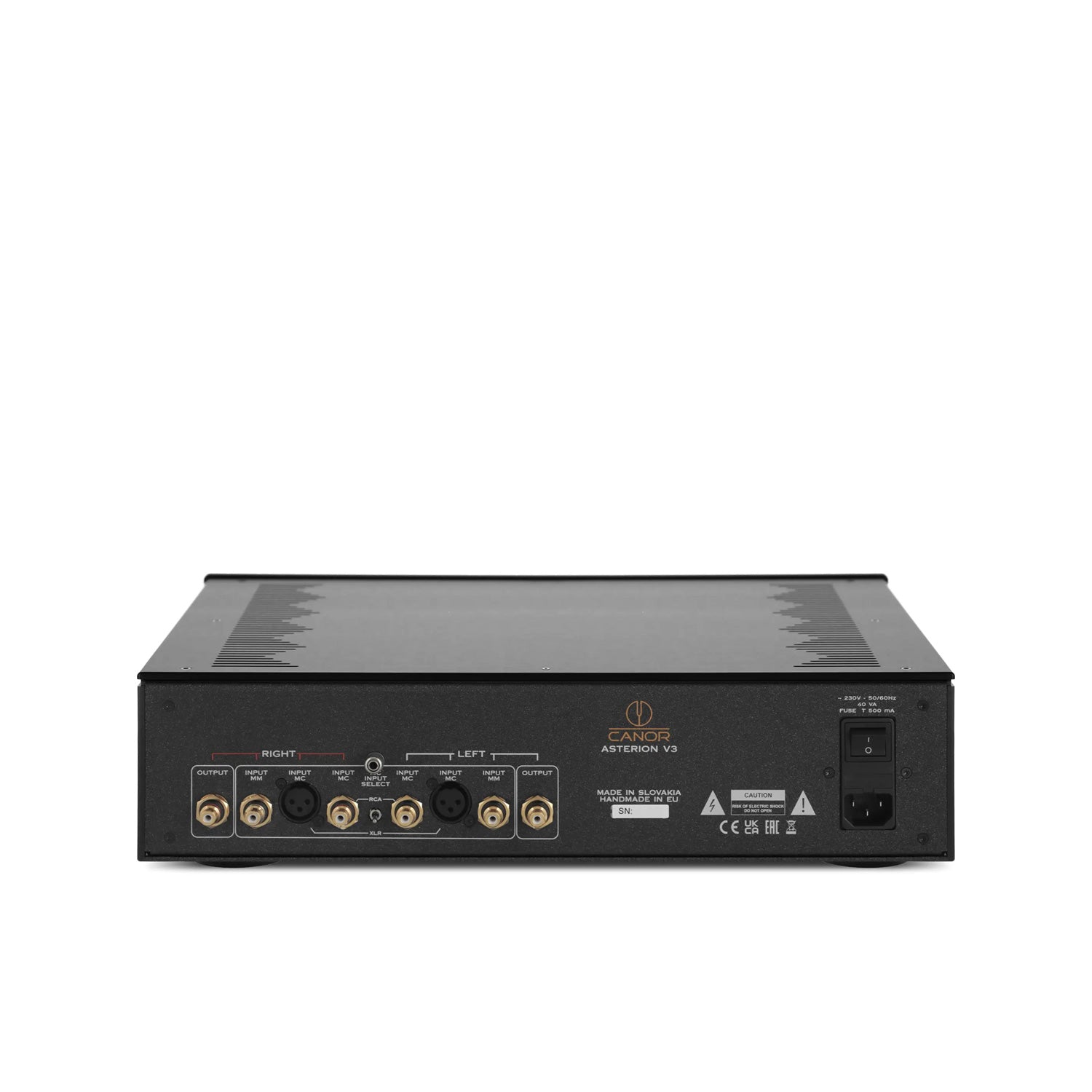

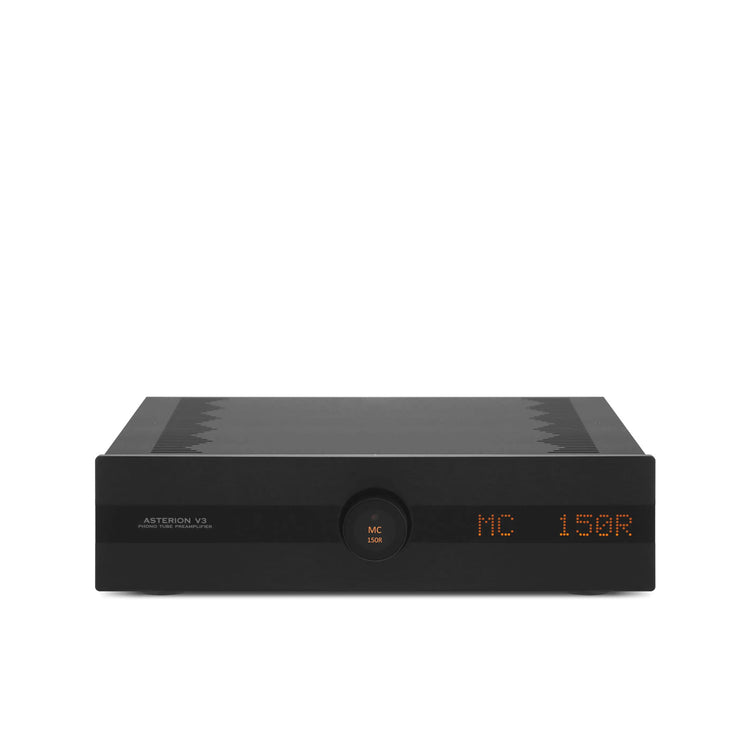

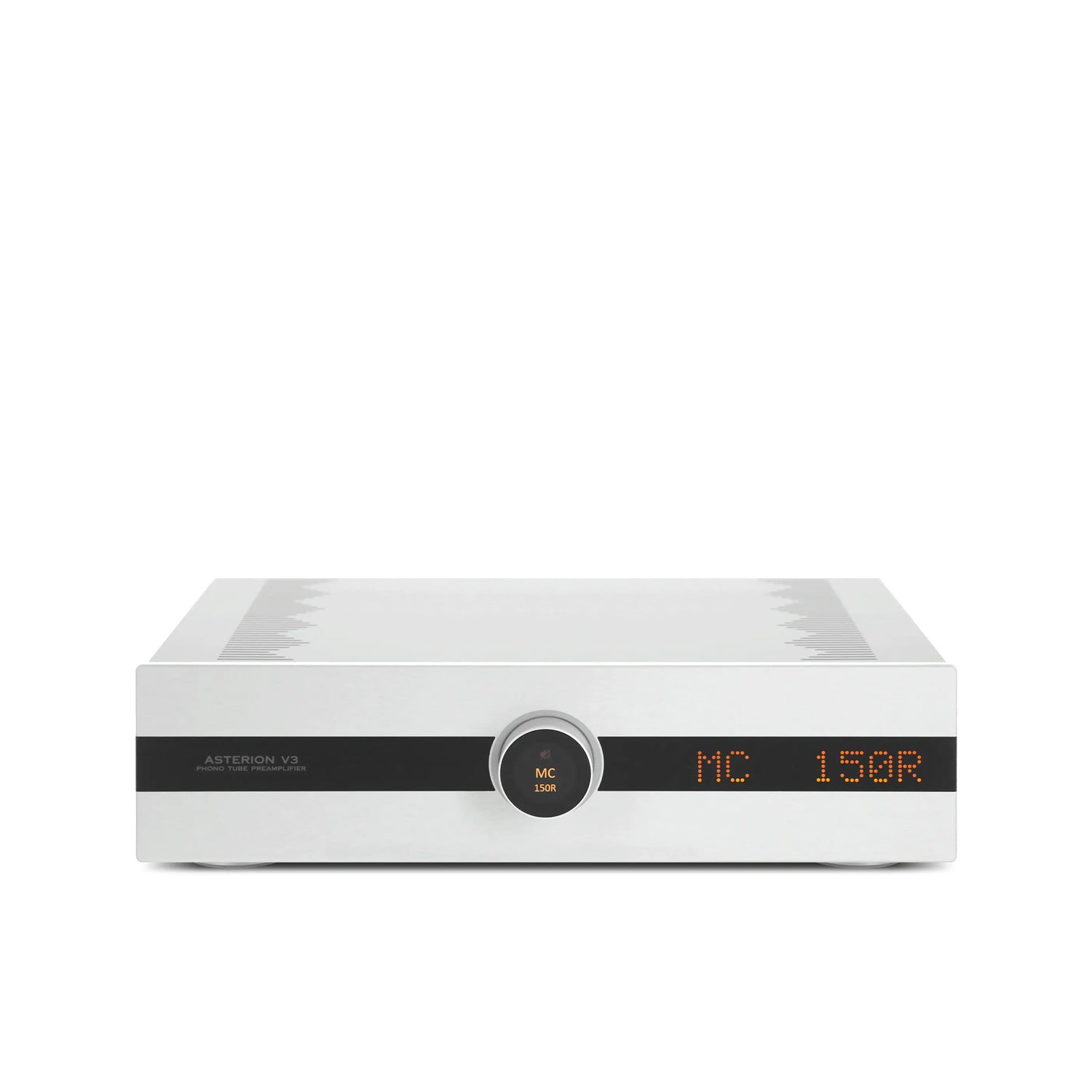

Canor Asterion V3 – High-End Tube Phono Preamplifier

The Canor Asterion V3 is a high-quality tube phono preamplifier for MM and MC cartridges and belongs to the Canor Performance Line. As the successor to the proven PH 2.10, it combines classic tube technology with modern circuit design and particularly flexible adjustment to various cartridges.

The Asterion V3 supports both unbalanced MM and MC connections as well as balanced MC connections via XLR. This allows the phono preamplifier to be optimally integrated into high-end analog hi-fi systems and flexibly combined with different turntables and cartridge systems.

The amplifier section utilizes ECC83S and ECC81 tubes. For the amplification of MC signals, Canor uses a high-quality Lundahl step-up transformer. The analog amplifier stages are designed without global feedback, while the RIAA equalization is passive. As a result, the Asterion V3 is consistently designed for high-quality and musical reproduction of vinyl records.

A special highlight is the extensive adjustability. The MC input impedance can be selected in eight steps between 10 and 1200 ohms. The input capacitance for MM cartridges can also be adjusted in several steps. The most important settings can be conveniently controlled via remote control.

With its combination of tube technology, Lundahl transformers, passive RIAA equalization, and flexible MM/MC adjustment, the Canor Asterion V3 is a sophisticated solution for vinyl lovers. It provides the prerequisites for precise, detailed, and musical reproduction and forms a high-quality interface between turntable and amplifier.

Highlights

• High-end tube phono preamplifier
• For MM and MC cartridges
• Balanced MC input via XLR
• Lundahl step-up transformer for MC
• 2 x ECC83S and 2 x ECC81
• Analog amplifier stages without global feedback
• Passive RIAA equalization
• 8-way adjustable MC input impedance from 10 to 1200 ohms
• 8-way adjustable MM input capacitance
• Remote-controllable impedance and capacitance adjustment
• Integrated subsonic filter
• High-quality solution for demanding vinyl playback

Device type:
Tube phono preamplifier

Product line:
Performance Line

Cartridge:
MM and MC

MM input:
RCA

MC input:
RCA and balanced (XLR)

Tube complement:
2 x ECC83S, 2 x ECC81

MC transformer:
Lundahl step-up transformer

Circuitry:
Analog amplifier stages without global negative feedback

RIAA equalization:
Passive

MM gain:
46 dB

MC gain:
70 dB

MC input impedance:
10 to 1200 ohms, multi-stage

MM input capacitance:
8-stage adjustable

Subsonic filter:
18 dB/octave

Settings:
Adjustable via remote control

Outputs:
RCA and XLR

Weight:
12 kg
