Canor

Canor Verto D3

Regular price: €4.399,00
Regular price
Sale price: €4.399,00
Unit price: per

€4.267,03

Um den Skontopreis zu erhalten, wählen Sie im Warenkorb die Option „Banküberweisung“ und schicken die Bestellung ab.

Wir schicken Ihnen dann eine korrigierte Rechnung inkl. 3 % Skonto per Email.

Skonto (Vorkasse per Banküberweisung -3%)

Color Black Silver

Product variants

Quantity

Delivery time 3-4 days

Product description

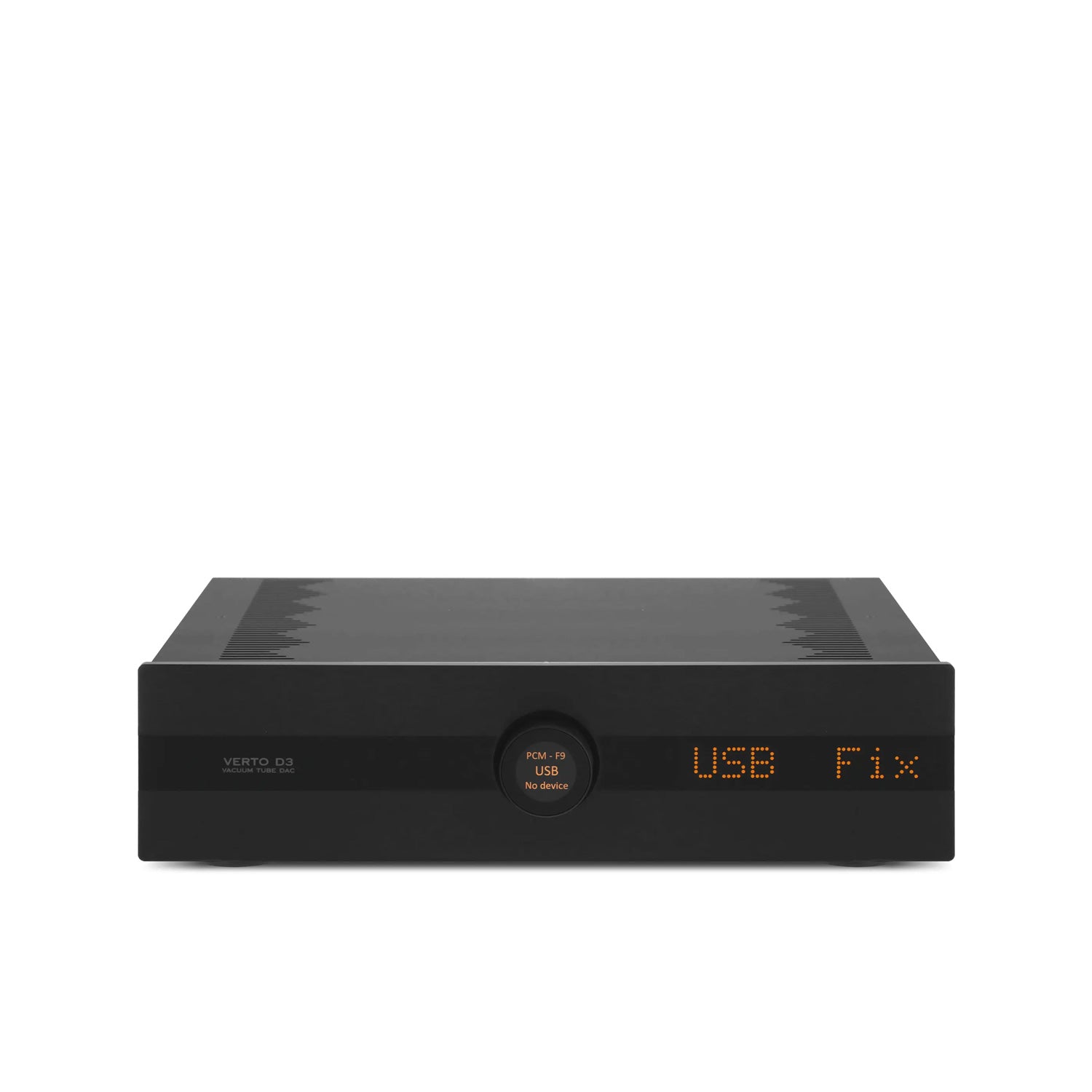

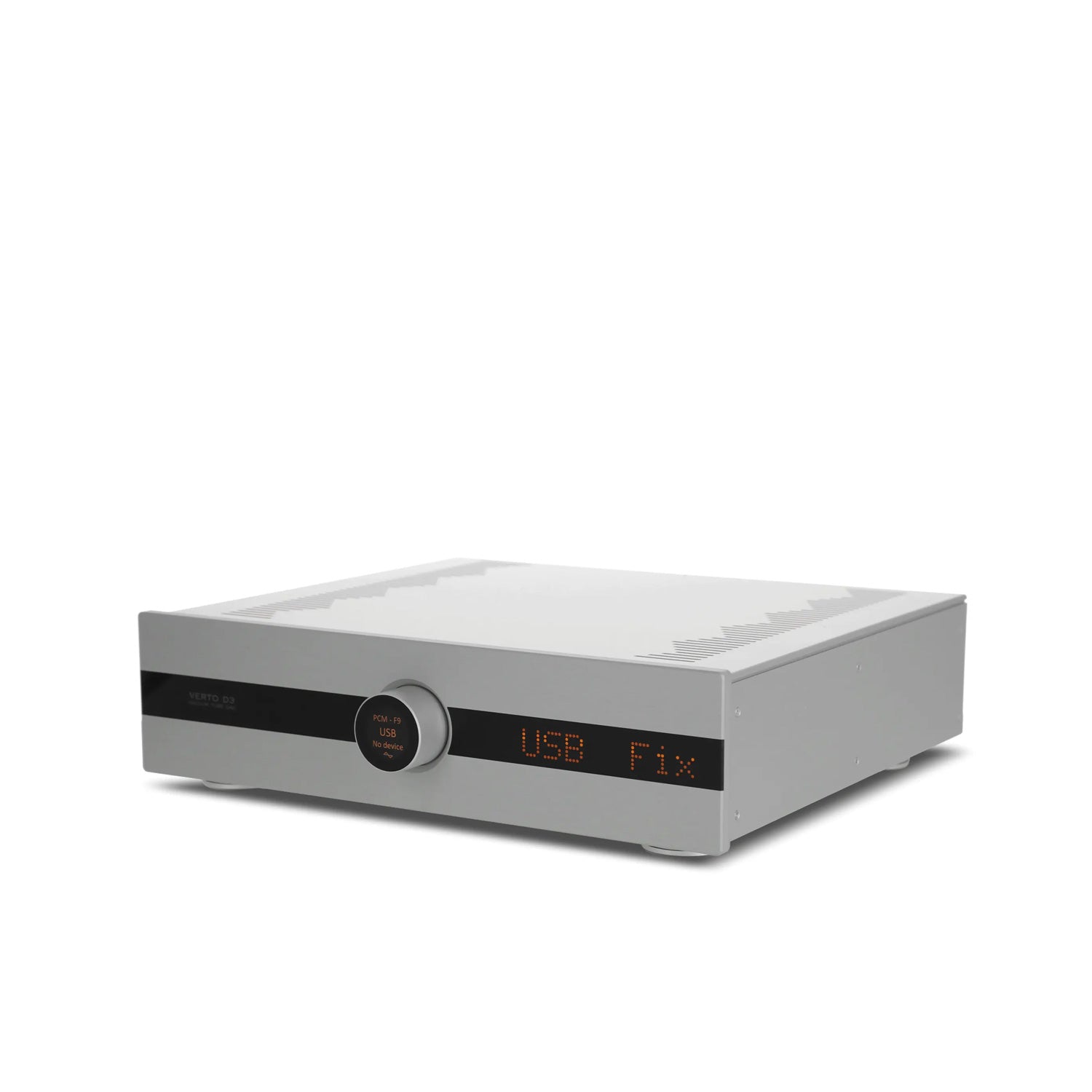

Canor Verto D3 – High-End Tube D/A Converter

The Canor Verto D3 is a high-quality tube D/A converter from the Canor Performance Line, combining modern digital technology with an elaborately designed, fully balanced tube output stage. The dual-mono architecture utilizes two ESS Sabre ES9039Q2M DACs, each handling one channel. For analog signal processing, four E88CC tubes in a pure Class-A circuit are used.

The Verto D3 supports high-resolution PCM signals up to 24-bit / 768 kHz as well as native DSD up to DSD512. Via USB-B, AES/EBU, coaxial and optical digital inputs, as well as a TV input, it can be flexibly integrated into high-end HiFi systems. The galvanic isolation of the digital inputs contributes to low-interference signal processing.

Thanks to fixed and variable outputs via RCA and XLR, the Canor Verto D3 can be used as a classic DAC or directly with a power amplifier or active speakers. The variable output function allows for use without a separate preamplifier. Nine digital filters, an intuitive touch display, and Canor's CMT technology round out the high-quality features.

Technical details

Device type:
Tube DAC

Product line:
Canor Performance Line

DAC configuration:
2 x ESS Sabre ES9039Q2M, Dual Mono

Digital filters:
9

USB input:
1 x USB-B

USB PCM:
Up to 24-bit / 768 kHz

USB DSD:
DoP up to DSD256, Native DSD up to DSD512

AES/EBU:
1 x input, PCM up to 24-bit / 192 kHz, DoP DSD64

Coaxial:
1 x input, PCM up to 24-bit / 192 kHz, DoP DSD64

Optical:
2 x inputs, PCM up to 24-bit / 192 kHz, DoP DSD64

TV input:
1 x input, PCM up to 24-bit / 192 kHz

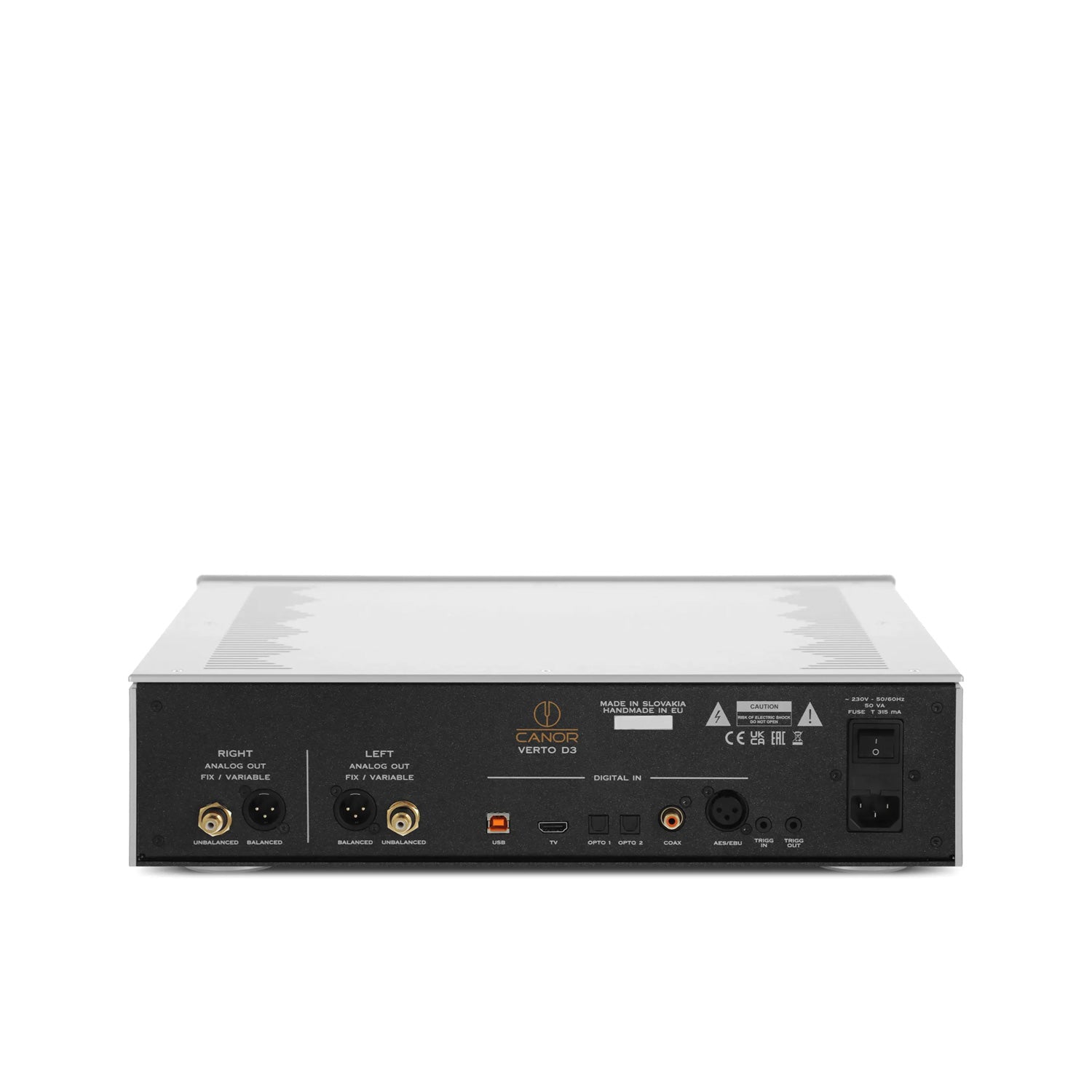

Analog outputs:
1 pair RCA, 1 pair XLR

RCA output impedance:
100 ohms

XLR output impedance:
200 ohms

RCA output voltage:
2 Vrms

XLR output voltage:
4 Vrms

Frequency range:
20 Hz – 20 kHz (±0.1 dB)

THD (XLR):
< 0.009%

Signal-to-noise ratio:
> 110 dB (A-weighted, XLR)

Channel separation:
> 124 dB (XLR)

Tube complement:
4 x E88CC

Trigger connectors:
1 x input / 1 x output, 3.5 mm jack, 12 V

Power supply:
230 V / 50–60 Hz

Power consumption:
40 VA

Dimensions (W x H x D):
435 x 122 x 370 mm

Dimensions including knob and terminals:
435 x 122 x 415 mm

Net weight:
12 kg

Gross weight:
17 kg

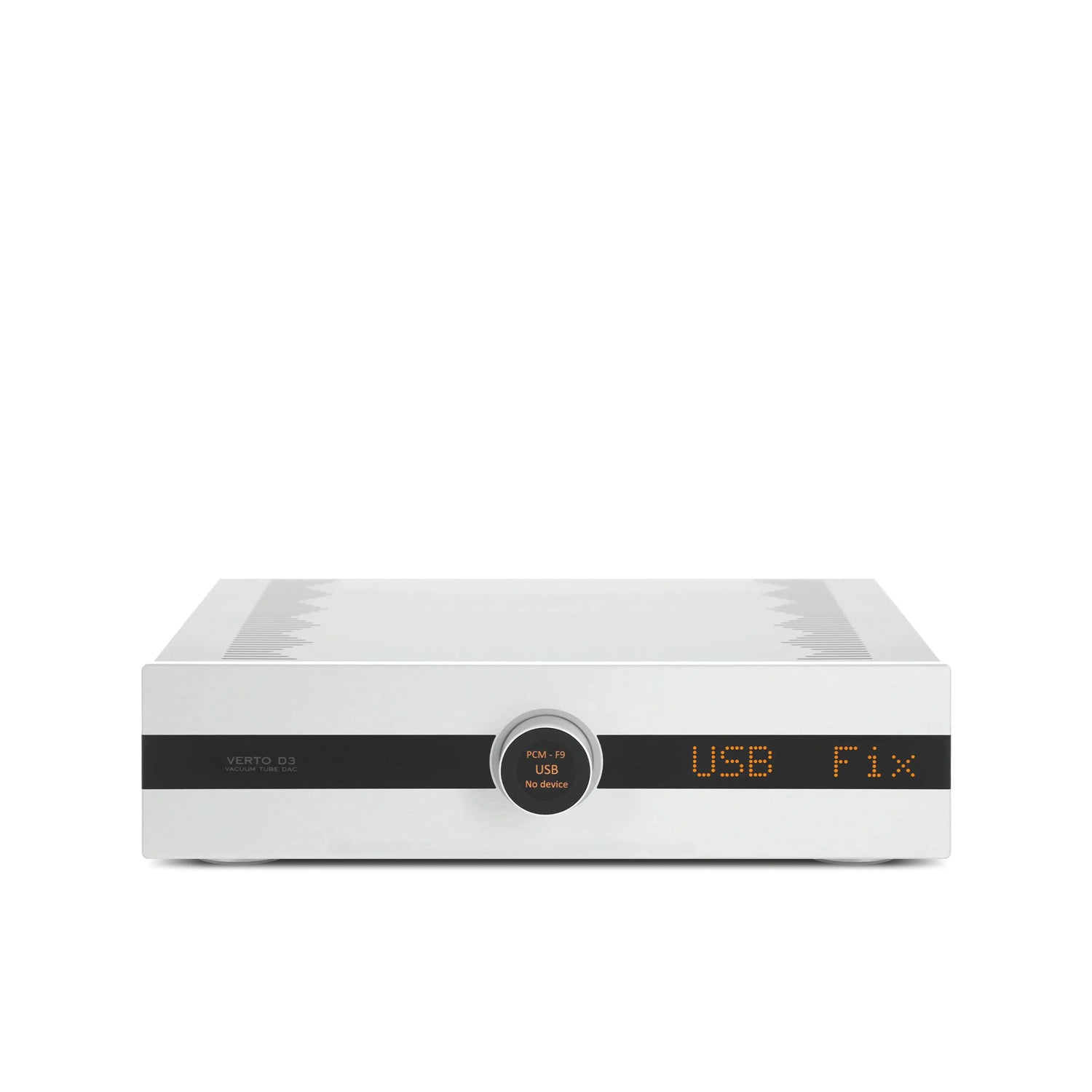

Colors:
Black, Silver
