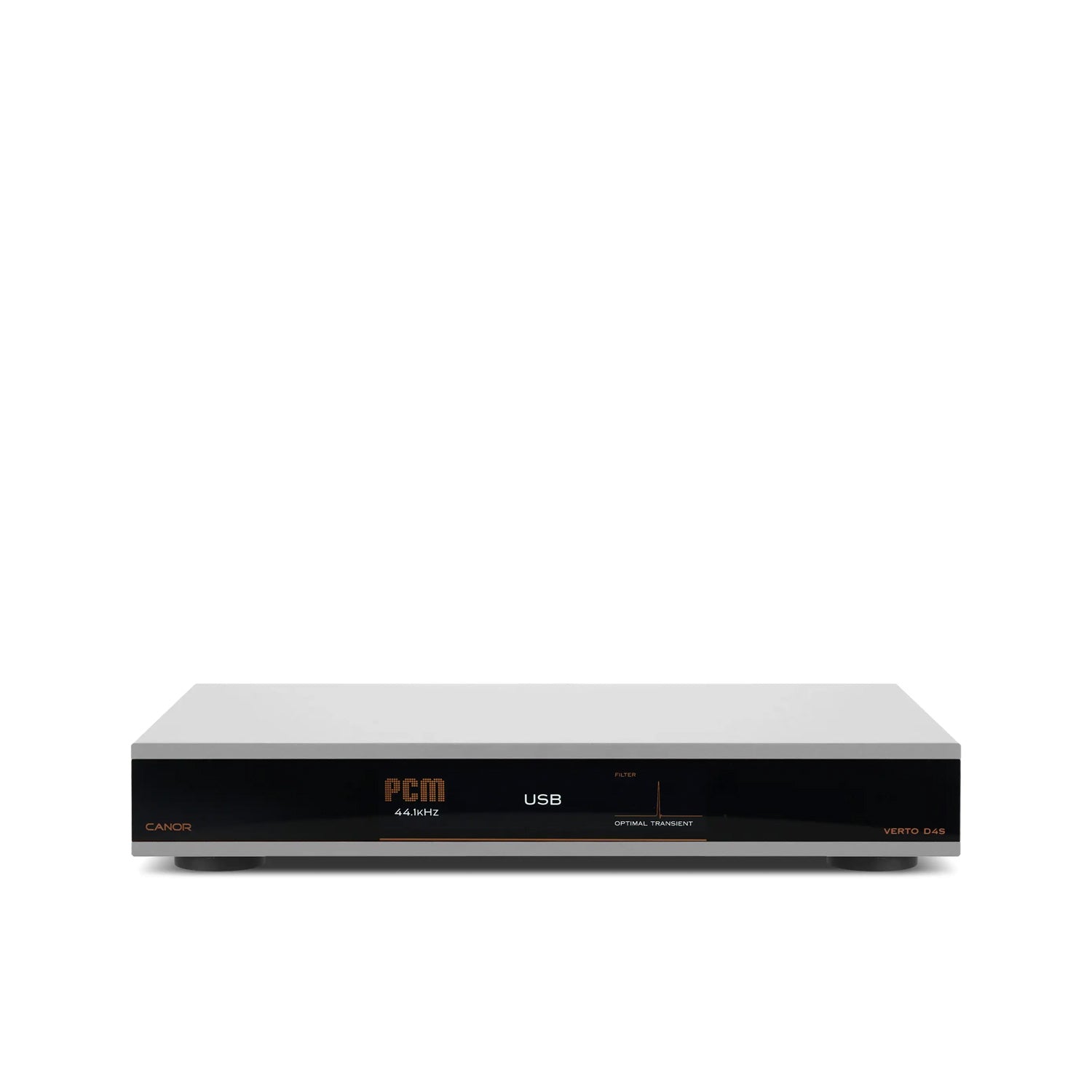

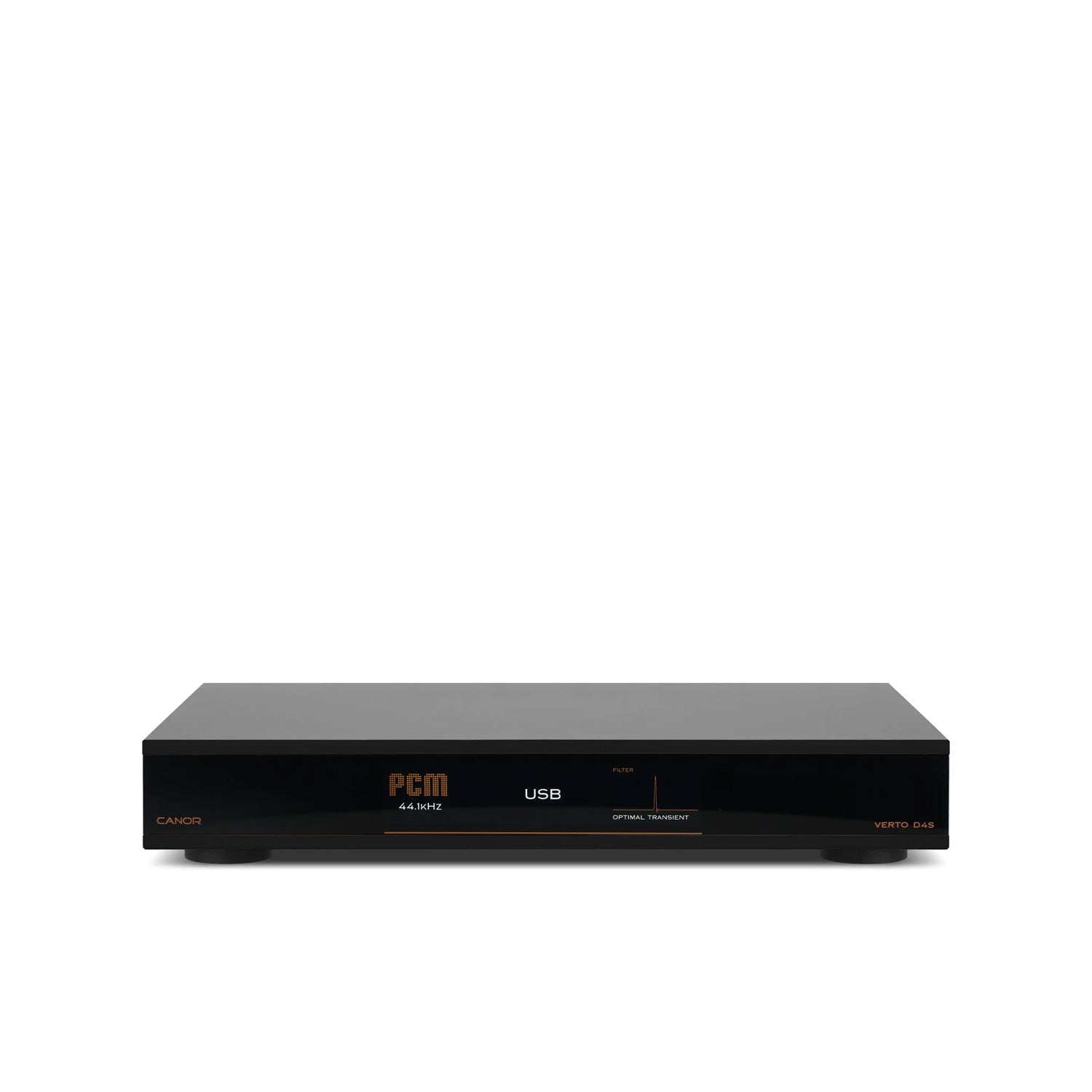

Canor Verto D4S – High-End D/A Converter

The Canor Verto D4S is a high-quality high-end D/A converter (DAC) from the Canor Foundation Line, combining state-of-the-art digital technology with a strictly audiophile circuit design. Its true dual-mono architecture utilizes one ESS Sabre 9038 DAC chip per channel, enabling precise, detailed, and dynamic music reproduction.

The fully discrete and balanced analog output stage operates without operational amplifiers in the signal path and is engineered for high dynamics as well as exceptionally low distortion and noise levels. For interference-free signal transmission, the digital inputs are galvanically isolated.

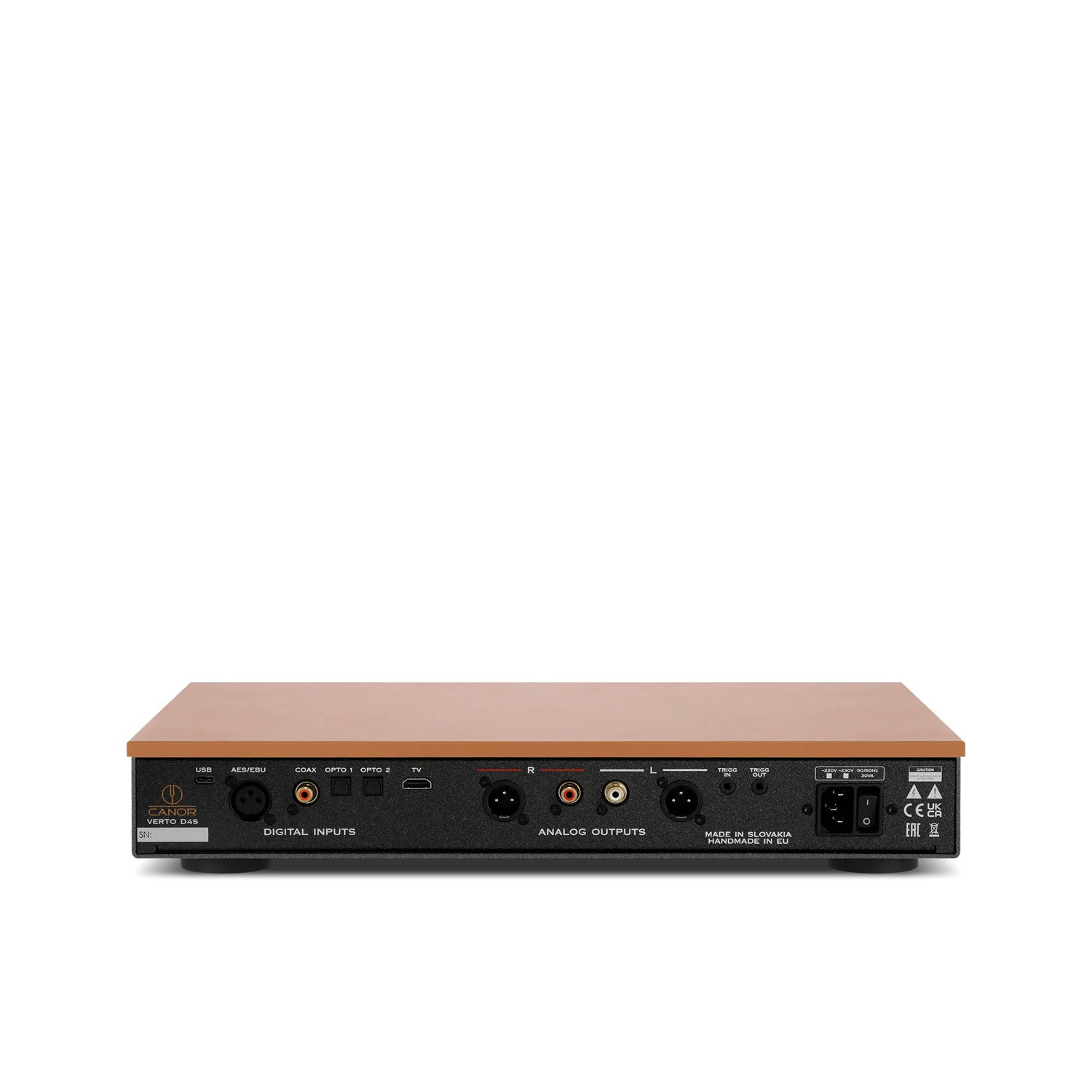

With USB-C, AES/EBU, coaxial and optical S/PDIF, as well as a TV digital input, the Verto D4S offers comprehensive connectivity for modern digital Hi-Fi systems. Via USB-C, the DAC processes high-resolution PCM up to 24-bit / 768 kHz as well as native DSD up to DSD512.

A special feature is the generous 7-inch touch display, which clearly shows the input source, sampling rate, and digital filter, and allows for convenient adjustment of settings. A total of eight digital filters are available.

The Canor Verto D4S is thus a versatile and high-quality solution for demanding music lovers looking for a modern USB DAC with XLR and RCA outputs who value precise, natural, and high-resolution reproduction.

Device type:
Digital-to-Analog Converter (DAC)

DAC configuration:
2 x ESS 9038 Q2M, Dual Mono

Digital filters:
8

USB input:
1 x USB-C

USB PCM:
Up to 24-bit / 768 kHz

USB DSD:
DoP up to DSD256, native DSD up to DSD512

AES/EBU:
1 x input, PCM up to 24-bit / 192 kHz

Coaxial:
1 x input, PCM up to 24-bit / 192 kHz

Optical:
2 x input, PCM up to 24-bit / 192 kHz

TV input:
1 x digital, PCM up to 24-bit / 192 kHz

Analog outputs:
1 pair RCA, 1 pair XLR

Output impedance RCA:
100 ohms

Output impedance XLR:
200 ohms

Output voltage RCA:
2 Vrms

Output voltage XLR:
4 Vrms

Frequency range:
20 Hz – 20 kHz / < -0.1 dB

THD:
< 0.0005% (XLR)

Signal-to-noise ratio:
> 112 dB (A-weighted, XLR)

Channel separation:
< -127 dB (XLR)

Trigger connections:
1 x input / 1 x output, 3.5 mm jack

Display:
7-inch / 18 cm touchscreen

Power supply:
230 V / 50–60 Hz

Power consumption:
30 VA

Dimensions (W x H x D):
430 x 75 x 300 mm

Net weight:
8 kg

Gross weight:
10 kg

Chassis colors:
Black, Silver and Bronze
