High-end tube CD player with a top-class D/A converter, featuring four 6922 tubes in the output stage. Can also be used as a D/A converter (DAC).

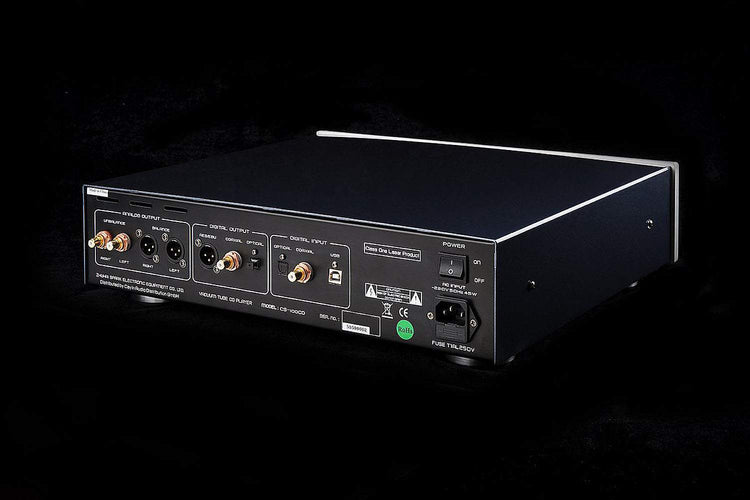

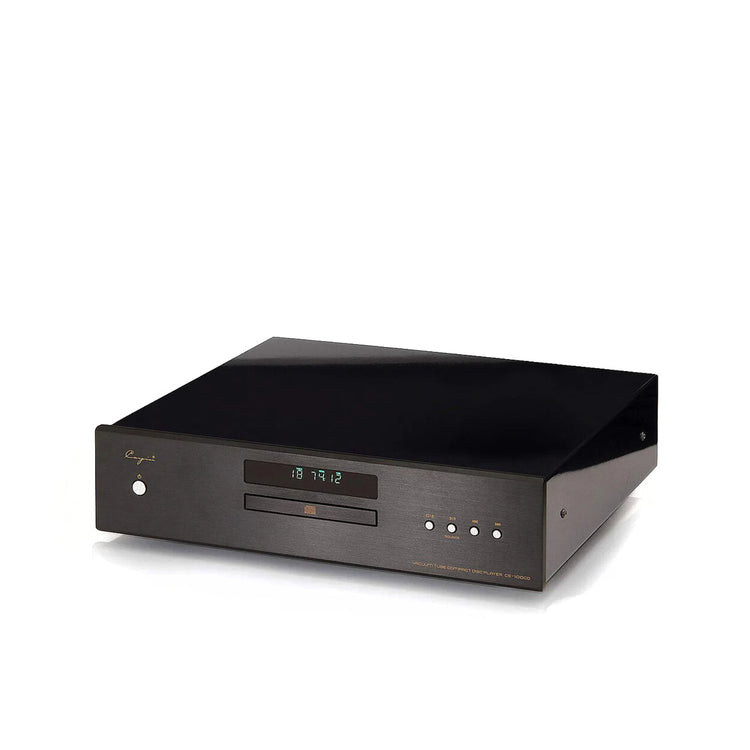

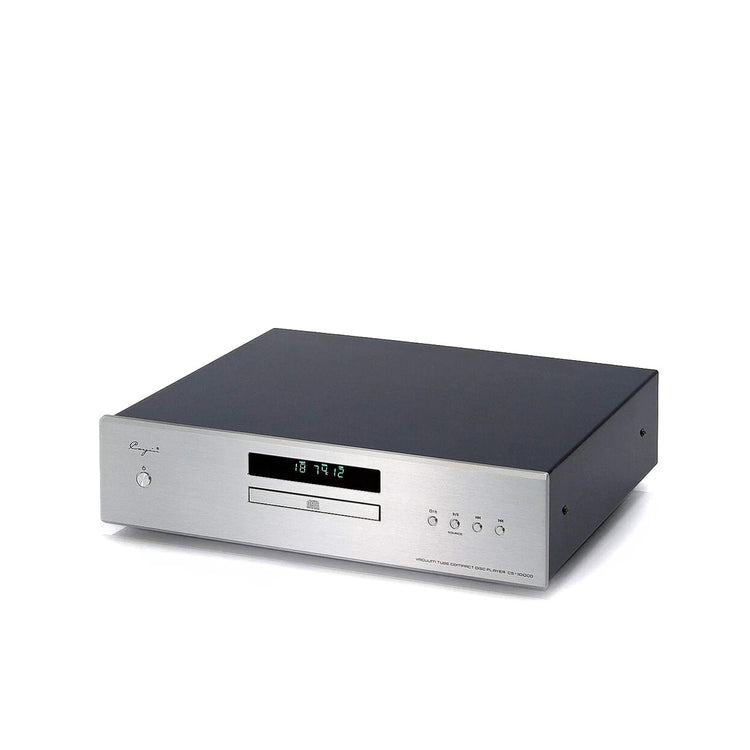

With the CS-100CD, Cayin expands its product range with a CD player that, with its 42 cm wide front panel, is a perfect match for the Cayin CS-88A integrated amplifier. The solid aluminum front is available in either black or silver. Highlights of the CS-100CD include its digital inputs—optical, coaxial, and USB—which turn the CD player into a high-end D/A converter with flexible input selection. Four 6922 tubes in the output stage lend this high-tech device the warm, harmonious Cayin sound.

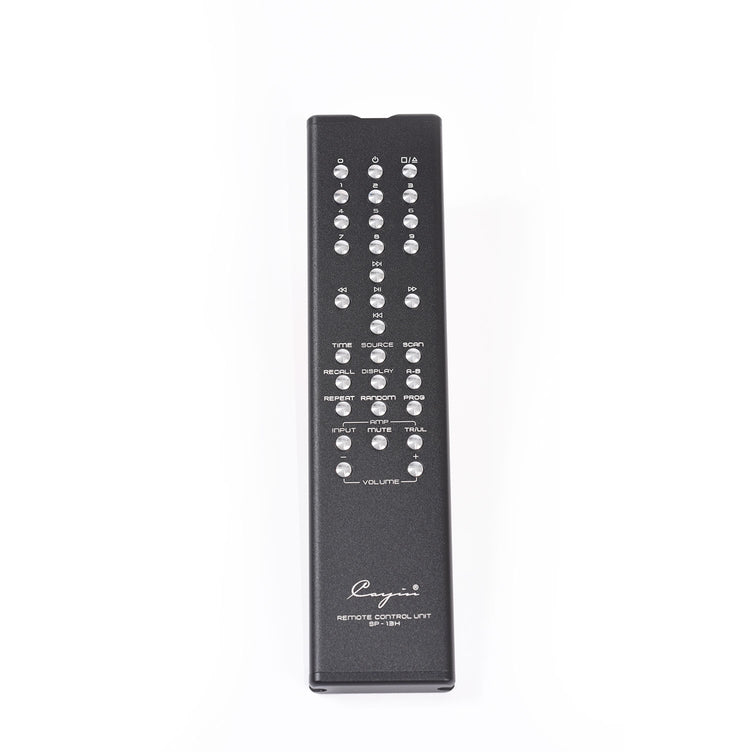

The CS-100CD comes with a system remote control that can also be used to operate the functions of Cayin amplifiers.

Device Type
High-end tube CD player and D/A converter / DAC

Output Voltage
2.3V±2dB

Frequency Range
20Hz-20kHz ± 0.5dB

THD
≤-60dB

Signal-to-Noise Ratio
>100dB

Dynamic Range
>110dB

Channel Separation (1kHz)
<-80dB

Tube Complement
6922 x 4, 12DT5 x 1

Digital Output
Optical x 1, Coaxial x 1, AES/EBU x 1

Digital Output
IEC958 Standard

USB Audio Input
Compatible with Audio Class 1.0 and Audio Class 2.0.; Supports Windows XP®, Windows Vista®, Windows 7®, Windows 8®, Windows 10® and Mac OS (10.6.3 and higher)

Optical Input
16/24-bit 44.1-192kHz

Coaxial Input
0.5V @75Ω, 16/24-bit 44.1-192kHz

Dimensions
420mm×392mm×126mm

Power Consumption
40W

Weight
12 kg

Features
System remote control compatible with Cayin CS-55A, CS-88A and CS-100A integrated amplifiers.
