DAVE is the most advanced DAC we have ever made. It features the best conversion technology available, using proprietary techniques that have never been seen before, making DAVE the most advanced DAC/pre-amplifier in the world. DAVE stands for “Digital to Analogue Veritas in Extremis”, a moniker that best reflects the product’s capability; a device that is so advanced and with so few compromises that it is extremely truthful.

DAVE is also a reference-level headphone amplifier and digital pre-amplifier, distilling over twenty years of Chord Electronics' research, development and advanced engineering into one device. At its heart lies the advanced Spartan 6 Field Programmable Gate Array (FPGA) with 1,000 times the processing power of a conventional mass-produced DAC chip. DAVE’s FPGA is loaded with over a million lines of code to address complex timing issues directly, quickly and accurately.

The FPGA’s exceptional capability enables a range of sonic benefits, including significantly improved timing and the best noise-shaper performance of any known DAC. DAVE’s technology delivers music with unmatched reality and musicality, with unrivalled timing response. The device’s lossless digital volume control outputs the signal directly to your power amplifier for the ultimate listening experience.

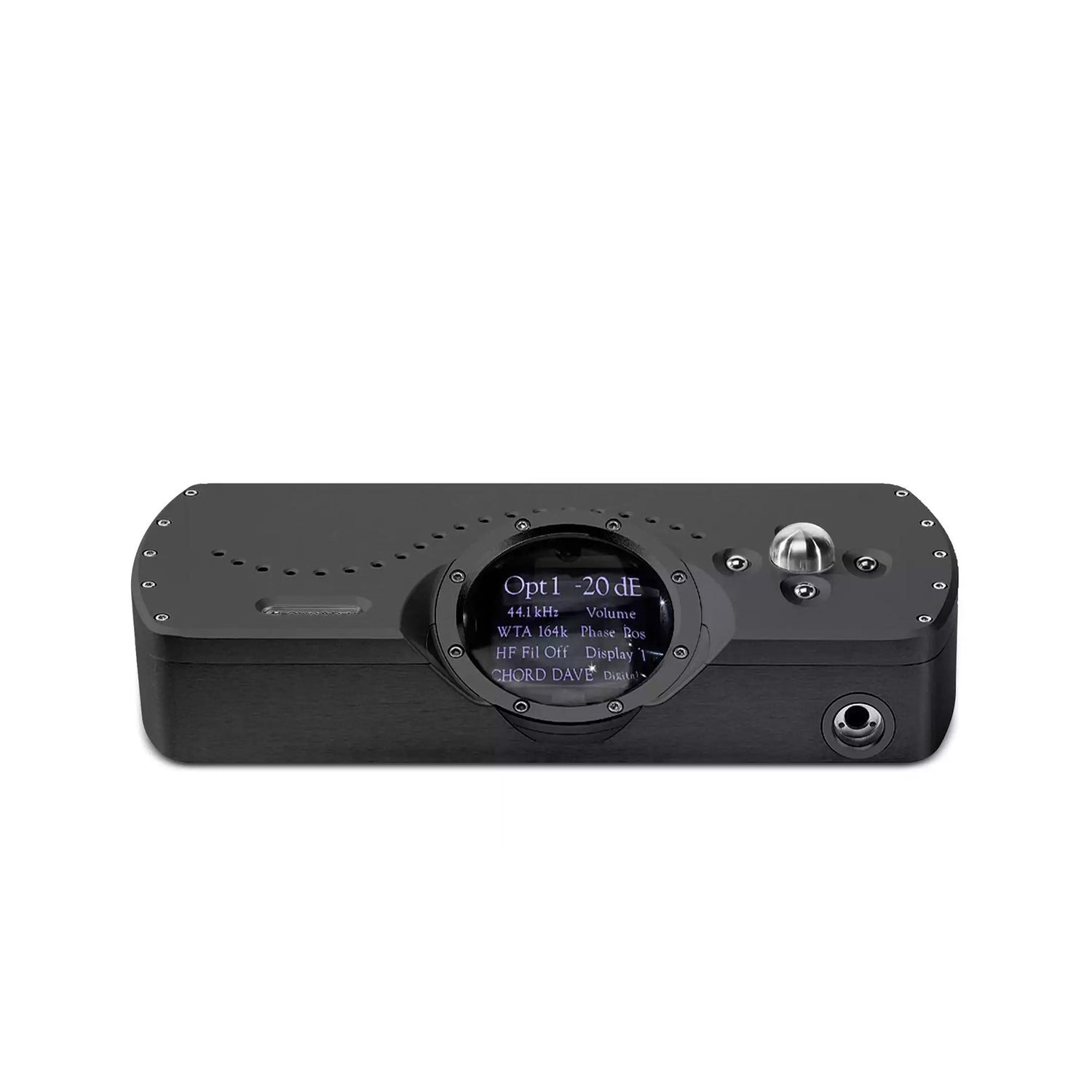

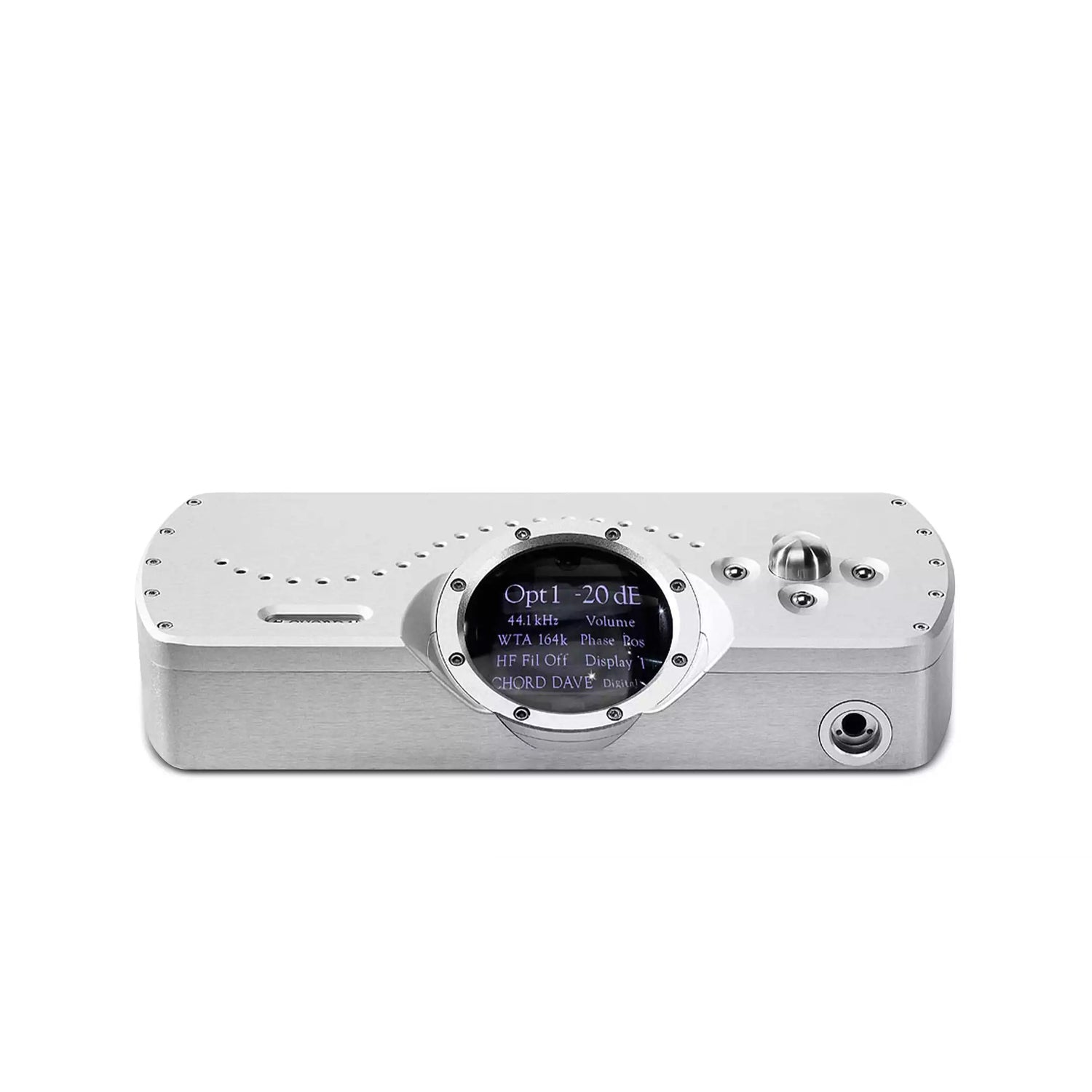

DAVE features a full-sized LCD display, which shows input, sample frequency, volume and setup configuration options via our famous portal design. On its fascia, DAVE also features a rotary encoder with a large stainless steel controller and ball buttons, which allows for direct interactivity, alongside the supplied remote control.

Frequency response:
20 Hz to 20 kHz +/- 0.1 dB

THD + N:
-127.5 dB (A-weighted)

Channel separation:
> 125 dB at 1 kHz

Dynamic range:
127.5 dB (A-weighted)

Headphone output:
1% THD 6.8 V RMS with 300 Ω (154 mW)
1% THD 6.8 V RMS with 33 Ω (1.4 W)

Output impedance:
0.055 Ω (short-circuit protected)

Operating voltage:
90V AC - 250V AC automatic switching 50Hz - 60Hz

Power consumption:
Full power – 40 W
Standby – 10 W

Dimensions (including connectors):
7.8 cm (H) 33.5 cm (W) 15.2 cm (D)

Weight:
5 kg
