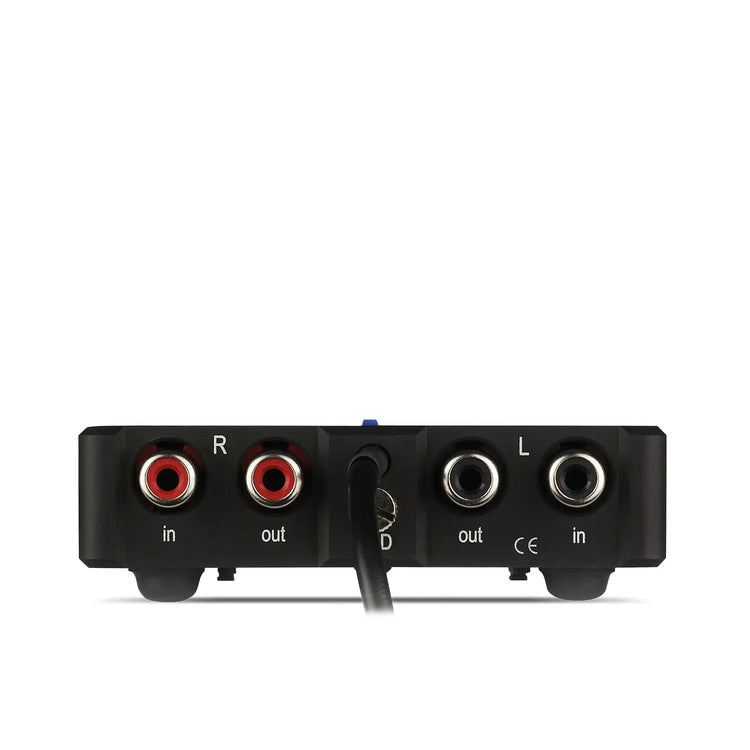

The Clearaudio Nano Phono V2 Headphone is the headphone version of the well-known Clearaudio Nano Phono V2. This device combines a high-quality phono preamplifier with an integrated headphone amplifier, allowing you to listen to your turntable's signal directly through headphones without needing to connect additional amplifiers.

The preamplifier supports both Moving Magnet (MM) and Moving Coil (MC) cartridges and delivers a clean, low-noise signal. The device features a compact design housed in a robust aluminum chassis, making it stable and low-resonance.

Using the integrated headphone output (3.5 mm jack), the volume can be adjusted directly on the device. This makes the Nano Phono V2 Headphone particularly suitable for vinyl enthusiasts who prefer listening via headphones rather than speakers, or for setups where no separate headphone amplifier is available.

In summary, the Clearaudio Nano Phono V2 Headphone offers precise signal amplification, RIAA equalization, a low noise floor, and the ability to enjoy records directly through headphones, all in one compact, high-quality device.

Betriebsarten:
MM / MC schaltbar (Steckbrücke an der Unterseite)

Subsonic‑Filter: zuschaltbar (Steckbrücke)

Verstärkung @ 1 kHz:
• ca. 34 dB (MM‑Modus)
• ca. 54 dB (MC‑Modus)

Eingangsimpedanz:
47 kΩ / 220 pF (MM); individuell / MC

RIAA‑Entzerrung:
± 0,4 dB (20 Hz – 50 kHz)

Klirrfaktor (THD):
< 0,04 %

Signal‑Rausch‑Abstand:
• ca. 81 dB (MM)
• ca. 70 dB (MC)

Kanaltrennung:
> 80 dB @ 1 kHz

Max. Ausgangsspannung:
10 V eff. (@ 1 kHz), regelbar

Ausgangswiderstand:
75 Ω

Eingänge:
asymmetrisch (CINCH / RCA)

Ausgänge:
asymmetrisch (CINCH / RCA) + optional

Kopfhörerausgang
(3,5 mm Klinke)

Leistungsaufnahme:
• Betrieb: ca. 2,3 W
• Standby: < 0,3 W
• Aus: 0,0 W

Spannungsversorgung:
± 18 V DC / 300 mA (externes Netzteil)

Gehäuse:
Aluminium (silber/schwarz)

Gewicht:
ca. 500 g (Vorverstärker + Netzteil)

Abmessungen (B × T × H):
ca. 85 × 106 × 25 mm
