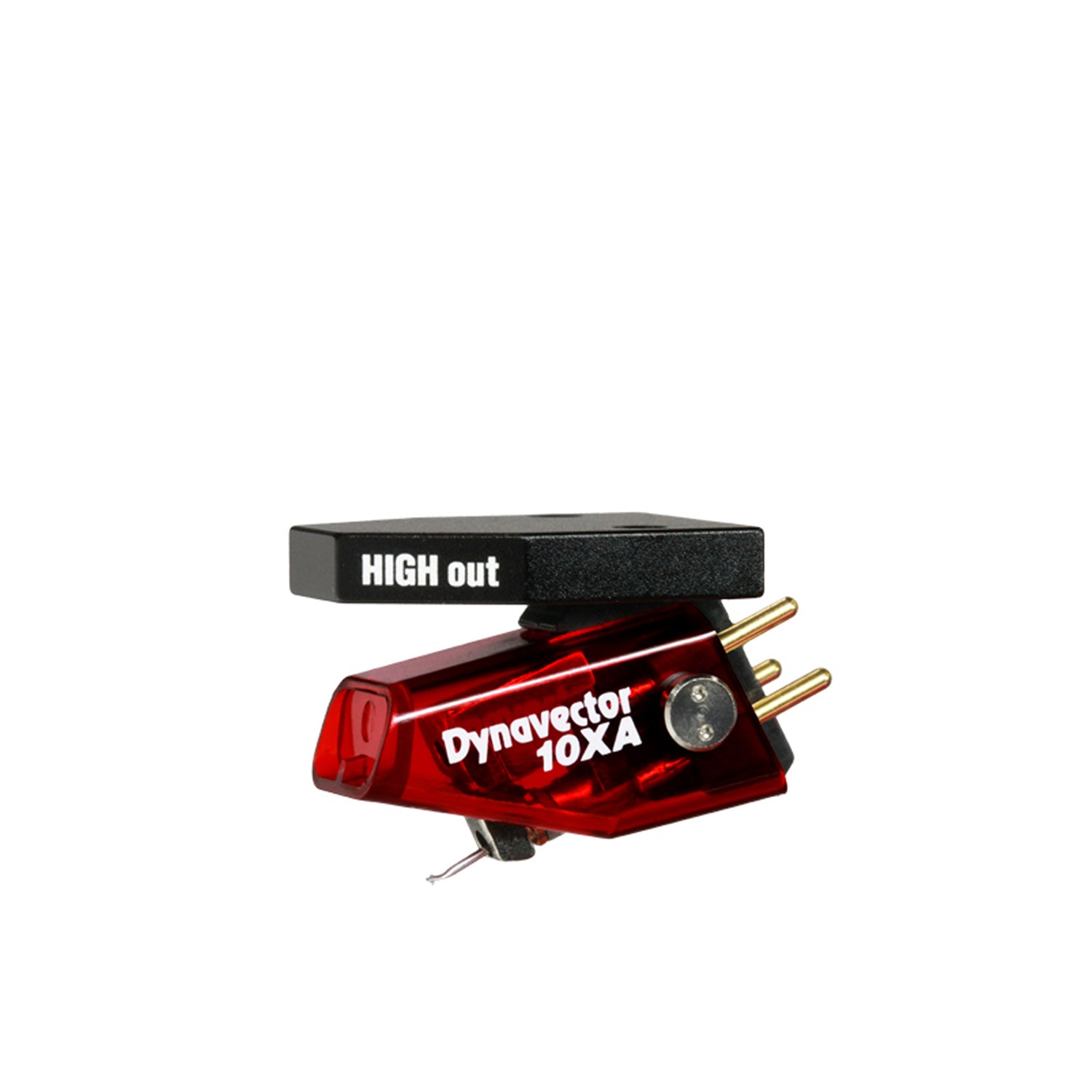

The Dynavector 10X series is a high-performance moving coil (MC) cartridge that has received worldwide acclaim since its release in 1978, surprising the audio industry with the development of technology long considered a challenge for MC cartridges.

Now, in 2025, the 10X series reaches new heights of performance with a newly developed magnetic circuit that utilizes Dynavector's proprietary "Special Magnetic Annealing" technology. The new 10XA model delivers exceptionally smooth and precise analog playback, offering a listening experience that far exceeds the expectations for an entry-level model. In 2003, a solid aluminum cartridge block was introduced for greater rigidity, providing a better platform for mounting to the headshell. In 2018, the 10X5 MkII replaced the traditional elliptical stylus with a "Shibata III" line-contact stylus, which improves tracking accuracy.

Now, in 2025, the 10X series reaches new heights of performance with a newly developed magnetic circuit that utilizes Dynavector's proprietary "Special Magnetic Annealing" technology. The new 10XA model delivers exceptionally smooth and precise analog playback, offering a listening experience that far exceeds the expectations for an entry-level model.

Type
Moving coil cartridge with high/low
output:
with flux damper and dampened magnetism

Output voltage
2.8 mV / 0.5 mV (at 1 kHz, 5 cm/s)

Channel separation
25 dB (at 1 kHz)

Channel balance
1.0 dB (at 1 kHz)

Frequency response
20 - 20,000 Hz (± 2 dB)

Compliance
12 mm/N

Tracking force
1.8–2.2 g

Impedance
150 ohms / 32 ohms

Recommended load impedance
1,000 ohms / > 100 ohms

Cantilever
6 mm long, hardened aluminum tube

Stylus tip
Nude Diamond "Shibata III" Line Contact

Weight
7.5 g
