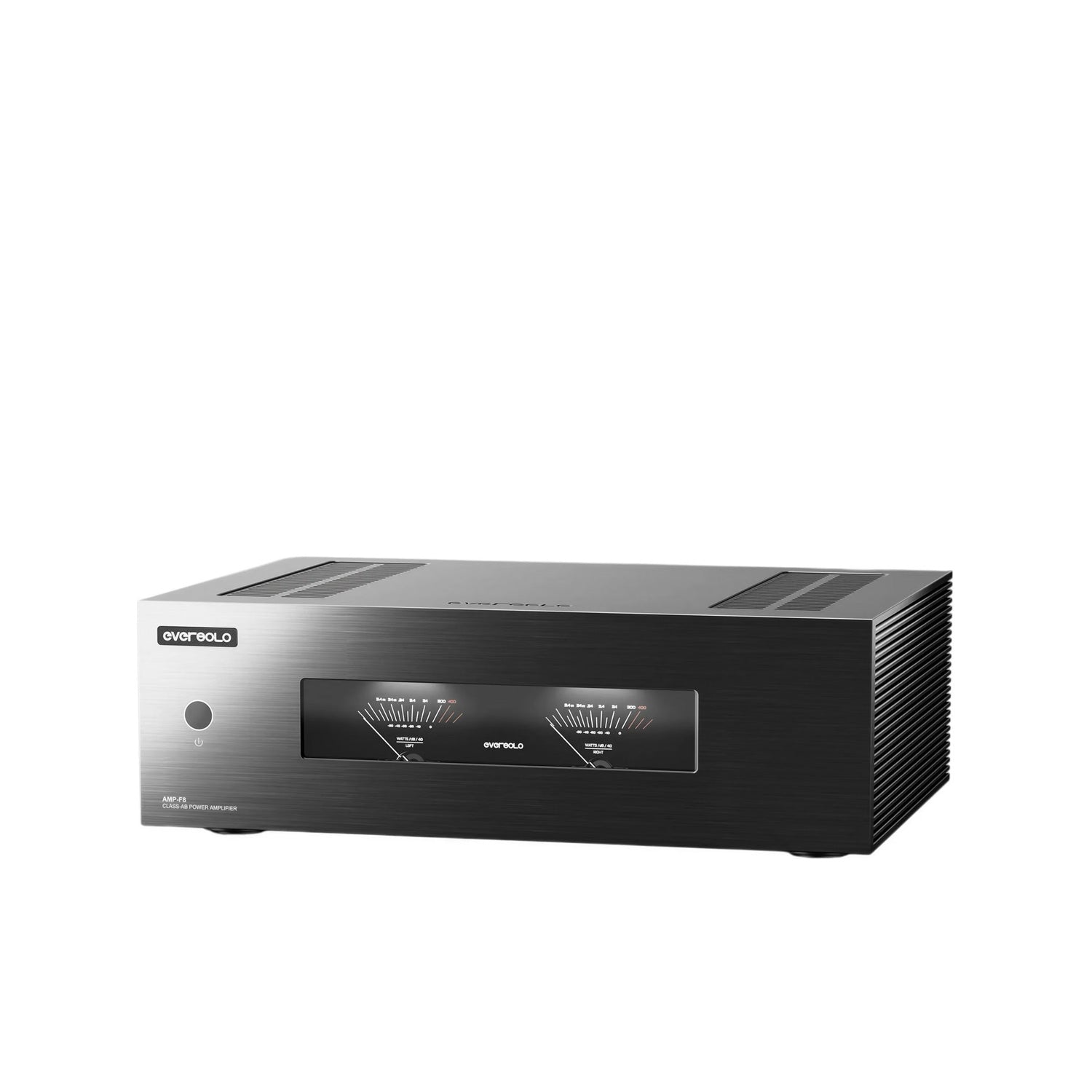

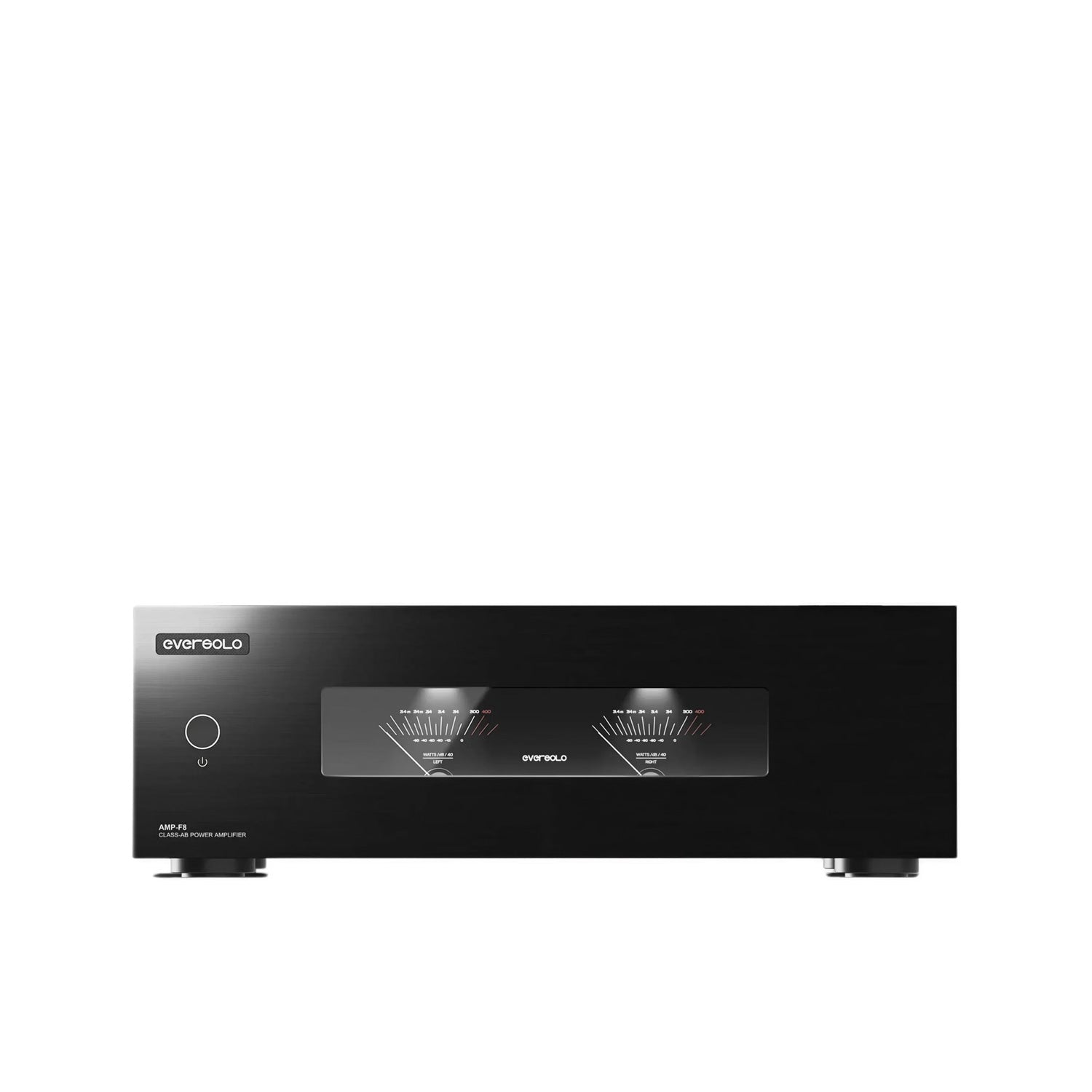

Eversolo AMP-F8

The Eversolo AMP-F8 is a powerful high-end stereo power amplifier featuring Class AB amplifier technology, designed for demanding HiFi and home cinema systems. With its elaborately dimensioned 800-watt toroidal transformer power supply and three pairs of precisely selected MOSFET power transistors, the AMP-F8 offers high power reserves and superb control even over demanding speakers.

In stereo mode, the power amplifier delivers 180 watts per channel at 8 ohms and 280 watts at 4 ohms. In bridged mono mode, up to 500 watts at 8 ohms are available. An exceptionally low distortion of 0.003% THD+N and a high damping factor support precise, dynamic, and controlled reproduction.

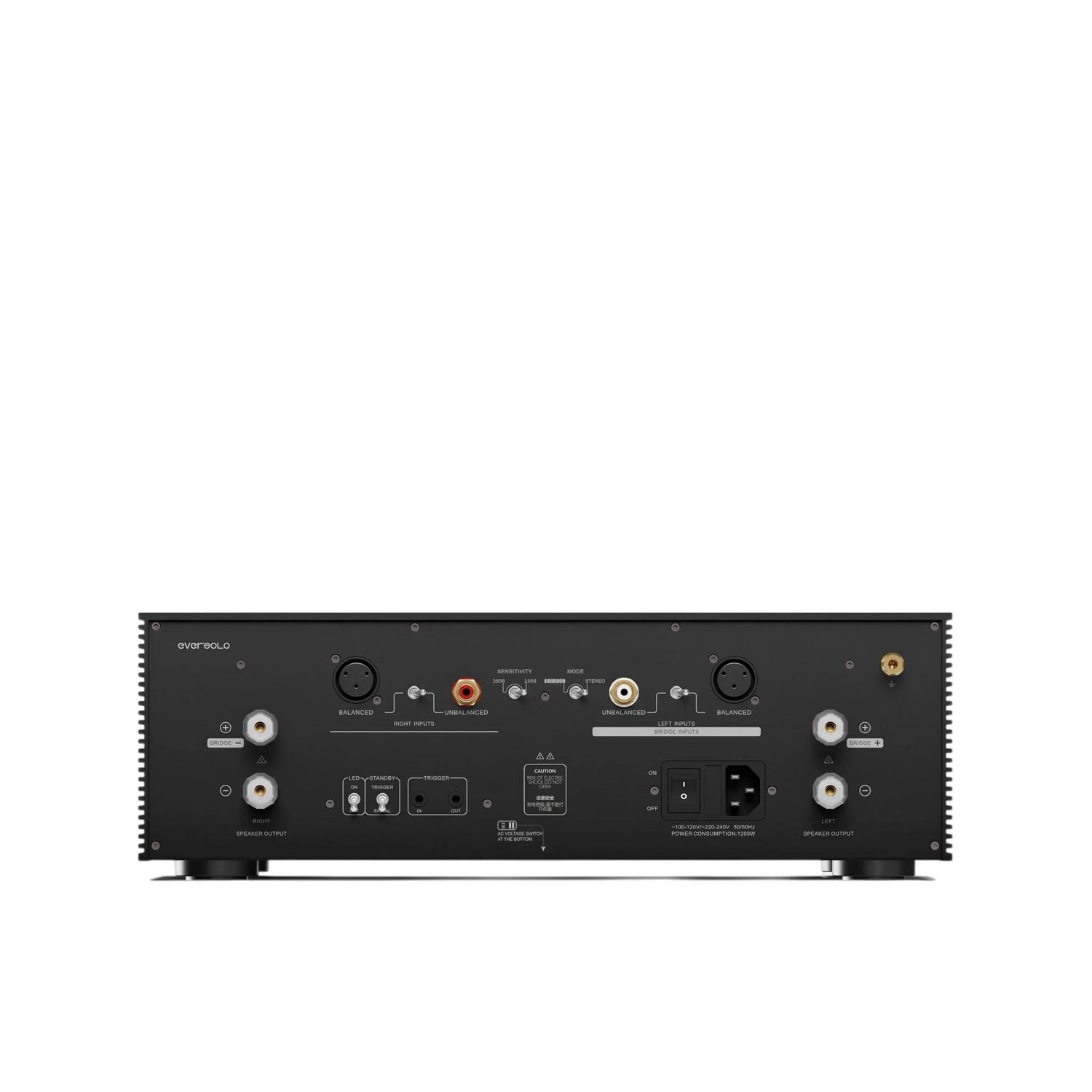

Features include balanced XLR and unbalanced RCA inputs, two analog VU meters with switchable lighting, and trigger connections for convenient integration into high-quality HiFi systems. Input sensitivity and gain can be adjusted via the rear panel to suit the respective setup.

Type:
High-end stereo power amplifier

Amplifier class:
Class AB

Power output:
2 × 180 W RMS into 8 ohms

Power output:
2 × 280 W RMS into 4 ohms

Bridged mode:
500 W RMS into 8 ohms

Power transistors:
3 pairs of selected MOSFETs

Power supply:
800-watt toroidal transformer

THD+N:
0.003% at 1 kHz

Signal-to-noise ratio:
≥ 115 dB, A-weighted

Damping factor:
> 400 at 1 kHz / 8 ohms

Frequency response:
10 Hz – 30 kHz ±0.5 dB

Crosstalk:
≤ −95 dB

Inputs:
1 × XLR balanced, 1 × RCA unbalanced per channel

Input impedance:
10 kOhms

Gain:
23 / 29 dB, switchable

VU meter:
2 × analog, switchable illumination

Trigger:
5–12 V trigger in / out

Dimensions (W × D × H):
265 × 388 × 119 mm

Weight:
approx. 15.9 kg

Mains voltage:
100–120 V / 220–240 V

Max. power consumption:
1200 W
