The Eversolo DAC-Z10 is an audiophile masterpiece that combines digital and analog technology at the highest level. Equipped with a dual AK4191 + AK4499 architecture, precise R2R volume control, and three independent, ultra-low-noise linear power supplies, it delivers music in its purest form. Experience resolutions up to DSD512 and PCM 768kHz/32Bit, supported by a high-precision OCXO clock and versatile connections including HDMI ARC/eARC.

Precision in its Purest Form: The Eversolo DAC-Z10 Architecture

The DAC-Z10 was developed to reveal the authentic character and finest details of your music. At the heart of the device operates the exclusive Eversolo Fully Isolated Architecture (FIA™), which completely separates the digital and analog domains to minimize interference.

• Dual-Decoding Modules: The fully balanced architecture uses two independent AK4191 + AK4499 DAC modules, one per channel, to ensure superior channel separation and exceptional dynamics (up to 130dB SNR).

• Triple Linear Power Supply: Three separate toroidal transformers power the left channel, the right channel, and the system independently. This design results in an extremely low-noise environment (<1.2uVrms) and ensures a stable, highly detailed sound.

Ultimate Sound Control and Timing

• R2R Volume Control: The precise analog R2R resistor ladder volume control keeps the original signal intact across all volume ranges, from low-level listening to full power.

• OCXO Clock: An oven-controlled crystal oscillator (OCXO) in combination with PLL technology ensures accurate clock recovery. This is fundamental for high-resolution audio reproduction and can be further improved via an external 10MHz or 25MHz clock.

Comprehensive Connectivity for Every Source

The DAC-Z10 serves as a versatile hub for your audio system:

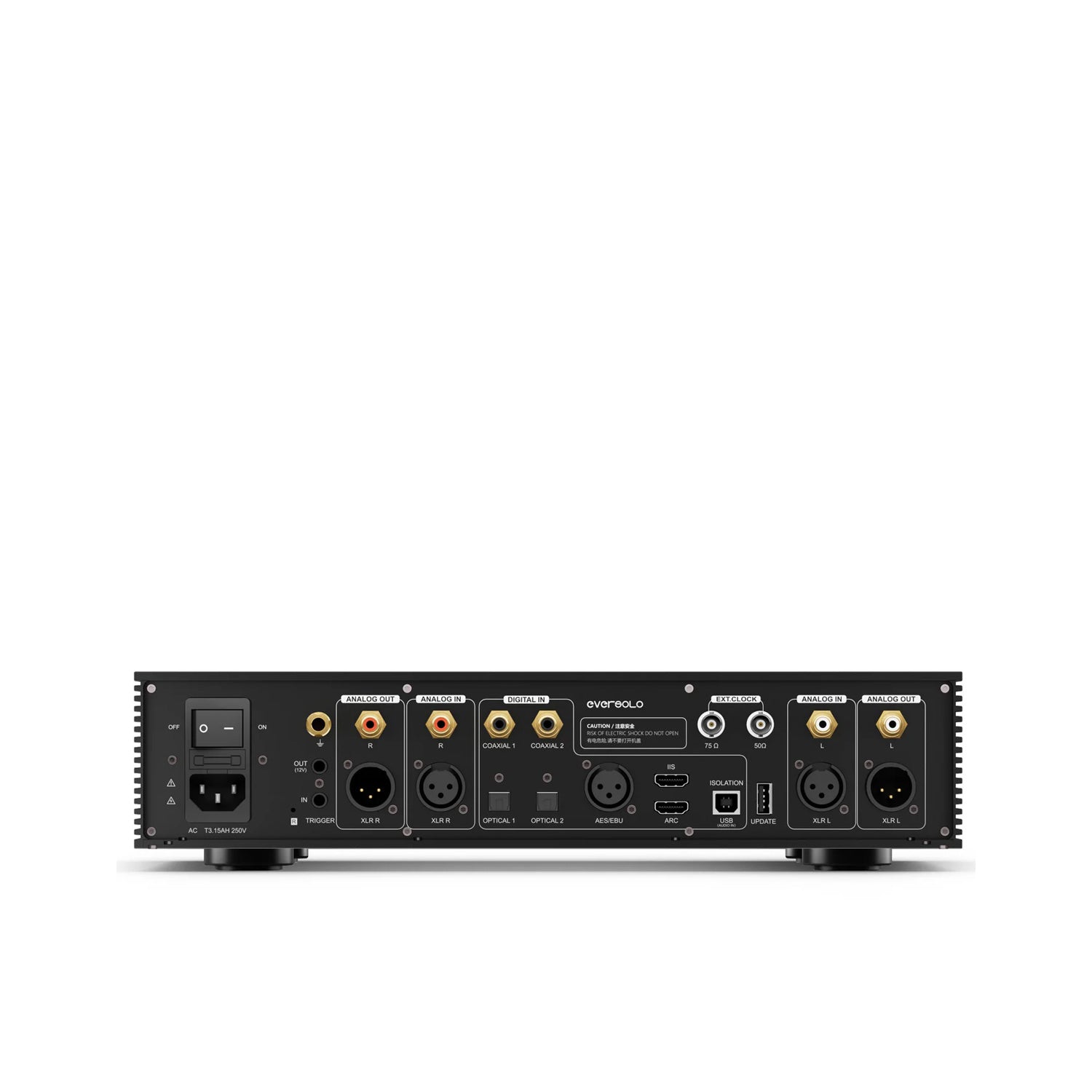

• Digital Inputs: USB-B Audio (up to PCM 768kHz/32Bit, DSD512 Native), IIS (8 modes), 2x Coaxial, 2x Optical, AES/EBU.

• HDMI ARC/eARC: Easy integration into your home cinema system for decoding high-resolution TV audio.

• Bluetooth Streaming: Integrated Qualcomm QCC5125 module (BT 5.0) for high-quality wireless listening.

• Fully Balanced Preamplifier: Analog XLR and RCA inputs as well as pre-out outputs allow for direct connection to power amplifiers or active speakers.

Top-Tier Headphone Experience

The dedicated 6.35 mm headphone amplifier module automatically detects impedance and adjusts the gain. With selectable stages (Low, Mid, High), it delivers detailed and powerful sound for a wide range of headphones (Recommended: 16–300Ω).

Design & Operation

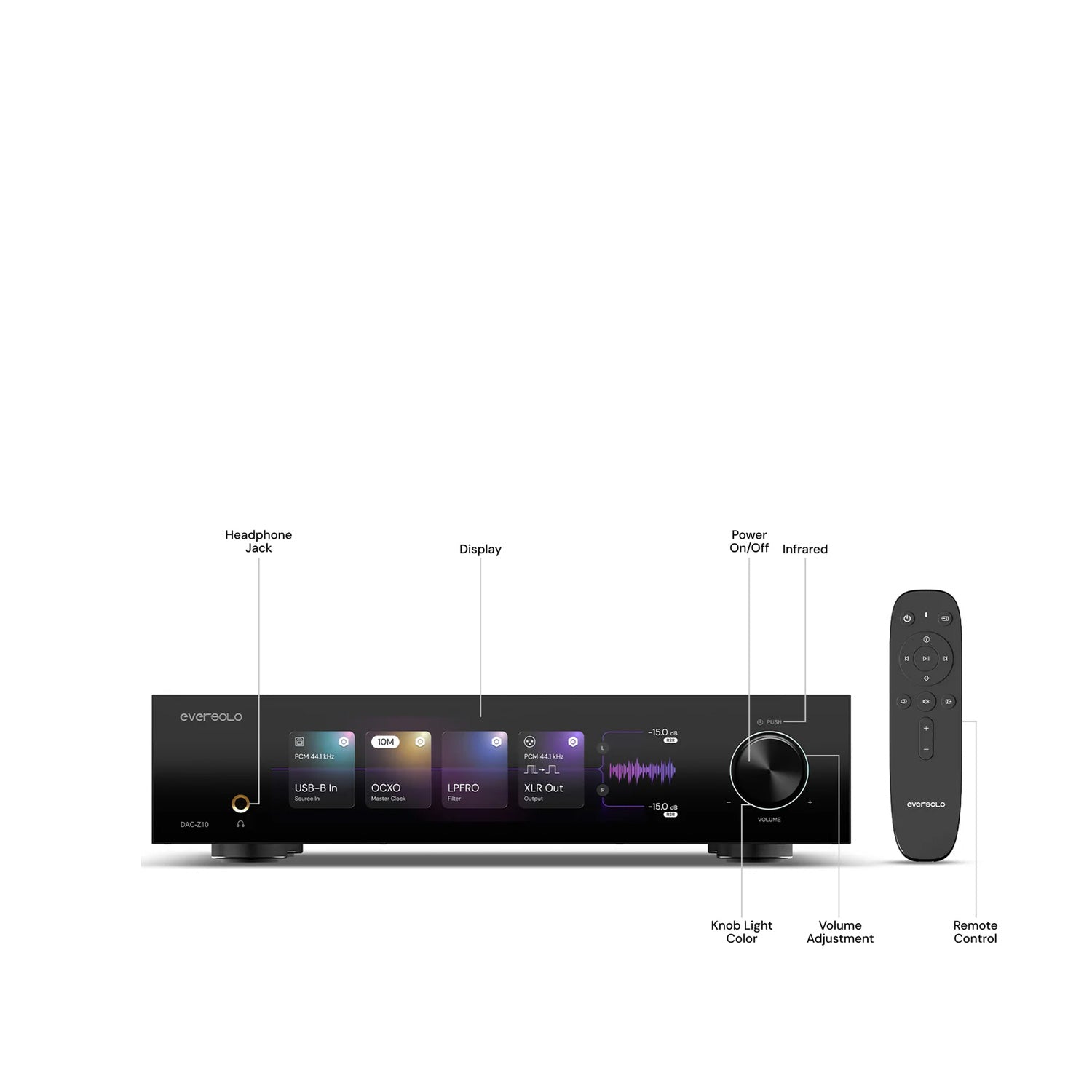

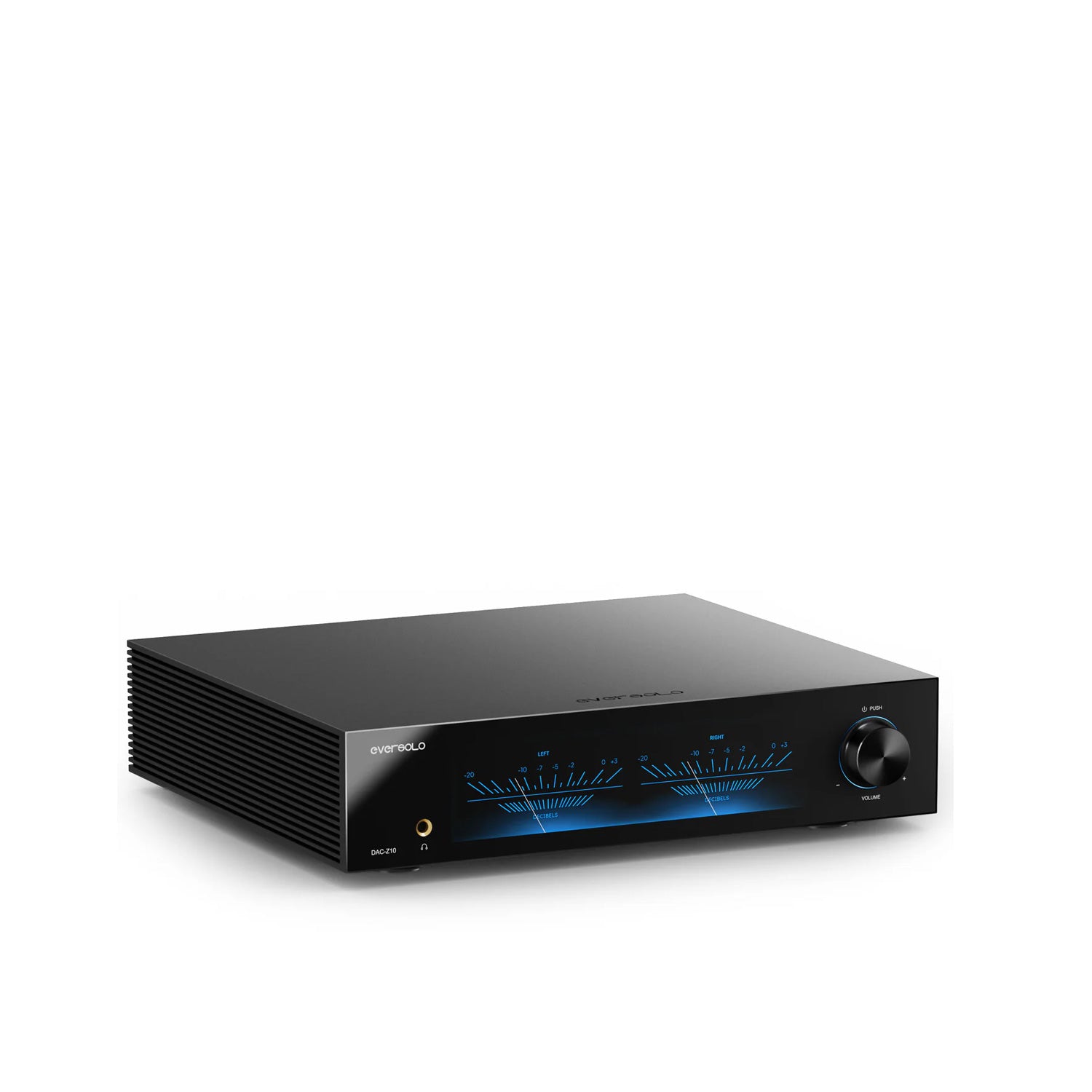

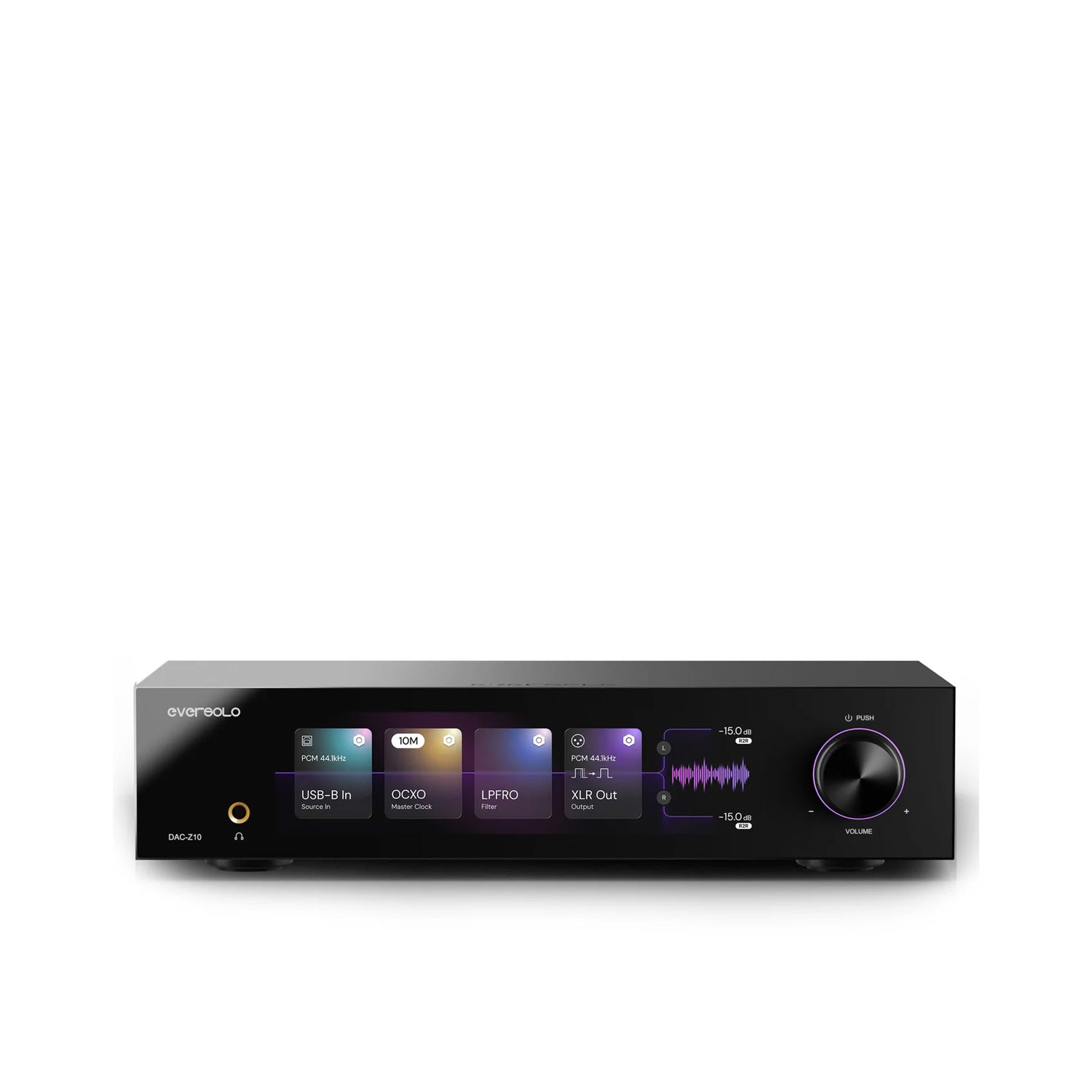

The chassis is crafted from aviation-grade aluminum and offers effective electromagnetic shielding. Control the DAC-Z10 elegantly via the large, clear 8.8-inch IPS touchscreen with an intuitive user interface and enjoy visual elements like selectable vintage VU meters and spectrum displays. Control is also conveniently possible via the included remote control or the mobile app.

Model
Eversolo DAC-Z10

DAC Chip
2x AK4191 + 2x AK4499

Display
8.8-inch IPS touchscreen

Max. resolution (USB/IIS)
PCM 768kHz/32Bit, DSD512 Native

THD+N (XLR output)
0.00008% (@ 1kHz)

SNR (XLR output)
130dB

Outputs (analog)
Balanced XLR, unbalanced RCA, 6.35mm headphone

Special features
3x linear power supply, OCXO clock, R2R volume, HDMI ARC/eARC

Housing material
Aluminum alloy

Dimensions
365mm (L) × 310mm (W) × 88mm (H)
