Eversolo DMP-A8 Master Gen 2

The Eversolo DMP-A8 Master Gen 2 is a versatile high-end streaming hub that combines a music streamer, DAC, CD player, and analog preamplifier in one device. The combination of high-quality digital technology, a precise analog preamp, and an integrated CD drive makes it the central control unit for modern Hi-Fi and high-end systems.

For digital signal processing, Eversolo relies on the AK4499EXEQ and AK4191EQ DAC architecture. The DMP-A8 Master Gen 2 supports high-resolution playback up to PCM 768 kHz/32-bit and DSD512. The analog preamp operates fully balanced and utilizes precise R-2R volume control, which adjusts the volume directly in the analog signal path.

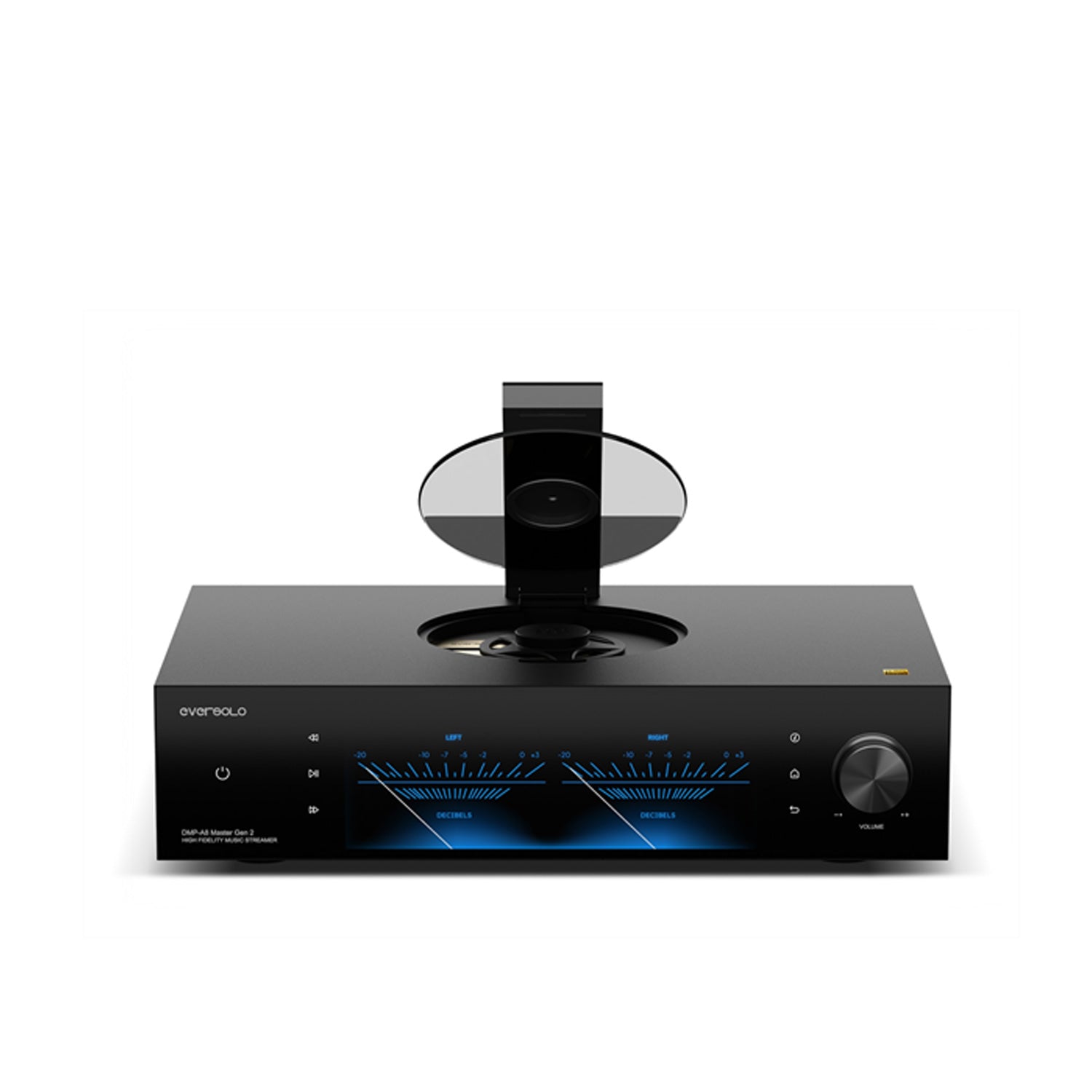

A special feature of the Master version is the integrated top-loading CD drive for direct CD playback. Furthermore, the device offers Wi-Fi 6, Gigabit Ethernet, SFP network, Bluetooth 5.4, and an M.2 NVMe slot for an SSD with up to 8 TB. The further developed evotune PRO Room Correction System is available for room acoustics.

Type:
High-end music streamer / DAC / CD player / preamplifier

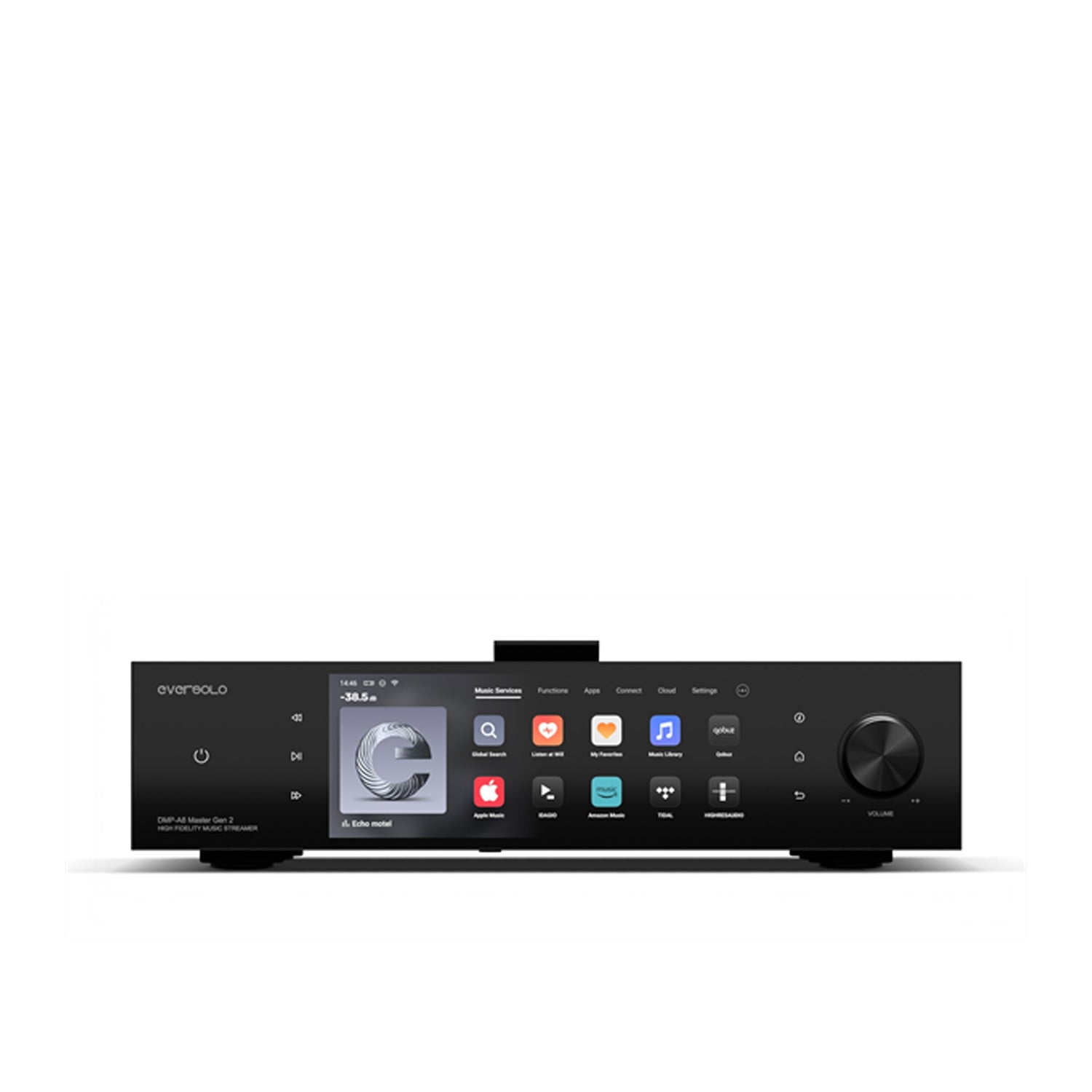

Display:
8.6-inch LCD touchscreen

DAC:
AK4499EXEQ + AK4191EQ

Audio processor:
Eversolo AuralEngine

Operational amplifier:
OPA1612

Max. PCM resolution:
768 kHz / 32-bit

DSD:
up to DSD512

CD drive:
integrated, noise-optimized top-loading drive

Volume control:
high-quality R-2R resistor ladder

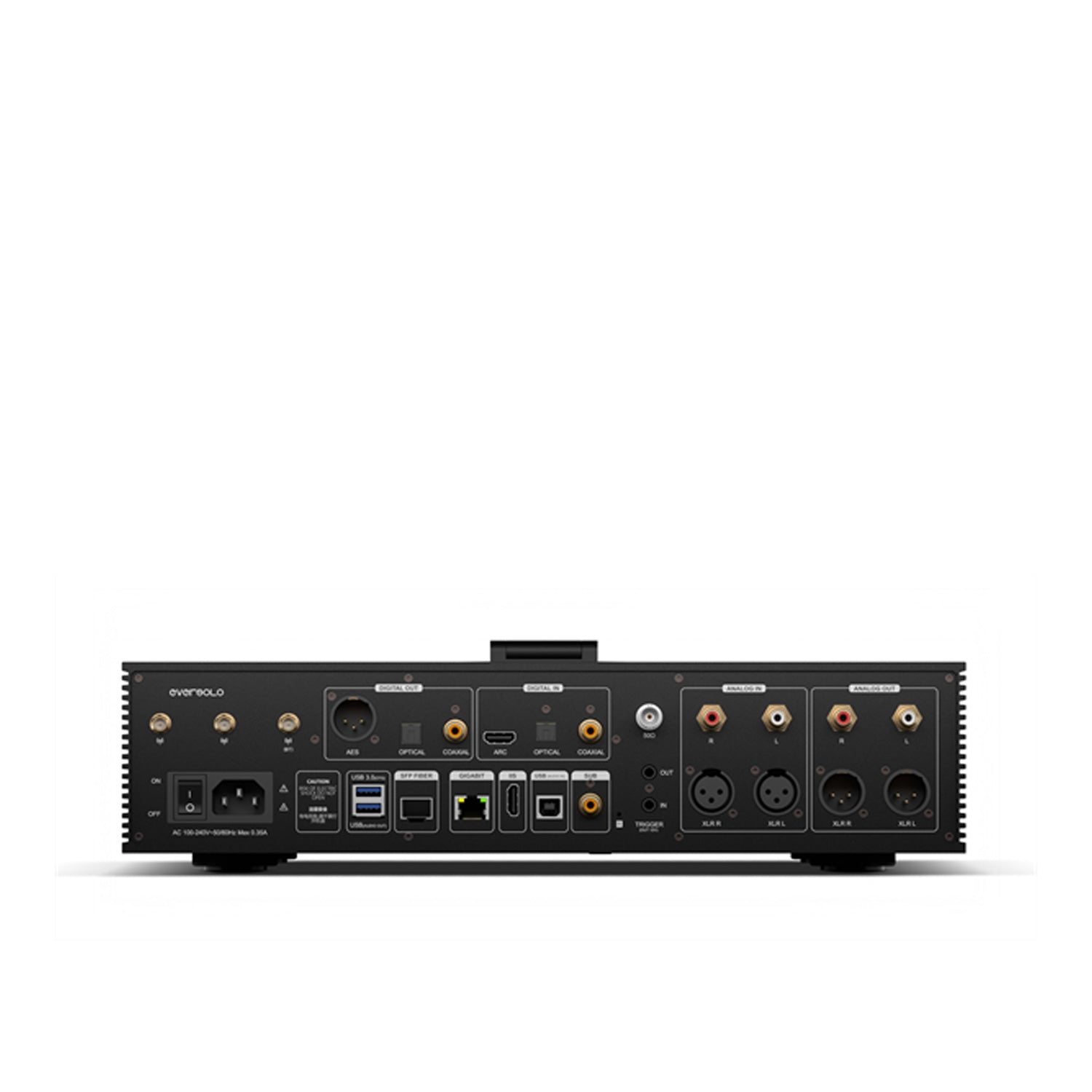

Analog inputs:
1 × XLR balanced, 1 × RCA

Analog outputs:
XLR balanced, RCA

Digital inputs:
USB-B, USB-A, optical, coaxial, HDMI ARC

Digital outputs:
USB, IIS, AES/EBU, optical, coaxial

Bluetooth:
5.4

WLAN:
Wi-Fi 6, 2.4 / 5 GHz

LAN:
Gigabit Ethernet

SFP:
available

SSD:
M.2 NVMe PCIe 3.0, up to 8 TB

RAM:
8 GB DDR5

Internal storage:
64 GB eMMC

Streaming:
TIDAL, Qobuz, Spotify Connect Lossless, TIDAL Connect, Qobuz Connect, DLNA, etc.

Room correction:
evotune™ PRO

Equalizer:
20-band PEQ

XLR output level:
4.2 V

RCA output level:
2.1 V

THD+N XLR:
0.000075 % / −122 dB

Dynamic range XLR:
>129 dB

Signal-to-noise ratio XLR:
>129 dB

Frequency response:
20 Hz–20 kHz, ±0.25 dB

Mains voltage:
AC 100–240 V, 50/60 Hz

Power consumption:
30 W

Dimensions (W × H × D):
265 × 98.5 × 388 mm

Weight:
6 kg
