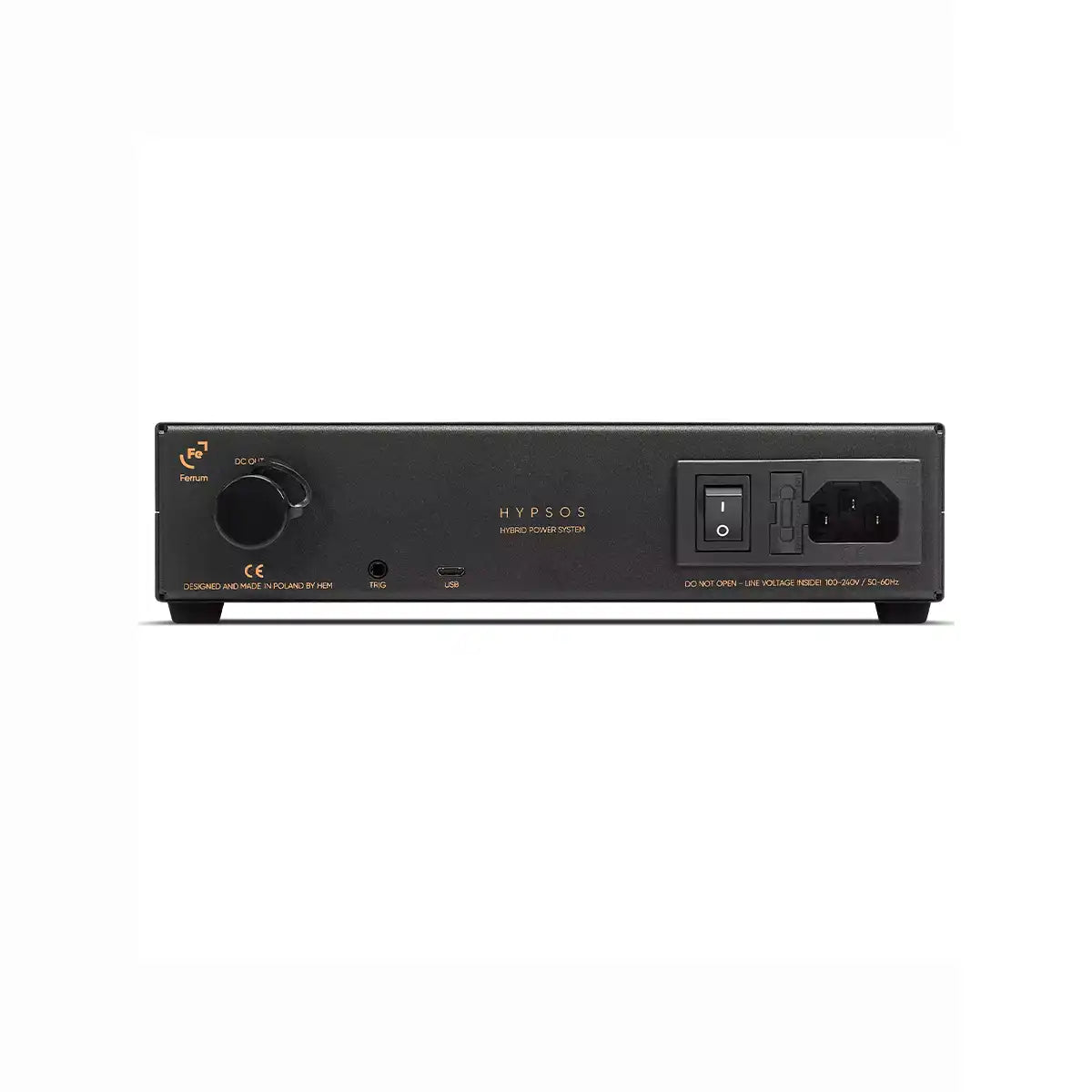

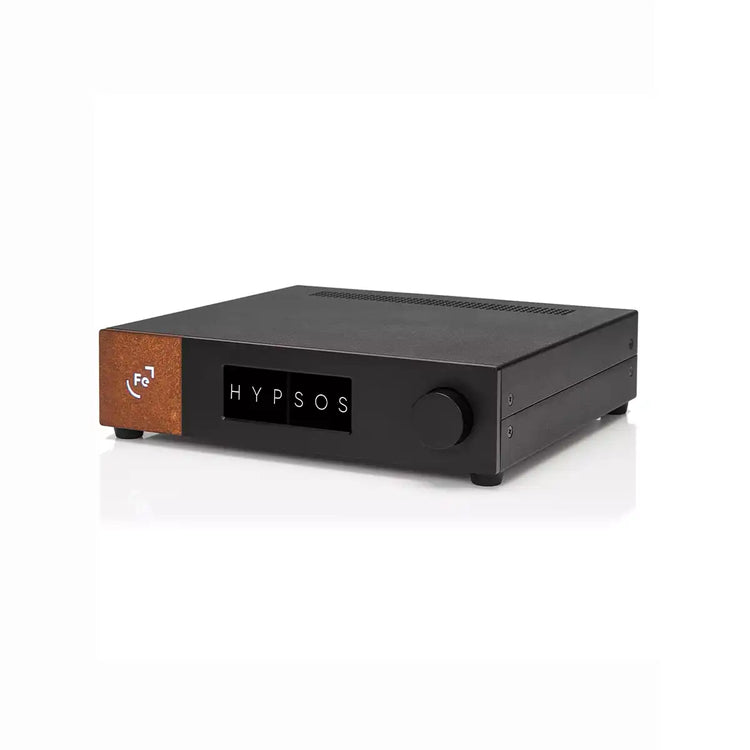

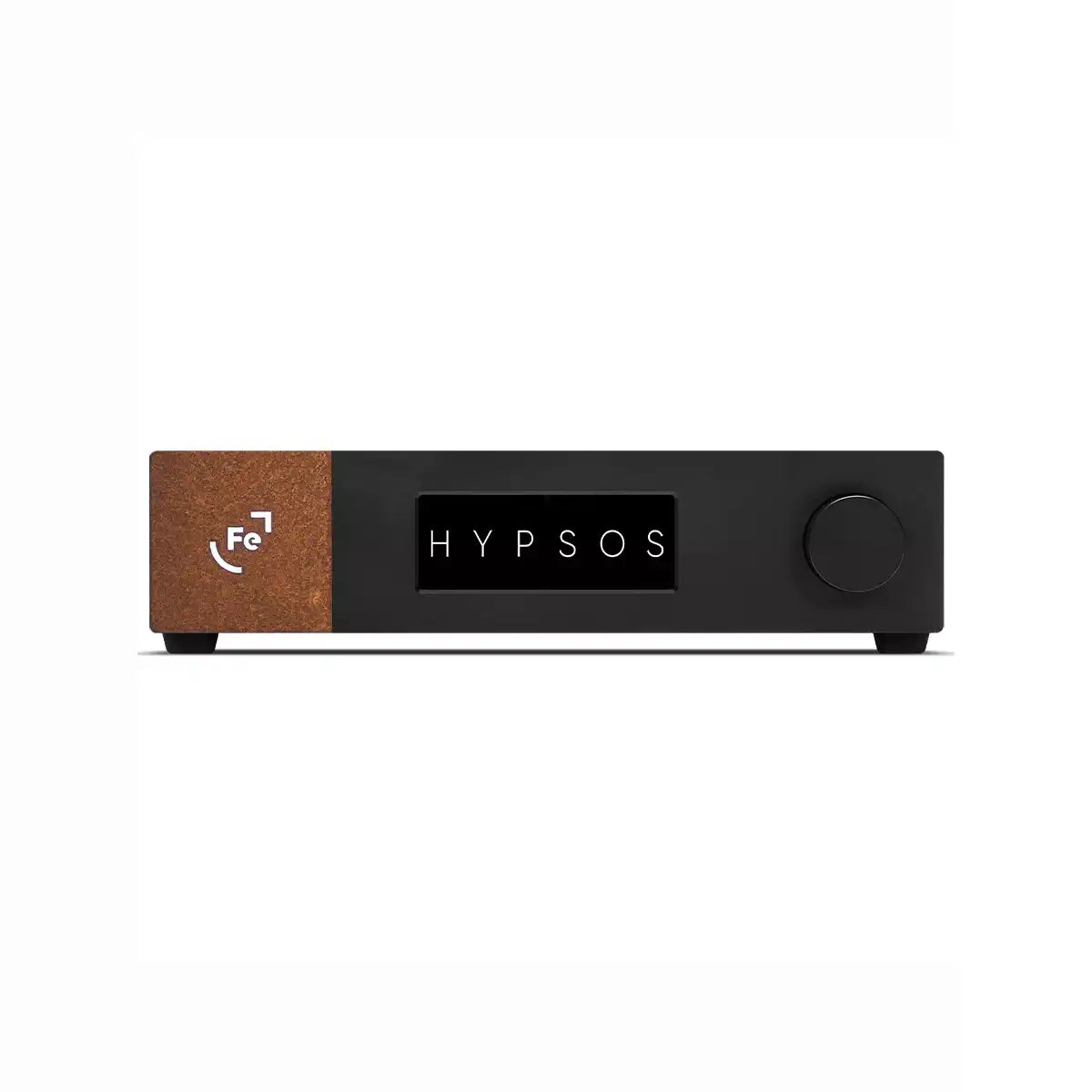

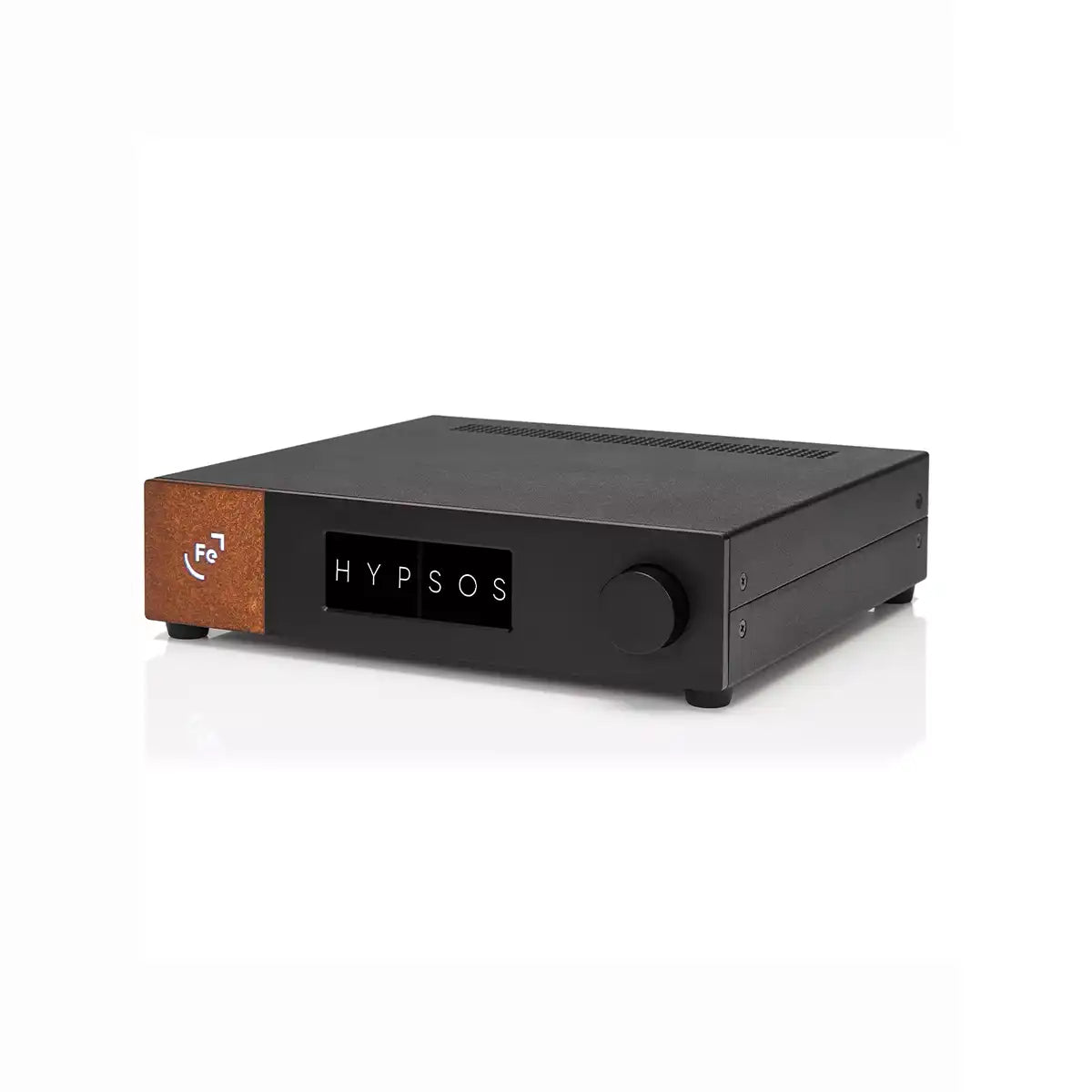

Ferrum Audio HYPSOS

The intelligent high-end hybrid power supply for maximum sound quality

The Ferrum Audio HYPSOS is far more than a classic power supply – it is an intelligent high-end power supply designed to unlock the full potential of high-quality audio components. Thanks to its innovative hybrid technology, precise voltage regulation, and extensive adjustment options, HYPSOS audibly improves the dynamics, detail resolution, and musicality of your hi-fi system. Whether for a DAC, headphone amplifier, or streamer – HYPSOS provides an exceptionally clean and stable power supply for uncompromising musical enjoyment.

Innovative hybrid technology for maximum performance

At the heart of the Ferrum HYPSOS is a unique hybrid topology that combines the advantages of a linear power supply with the efficiency of modern switching power supply technology. The result is extremely low ripple, minimal interference, and exceptionally fast transient response. This combination ensures precise, dynamic, and natural sound reproduction with maximum control over the entire frequency spectrum.

Sweet Spot Tuning and 4TSD for perfect sound optimization

With exclusive Sweet Spot Tuning (SST) technology, the output voltage can be fine-tuned in real time to find the optimal sound profile for any connected device. The proprietary 4-Terminal Sensing Design (4TSD) monitors the voltage directly at the device and automatically compensates for cable losses. As a result, audio components benefit from a constant, high-precision power supply and further improved impulse response.

Universally applicable and future-proof

With a variable output voltage range of 5 to 30 volts, up to 80 watts of continuous power, and 6 amperes of output current, HYPSOS is suitable for a wide range of high-quality audio components. Pre-configured device profiles as well as freely definable settings allow for easy adaptation to a variety of devices. Thanks to its software-based architecture, HYPSOS remains expandable and future-proof via firmware updates.

Intelligent control and maximum operational safety

In addition to audiophile power delivery, the Ferrum HYPSOS impresses with extensive comfort and safety features. Automatic Transformer Voltage Adjusting (ATVA), electronic polarity switching, and protection against overvoltage, short circuits, and overload ensure safe operation. Trigger connections and support for Apple TV remotes allow for convenient integration into modern hi-fi setups.

Highlights

• High-end hybrid power supply for audio components

• Combination of linear power supply and switching power supply technology

• Sweet Spot Tuning (SST) for sonic fine-tuning

• 4-Terminal Sensing Design (4TSD) for maximum voltage stability

• Continuously adjustable output voltage from 5 to 30 volts

• Up to 80 watts of output power

• Up to 6 amperes of continuous current

• Impulse current up to 9 amperes

• Pre-configured device profiles and manual configuration

• Automatic Transformer Voltage Adjusting (ATVA)

• Electronic polarity switching

• Overvoltage, short circuit, and overload protection

• Trigger inputs and outputs for system integration

• Firmware updates for future enhancements

With the Ferrum Audio HYPSOS, you are investing in a high-end power supply that fully exploits the sonic potential of your audio system. Its innovative hybrid technology, intelligent voltage regulation, and exceptional flexibility make HYPSOS one of the most powerful and versatile power supplies for demanding hi-fi and headphone systems.

Technical specifications:

· AC input: 110–120 V / 220–240 V AC, 50–60 Hz
· DC output voltage range: 5–30 V
· Max. continuous output current: 6 A
· Max. continuous output power: 80 W
· Max. impulse current: 9 A
· Dimensions (W × D × H): 217.5 × 206.5 × 50 mm
· Weight: approx. 2.89 kg

In the box:
· 1x Ferrum HYPSOS hybrid power system
· 1x Power cord
· 1x Spare fuse
· 1x DC power cable 50 cm (plug mounted to order)
