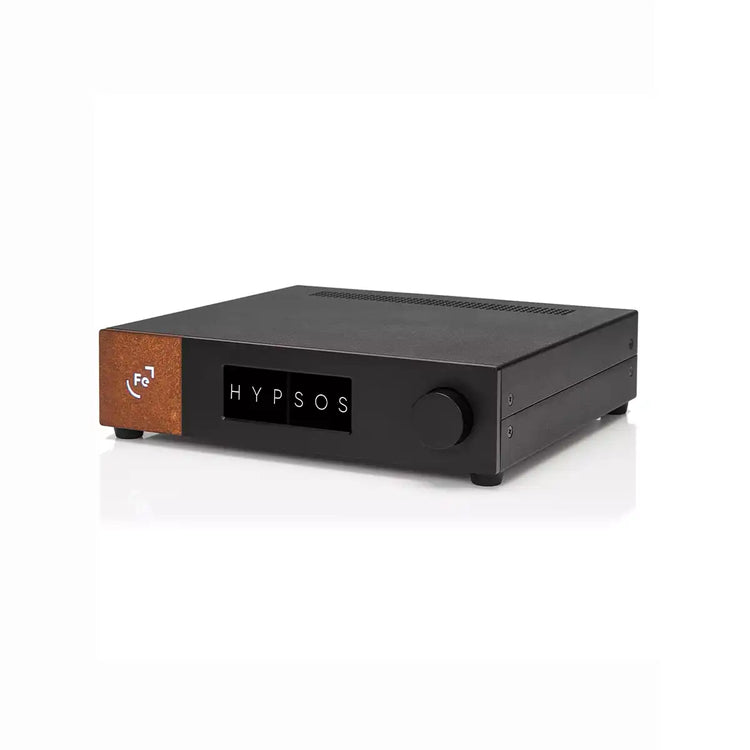

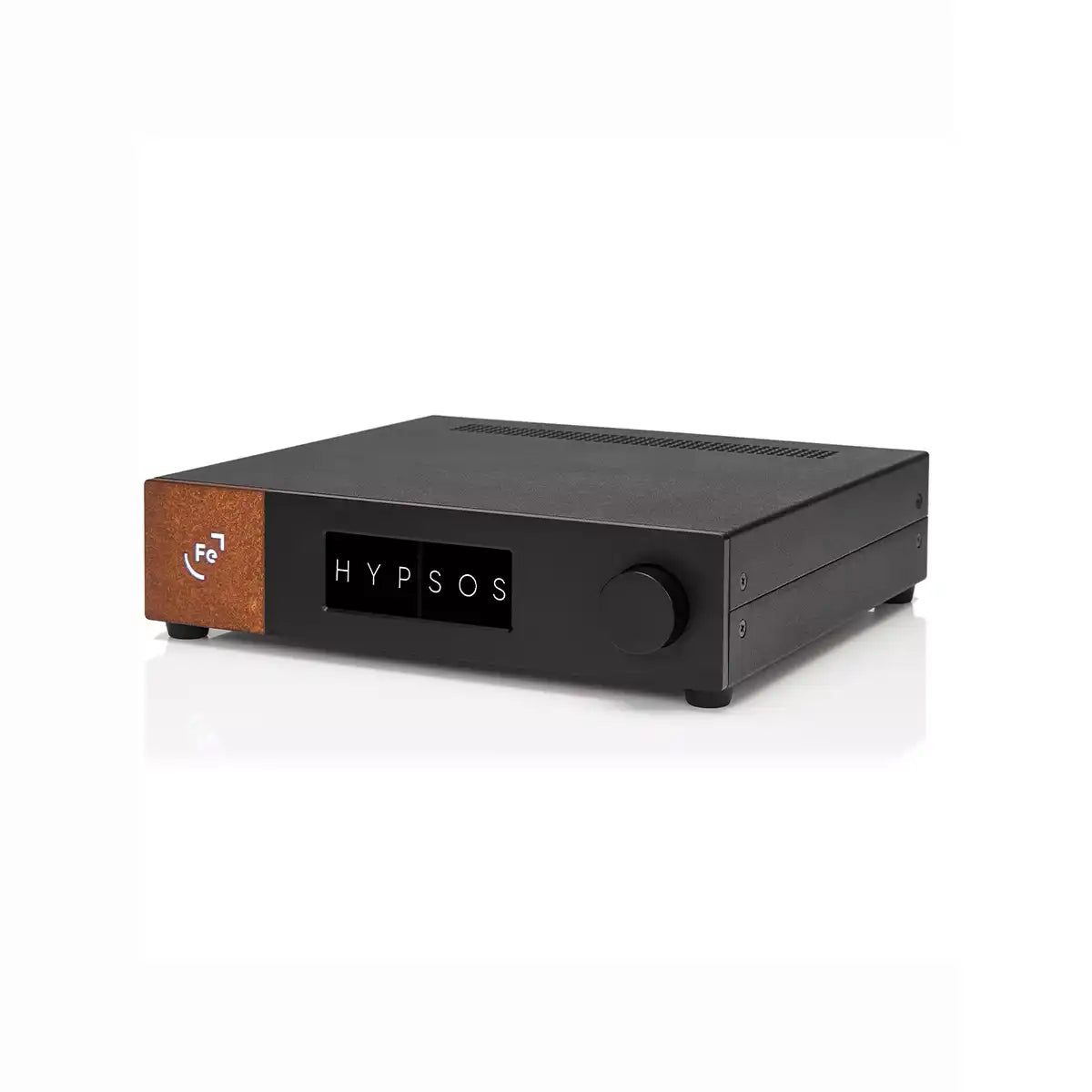

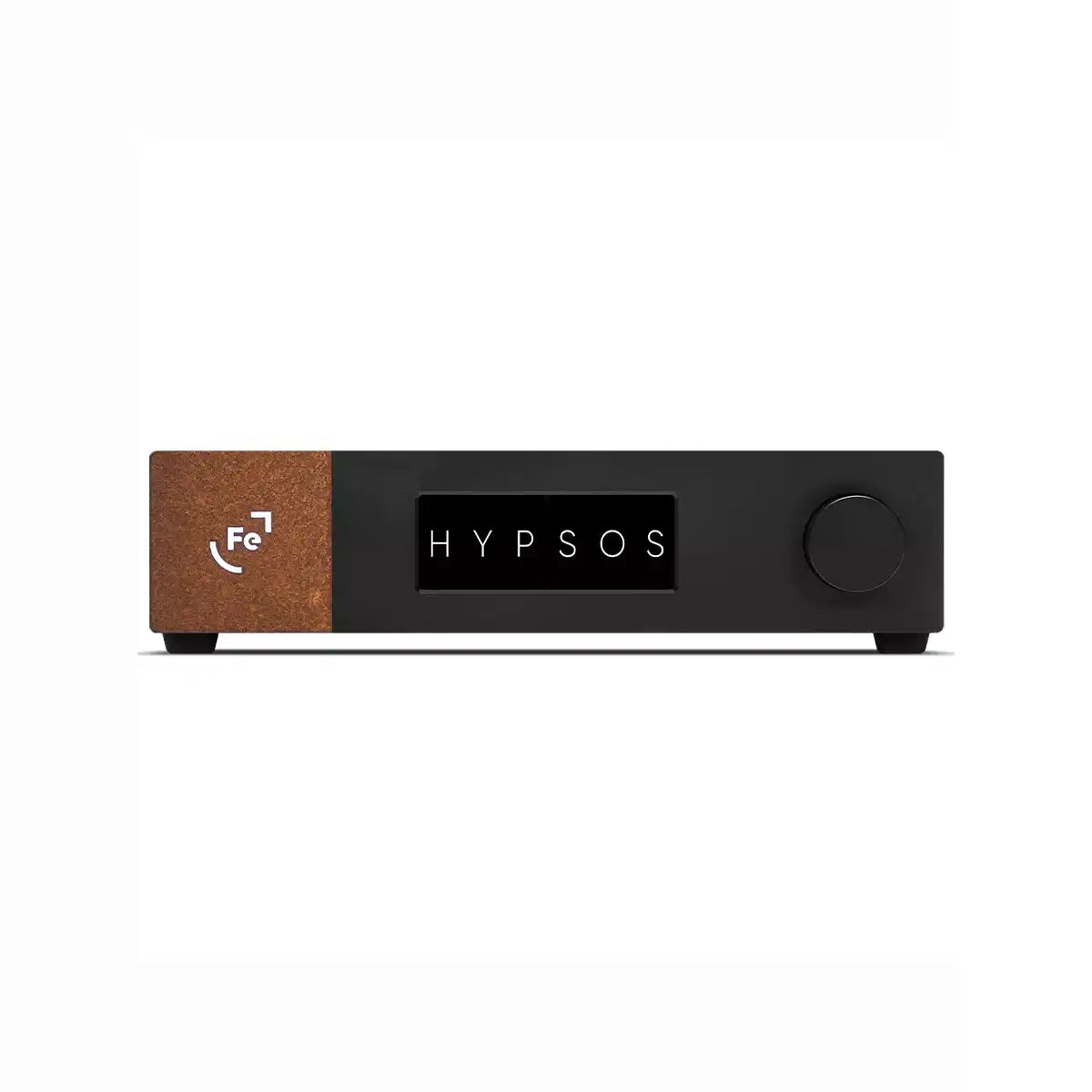

Ferrum Audio HYPSOS – Hybrid power supply with dual outputs

With the dual-output version, Ferrum Audio takes its renowned hybrid power supply to a new level. Designed for demanding systems where multiple components require uncompromising power quality – such as the Ferrum OOR and Ferrum WANDLA – the HYPSOS Dual Output offers exceptional performance combined with increased flexibility.

Thanks to its two DC outputs, the HYPSOS can power two devices simultaneously, provided they have the same voltage requirements. No external splitters, no cable clutter – just a clean, elegant solution with maximum expansion potential.

Sound: Detailed, dynamic, effortless

HYPSOS is known for its extremely stable and clean power supply. The result is a soundstage that is high-resolution and dynamic, yet natural and fatigue-free. Micro-details, spatial precision, and impulse response benefit from the optimized power architecture.

With Sweet Spot Tuning (SST) you can fine-tune the output voltage – even in real time – to find the optimal sound balance for your individual setup. Combined with the 4-Terminal Sensing Design (4TSD) and the Spread Spectrum Mode, the HYPSOS offers discerning listeners genuine potential for sound optimization.

Hybrid drive system

The hybrid linear/switching design combines the strengths of both technologies:

• Extremely low ripple and low noise
• Fast transient response
• High efficiency

The advanced 4TSD cable design uses two wires for power delivery and two for voltage feedback. This ensures the exact voltage level directly at the DC input of the connected device, effectively compensating for cable resistance and significantly improving transient response.

Dual output – Higher system flexibility

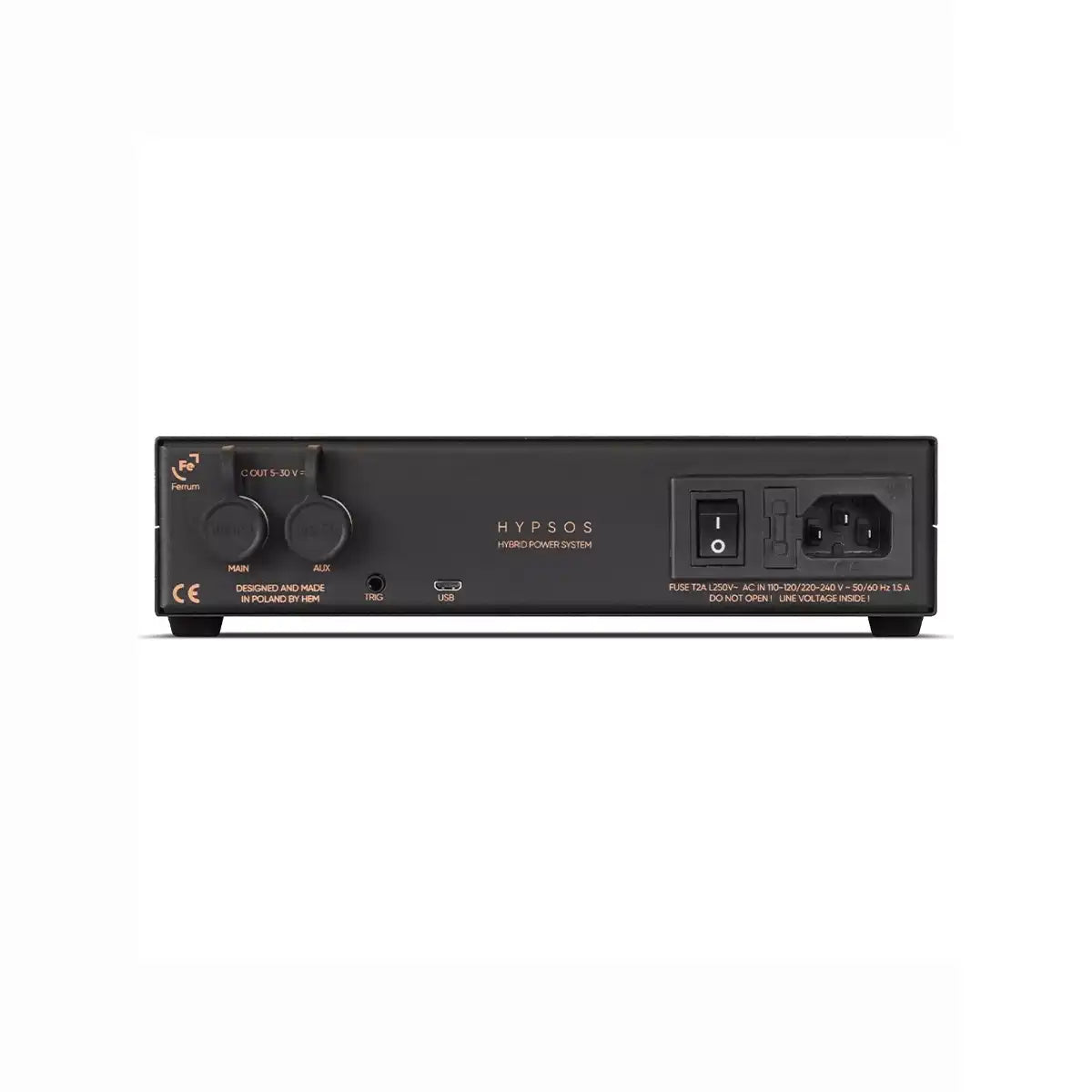

• Two DC outputs with shared voltage
• Up to 80 W continuous power (combined)
• Up to 6 A continuous current (combined)
• Ideal for powering OOR & WANDLA or two devices with identical voltage requirements
• 4TSD functionality is active on the main output.

HYPSOS Dual Output eliminates the need for external splitters and can be seamlessly integrated into high-end desktop or rack systems.

Universal and future-proof

• Wide continuous output voltage range: 5–30 V
• Pre-configured device profiles or fully manual setup
• Automatic Transformer Voltage Adjustment (ATVA)
• Electronic output polarity switch
• Overvoltage, current limit, and short-circuit protection

Advanced automation features include trigger input/output ports and compatibility with Apple TV remotes, allowing for convenient system integration and standby control.

Included in delivery

• HYPSOS Dual Output
• High-quality DC cable (5.5 × 2.5 mm or 5.5 × 2.1 mm connector)
• Power cord (EU, UK, AU, or US)
• Custom DC connectors are available upon request.

HYPSOS Dual Output is more than just an update – it is a significant evolution. For systems with two high-performance components, it offers a sophisticated, powerful, and elegant power supply solution that noticeably enhances the system's overall performance.

Technical specifications:

· Power supply: 110–120 V / 220–240 V AC (EU/USA) 100 V AC (JP)
· DC output voltage: 5–30 V (distributed between both outputs)
· Maximum continuous output power: 80 W (combined)
· Maximum continuous output current: 6 A (combined)
· Dimensions (W × D × H): 21.7 × 20.6 × 5 cm
· Net weight: 3.05 kg

In the box:
· 1x Ferrum HYPSOS dual output hybrid power supply system
· 1x Power cable
· 1x Spare fuse
· 1x DC cable 50 cm (connector mounted to order)
