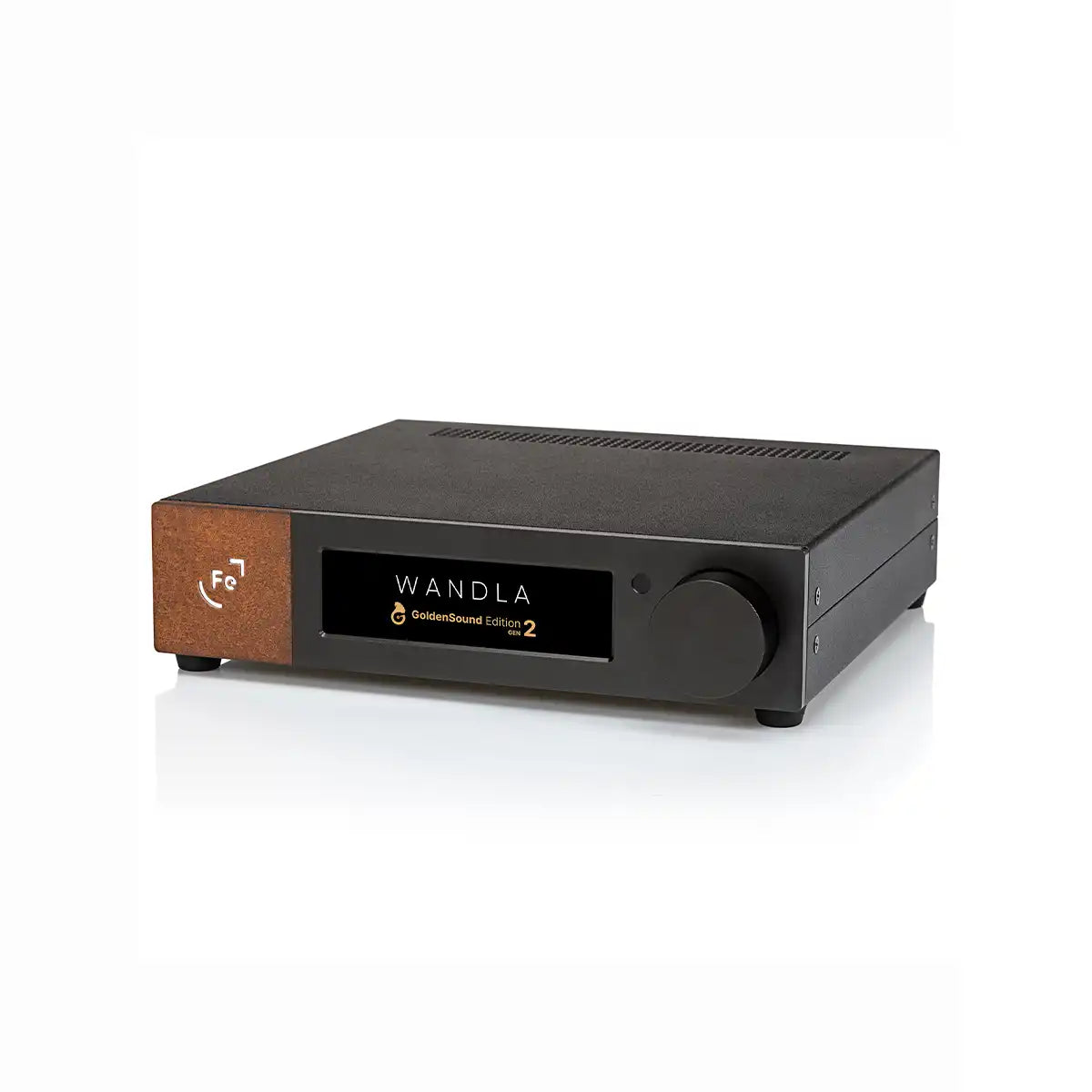

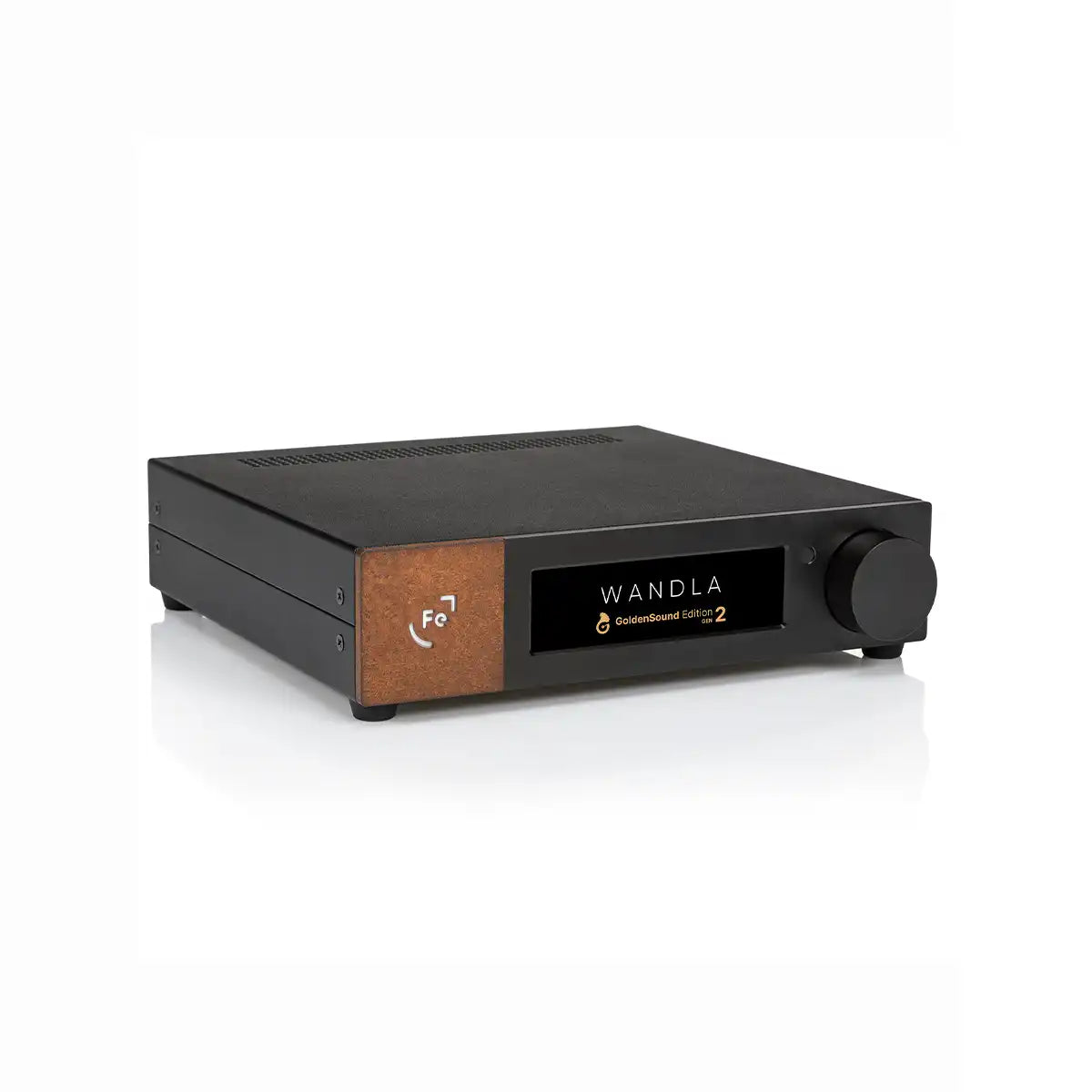

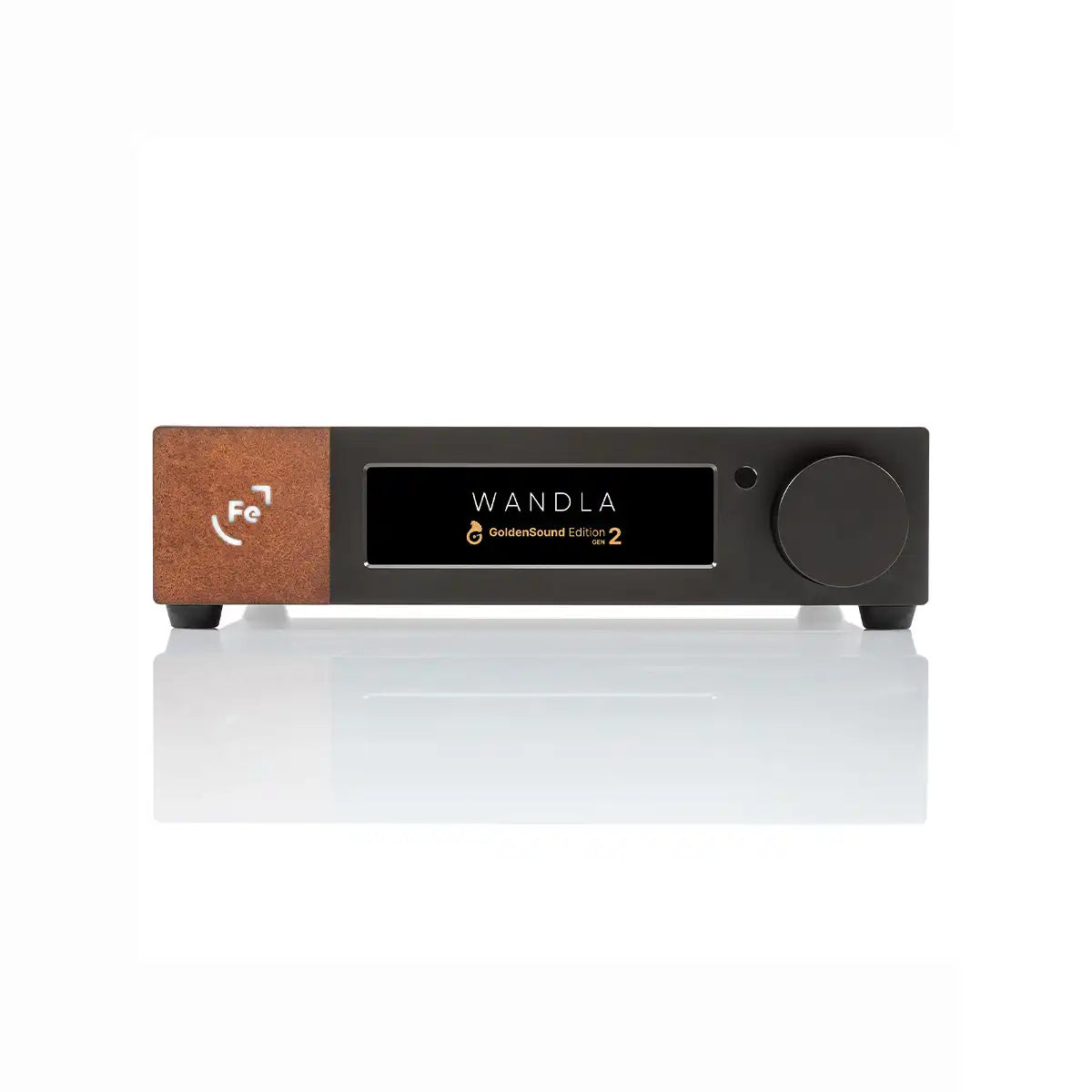

Ferrum Audio WANDLA GoldenSound Edition Gen 2

The reference DAC for maximum sound control

With the Ferrum Audio WANDLA GoldenSound Edition Gen 2, Ferrum Audio presents the consistent evolution of its award-winning high-end DAC with preamplifier. Building on the multi-award-winning WANDLA, the second generation combines cutting-edge digital technology with exclusive sound optimizations by GoldenSound, opening up entirely new possibilities for individual sound tuning for audiophiles. The result is an exceptionally transparent, dynamic, and musical reproduction that can be perfectly adapted to any high-end system.

Individually tuned sound with Ferrum Sweet Spot Tuning

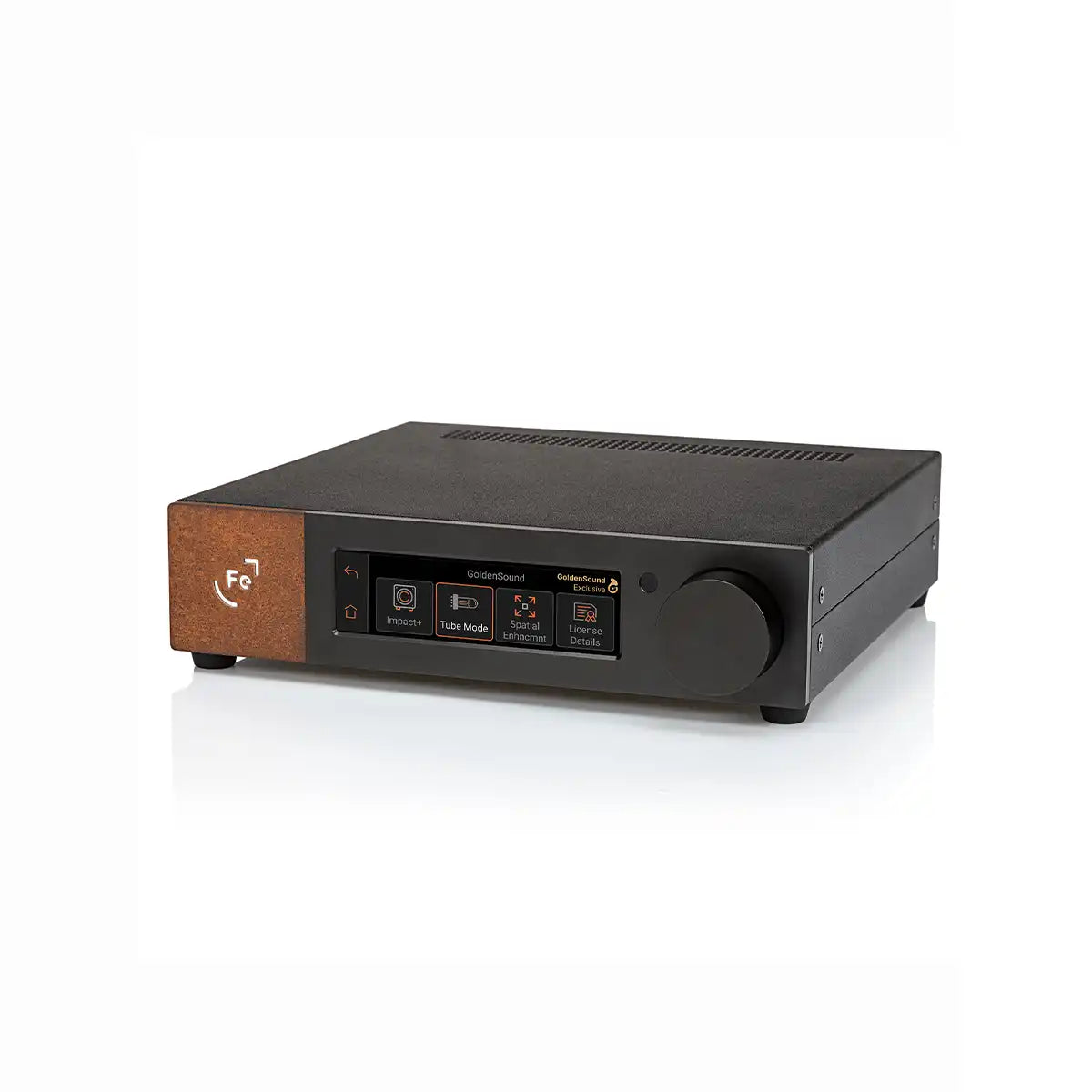

The GoldenSound Edition Gen 2 has been completely redesigned and features three advanced sound technologies: Impact+, Tube Mode, and Spatial Enhancement. All functions have been optimized with the new Ferrum Sweet Spot Tuning, allowing for exceptionally precise personalization without compromising naturalness or musical balance.

Gen 2 Impact+ – Precise bass control

With the new Impact+ technology, the low-frequency range can be adjusted more flexibly than ever before. Seven different sound profiles – including Reference, Smooth, Kick+, DD-Comp, and Subbass – do not just change the frequency response; they also account for the behavior of dynamic drivers for a particularly natural bass reproduction.

The intensity can be infinitely adjusted from 10% to 130%. This allows the sound image to range from subtle bass support to powerful low-frequency reproduction – always controlled, precise, and musical.

Gen 2 Tube Mode – Analog tube sound without the tubes

The completely redesigned Tube Mode simulates the characteristic sound of legendary tube amplifiers without their typical drawbacks like heat generation or maintenance requirements.

Five classic tube characteristics are available to choose from:

• EL34

• KT88

• 300B

• 2A3

• 7062

Harmonic modeling extends to the 7th harmonic and can be adjusted between 10% and 200%. This creates a pleasantly warm, natural sound with authentic tube characteristics without sacrificing resolution or detail.

Improved spatial imaging with Spatial Enhancement Gen 2

Spatial sound imaging has also been completely redeveloped. The optimized Spatial Enhancement creates a significantly larger and more realistic soundstage – both for headphones and loudspeakers.

Newly added is Transient Compensation (T-Comp), which reduces high-frequency artifacts and enables more precise localization of individual instruments. The result is a holographic, stable, and natural 3D sound presentation.

Maximum signal quality without compromise

The WANDLA GoldenSound Edition Gen 2 offers significantly increased digital headroom, reliably preventing intersample clipping even with high-resolution recordings. This is complemented by hardware-based output voltage switching to just under 4 Vrms or 10 Vrms, allowing the DAC to be optimally matched to a wide variety of amplifiers – without digital attenuation or additional components in the signal path.

Reference technology for the highest demands

Inside works the proven ESS Sabre ES9038PRO DAC, which unfolds its full potential through Ferrum's fully balanced signal architecture. This is complemented by custom-developed Signalyst digital filters, designed exclusively for the WANDLA to allow for exceptionally precise signal processing.

In addition to the ESS filters, several specially tuned Signalyst filters are available, offering different sound characteristics and undergoing continuous development.

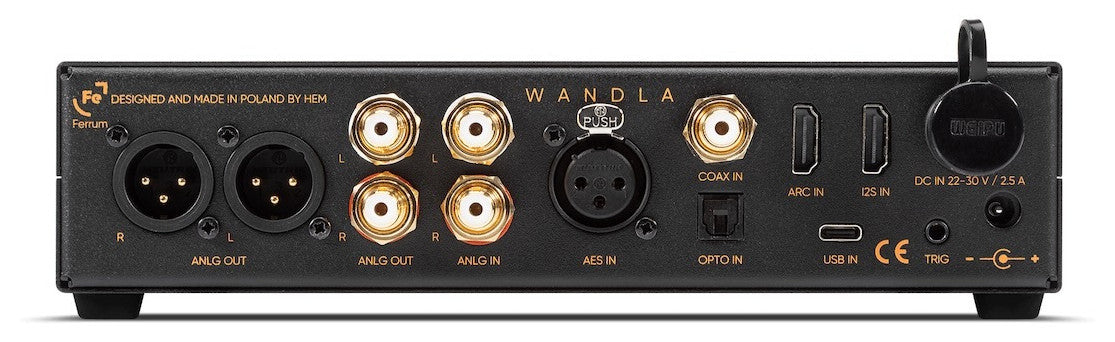

Extensive connectivity

The Ferrum WANDLA GoldenSound Edition Gen 2 offers all the connections that modern high-end systems require.

Analog outputs

• Balanced XLR outputs

• Unbalanced RCA outputs

Digital inputs

• USB

• Coaxial S/PDIF

• Optical (Toslink)

• AES/EBU

• HDMI I²S

• HDMI ARC with CEC support

Additionally, digital and analog volume control with bypass function and a high-quality remote control are available.

Perfect complement with Ferrum HYPSOS

The Ferrum Audio WANDLA GoldenSound Edition Gen 2 delivers reference sound on its own. In combination with the Ferrum HYPSOS hybrid power supply via the proprietary Ferrum Power Link (FPL), performance is increased even further.

The HYPSOS provides:

• lower noise floor

• greater dynamics

• improved control

• even more detail resolution

• maximum musicality

This creates an extraordinary synergy that unlocks the full potential of the WANDLA.

Highlights

• High-end DAC and preamplifier with ESS Sabre ES9038PRO

• Exclusive GoldenSound Edition Gen 2

• Ferrum Sweet Spot Tuning

• New Impact+ bass optimization with seven sound profiles

• Five authentic tube characteristics in Tube Mode

• Harmonic modeling up to the 7th harmonic

• Spatial Enhancement Gen 2 with Transient Compensation

• Increased digital headroom against intersample clipping

• Hardware-switchable output voltage (4 or 10 Vrms)

• Exclusive Signalyst digital filters

• Fully balanced signal architecture

• USB, AES, S/PDIF, Toslink, HDMI ARC, and I²S

• Balanced XLR and RCA outputs

• Ferrum Power Link for HYPSOS support

• Remote control included

The Ferrum Audio WANDLA GoldenSound Edition Gen 2 is one of the most flexible and best-sounding high-end DACs on the market. With its extraordinary combination of reference technology, extensive sound adjustments, and uncompromising signal processing, it is aimed at audiophiles who expect maximum control and absolute musicality at the highest level.

Technical specifications:

Type: Fully balanced DAC / preamplifier DAC chip: ESS Sabre ES9038PRO Resolution: Up to 768 kHz / 32 bit, DSD 512

Digital inputs:
· USB-C (PCM 768 kHz / 32 bit, DSD 512, DoP 256)
· I2S (PCM 768 kHz / 32 bit, DSD 512, DoP 256), PS Audio® compatible
· ARC (PCM 192 kHz / 24 bit) with CEC
· AES (PCM 192 kHz / 24 bit, DoP 64)
· Coaxial S/PDIF (PCM 192 kHz / 24 bit, DoP 64)
· Optical S/PDIF (PCM 96 kHz / 24 bit*, up to 192 kHz depending on cable/transmitter)

Analog:
· RCA input
· Balanced XLR and unbalanced RCA outputs
· Analog input impedance: 47 kΩ
· Analog volume control with bypass option

Performance:
· THD: -121 dB (0.00009%)
· THD+N: -118 dB
· Dynamic range: up to 127 dB (A-weighted)
· Frequency response: 10 Hz – 200 kHz ±0.1 dB

Power:
· 22–30 VDC input
· 5.5/2.5 mm DC connector
· Proprietary 4-pin Ferrum power connector (FPL)
· 10 W idle / 15 W maximum

Dimensions and weight:
· 21.7 × 20.6 × 5 cm
· 1.8 kg
