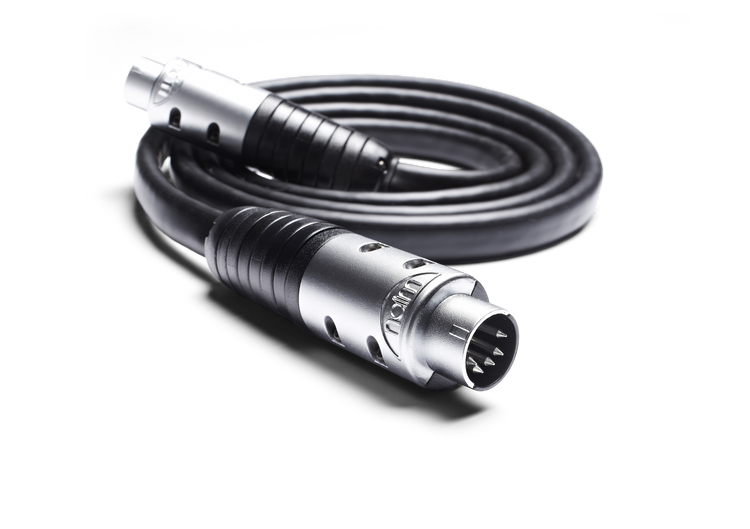

The Naim Hi-Line is a high-performance interconnect cable developed in parallel with the flagship CD555 player to outperform the already excellent standard cable in every respect. In developing the Hi-Line, we addressed all aspects of cable technology, as we wanted to improve the interconnect as a whole rather than just focusing on conductors and insulation, as is common practice.

This led to the creation of the Hi-Line interconnect. It features the patented, decoupling Air-PLUG. Available in DIN or RCA versions, this plug prevents the transmission of vibrations picked up by the cable via airborne sound, thereby preserving the musicality of your system.

Features
• patented Air-PLUG prevents the transmission of vibrations
• 2 x 2 multi-strand conductors with 80 individual wires, PTFE and Kapton insulation, helical shielding
• available in DIN/DIN, RCA/RCA, DIN/RCA and RCA/DIN configurations

Technology
The decoupling design of the Air-PLUG prevents the transmission of vibrations generated within the connected components or picked up by the cable via airborne sound, thus preserving signal integrity. The transition between the plug and the cable consists of interlocking rings that form a flexible, vibration-damping "caterpillar." The cable is flexibly connected to the plug. The metal content in the Air-PLUG has been kept low to prevent electromagnetic effects. The design of the cable itself minimizes eddy currents, and a specially developed clamping mechanism prevents the cable from being compressed, which would otherwise alter its impedance.

The Hi-Line interconnect has been developed with the utmost care and with a focus on optimal sound quality. It contains four multi-strand conductors, each consisting of 80 individual wires. The strands are insulated with PTFE, Kapton, and PTFE tape and twisted into pairs, which are then covered with a semi-conductive shield to prevent static charge. A copper braid shield is placed over this, followed by a wrapping of PTFE tape. Two such twisted pairs are then wrapped in several layers of PTFE tape and encased in a rubber sheath. The result is a two-channel cable in which the signal conductors and signal grounds are kept at a defined distance from one another, which prevents field effects.

Hi-Line 2-2 | 2 x RCA to 2 x RCA
