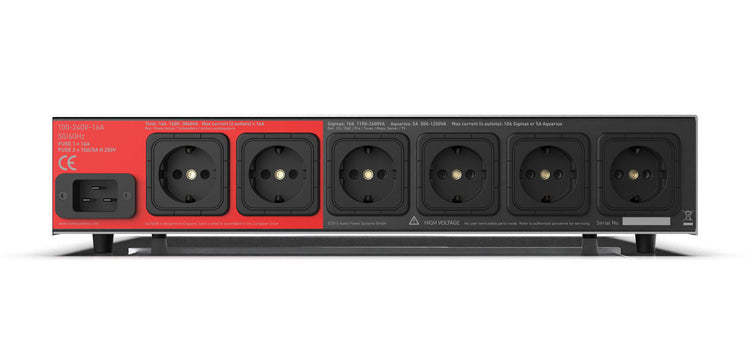

EVO3 SIGMAS
The EVO3 Sigmas is the big brother to our multi-award winning EVO3 Aquarius. It offers four 10A and two high-current 16A outlets, driven by a modified version of the Titan’s Direct-Coupled © circuit. An affordable, highly effective upgrade for high-end hi-fi and home cinema systems. Each outlet on the Sigmas features its own dedicated power cleaning filter network.

FEATURES
Suitable for all audio or AV systems
Reduces Radio Frequency Interference (RFI) by 60dB
Six unique power cleaning stages eliminate common mode and differential mode mains noise
4 independent outlets for source components (10A each)
2 independent high-current outlets for power amplifiers, active subwoofers, active loudspeakers, etc.
108,500A instantaneous protection
Star-earthing network
Internal wiring is silver-plated Ohno Continuous Cast (OCC) copper with FEP air-dielectric
Supplied with EVO3 PREMIER power cable
Available with UK, EU, US, AU & CH outlets

The EVO3 Sigmas is an innovative combination of power filter and distribution system. Measuring 445mm wide, 305mm deep, and 90mm high, it features six independent outlets, each with its own dedicated power cleaning filter network, significantly evolved and more efficient compared to the EVO3 Aquarius. The Sigmas dramatically reduces both differential mode and common mode mains noise, as well as cross-contamination between connected components, thanks to multiple power cleaning stages for each outlet. Most power filters of this type feature outlets connected in series, which is unwise as differential mode noise generated by connected electronics will cross-contaminate between outlets. The electrical architecture and design of the Sigmas is vastly superior.

Two low-impedance high-current outlets are designed for power-hungry equipment, rated at 16A and providing 3,680W at 230V or 1,840W at 115V. These outlets are intended for integrated amplifiers, power amplifiers, active speakers, or subwoofers. They utilize a modified version of the Titan’s Direct-Coupled © circuit. The four additional outlets on the Sigmas are designed for source components such as CD players, streamers, or preamplifiers with a 10A current draw. They feature IsoTek’s unique Adaptive Gating technology ©, which auto-senses the connected load to provide the optimal clean power based on power consumption.

KERP © (Kirchhoff’s Equal Resistance Path) ensures equal resistance and identical power delivery across all outlets. No outlet receives power before the next, a common issue in other products where outlets are connected in series.

The internal wiring is of the highest standard – utilizing high-purity, silver-plated Ohno Continuous Cast (OCC) solid core copper, ensuring low resistance and the transmission of high current. The conductor is wrapped in a Fluorinated Ethylene Propylene (FEP) spiral, then protected by an extruded FEP dielectric to create a virtual air dielectric (FDA).

The EVO3 Sigmas offers unparalleled performance and represents the ultimate power delivery system. Instantaneous protection of up to 108,000A keeps your valuable equipment safe from power surges and voltage spikes. High quality and high functionality make the Sigmas an outstanding upgrade for complete audio systems. Experience your hi-fi system sounding more spacious, three-dimensional, cleaner, and with tighter bass. A high-quality IsoTek Premier power cable is included.

The internal wiring of IsoTek products is designed to work in synergy with the range of IsoTek power cables. Maintaining consistency in design and material properties ensures optimal conductivity.

NUMBER OF OUTLETS 6
AVAILABLE OUTLETS UK, EU, US, AU & CH
DISPLAY Volt / THD / off
MAINS INLET 16 A IEC C20
OPERATING VOLTAGE 100-240 V / 50-60 Hz
MAX. POWER AT 230V x4 (10 A 2,300 W total)
MAX. POWER AT 115V x4 (10 A 1,150 W total)
HIGH CURRENT - 230V x2 (16 A 3,680 W total)
HIGH CURRENT - 115V x2 (16 A 1,840 W total)
SURGE PROTECTION 108,000 A
DIMENSIONS (W X H X D) 445 x 90 x 305 mm
WEIGHT 10.0 kg
