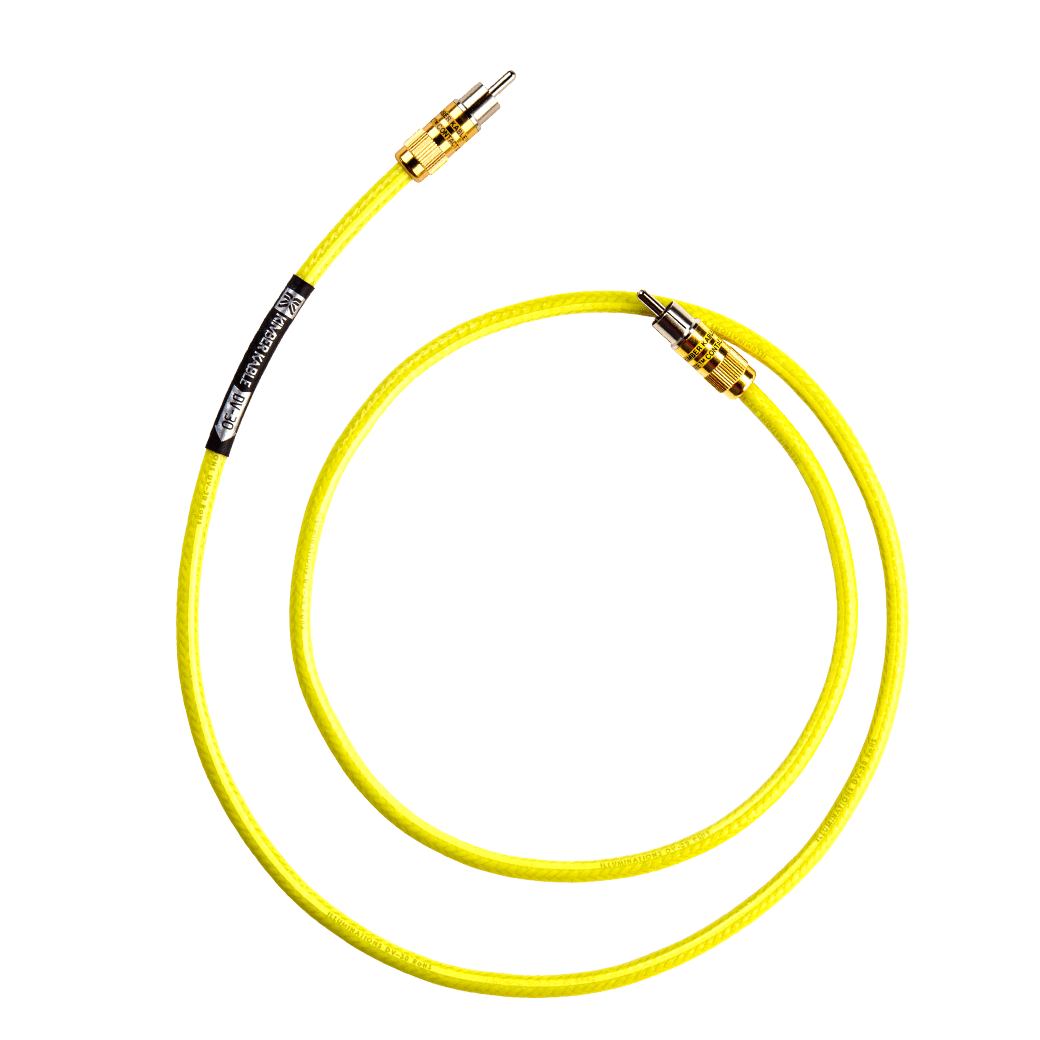

Kimber Kable DV30 – High-end coaxial digital cable for maximum bandwidth and precise signal transmission

The Kimber Kable DV30 was developed for demanding hi-fi and home cinema applications where low-loss and interference-free transmission of digital audio and video signals is the priority. Compared to the V21, the DV30 offers an even higher bandwidth and a more sophisticated construction with a foamed PTFE dielectric. The result is exceptionally precise signal transmission with high dynamics, exact timing accuracy, and a quiet, detailed soundscape.

More bandwidth for highest transmission quality

The Kimber Kable DV30 is based on a high-quality 75-ohm RG6 construction that has been specifically optimized for digital audio and video signals. Thanks to its increased bandwidth, the cable is ideally suited for high-resolution digital signals as well as longer cable runs without compromising signal quality. Even the finest details are transmitted precisely and without distortion.

High-purity materials for maximum signal purity

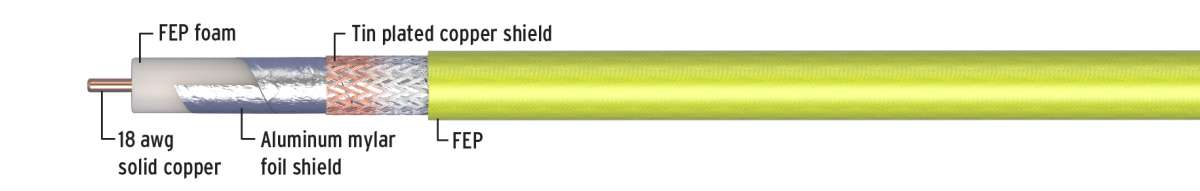

Inside, there is an Ultra Pure Solid-Core copper conductor, surrounded by a foamed PTFE dielectric. This design minimizes signal loss and reduces jitter as well as unwanted influences on the digital signal. High-quality dual shielding also provides reliable protection against electromagnetic and high-frequency interference, ensuring a particularly quiet background.

Ideal for modern digital sources

The Kimber Kable DV30 is perfectly suited for connecting:

• CD transports and DACs

• Network streamers and D/A converters

• Music servers

• Digital receivers

• High-end audio components with coaxial S/PDIF connections

Even with longer cable lengths, the DV30 ensures stable and reliable transmission without any audible loss of quality.

Various connection options for maximum flexibility

The Kimber Kable DV30 is available with various high-quality connector types and can be optimally adapted to different audio and video systems:

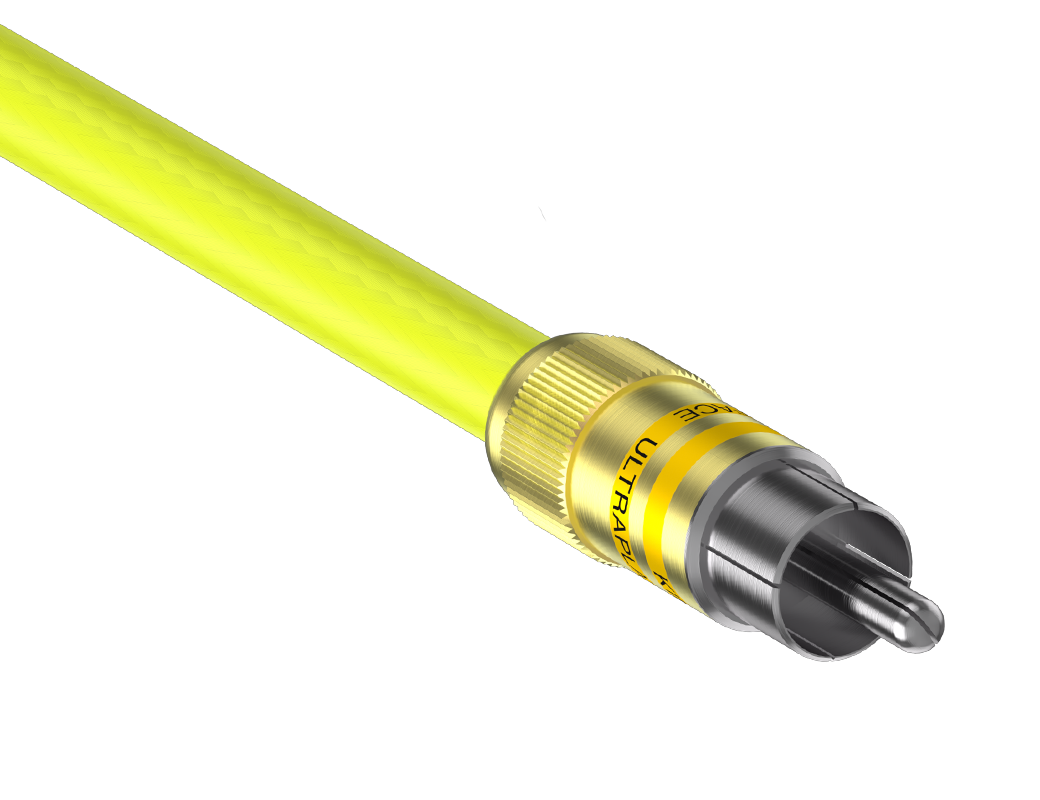

• Ultraplate (RCA)

• BNC

Both connection options ensure a permanently secure contact as well as low-loss and precise signal transmission.

Handcrafted in the USA

Like all Kimber Kable products, the DV30 is manufactured in the USA. High-quality materials, precise workmanship, and strict quality controls guarantee a long service life and permanently high transmission quality – both in audiophile stereo systems and in high-end home cinema setups.

Highlights

• High-quality 75-ohm coaxial digital cable

• Larger bandwidth than the Kimber Kable V21

• RG6 construction for low-loss signal transmission

• Ultra Pure Solid-Core copper conductor

• Foamed PTFE dielectric

• High-quality dual shielding against electromagnetic interference

• Ideal for CD transports, DACs, streamers, music servers, and digital receivers

• Also suitable for longer cable lengths

• Available with the following connection options:

  • Ultraplate (RCA)

  • BNC

• Handcrafted in the USA

Technical Details:

• Cable type: 75-ohm coaxial digital cable (S/PDIF)
• Cable construction: RG6 design for high bandwidth and low-loss signal transmission
• Conductor: Ultra-pure solid-core copper conductor
• Dielectric: Foamed PTFE
• Shielding: Dual shield for effective reduction of electromagnetic and high-frequency interference
• Optimized for high-resolution digital audio and video signals
• Higher bandwidth than the Kimber Kable V21
• Also suitable for longer cable lengths
• Electrical characteristics:
• Parallel capacitance (Cp): 62.5 pF/m
• Series inductance (Ls): 0.505 µH/m
• DC resistance (Rdc): 0.114 Ω/m
• Termination options:
• Ultraplate (RCA)
• BNC
• Nitrogen-assisted, hand-soldered termination
• Handcrafted in the USA

* Other lengths available upon request
