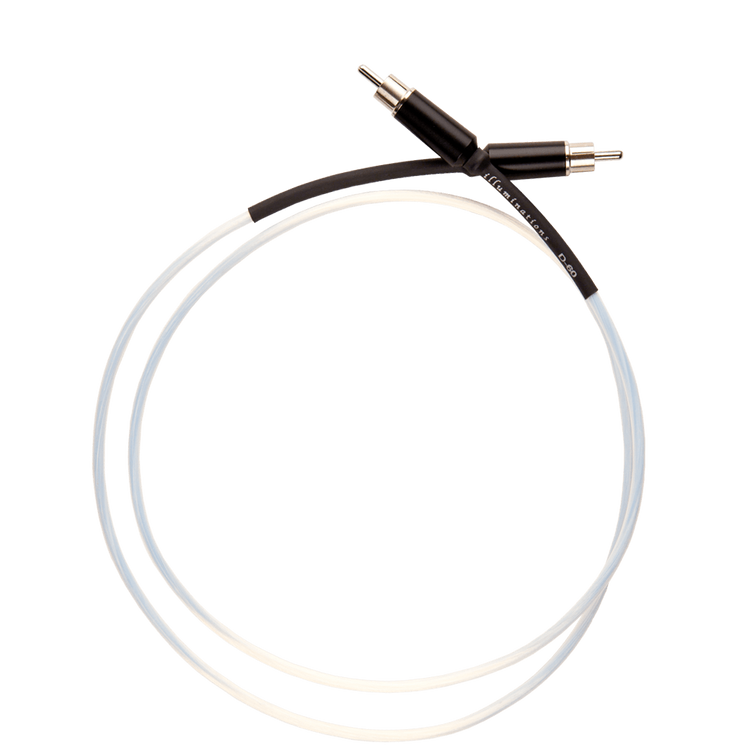

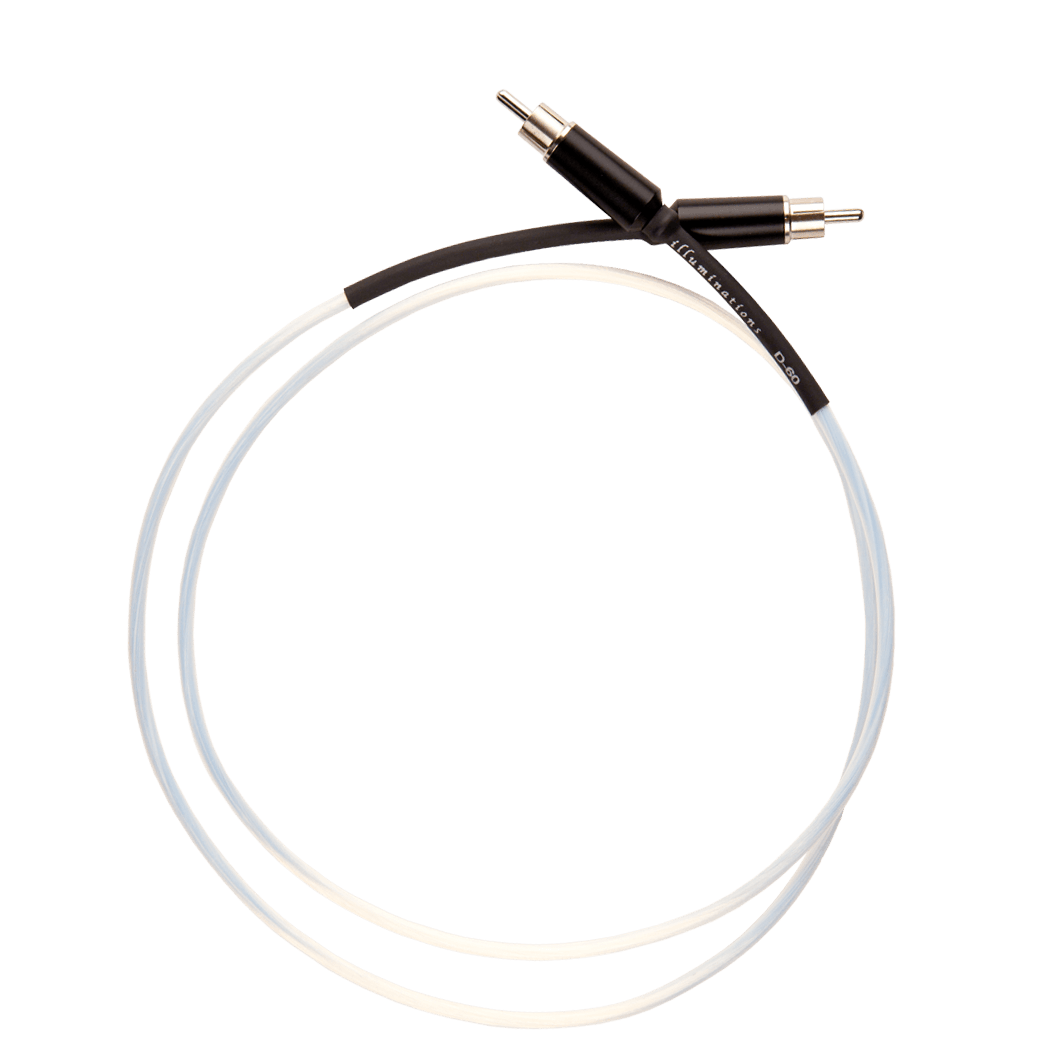

Kimber Kable D60 – Reference Digital Cable for Uncompromising High-End Playback

The Kimber Kable D60 has been one of the reference models among coaxial digital cables for many years, developed for audiophile music lovers who have the highest demands on their digital signal transmission. With its precise 75-ohm triaxial construction, a solid-core pure silver conductor, an elaborate double shielding, and extremely accurate impedance control, the D60 ensures an exceptionally precise, fast, and interference-free transmission of digital audio signals. The result is impressive detail resolution, exact timing, and a natural, three-dimensional soundstage.

Maximum precision for digital music signals

Digital audio transmission requires the highest level of accuracy. Even the smallest signal errors or jitter can have a negative impact on timing, spatiality, and detail resolution. The Kimber Kable D60 was specifically developed to effectively minimize these influences. Its precisely controlled 75-ohm impedance ensures low-loss signal transmission and enables an exceptionally authentic music reproduction with high dynamics and natural fine detailing.

Pure silver conductor for maximum detail resolution

At the heart of the D60 is a high-purity solid-core pure silver conductor, whose outstanding conductivity transmits even the finest digital information almost loss-free. In combination with the high-quality air/PTFE dielectric, signal losses are reduced to a minimum. Vocals seem more tangible, instruments gain more body, and the spatial imaging gains significantly in precision and depth.

Triaxial construction with elaborate double shielding

The triaxial cable design is complemented by two pure silver shields in a helical arrangement, which allow for nearly complete shielding against electromagnetic and high-frequency interference. In addition, a semi-conductive PTFE intermediate layer prevents vibration-induced triboelectric interference. The result is an exceptionally quiet background with the highest signal purity and exact spatial imaging.

Developed for demanding digital sources

The Kimber Kable D60 is ideal for high-quality digital audio connections between:

• CD transport and DAC

• Network streamer and D/A converter

• Music servers

• High-end digital sources

• Digital receivers with coaxial S/PDIF connection

Its uncompromising construction makes the D60 the ideal choice for reference systems where every detail of the music is to be preserved.

Various connection options for maximum flexibility

The Kimber Kable D60 is available with various high-quality connector options and can be optimally adapted to almost any high-end system:

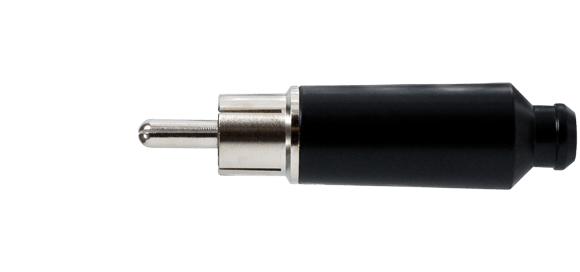

• Ultraplate (RCA)

• BNC

• WBT-0110 Ag

All connection variants ensure a permanently secure contact, precise impedance management, and low-loss digital signal transmission.

Handcrafted in the USA

Like all Kimber Kable products, the D60 is manufactured in the USA. High-quality materials, precise manual labor, and strict quality controls guarantee exceptional build quality as well as permanently consistent performance at a reference level.

Highlights

• Reference 75-ohm triaxial digital cable for high-end systems

• Solid-core pure silver conductor for maximum signal purity

• Precisely controlled 75-ohm impedance

• Air/PTFE dielectric for minimal losses

• Double pure silver shielding with helical construction

• Semi-conductive PTFE intermediate layer to reduce triboelectric interference

• Outstanding detail resolution, dynamics, and spatial imaging

• Ideal for CD transports, DACs, streamers, and music servers

• Available with the following connection options:

  • Ultraplate (RCA)

  • BNC

  • WBT-0110 Ag

• Nitrogen-assisted hand soldering

• Handcrafted in the USA

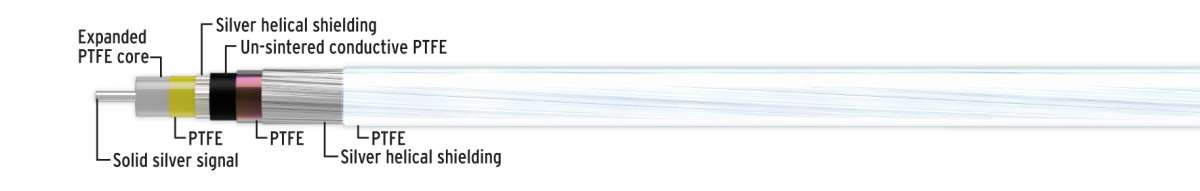

Technical details:

• Cable type: 75-ohm coaxial digital cable (S/PDIF)
• Cable construction: Precise tri-axial design with controlled 75-ohm impedance
• Conductor: Solid-core pure silver conductor (Black Pearl Silver)
• Dielectric: Air-articulated fluorocarbon/PTFE
• Shielding: Dual pure silver shielding in a helical design
• Semiconducting PTFE intermediate layer for reducing triboelectric noise
• Precise impedance control for minimal reflections and lowest jitter
• Electrical specifications:
• Parallel capacitance (Cp): 55.2 pF/m
• Series inductance (Ls): 0.502 µH/m
• DC resistance (Rdc): 0.115 Ω/m
• Signal propagation velocity: approx. 85% of the speed of light
• Optimized for high-resolution digital audio transmission (S/PDIF)
• Suitable for CD transports, DACs, network streamers, music servers, and digital receivers
• Connection options:
• Ultraplate (RCA/phono)
• BNC
• WBT-0110 Ag
• Nitrogen-assisted hand-soldering of all connections
• Handcrafted in the USA

* Other lengths are available upon request
