Lotoo LPX-01 – High-end USB-PD power supply for uncompromising power delivery

The Lotoo LPX-01 is a specially designed HiFi USB-PD power supply that ensures a particularly clean, stable, and low-noise power supply for high-quality audio components. Developed as the perfect companion for the Lotoo Gungnir, the LPX-01 is also suitable for USB DACs, headphone amplifiers, smartphones, external hard drives, and other USB-powered devices. With an output power of up to 160 watts, it offers sufficient power reserves even for demanding audio setups.

Extremely clean power supply for maximum sound quality

A high-quality power supply is the foundation of any audiophile music reproduction. The LPX-01 has been specifically engineered to minimize interference and voltage fluctuations. With an exceptionally low noise level of just 200 µV (20 Hz to 40 kHz), it provides connected devices with a constant and clean supply of energy. The result is improved detail resolution, greater dynamics, and a quieter soundstage.

Perfect addition to the Lotoo Gungnir and other HiFi components

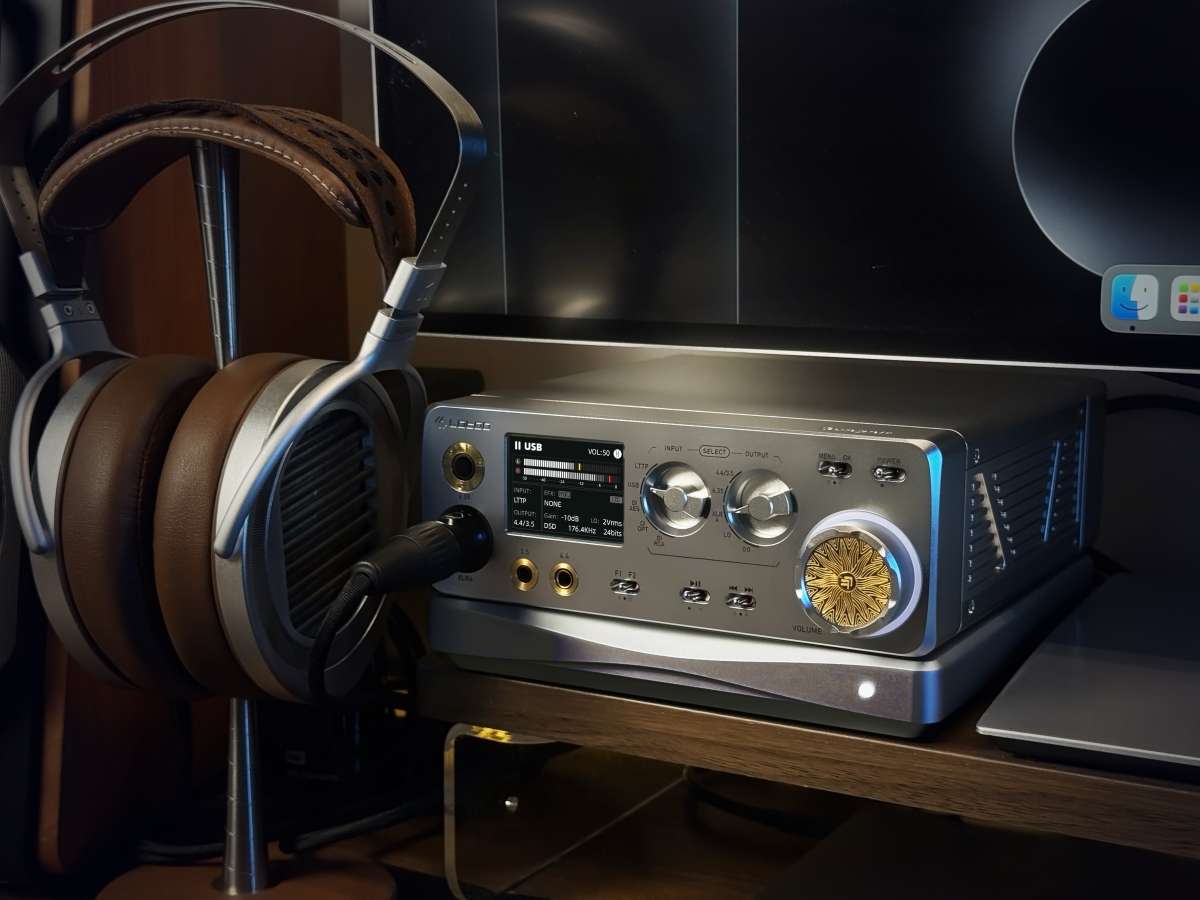

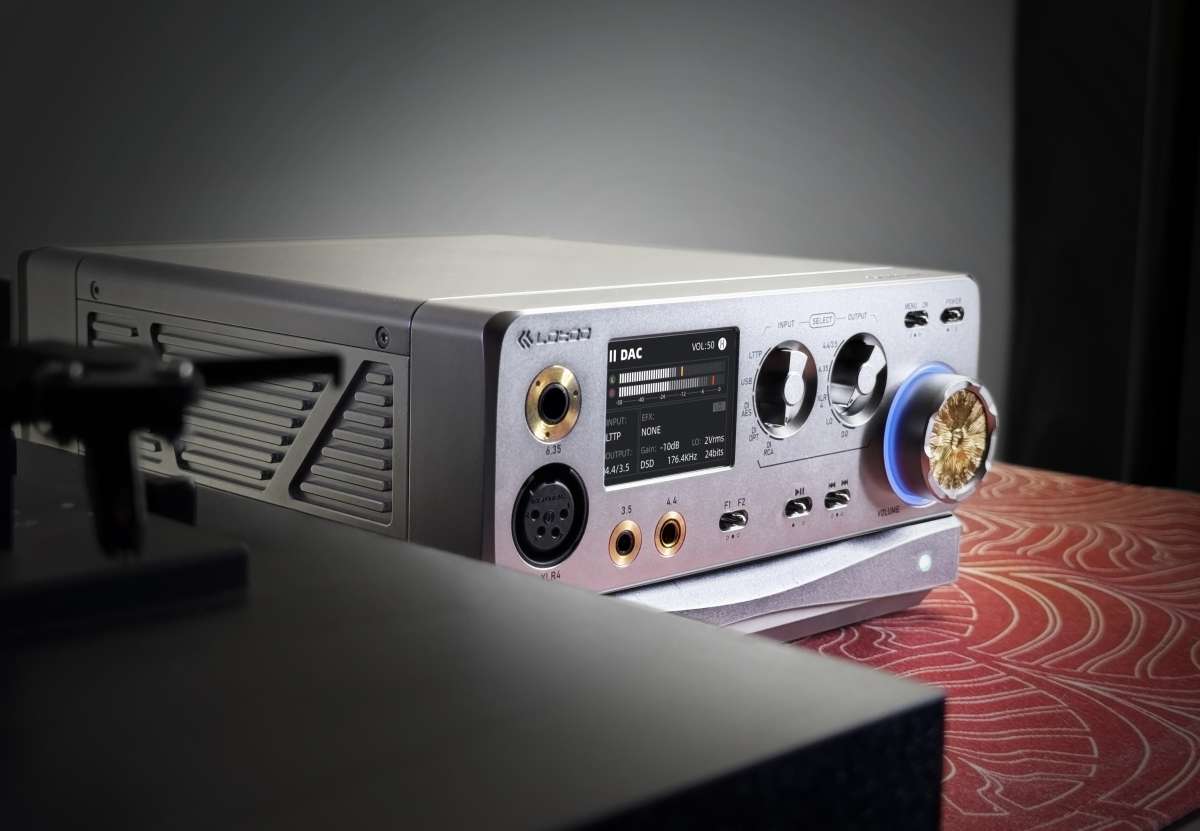

The Lotoo LPX-01 has been optimally tuned to the Lotoo Gungnir desktop DAC and complements it perfectly both technically and aesthetically. At the same time, the power supply is also suitable for numerous other audio components that benefit from a high-quality USB power source – including USB DACs, headphone amplifiers, digital audio sources, smartphones, or external storage media.

High-quality construction with effective shielding

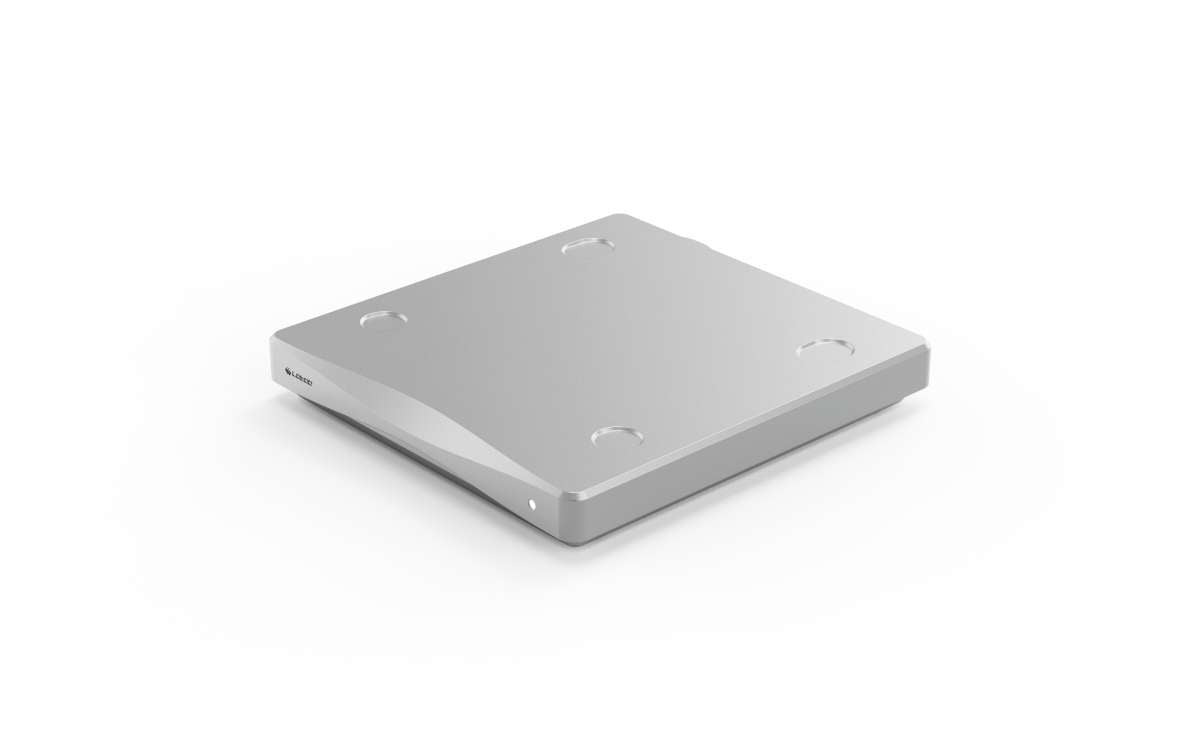

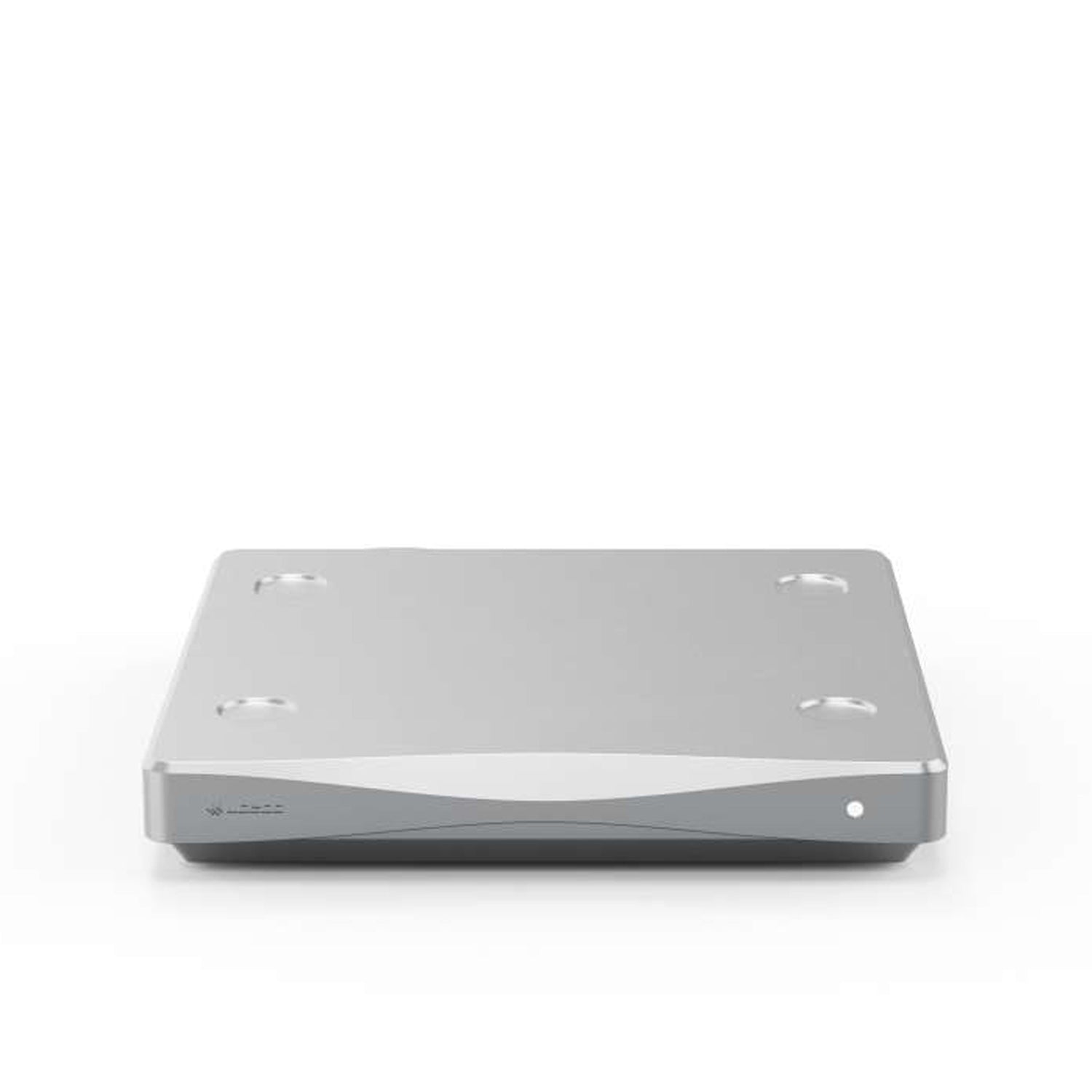

The robust all-metal housing reliably protects the electronics from electromagnetic interference and thus contributes to interference-free signal transmission. Through complete shielding, external influences are minimized and the power supply is kept permanently stable – a key prerequisite for the highest sound quality.

Designed for audiophile users

The Lotoo LPX-01 is aimed at music lovers and HiFi enthusiasts who want to unlock the full potential of their audio components. It is not included with the Lotoo Gungnir and is offered separately as an optional upgrade for maximum performance.

Highlights of the Lotoo LPX-01

• High-end USB-PD power supply for HiFi and audio components

• Up to 160 watts of output power

• Extremely low noise level of only 200 µV (20 Hz to 40 kHz)

• Optimized for the Lotoo Gungnir desktop DAC

• Suitable for USB DACs, headphone amplifiers, smartphones, and external drives

• Robust all-metal housing with full electromagnetic shielding

• Ensures a stable, clean, and low-interference power supply

• Improves dynamics, detail resolution, and sound purity of high-quality audio systems

Technical specifications:

· Maximum output power: 160 W total power.

USB-PD standard: USB Power Delivery 3.1.

· Output voltages (USB-PD): 5 V, 9 V, 12 V, 15 V, 20 V, up to 3 A each.

· USB-C outputs (C1, C2):

· Supported profiles: 5 V / 3 A, 9 V / 3 A, 12 V / 3 A, 15 V / 3 A, 20 V / 3 A.

· Max. power per USB-C port: up to 60 W simultaneously (three independent supplies in total).

· USB-A output:

· Output: 5 V / 3 A.

· Max. power: 15 W.

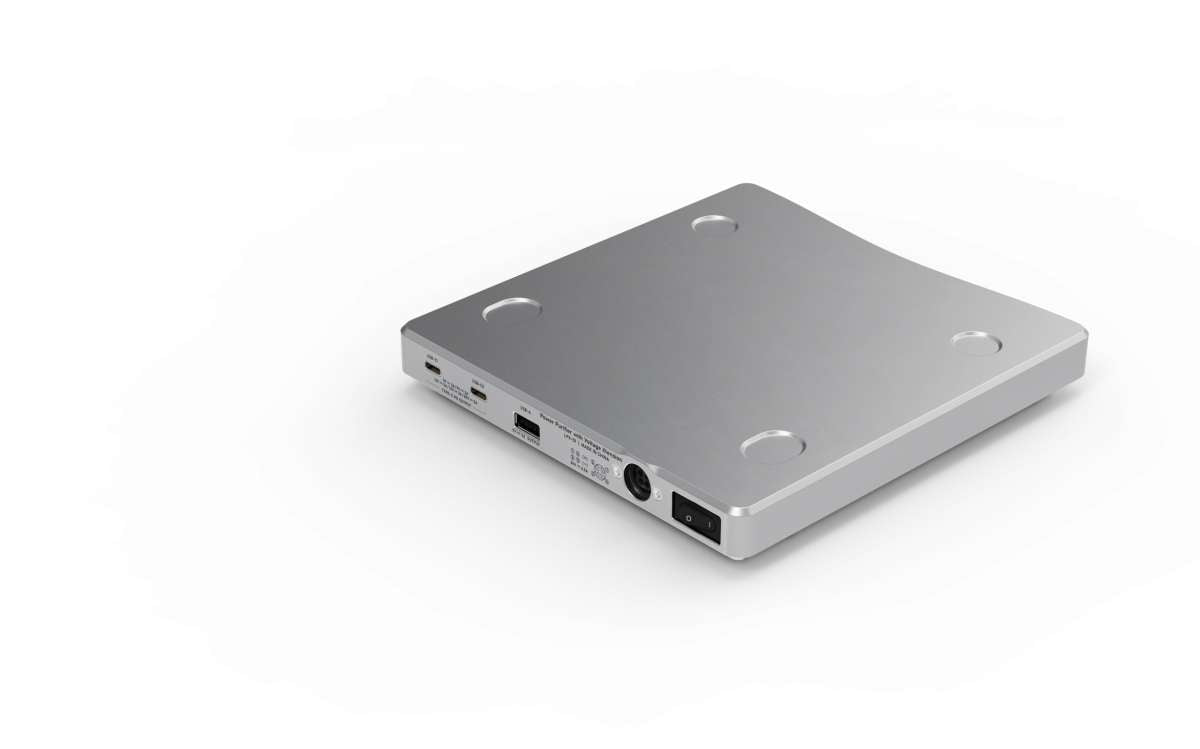

· Number of outputs: 2 × USB-C, 1 × USB-A.

· Input (Power Input Port):

· Specification: PIN1 = +, PIN2/3/4 = –, max. 24 V / 6.5 A.

· Use with the included 160 W power adapter.

· Total noise level: 200 μV in the frequency range 20 Hz – 40 kHz.

· Output impedance: 30 mΩ (very low impedance for high current delivery capacity).

· Dynamic response:

· Voltage recovery at load jump from 5% to 100% in 5 μs, deviation only 30 mV.

· Voltage change at load change from 0.5 A to 3 A ≤ 0.1%, tracking accuracy 1/1000.

· Filter and noise suppression:

· Multi-stage (four-stage) filter design from input to output for the suppression of RF switching noise, RFI and EMI.

· Frequency-shift reconstruction for shifting in-band noise to higher frequencies.

· Housing & Construction:

· Full metal housing with complete EM shielding.

· Protection functions:

· Protection against overvoltage, overcurrent, short circuit and overheating.

· Operation:

· Power switch: 0 = Off, I = On.

· Operation indicator via power LED.

· Scope of delivery:

· 1 × LPX-01 Power Base.

· 1 × 160 W power adapter.

· 1 × power cable.

· 2 × USB-C cable.

· 1 × Quick start guide.
