The Luxsin X8 is the manufacturer’s second intelligent DAC and headphone amplifier, building on the success of its predecessor, the X9. It combines the highest sound quality with innovative AI functions and comprehensive DSP processing.

Introduction
Six months after the launch of the X9, Luxsin presents the X8 as an intelligent DAC/headphone amplifier system. Its development was based on user feedback and integrates refined features as well as new hardware and software architectures. The focus is on stability, reliability, and professional sound reproduction.

Parallel DAC Design
The X8 uses eight Cirrus Logic CS43198 DAC chips in a true dual-mono parallel architecture, with four chips per channel. The left and right channels are completely independent in terms of power supply, layout, and signal path to minimize crosstalk. The parallel analog outputs are precisely summed, which reduces noise and improves dynamics, signal-to-noise ratio, and fine detail.

AI-Powered EQ Tuning
The world's first AI-supported EQ adjustment allows for personalized sound profiles via voice or text commands through an app or web UI. The HP-EQ system hardware-calibrates headphones to the Harman curve or other targets, with over 2,500 models in the database. Saving and switching between presets opens up new sound characteristics for a single pair of headphones.

Comprehensive DSP Functions
The crossfeed function simulates listening through speakers by blending channels and reduces listener fatigue. Stereo width, tone adjustment, and the loudness function compensate for frequencies at low volume. All outputs (4-pin XLR, 4.4 mm, 6.35 mm) automatically detect impedance and optimize gain without compromising the audio signal path.

Powerful Amplification
The optimized amplifier with OPA1612 op-amps and TPA6120A2 drivers delivers 4800 mV per channel with low distortion. A variable linear power supply (12/15 V) separates the digital and analog sections for pure sound. The 4-inch touchscreen, CNC aluminum housing, and storage of individual settings per output ensure intuitive operation.

Connections and Control

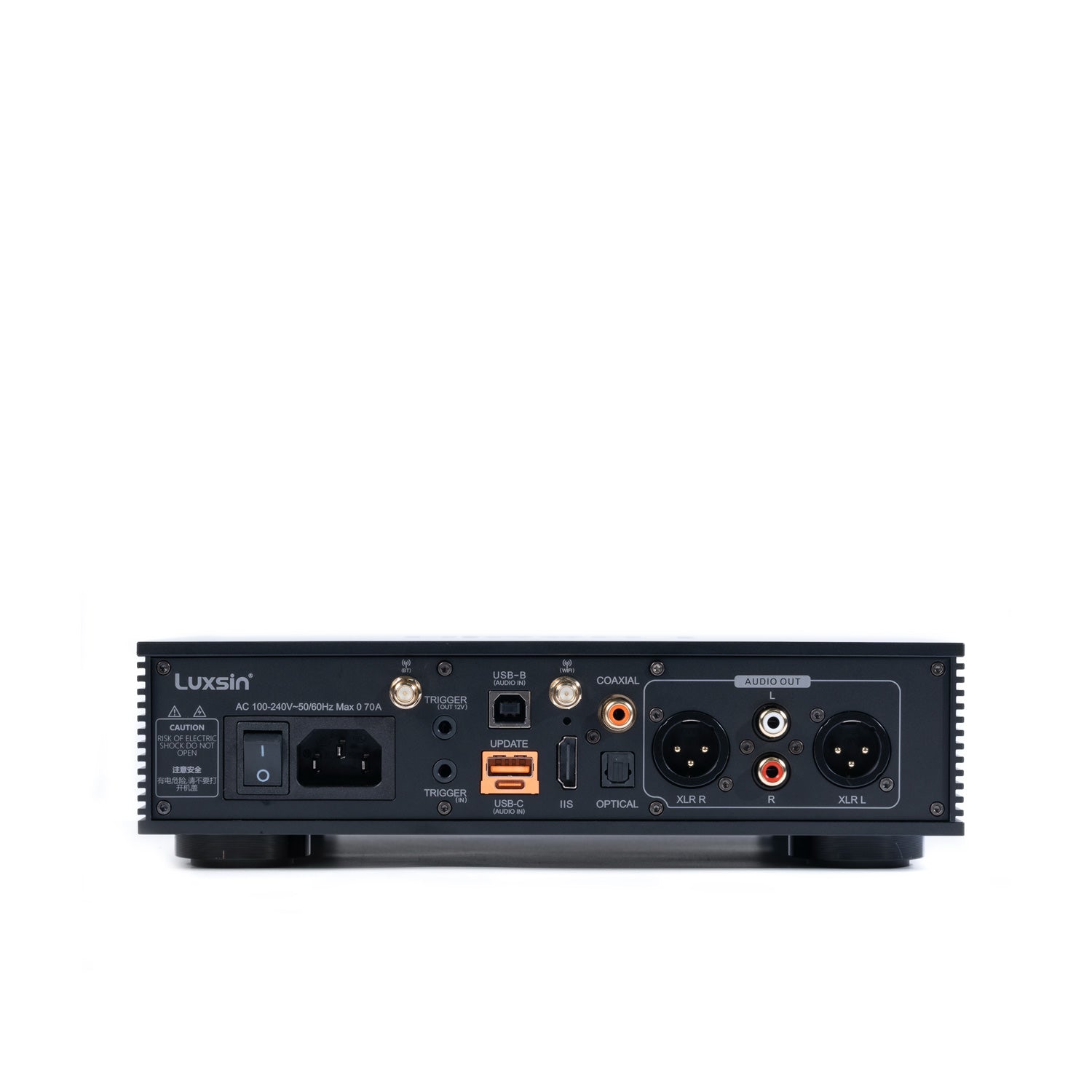

Inputs include USB-B, optical, coaxial, and IIS (up to 8 configurations), plus a 12V trigger for system integration. Control is handled via an Android/iOS app, web UI (Windows/macOS), or optional remote control, with OTA updates. The digital audio core with HiFi-5 DSP and ARM enables future-oriented expansions.
